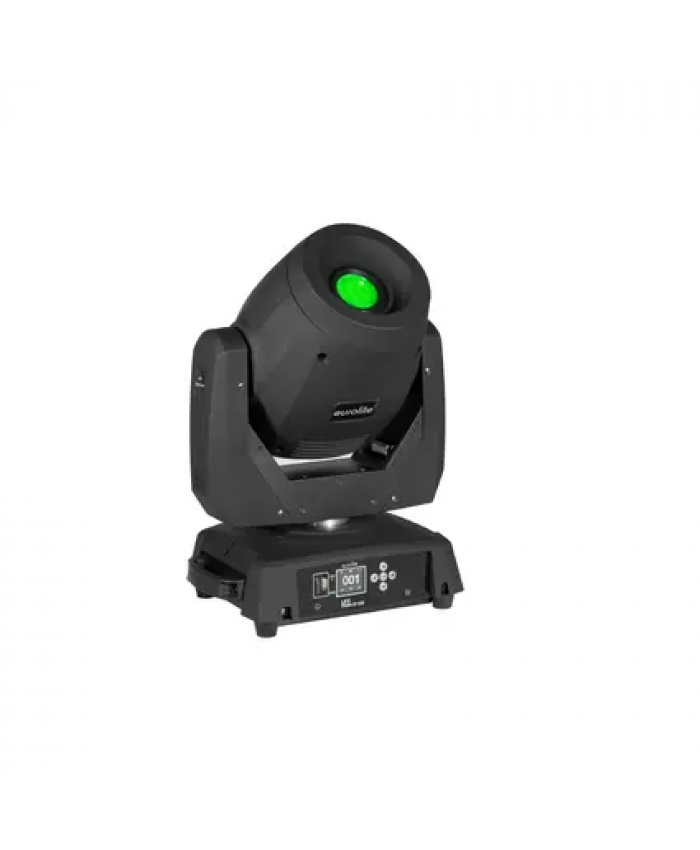

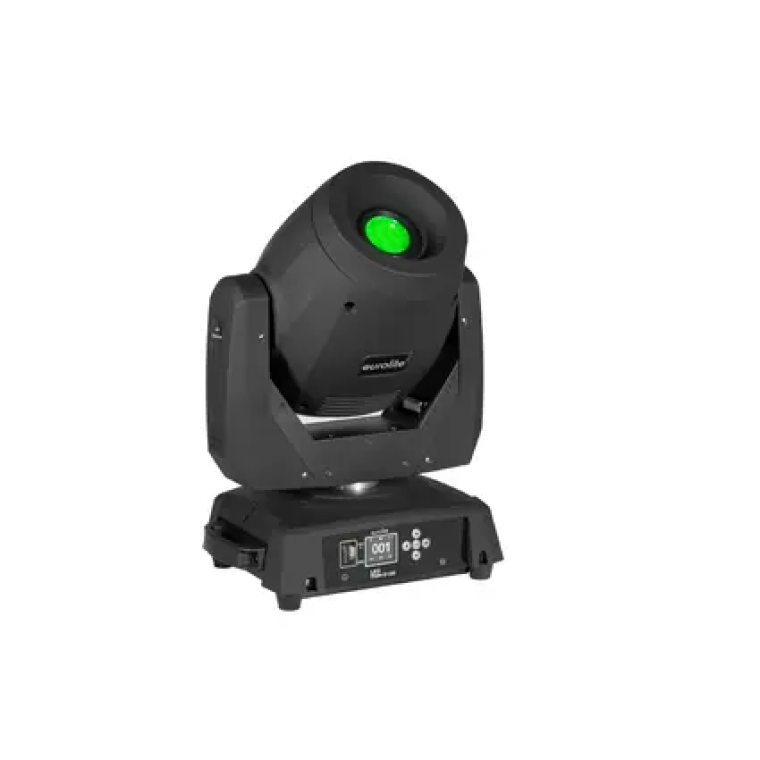

EUROLITE LED TMH-S180 Moving Head Spot
Price on request
In stock
Interested in this product?
Overview
EUROLITE LED TMH-S180 Moving Head Spot
LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port
- 1 powerful LED 200 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 270° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Gobo wheel with rotating gobos; prism 3-fold rotating; focus motor-driven
- Dimmer electronic
- Multi beam effect; gobo effect
- Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
- Preprogrammed in LED PC-Control 512; Light Captain
- Flicker-free
- With a beam angle of 10°
- LCD display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; rental
- Application possibility: Standing; suspended
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 265 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 3,15 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 200 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 270° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 2 - 10 Hz |
| Equipment: | Gobo wheel with rotating gobos; prism 3-fold rotating; focus motor-driven |
| Color generation: | Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 23,5mm Image diameter 15mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement |
| DMX channels: | 13; 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; sound to light via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function |
| Preprogrammed in: | LED PC-Control 512; Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 2500 Hz |
| Beam angle: | 10° |
| Beam angle (1/2 peak): | 10° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 20700 lx, 6m: 5273 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Width: 32,5 cm Depth: 27,0 cm Height: 45,5 cm |
| Weight: | 11,35 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
