Midea XTREME 12,000
Quick Overview

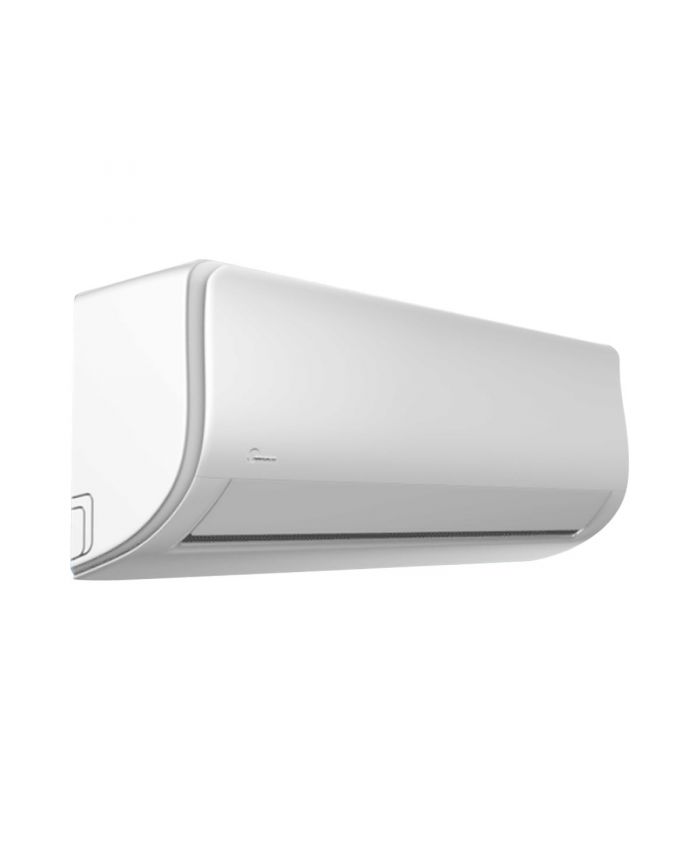

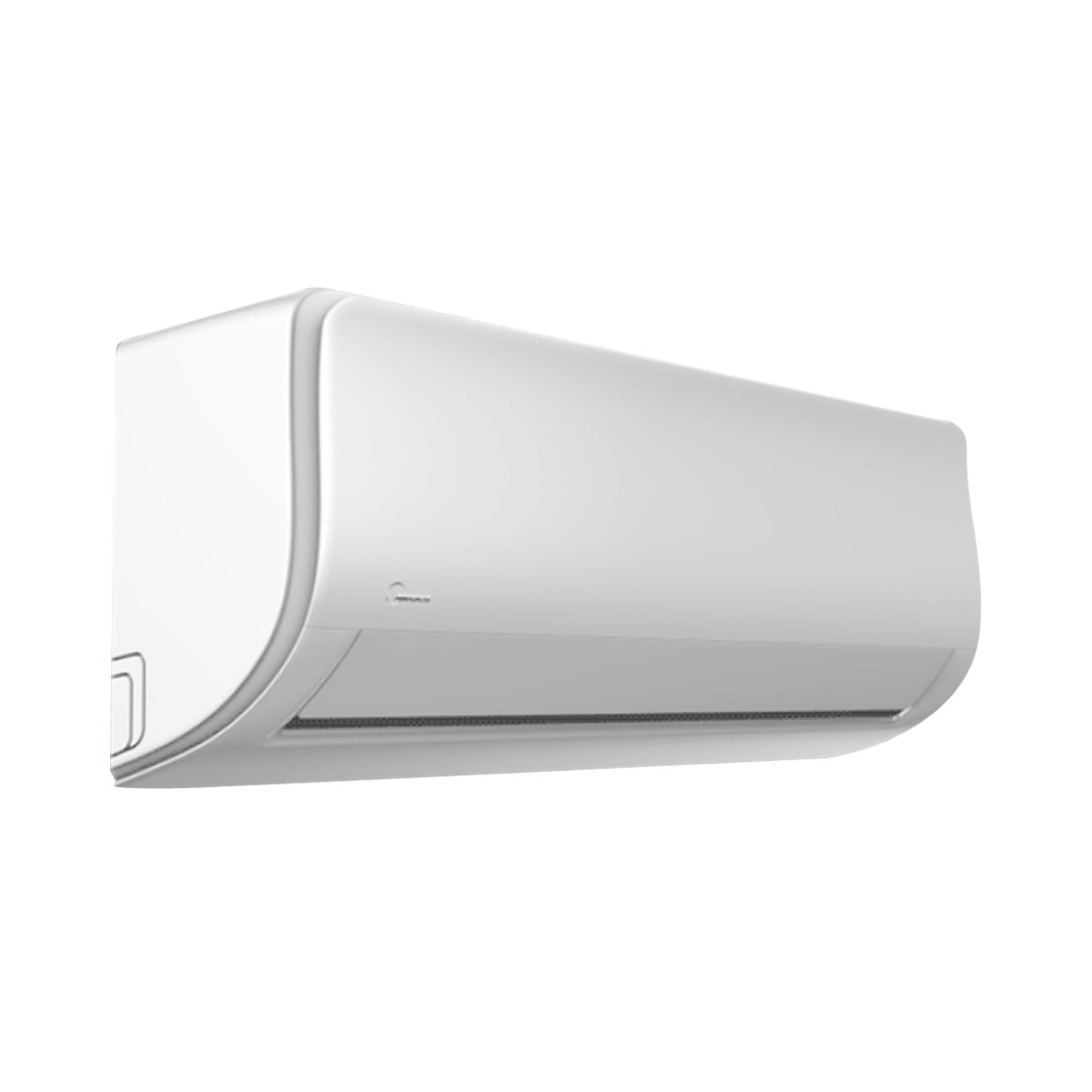

Midea XTREME Series 12,000 BTU
Midea XTREME 12,000
The new Midea Xtreme air conditioning series “flexes its muscles” in terms of product performance, combining a refined and compact design with extreme performance to meet the challenges of the most difficult installations, with the certainty of the promise of comfort, regardless the environmental conditions.
Product details:
- Indoor unit code: MSAGBU-12HRFN8
- Outdoor unit code: MOX201-12HFN8
Energy efficiency:
- SEER: 8.5
- SCOP (Cold-medium-hot season): 3.4-4.2-5.4
- Energy Efficiency Class (cooling): A +++
- Energy Efficiency Class (heating): A +++
- Annual energy consumption cooling / heating kWh / A: 137 / 847
- Min-nom-max cooling capacity: 1.37-3.52-4.31 kW
- Power absorbed in cooling min-nom-max: 120-1034-1650 W
- Min-nom-max heating capacity: 1.07-3.81-4.38 kW
- Power absorbed in heating min-nom-max: 110-1002-1480 W
- Air flow (Min-med-Max) m3 / min: 350-400-530
- Indoor unit sound pressure (Min-Med-Max) (db (A)): 23-32-38
- Sound power indoor unit max db (A); 56
- Max external unit sound pressure (db (A)): 56
- Max external unit sound power (db (A)): 62
Features:
- Power supply (V / Hz / Φ): 230/50/1
- Liquid / Gas Line Refrigerant Piping: mm (inch) 6.35 / 9.52 (1/4 “/ 3/8”)
- Type of refrigerant: R32
Dimensions and weight:
- Indoor Unit (LxWxH): 835-208-295 mm ; 11 Kg
- Outdoor Unit (LxWxH): 800-303-555 mm; 26.3 Kg
Midea smart kit (WiFi technology):
The indoor units of the Right series are equipped with the Midea smart kit. The unit can be operated by the dedicated MIDEA AIR APP via a WLAN connection.
Product warranty: All genuine residential Midea Air Conditioning Units sold in Malta are new, packaged and have a warranty of 5 Years from the date of purchase.
