EUROLITE LED BAR-6 UV Bar
Quick Overview

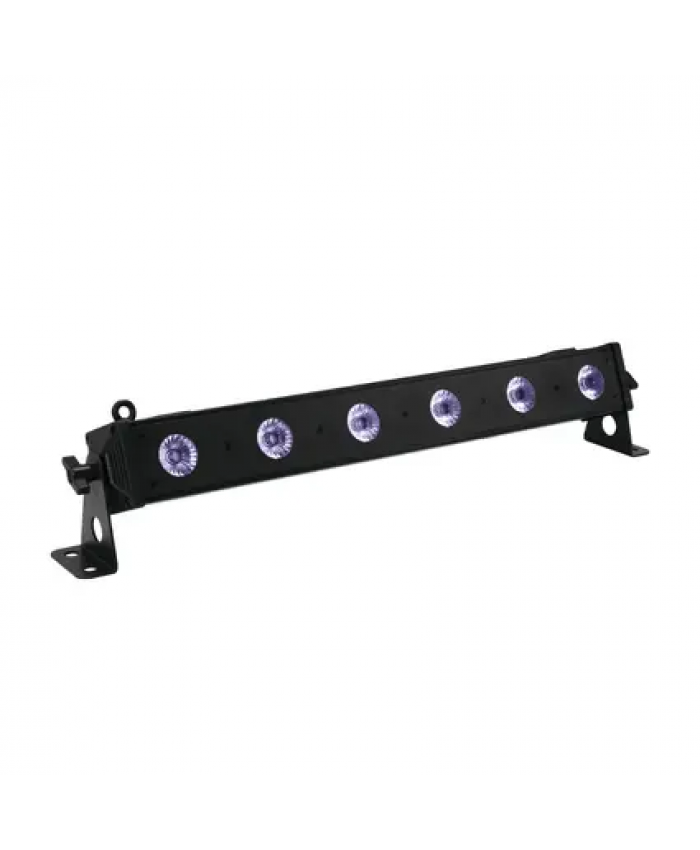

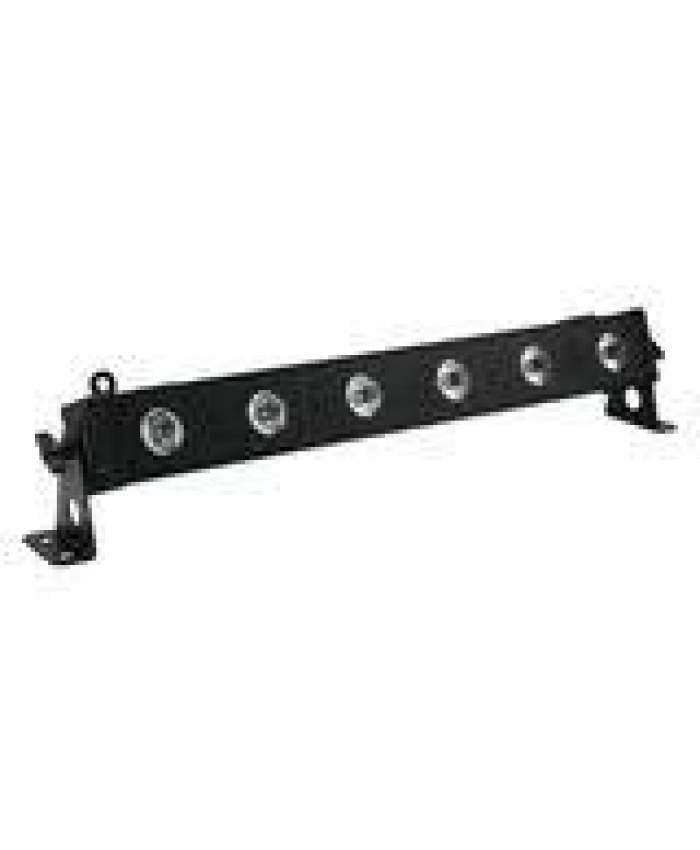

EUROLITE LED BAR-6 UV Bar
LED bar (50cm) with 6 x 1 watt ultra violet (UV) LED
Light effect bar (50 cm) with UV LEDs
The powerful and dimmable light effect bar EUROLITE LED BAR-6 UV is equipped with six 1 W UV LEDs. Due to the convection cooling, the LED BAR is noiseless and offers you versatile application possibilities. Whether at events or for band performances - whether in the theatre or at galas - the LED Bar-6 UV is variably applicable.
It is controlled via DMX, master-slave operation is also possible. The LED Bar also has a phantom-powered USB socket for a QuickDMX receiver. This is optionally available. In auto and music mode you can also use integrated show programs.
Addressing and settings can be made via the integrated control unit with 4-digit LED display. The mains connections allow you to operate up to eight devices in a row.
- 6 powerful LEDs 1 W high-power ultra violet (UV)
- Dimmer electronic
- UV effect
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in LED PC-Control 512; Colorchief
- Flicker-free
- With a beam angle of 14°
- With mounting bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended; wall mountin
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
| Power output: | IEC connector (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 6 x 1 W high-power ultra violet (UV) |
| DMX channels: | 1; 2 |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; Colorchief |
| Projection: | Flicker-free |
| Beam angle: | 14° |
| Beam angle (1/2 peak): | 14° |
| Beam angle (1/2 peak): | Wash effect |
| Beam angle (1/10 peak): | 24° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Dimensions: | Length: 50 cm Depth: 8,5 cm Height: 11,5 cm |
| Weight: | 1,65 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
