Eurolit LED Moving-Head Wash
€229.00
Quick Overview

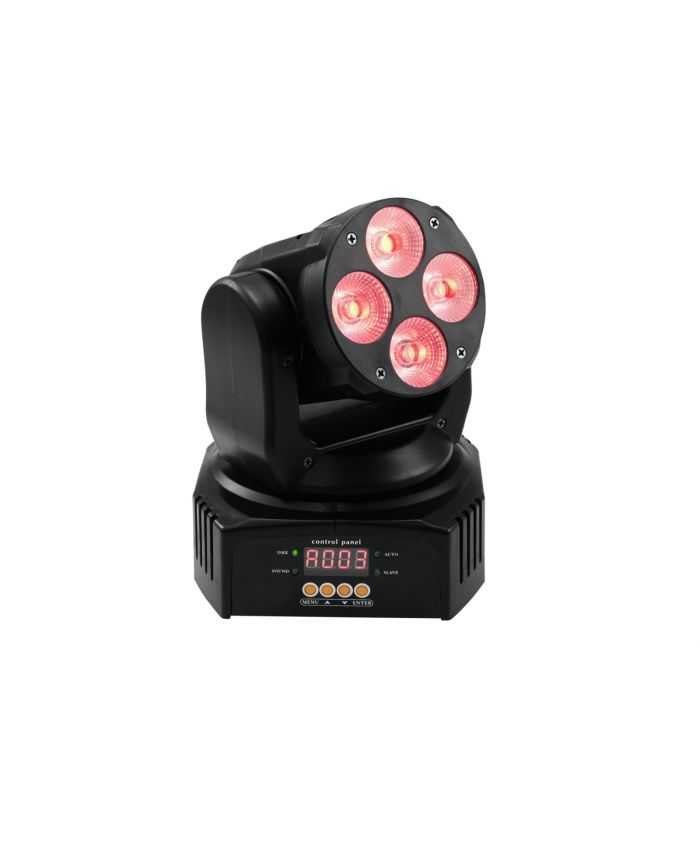

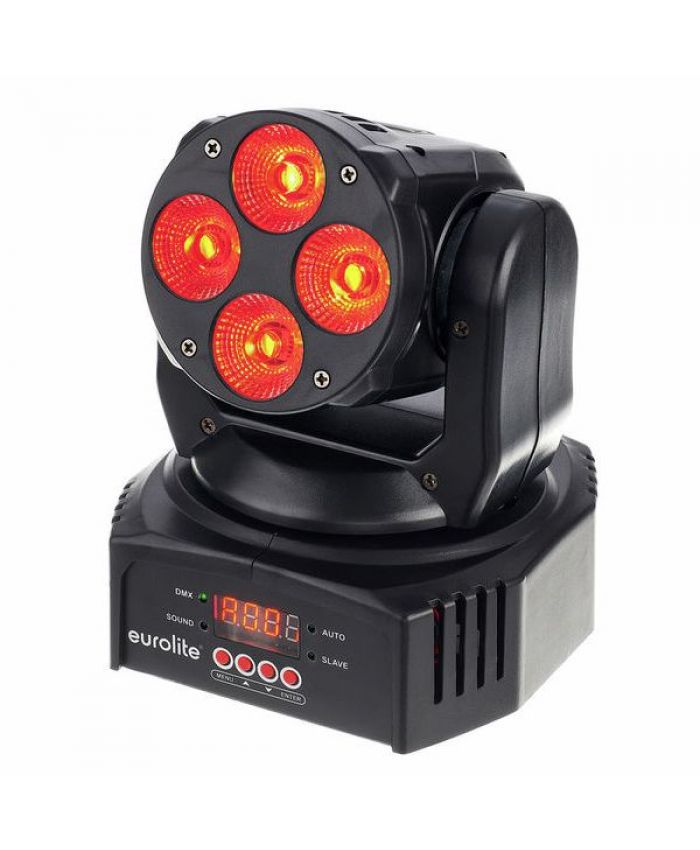

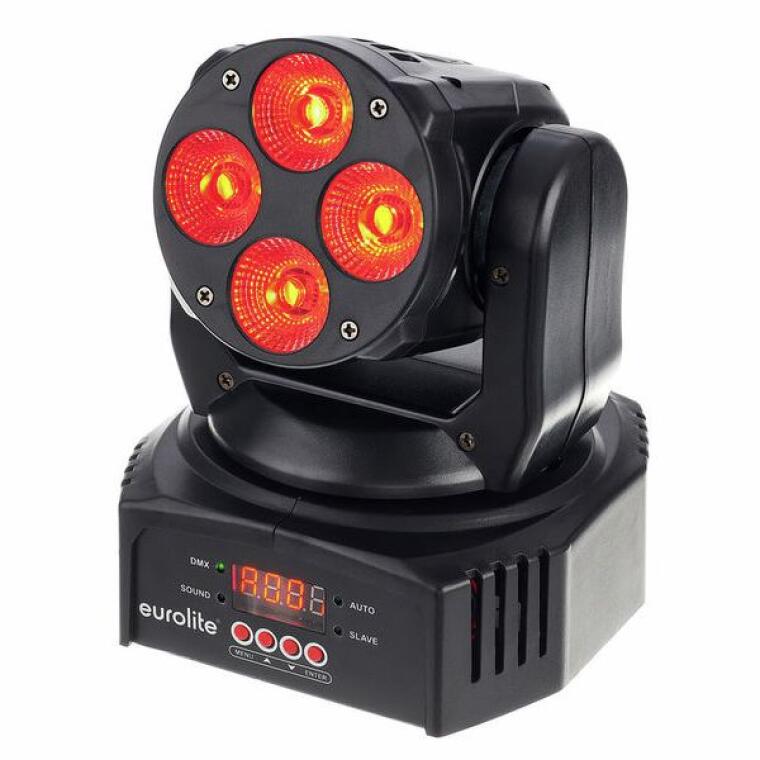

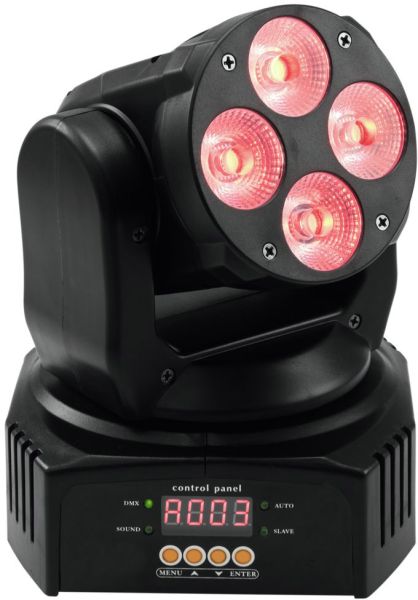

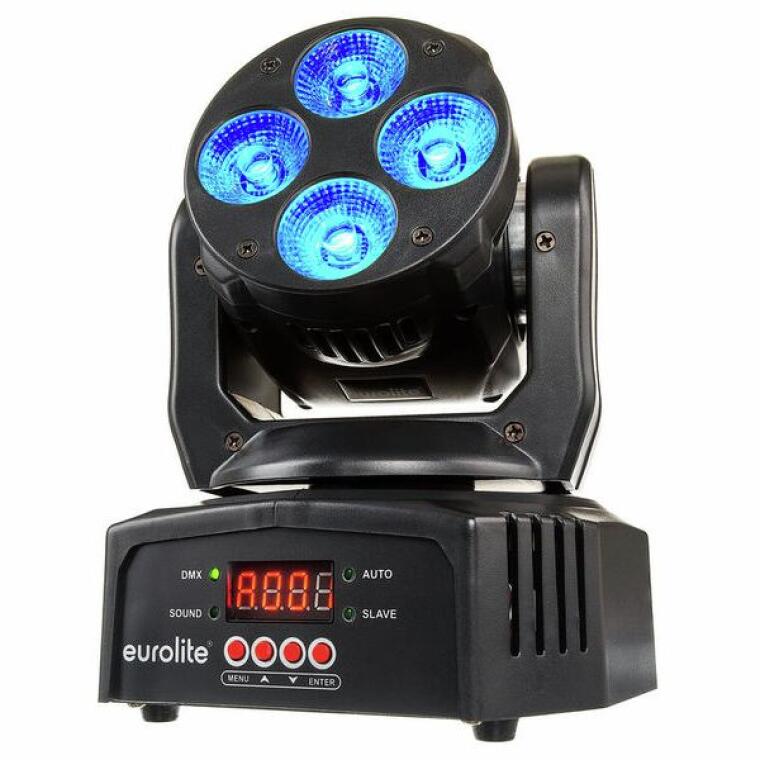

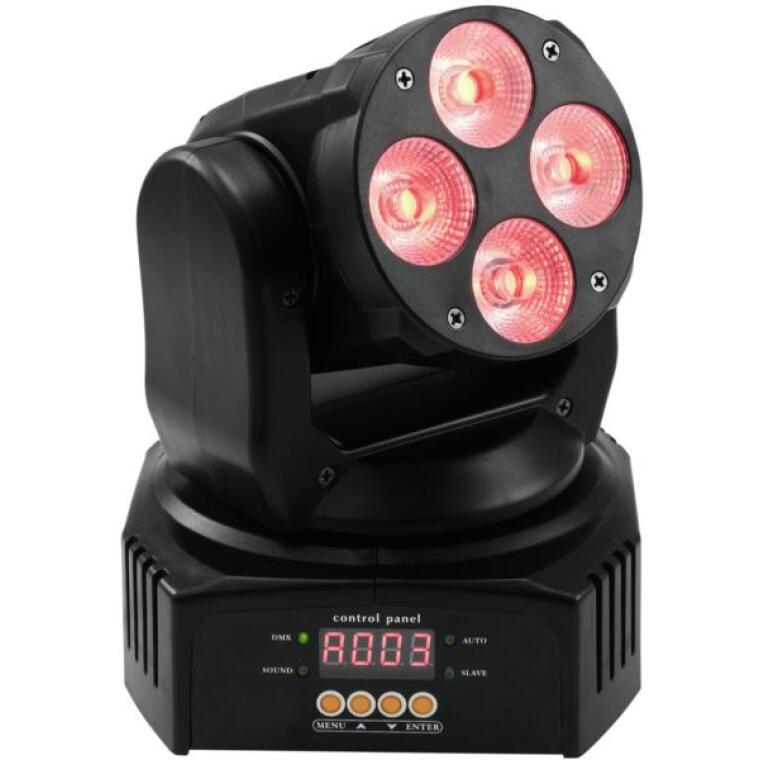

EUROLITE LED TMH-46 Moving-Head Wash
Eurolite TMH-46
Compact moving washlight with 6in1 LEDs
- 4 high-power 10 W RGBAW+UV LEDs (6in1)
- Total weight just 1.5 kg
- Positioning within 540° PAN and 220° TILT
- Stepless RGBAW+UV color mixture
- Master dimmer
- Internal programs
- Color and motion macros
- Strobe effect with adjustable speed
- Exact positioning via 16 bit PAN/TILT movement resolution
- Addressing via control panel with 4-digit LED display
- Floor use and suspended installation possible
- LED: 4 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 16; 18 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; Stand-alone; Sound to light via Microphone; Master/slave function
- Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW already preprogrammed
- Flicker-free projection
- Power supply:100-240 V AC, 50/60 Hz
- Power consumption:45 W
- IP classification:IP20
- Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
- Lamp type:LED lamp
- LED:4 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Max. TILT movement:Exact positioning (16 bit resolution) 220°
- Max. PAN movement:Exact positioning (16 bit resolution) 540°
- DMX channels:16; 18
- DMX input:1 x 3-pin XLR (M) mounting version
- DMX output:1 x 3-pin XLR (F) mounting version
- Cooling:Cooling fan
- Control:DMX; Stand-alone; Sound to light via Microphone; Master/slave function; Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW
- Beam angle:24°
- Beam angle (1/2 peak):24°
- Beam angle (1/10 peak):42°
- Illuminance in Lux (lx):R red 3m: 59 lx, 6m: 16 lx
- G green 3m: 145 lx, 6m: 41 lx
- B blue 3m: 29 lx, 6m: 8 lx
- CW 3m: 136 lx, 6m: 37 lx
- A amber 3m: 47 lx, 6m: 13 lx
- UV 3m: 1 lx, 6m: 1 lx
- All 3m: 376 lx, 6m: 103 lx
- Housing color:Black
- Display type:4 digits 7-segment LED display
- Dimensions:Width: 14,5 cm
- Depth: 14 cm
- Height: 18 cm
- Weight:1,76 kg
- Legal specifications
- Special product:Not designed for household room illumination
- intended use:show effect lighting
- Power supply:100-240 V AC, 50/60 Hz
- Power consumption:45 W
- IP classification:IP20
- Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
- Lamp type:LED lamp
- LED:4 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Max. TILT movement:Exact positioning (16 bit resolution) 220°
- Max. PAN movement:Exact positioning (16 bit resolution) 540°
- DMX channels:16; 18
- DMX input:1 x 3-pin XLR (M) mounting version
- DMX output:1 x 3-pin XLR (F) mounting version
- Cooling:Cooling fan
- Control:DMX; Stand-alone; Sound to light via Microphone; Master/slave function; Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW
- Beam angle:24°
- Beam angle (1/2 peak):24°
- Beam angle (1/10 peak):42°
- Illuminance in Lux (lx):R red 3m: 59 lx, 6m: 16 lx
- G green 3m: 145 lx, 6m: 41 lx
- B blue 3m: 29 lx, 6m: 8 lx
- CW 3m: 136 lx, 6m: 37 lx
- A amber 3m: 47 lx, 6m: 13 lx
- UV 3m: 1 lx, 6m: 1 lx
- All 3m: 376 lx, 6m: 103 lx
- Housing color:Black
- Display type:4 digits 7-segment LED display
Dimensions
- Dimensions:Width: 14,5 cm
- Depth: 14 cm
- Height: 18 cm
- Weight:1,76 kg
