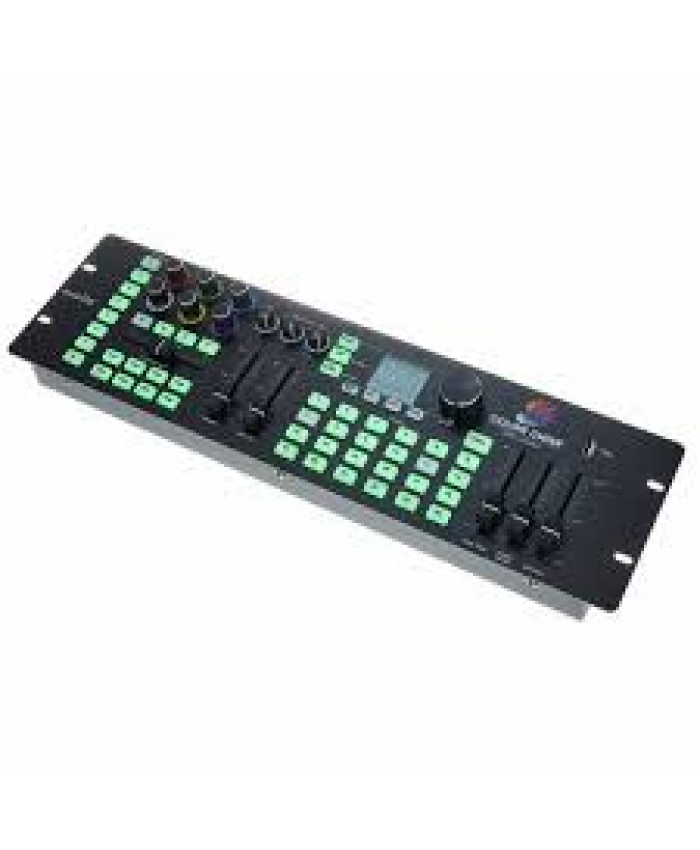

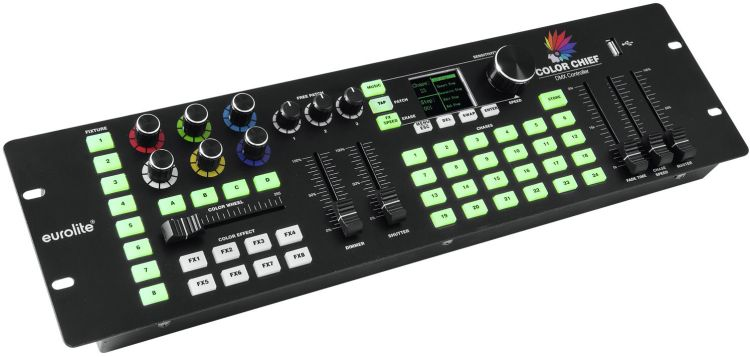

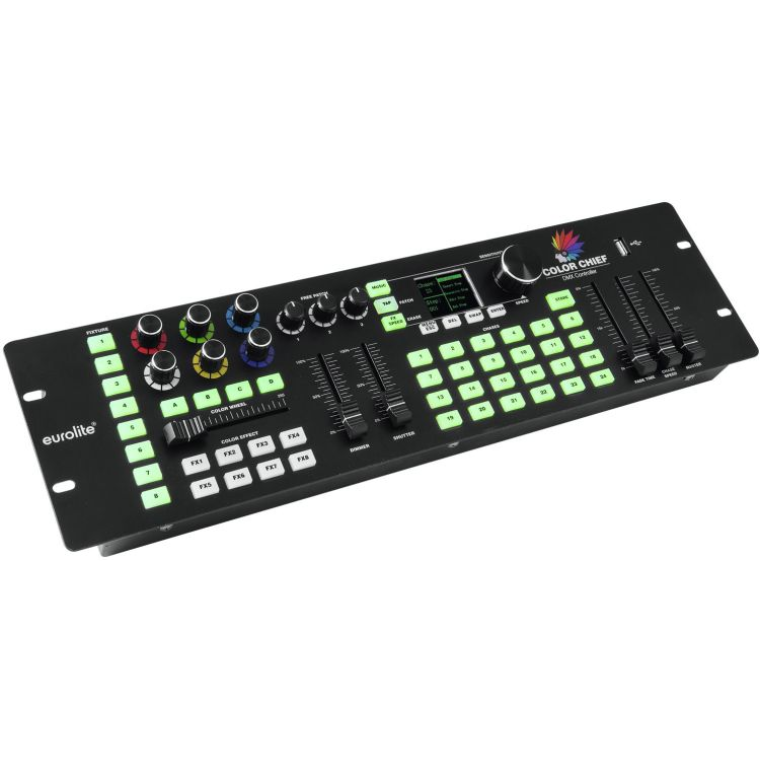

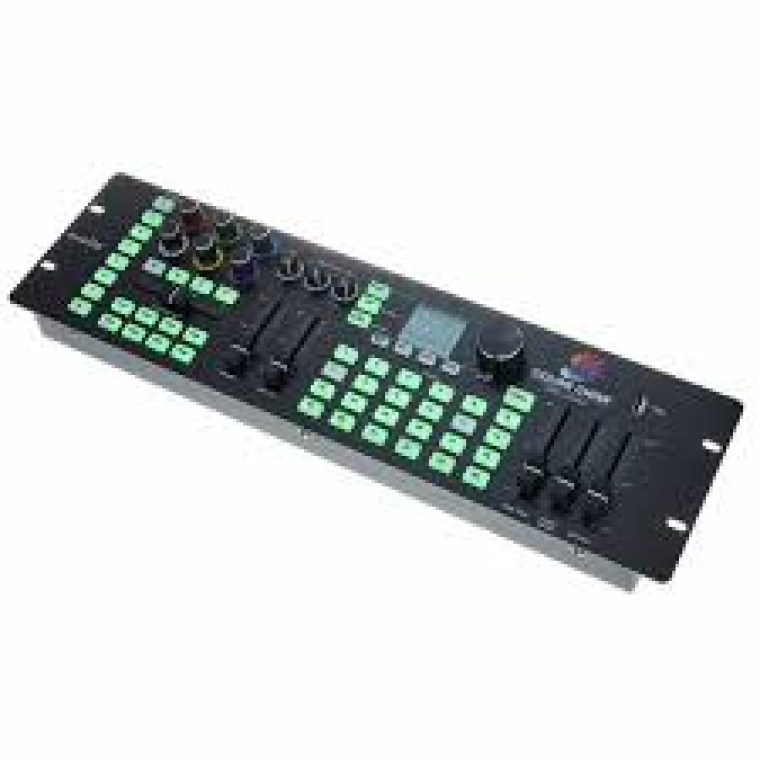

EUROLITE DMX LED Color Chief Controller

€0.00

Quick Overview

Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
For 8 devices or device groups, each with up to 4 segments
Quick and easy programming
Additional fixtures can be configured manually
8 color effects directly selectable
3 additional channels available per fixture (e.g. for rotations)
Color wheel selection and simulation
24 memory spaces for scenes and chases
Several chases and scenes can be run simultaneously
USB port for storing program data
Sound control via audio signal or TAP button
Master dimming, fade time and run time easily adjustable
Can transmit up to 240 DMX channels
(19") 48.3 cm rack installation 3 U
Programmable 24 scenes/chases distributed over 1 page/s
Control via DMX; sound to light via RCA (F) mounting version; sound to light via microphone
Firmware can be updated
Desktop console housing
For application areas such as: Clubs/dancing school; party room; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels
Silent operation

Power supply:	100-240 V AC, 50/60 Hz 9V DC 800 mA
Power consumption:	7.2 W
IP classification:	IP20
Protection class:	Protection class III
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs:	Programmable 24 scenes/chases distributed over 1 page/s
DMX channels:	Output 240
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; sound to light via RCA (F) mounting version; sound to light via microphone
Housing color:	Black
Available storage media:	USB devices (FAT 32)
USB port:	Type A
Color:	Black
PC connect:	, firmware can be updated
Housing design:	(19") 48.3 cm rack installation 3 U Desktop console housing
Dimensions:	Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm
Weight:	2.25 kg
Noise classification:	Class 0 (no noise at all)
