Omnitronic CPE-120P (100V Line)
€289.00
incl. VAT
Out of stock
Interested in this product?
Overview
OMNITRONIC CPE-120P PA Mixing Amplifier
PA mixing amplifier with audio player,IR remote control and Bluetooth, 60 W RMS
- SD card slot and USB port
- FM tuner with auto scan
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Treble and bass and master controls for the output signal
- 4-digit LED level meter
- Mains operation and 24 V emergency power operation
- 2 U
- Control via Bluetooth; IR remote control
- Desktop console housing
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Omnitronic CPE-120P – Technical Specifications
Power Supply & Consumption
-
Power Supply: 100 V Line / 230 V AC, 50 Hz
-
Power Consumption: ~180 W
Audio Performance
-
Output Power (RMS): 120 W RMS
-
Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance
-
Frequency Range: 80 - 16,000 Hz
-
S/N Ratio: >75 dB (Line), >65 dB (Mic)
-
THD: <1% @ 1 kHz
Connectivity & Media Playback
-
Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player, FM tuner
-
Remote Control: IR remote control included for media player
Controls & Indicators
-
Display: LED indicator lights for Power, Signal, and Clip
-
Control Elements: Master volume knob, independent MIC 1, MIC 2, and AUX volume controls, 2-band EQ (Bass & Treble)

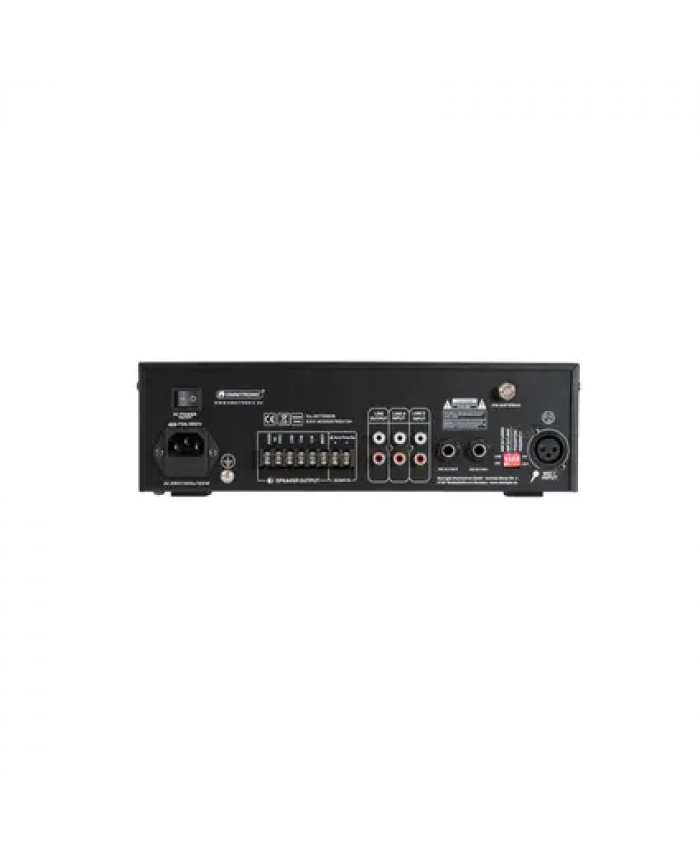

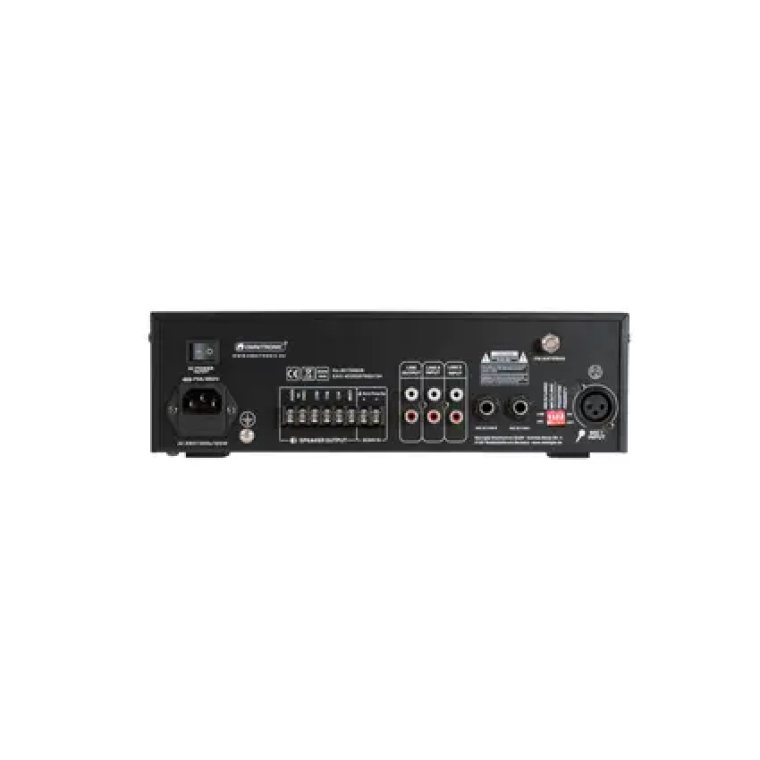

Inputs & Outputs
-
Inputs:
-
Microphone: 2 x 6.35 mm jack (MIC 1 with priority override)
-
Aux/Line: 1 x Stereo RCA
-
-
Outputs:
-
Line Output: 1 x Stereo RCA (Pre-Out)
-
Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)
-
Physical Specifications
-
Housing Design: Compact tabletop / shelf steel enclosure
-
Dimensions (W x D x H): 280 x 220 x 66 mm
-
Weight: 4.3 kg
Accessories Included
-
AC Power Cable, IR Remote Control, User Manual
