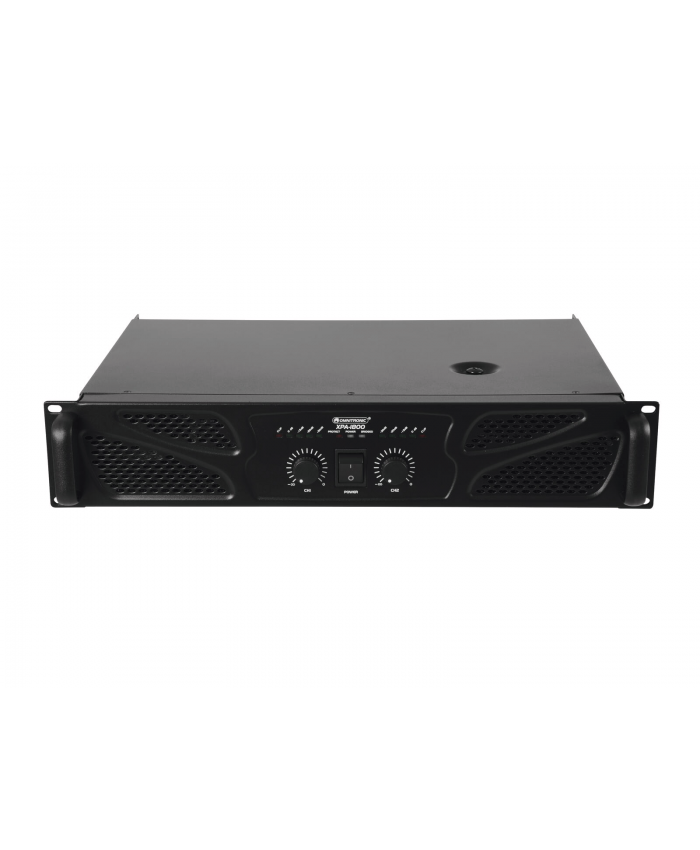

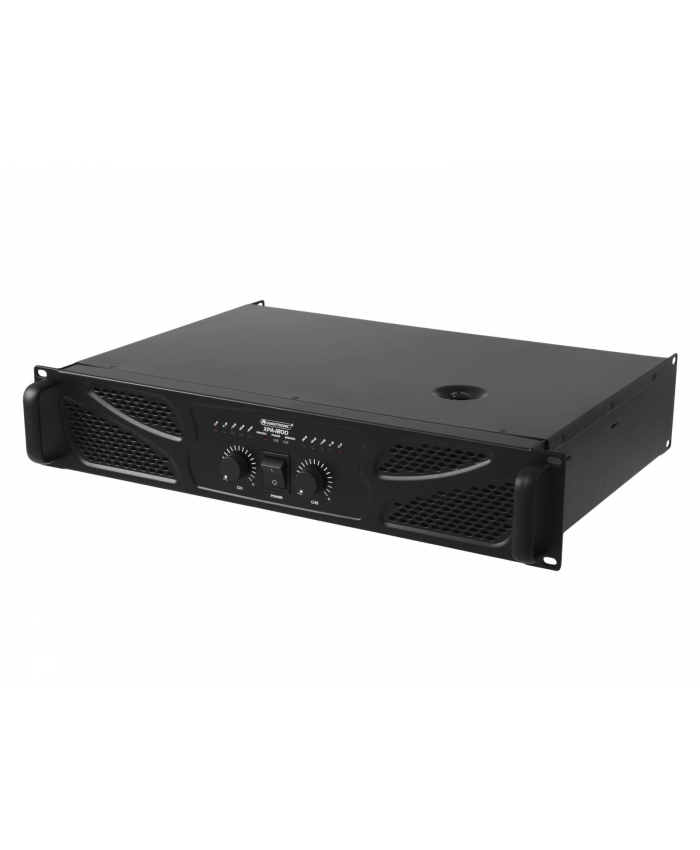

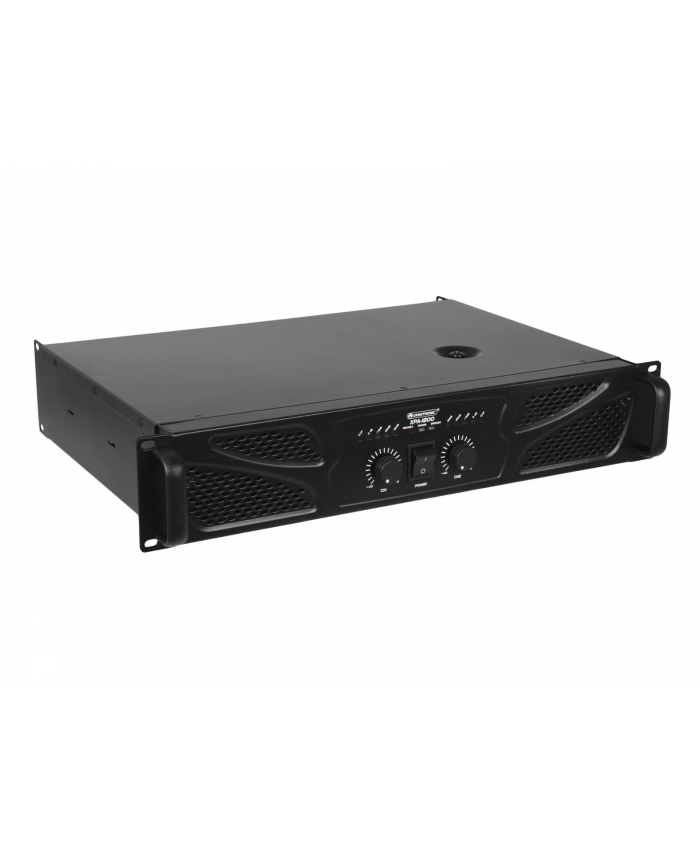

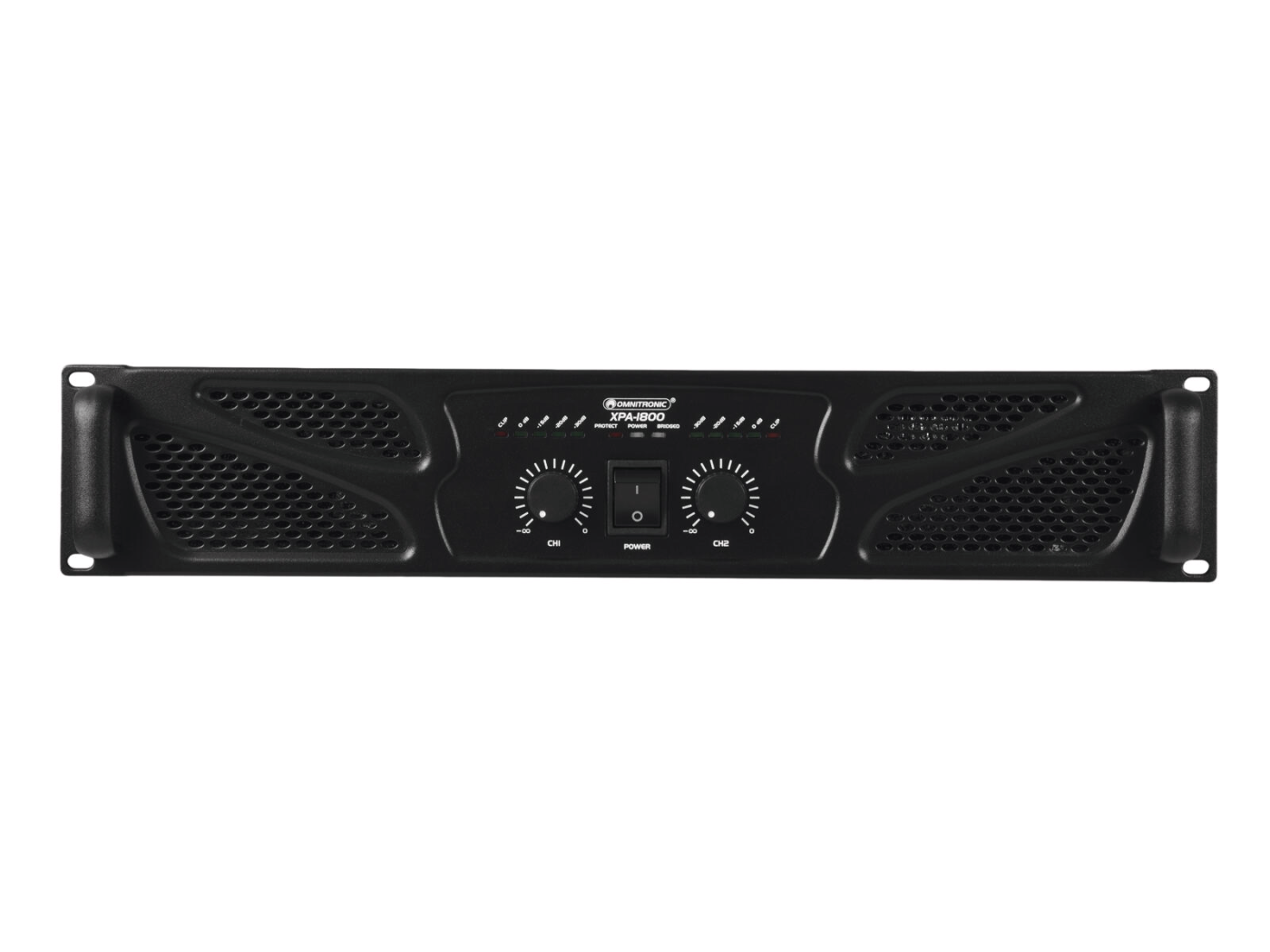

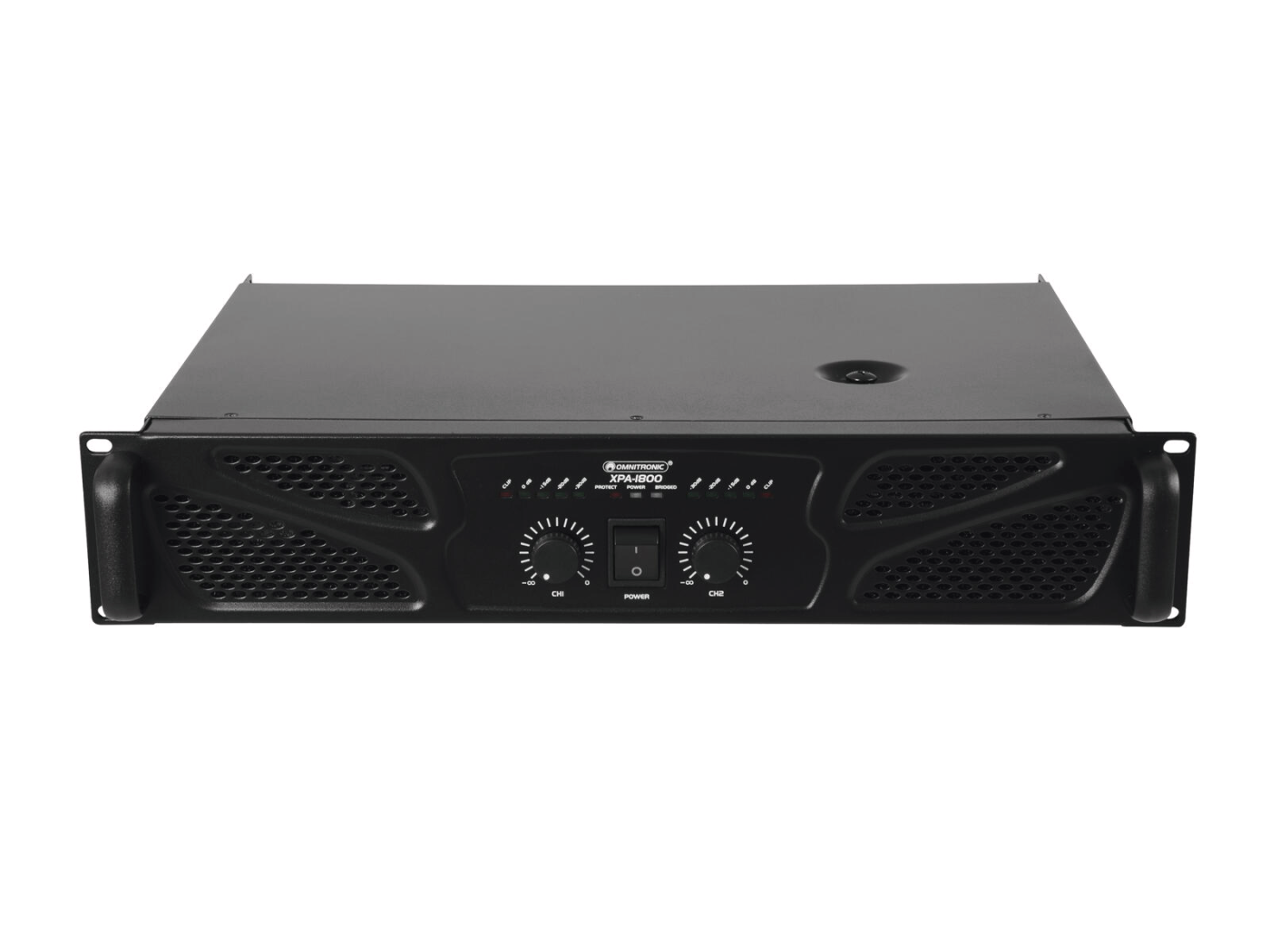

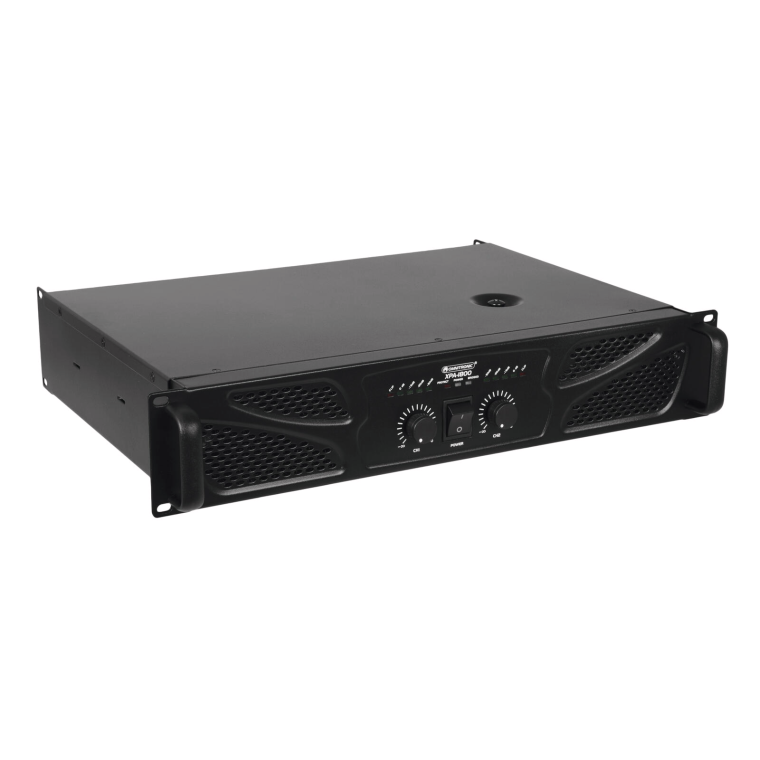

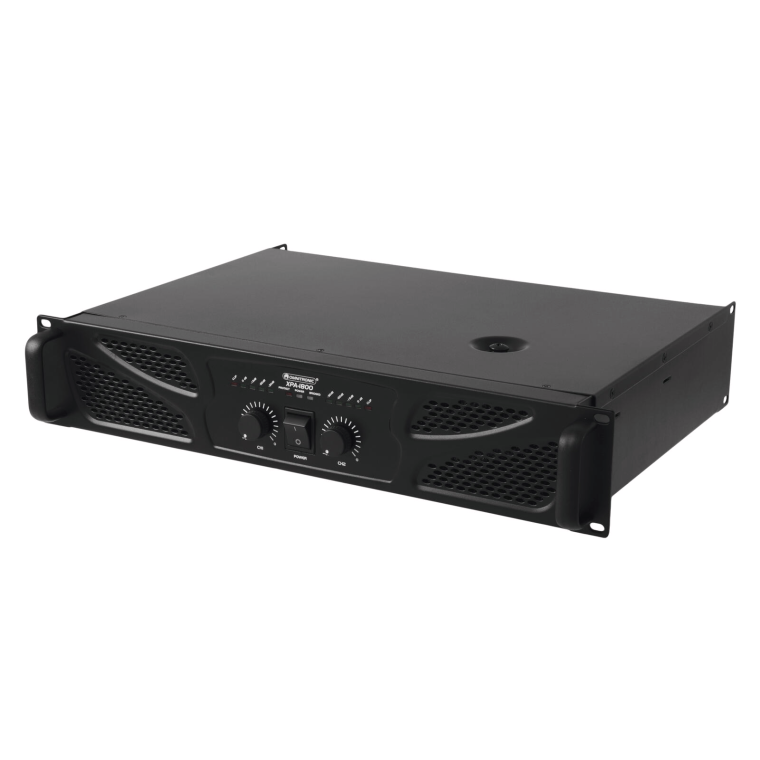

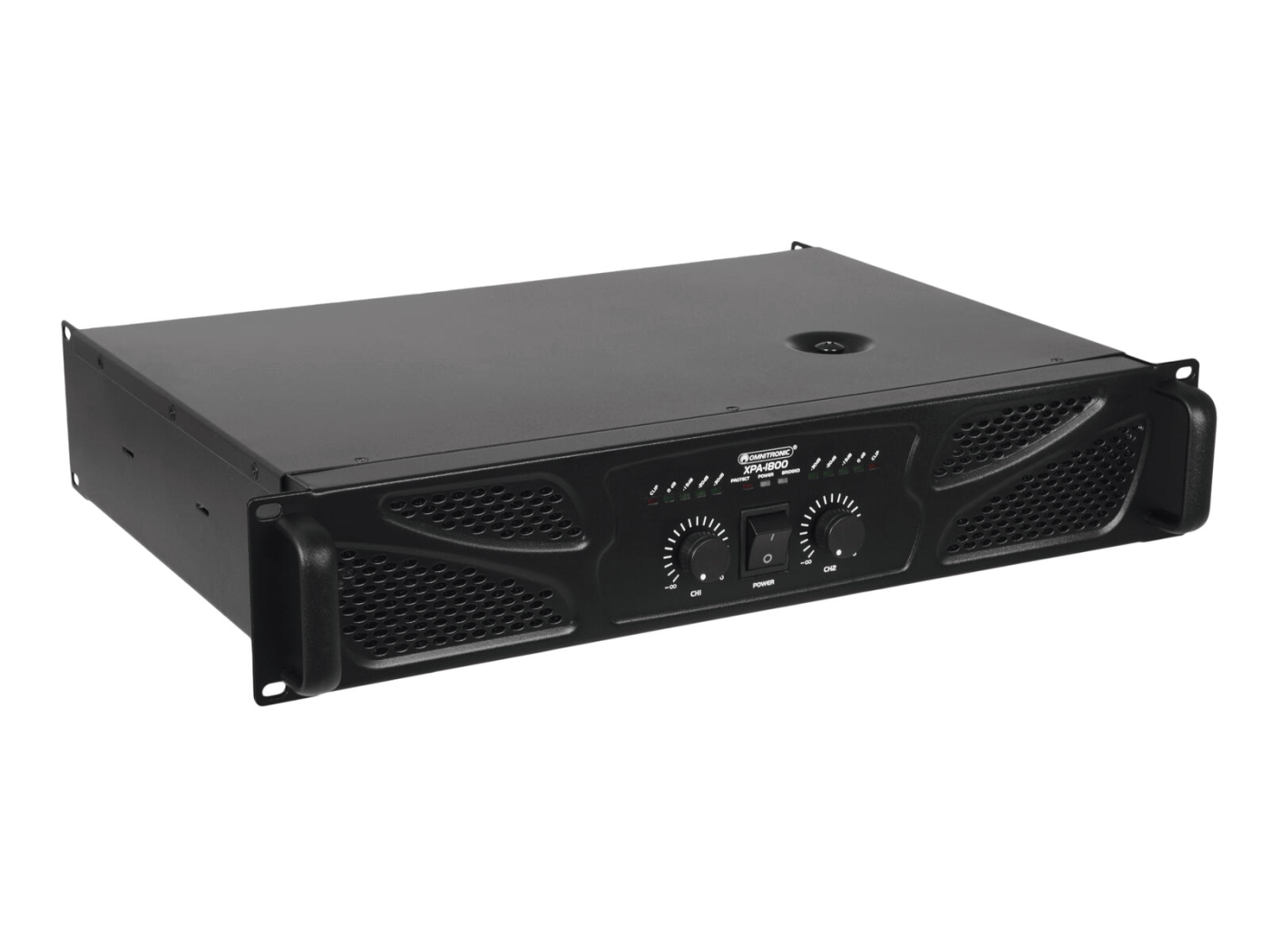

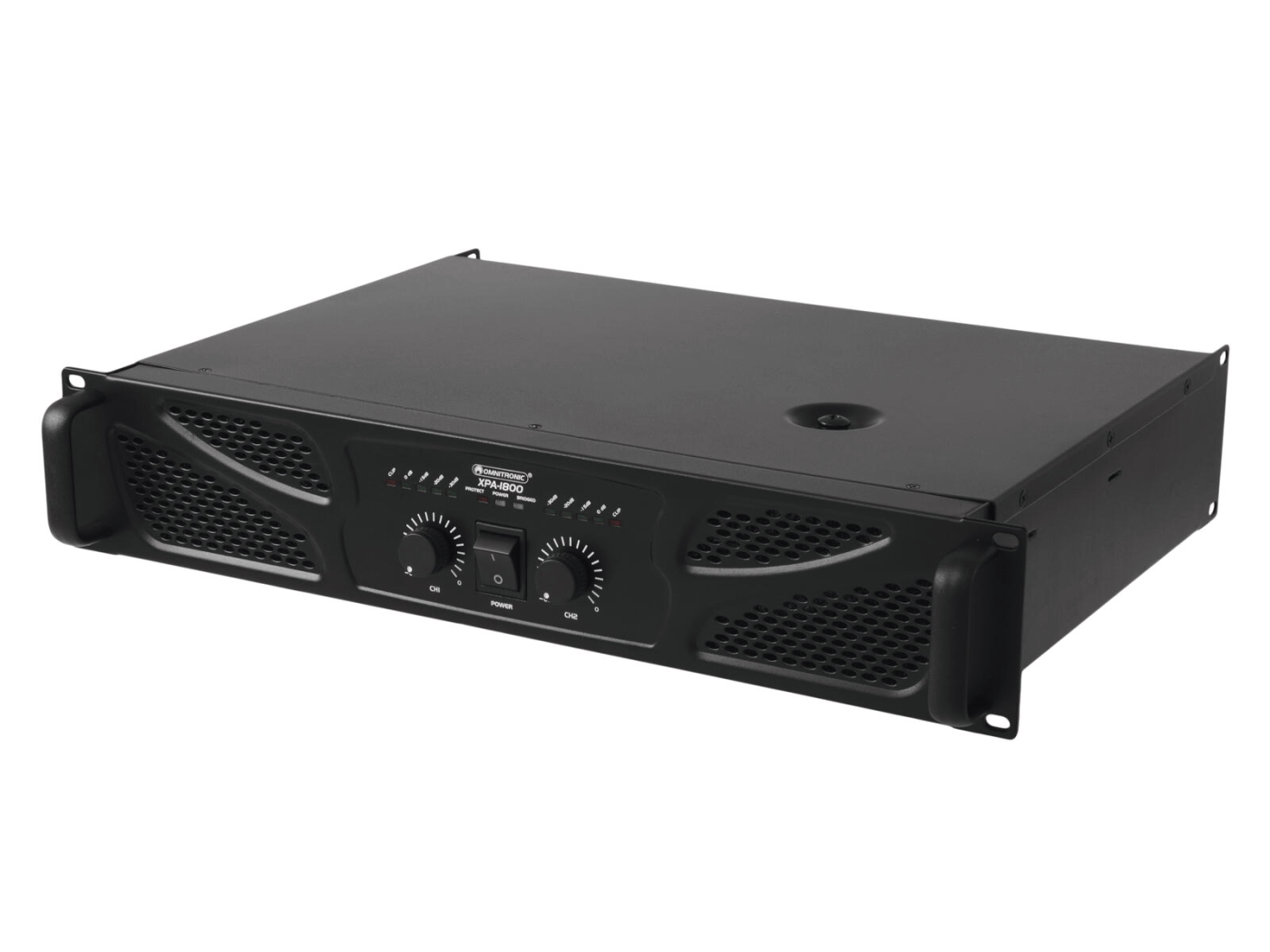

OMNITRONIC XPA-1800 Amplifier
€0.00
Quick Overview
Class H PA amplifier with limiter
- 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Signal inputs via XLR or RCA connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Class H circuitry
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 765 W 1/8 power |
| Output power: | 2 x 900 W RMS (4 ohms); 2 x 650 W RMS (8 ohms); 1800 W RMS bridged (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,5 % at 1 kHz |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Circuitry: | Class H |
| Slew rate: | >10 V/µs |
| Damping factor: | >200 |

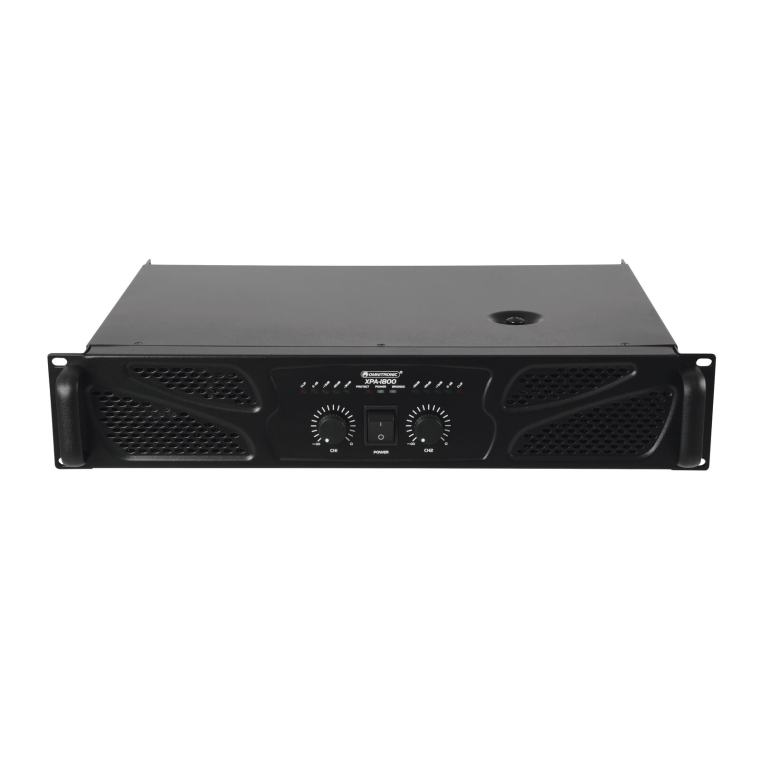

| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch |
| Controls: | Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient |
| Status LED: | Power, level meter, clip, bridged, protect |

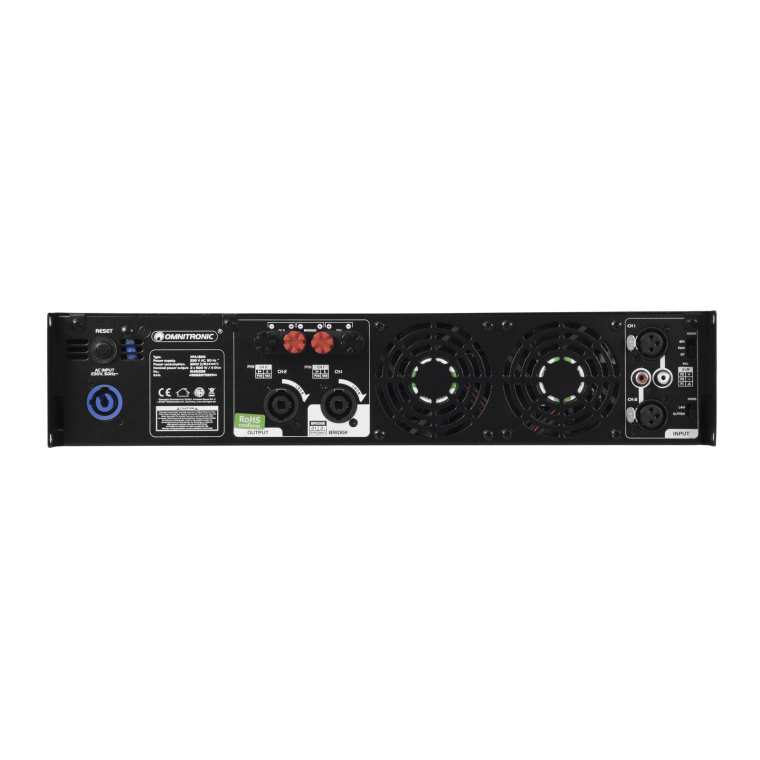

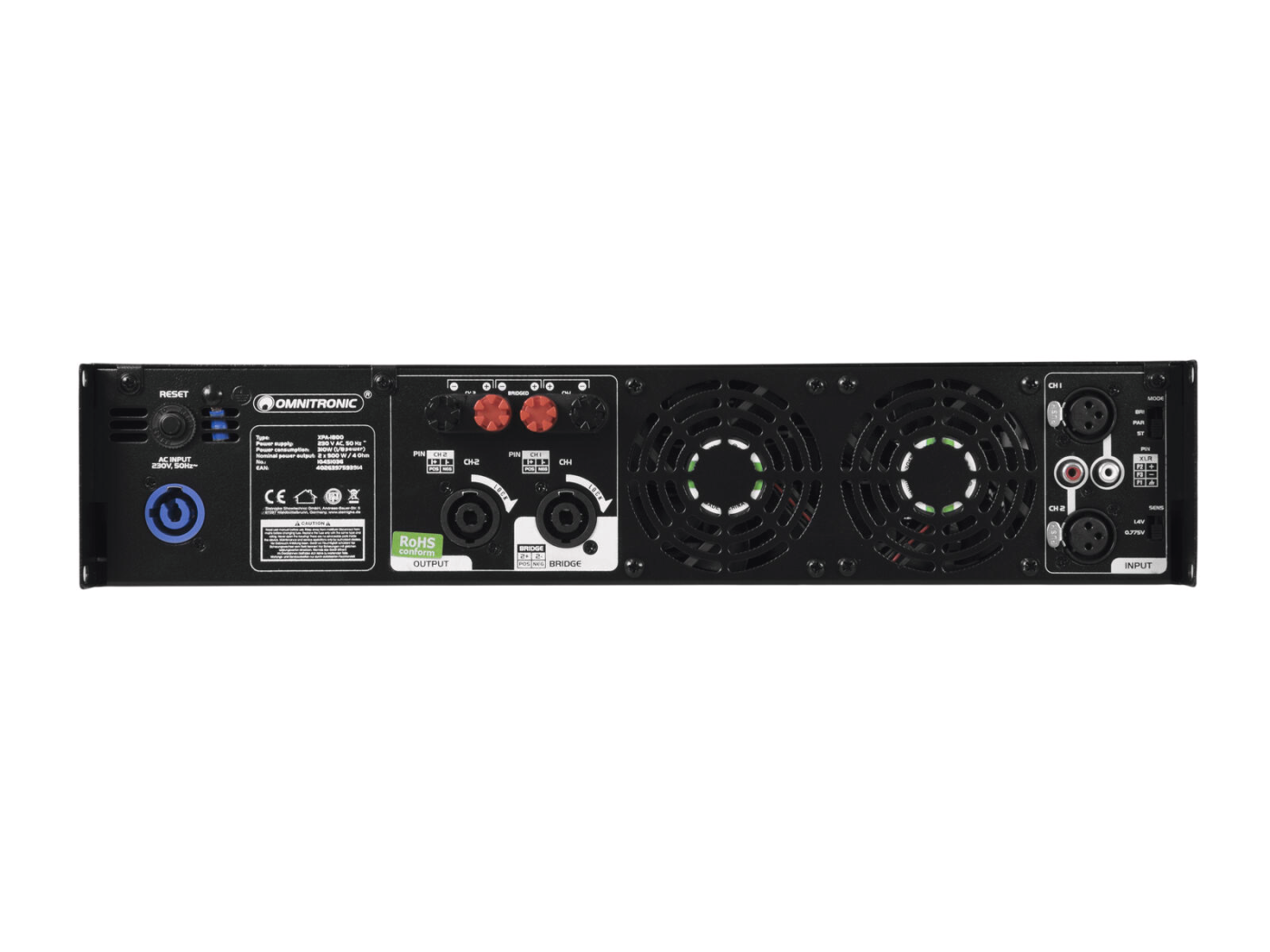

| Connections: | Input: line via 2 x 3-pin XLR Input: line via 1 x stereo RCA Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal |
| Input sensitivity: | 0,775 V; 1,4 V , switchable |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 35,4 cm Height: 8,9 cm |
| Weight: | 14,65 kg |
