Omnitronic UHF-600
€0.00
Quick Overview

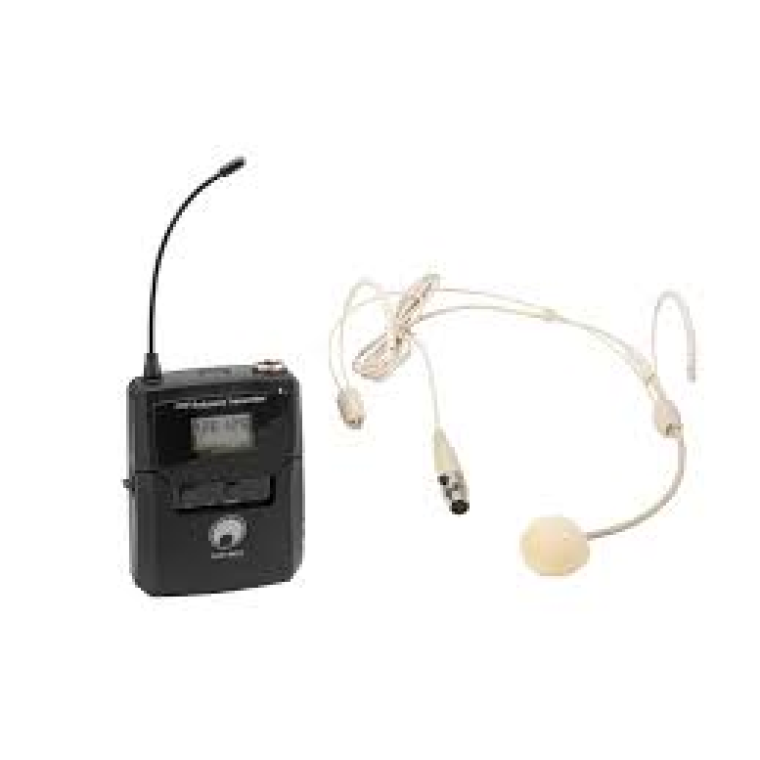

OMNITRONIC UHF-600 Bodypack 823-832/863-865 MHz
- Bodypack transmitter with PLL multifrequency transmitter
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Gain level adjustable in 4 steps
- Operating range up to 60m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Up to 12 transmitters can be operated in parallel without interference
- Ultra-low latency
- LCD display
- Charge status indicator
| Type: | Bodypack with microphone |
| Power supply: | 3V DC 125 mA |
| Battery: | 2 x Mignon (AA) (not included) |
| Phantom power: | Or 2.4 V DC |
| Range: | Range up to 60m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: | 11 MHz |
| Parallel mode: | Max. 12 transmitter |
| RF power output: | 5 mW (LO); 10 mW (HI) |
| Latency: | < 3 ms |
| Modulation: | FM |
| Housing color: | Black |
| Display type: | LCD display |
| Display: | Frequency , charge status indicator , Mute , RF signal level; AF audio level , gain |
| Control elements: | Gain-switch (high-mid-low) |
| Connections: | Input: microphone via 1 x mini XLR (M) 3-pin mounting version |
| Switch: | On/off switch; mute control |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.6 cm Depth: 2.8 cm Height: 8.5 cm |
| Weight: | 0.074 kg |
| Microphone | |
| Type: | Headset microphone |
| Power supply: | 1.5-10V DC |
| Cable length: | 1.0 m |
| Capsule type: | Condenser |
| Polar pattern: | Cardioid |
| Frequency range: | 80 - 18000 Hz |
| Sensitivity: | -53 dB |
| Impedance: | 600 Ohm |
| Color: | Skin-colored |
| Weight: | 0.028 kg |
