Omnitronic UHF-E4 Wireless Mic
Special Price €299.00
Regular Price: €349.00
Quick Overview

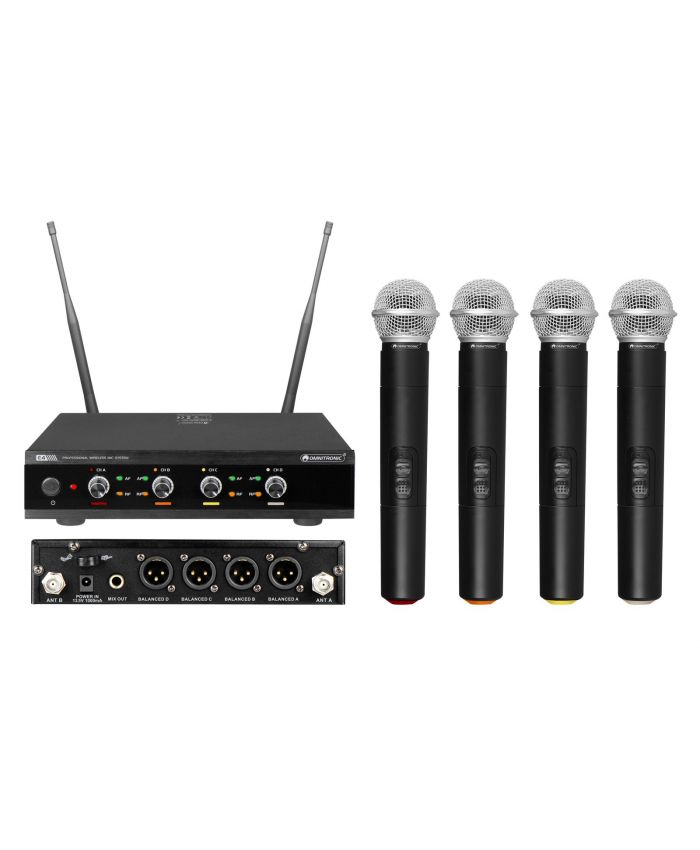

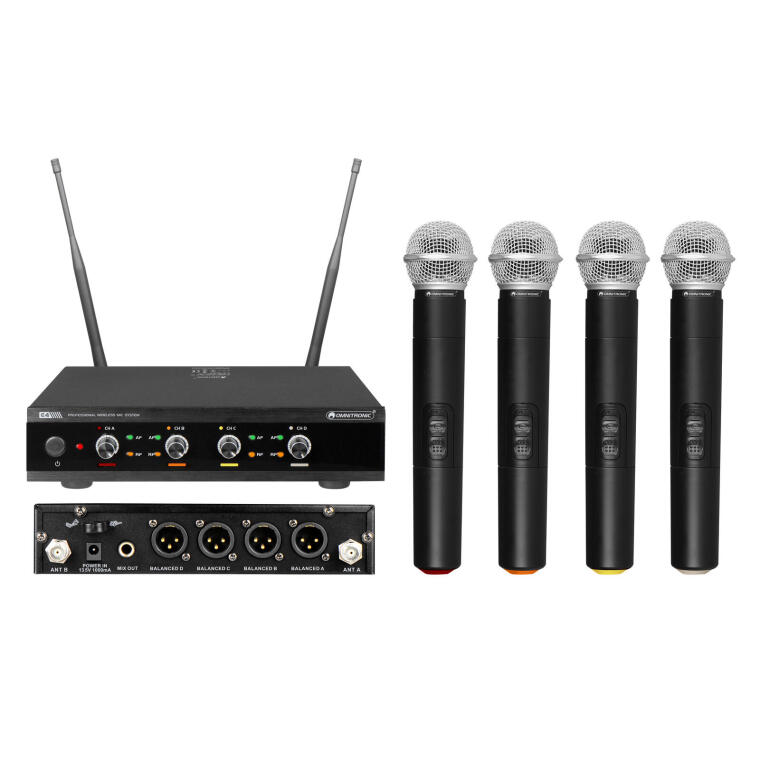

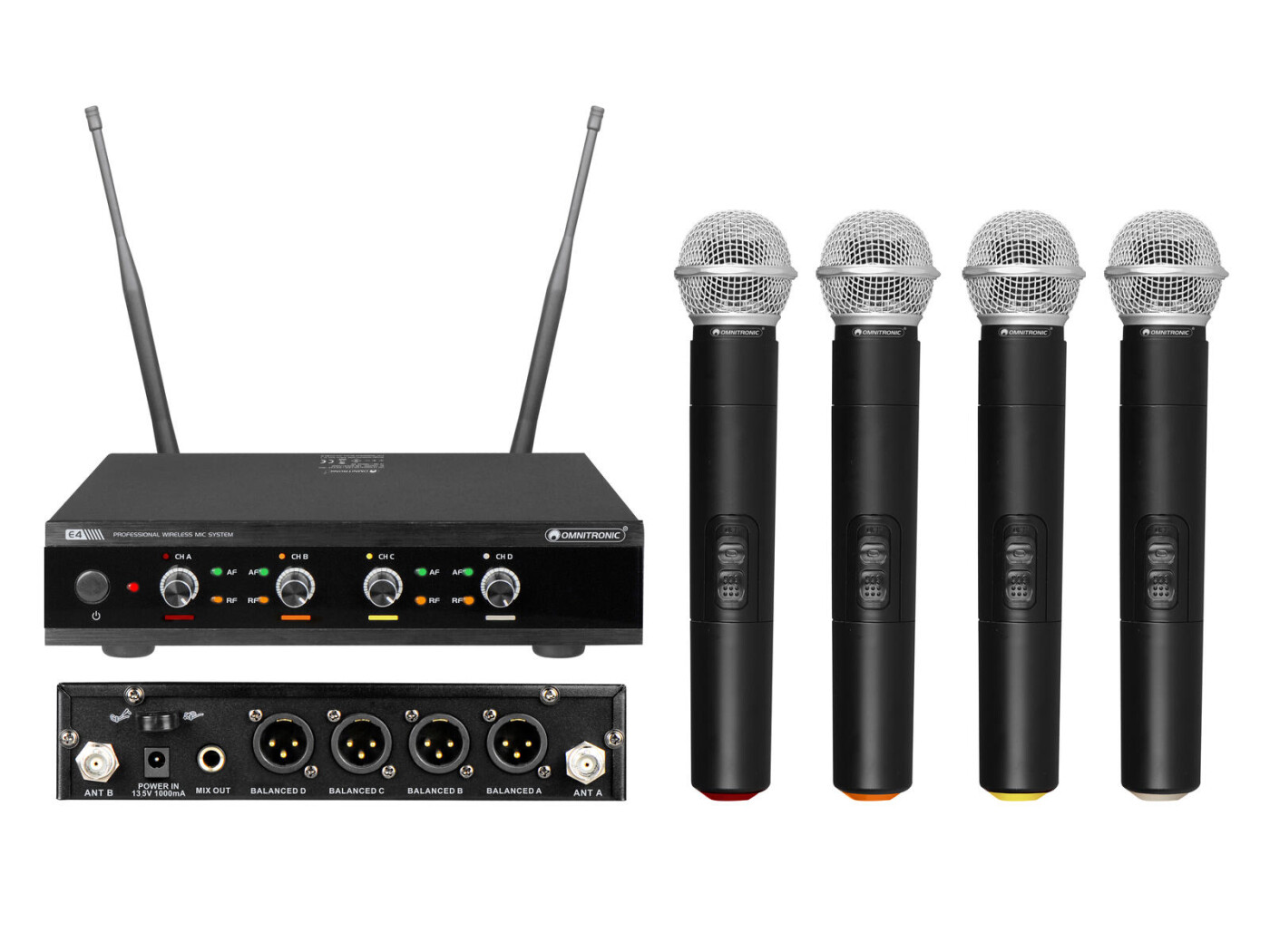

Omnitronic UHF-E4 Wireless Mic
License-free 4-channel wireless microphone system
- 4-channel receiver and 4 hand-held microphones with UHF PLL technology
- Parallel operation of up to 12 transmission channels is possible without any interference
- Easy handling
- 4 separate channels with volume controls and LEDs for carrier signal and audio signal
- Balanced XLR output per channel
- 6.3 mm jack for mixed signal output
- Microphones with color indication
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Operating range up to 60m with line-of-sight
Receiver
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
Microphone
- Polar pattern: Cardioid
| Type: | Wireless set |
| Frequency band: | UHF 823 - 832 MHz |
| Carrier frequency: | 823,6; 826,1; 828,6; 831,1 |
| Frequency selection: | Fixed frequencies |
| Modulation: | FM |
| Range: | Range up to 60m with line-of-sight |
| Weight: | 2,16 kg |
| Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 13,5 V DC 150 mA |
| Power consumption: | 6 W |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 4 |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0,1 % at 1 kHz |
| Housing color: | Black |
| Control elements: | Power switch, level control |
| Connections: | Output: line via 1 x 6.3 mm plug (unbal.) Output: Microphone via 4 x 3-pin XLR |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Weight: | 1 kg |
| Microphone | |
| Type: | Hand-held transmitter |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 20000 Hz |
| Housing color: | Black |
| RF power output: | 10 mW |
| Switch: | Mute control |
| Material: | Plastic |
| Dimensions: | Length: 25 cm Diameter: Ø 5,2 cm |
| Weight: | 205 g |
