Omnitronic VHF-101
€59.00
Quick Overview

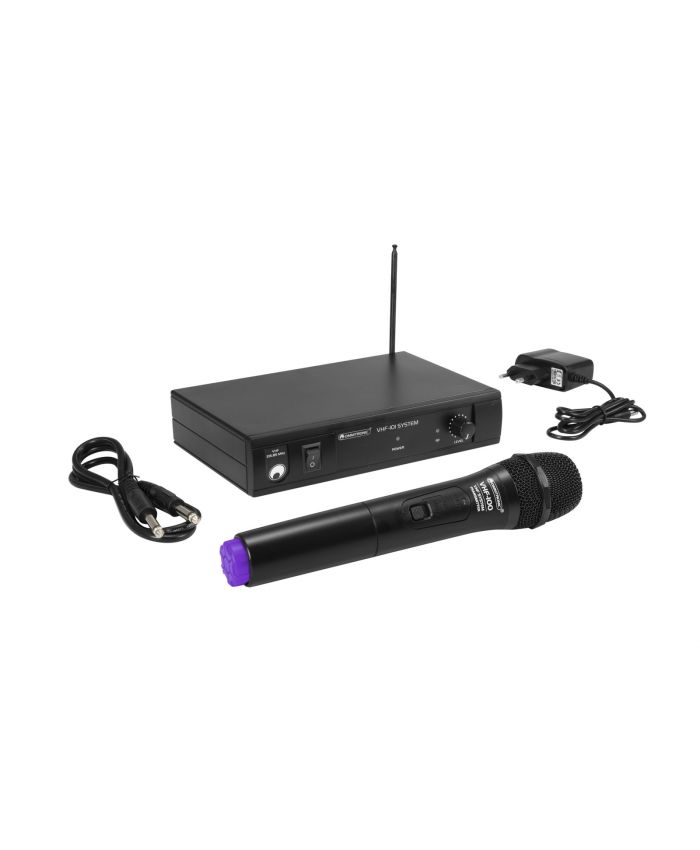

Omnitronic VHF-101
VHF wireless microphone system
- Receiver unit and hand-held microphone with PLL technology
- Operation with fixed VHF frequency
- Microphone with mute function and color indication
- Polar pattern: Cardioid
- License free in germany
- Operating range up to 30m with line-of-sight
Package contents
- 1 x receiver, 1 x microphone
| Type: | Wireless set |
| Power supply: | 100-240 V AC, 50/60 Hz 12-18 V DC 350 mA |
| Power consumption: | < 5 W |
| Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Frequency range: | 80 - 12000 Hz |
| THD: | <0,005 % at 1 kHz |
| Control elements: | Level control |
| Connections: | Output: Microphone via 1 x 3-pin XLR Output: Microphone via 1 x 6.3 mm plug (unbal.) |
| Frequency band: | VHF |
| Carrier frequency: | 200,100 MHz |
| RF power output: | 10 mW |
| Range: | Range up to 30m with line-of-sight |
| Switch: | On/off switch; Mute control |
| Material: | Plastic |
| Weight: | 600 g |
| Receiver | |
| Weight: | 300 g |
| Microphone | |
| Battery: | 2 x Mignon (AA) (not included) |
| Dimensions: | Length: 24 cm Diameter: Ø 5 cm |
| Weight: | 170 g |
