Behringer XENYX 502S
Quick Overview

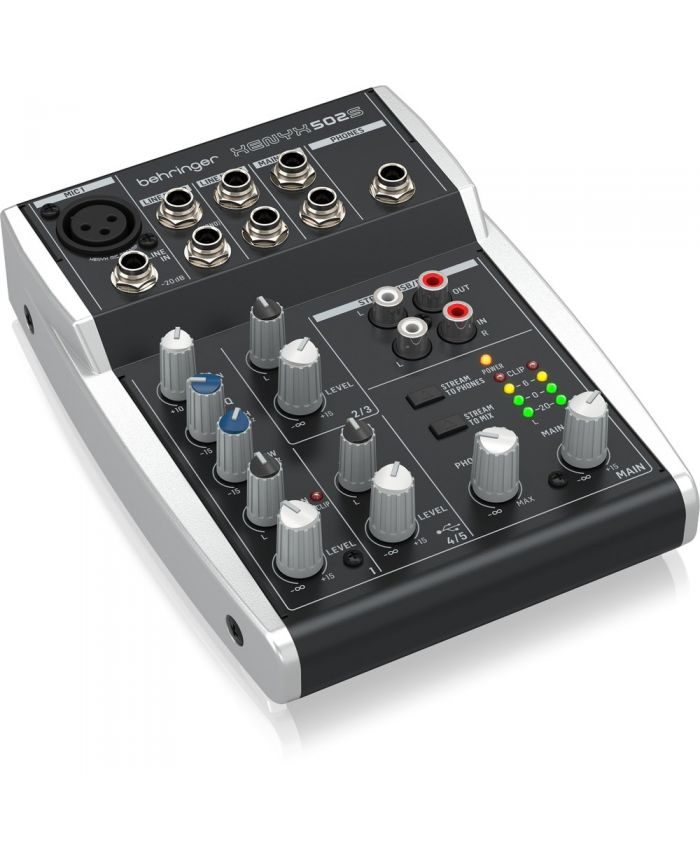

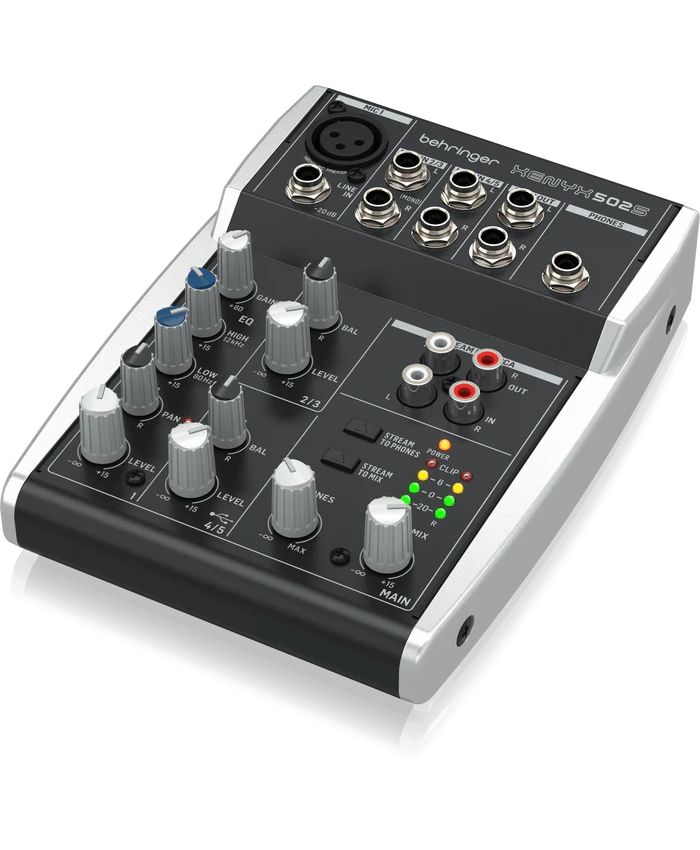

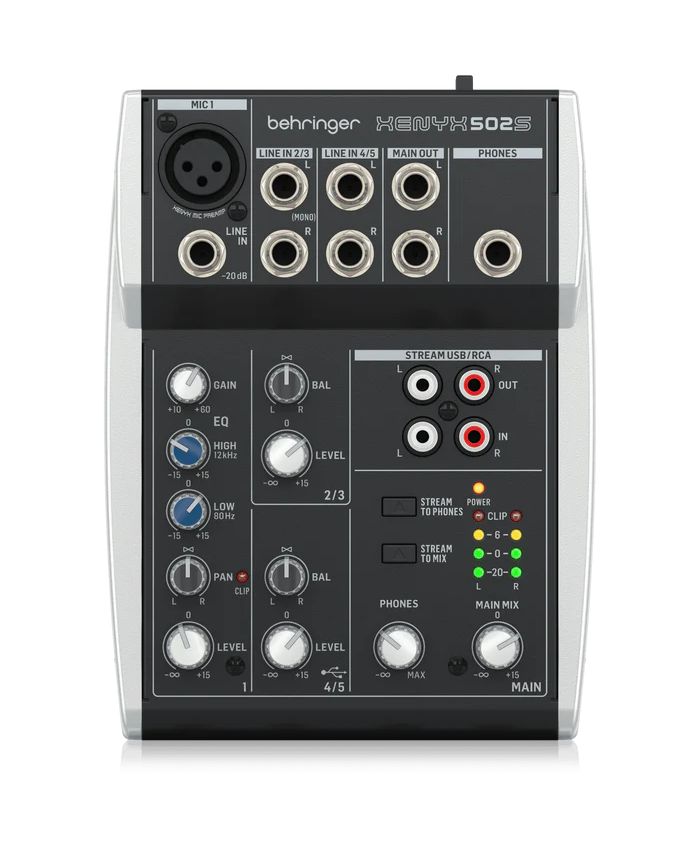

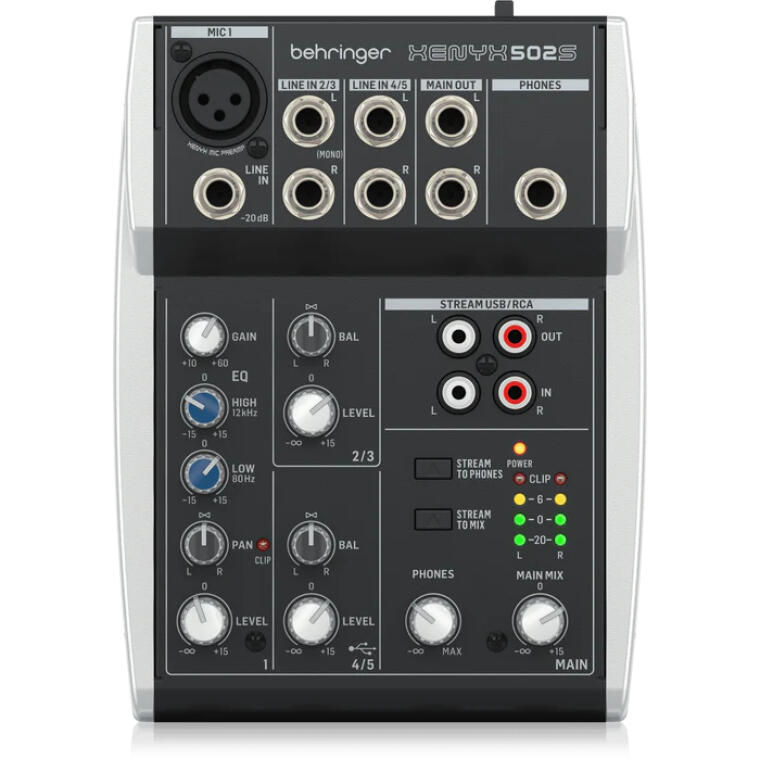

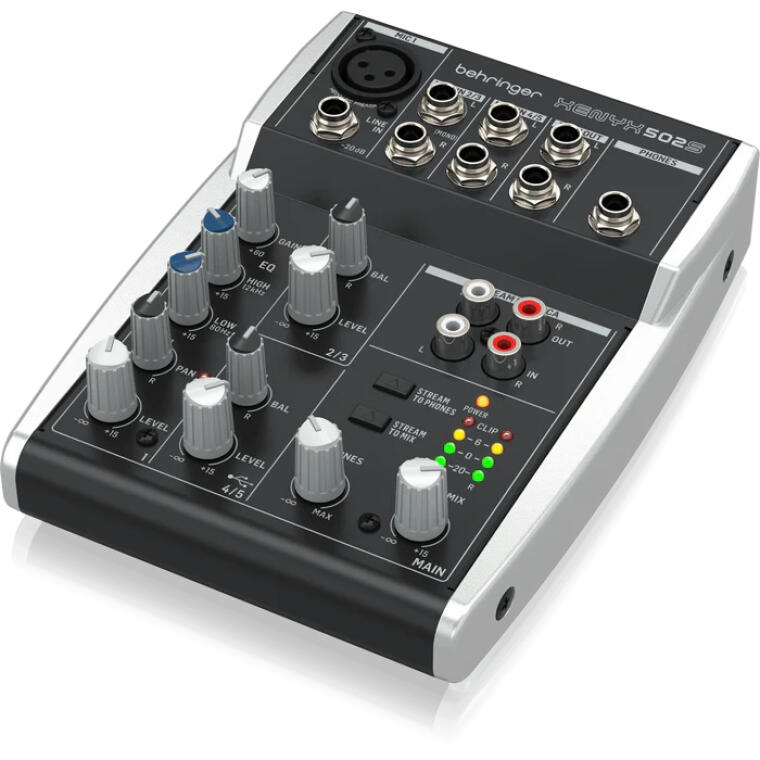

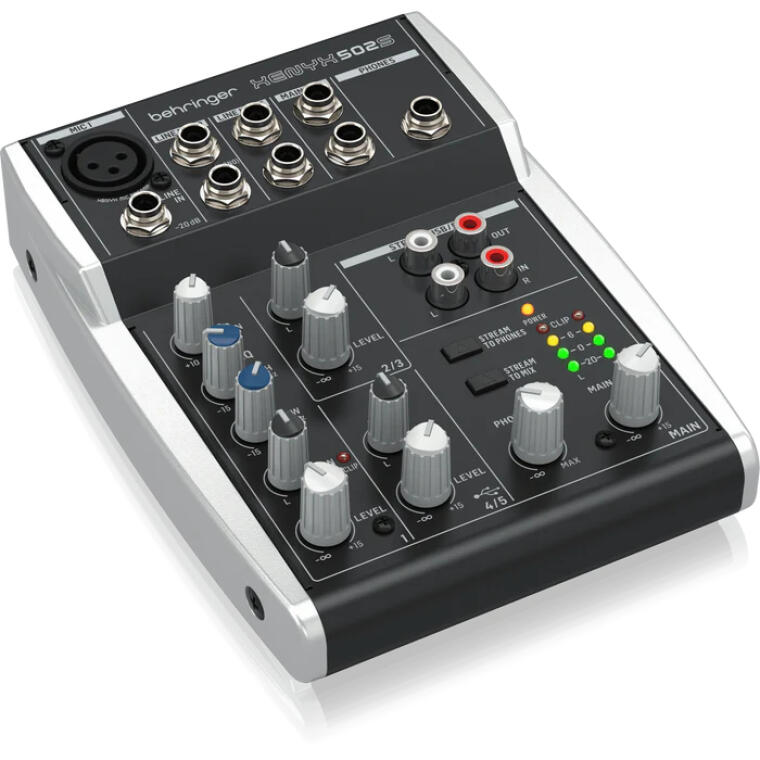

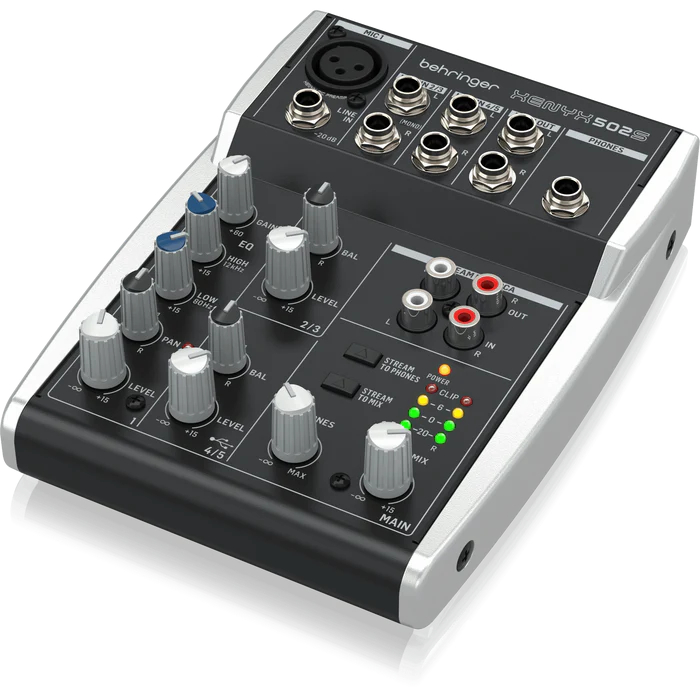

Behringer XENYX502S
The Behringer Xenyx 502S is an affordable and powerful tool for beginning content creators and professionals on the go. 5 channels of crisp, award-winning sound with ample audial control allow podcasters, gamers, and live streamers to easily direct audio for efficient creation applications. Similarly, its USB compatibility enables user to access the 502S’ features from their computer, mobile phone, or other smart device. With a versatile I/O including RCA, 1/4-inch, and XLR connections, there’s virtually no audio scenario the 502S can’t handle — and it’s compact enough to fit on your desk, stage table, or even in your backpack! Sweetwater content creators are always on the go. When it comes down to mixing in a pinch, they always turn to the Xenyx 502S.
| Section | Parameter | Specification |
|---|---|---|
| Mono Inputs | Microphone Input | Balanced XLR, discrete input circuit |
| Mic EIN (22 Hz–22 kHz) @ 50 Ω | 132 dB, A-weighted | |
| Frequency Response @ +10 dB Gain | 10 Hz to 150 kHz | |
| Frequency Response @ +60 dB Gain | 20 Hz to 70 kHz | |
| Gain Range | +10 dB to +60 dB | |
| Max Input Level @ +10 dB Gain | +12 dBu | |
| Input Impedance | 2 kΩ balanced | |
| Distortion (THD + N) @ 1 kHz, +10 dB Gain | 0.005% | |
| Mono Line Inputs | Connector | 1/4" TRS balanced |
| Impedance | 22 kΩ balanced, 10 kΩ unbalanced | |
| Gain Range | -10 dB to +40 dB | |
| Max Input Level @ 0 dB Gain | +21 dBu | |
| Stereo Inputs | Stereo Line Connector | 1/4" TRS balanced |
| Frequency Response | 20 Hz to 200 kHz | |
| Impedance | 22 kΩ balanced, 10 kΩ unbalanced | |
| Max Input Level @ 0 dB Gain | +21 dBu | |
| STREAM Inputs (Analog) | RCA connector unbalanced | |
| STREAM Input Impedance | 10 kΩ unbalanced | |
| STREAM Max Input Level | 10 dBu | |
| Equalizer | Low EQ | 80 Hz / ±15 dB |
| High EQ | 12 kHz / ±15 dB | |
| Main, Monitor & FX Outputs | Type | 1/4" TRS impedance-balanced |
| Impedance | 120 Ω | |
| Max Output Level | 21 dBu | |
| Phones Out | Type | 1/4" TRS unbalanced |
| Impedance | 23 Ω | |
| Max Output Level | 19 dBu / 150 Ω | |
| STREAM Out (Analog) | Type | RCA connector unbalanced |
| Impedance | 1 kΩ unbalanced | |
| Max Output Level | 10 dBu | |
| Main Mix Noise | Main Mix @ -∞ | -109 dBu A-weighted |
| Channel @ -∞ | -109 dBu A-weighted | |

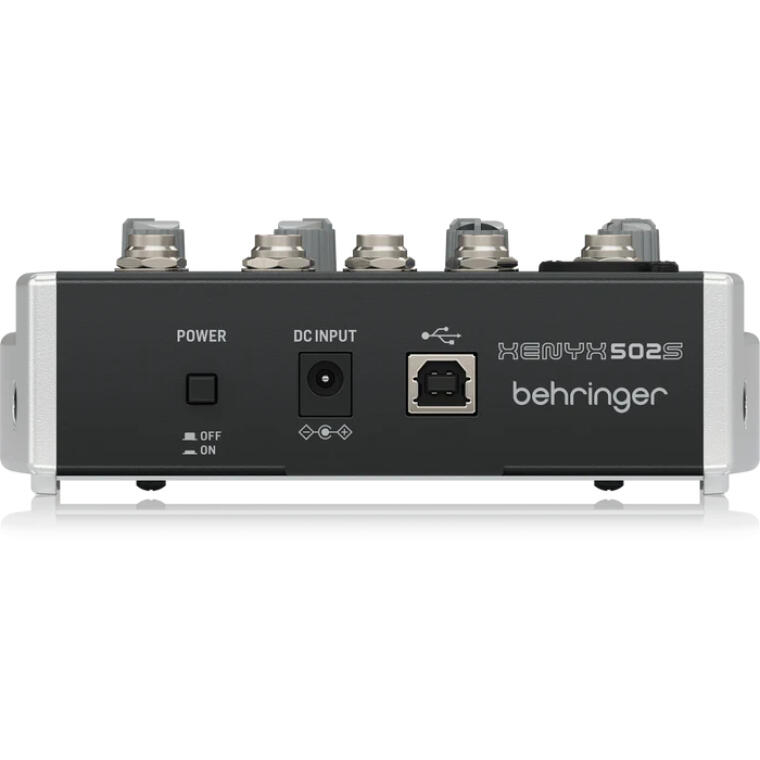

| USB | Type | Type-B connector |
| USB Audio Data | 48 kHz / 16-bit | |
| UAC2 Class Compliant | Stereo in/out | |
| Power Supply | Power Consumption | 8 W |
| Adaptor Input | 100–240 V~, 50/60 Hz, 0.5 A | |
| Adaptor Output | 18 V DC, 1.0 A |
