JBL BAR 1300
€0.00
Quick Overview
JBL BAR 1300

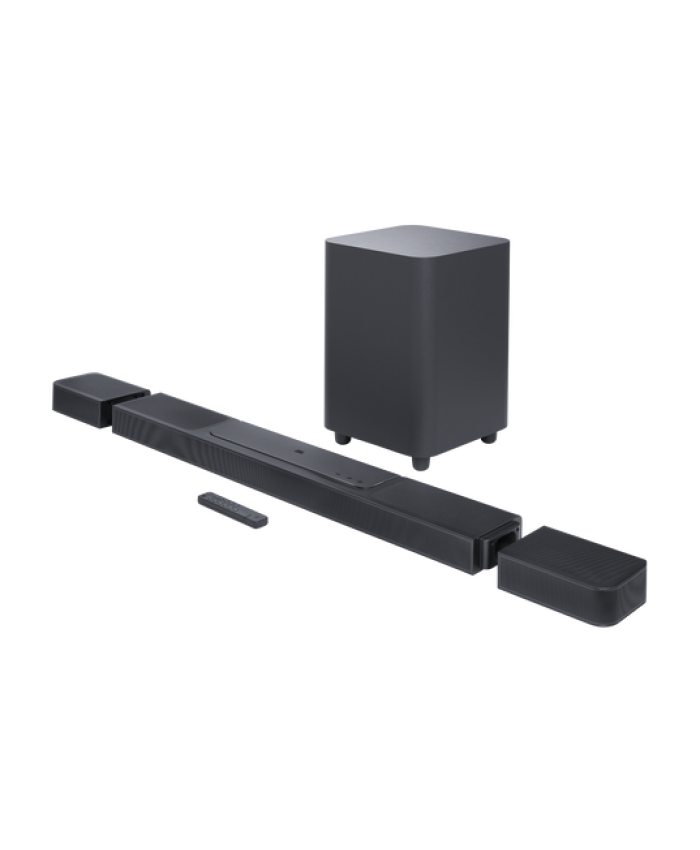

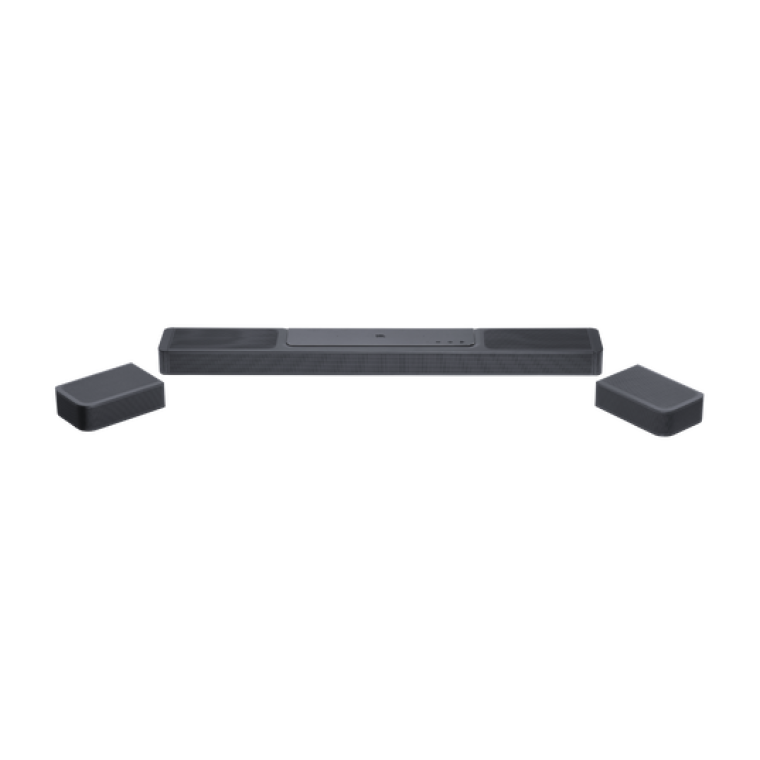

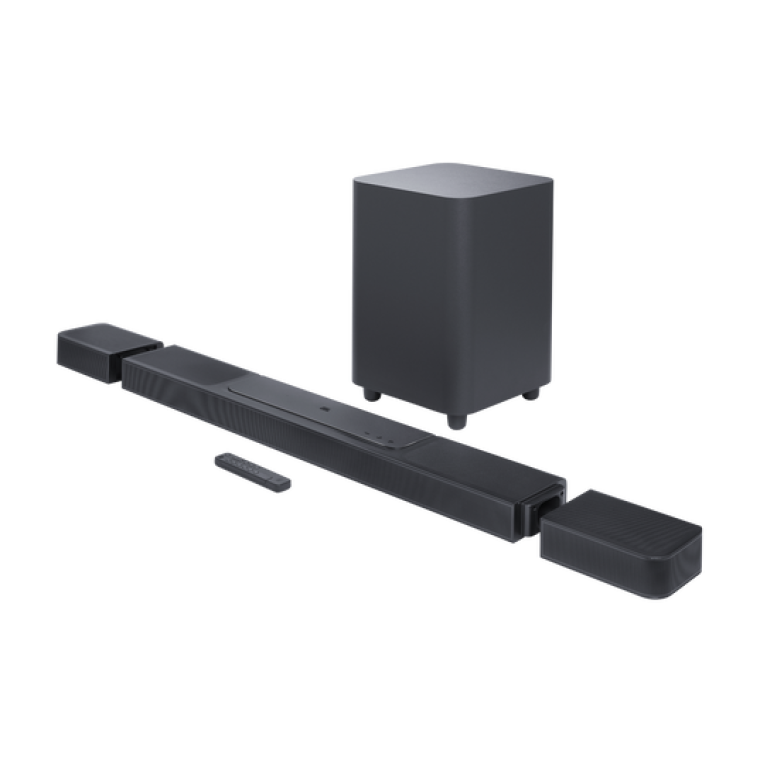

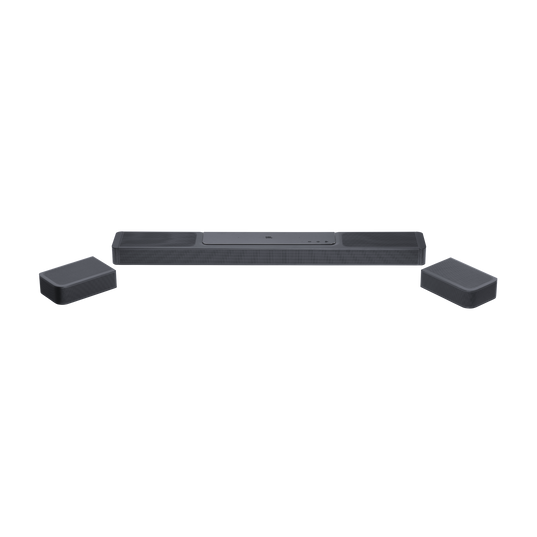

11.1.4-channel soundbar with detachable surround speakers, MultiBeam™, Dolby Atmos® and DTS:X®
Features
General Specifications
Sound system11.1.4 channel
Power supply100 - 240V AC, ~ 50/60Hz
Networked standby power< 2.0W
Operating temperature0°C - 45°C
Audio Specifications
Total speaker power output (Max @THD 1%)1170W
Soundbar output power (Max @THD 1%)650W
Surround speaker output power (Max @THD 1%)2x 110W
Subwoofer output power (Max. @THD 1%)300 W
Soundbar transducer6x (46x90)mm racetrack drivers, 5x 0.75" (20mm) tweeters, 4x 2.75" (70mm) up-firing full-range drivers

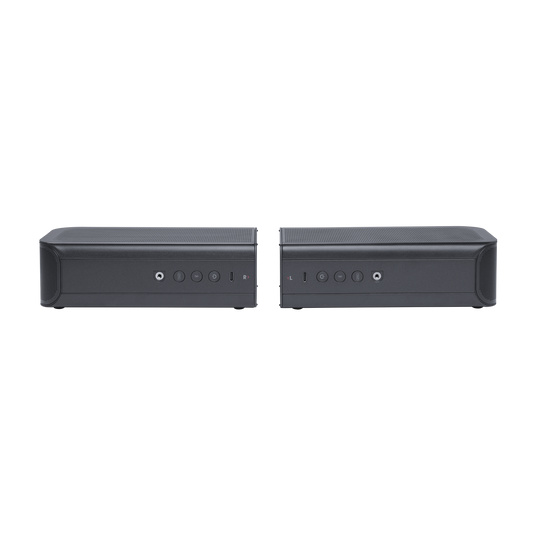

Surround speaker transducer(46x90)mm racetrack driver, 0.75" (20mm) tweeter, 2.75" (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle Passive Radiators
Subwoofer transducer10” (260mm)
Frequency response33Hz - 20kHz (-6dB)
Audio inputs1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Total soundbar dimensions (W x H x D)1376 x 60 x 139 mm / 54.2" x 2.4" x 5.5"
Main soundbar dimensions (W x H x D)1000 x 60 x 139 mm / 39.4" x 2.4" x 5.5"

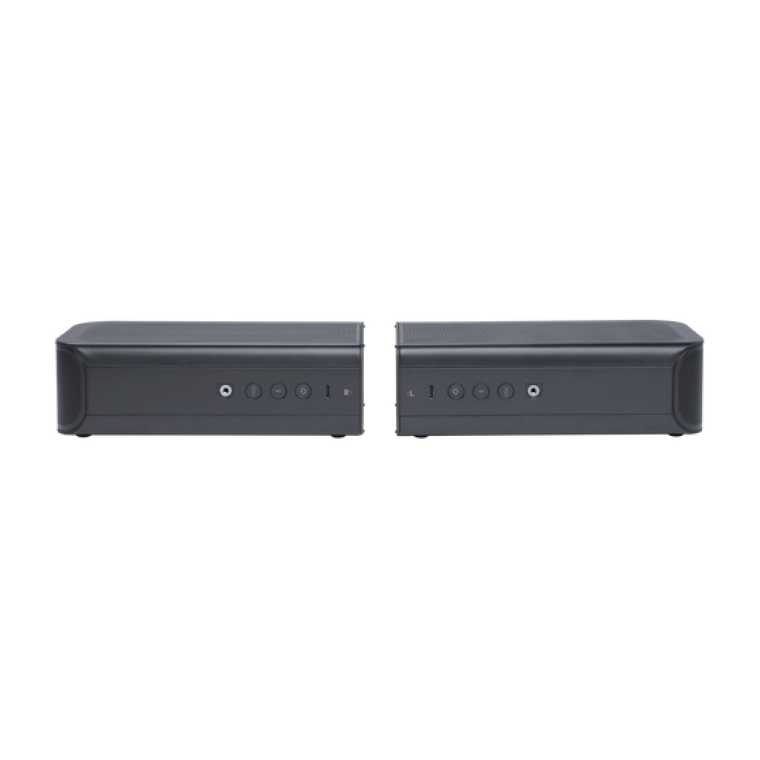

Detachable surround speaker dimensions (each) (W x H x D)202 x 60 x 139 mm / 8" x 2.4" x 5.5"

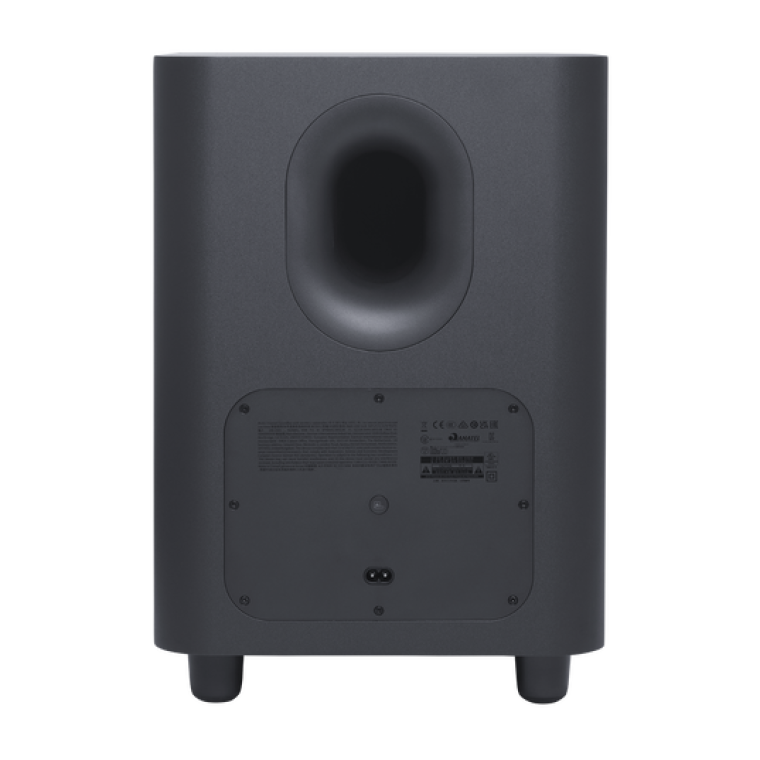

Subwoofer dimensions (W x H x D)305 x 440.4 x 305 mm / 12" x 17.3" x 12"
Soundbar weight4.3kg / 9.5 lbs
Detachable surround speaker weight (each)1.25 kg / 2.75 lbs
Subwoofer weight10 kg / 22 lbs
Packaging dimensions (W x H x D)381 x 1107 x 477 mm/ 15" x 43.6" x 18.8""
Packaging Weight21.45 kg / 47.2 lbs
Control and Connection Specifications
USB portType A
USB rating5V DC, 0.5A
Supporting file formatMP3
MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate16 - 48 kHz
MP3 bitrate80 - 320 kpbs
Bluetooth versionMain bar - 5.0, Detachable surround speaker - 5.2
Bluetooth profileMain bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6
Bluetooth transmitter frequency range2400MHz – 2483.5MHz
Bluetooth transmitter power<15dBm (EIRP)
Wi-Fi networkIEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power< 20dBm (EIRP)
5G Wi-Fi transmitter frequency range5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless frequency range2406 - 2474MHz
2.4G wireless power<10dBm (EIRP)
Battery
Lithium battery3.635V, 6600 mAh
Detachable surround speaker playtimeup to 12 Hours (may vary according to content type and volume level)

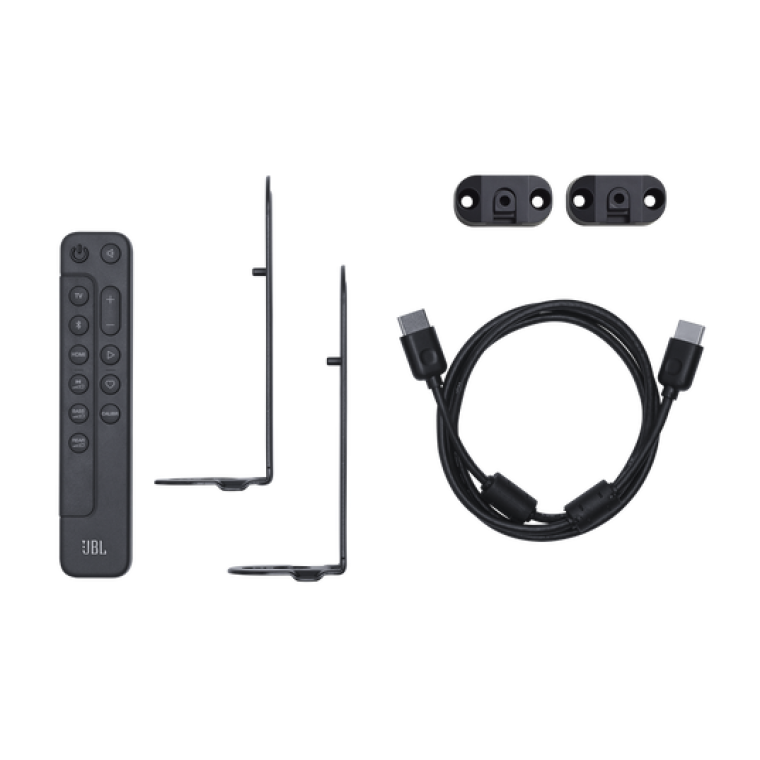

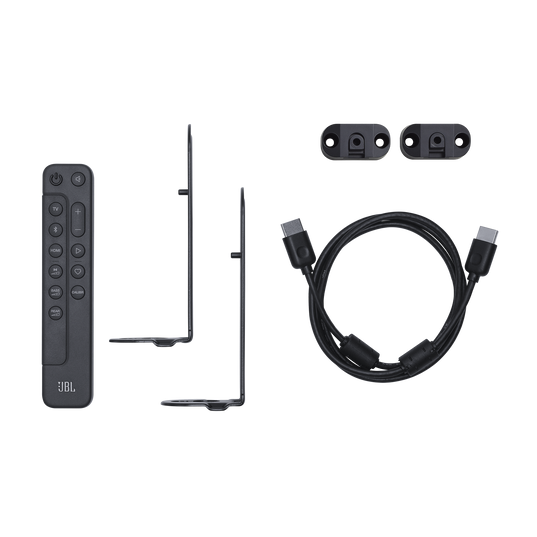

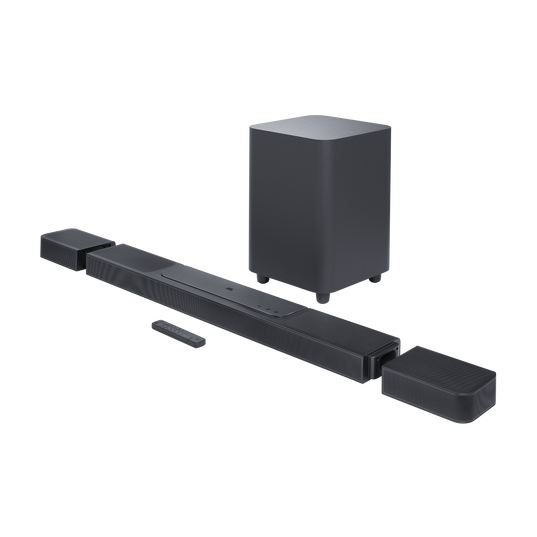

What's in the box?
- 1x Main soundbar
- 2x Detachable wireless surround speakers
- 1x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 8pcs depending on region SKUs)
- 1 x HDMI cable
- 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
- 2 x Side caps
- Quick start guide
- Safety instruction and Warranty card
- Wall mount tem
