e-Audio P602YB

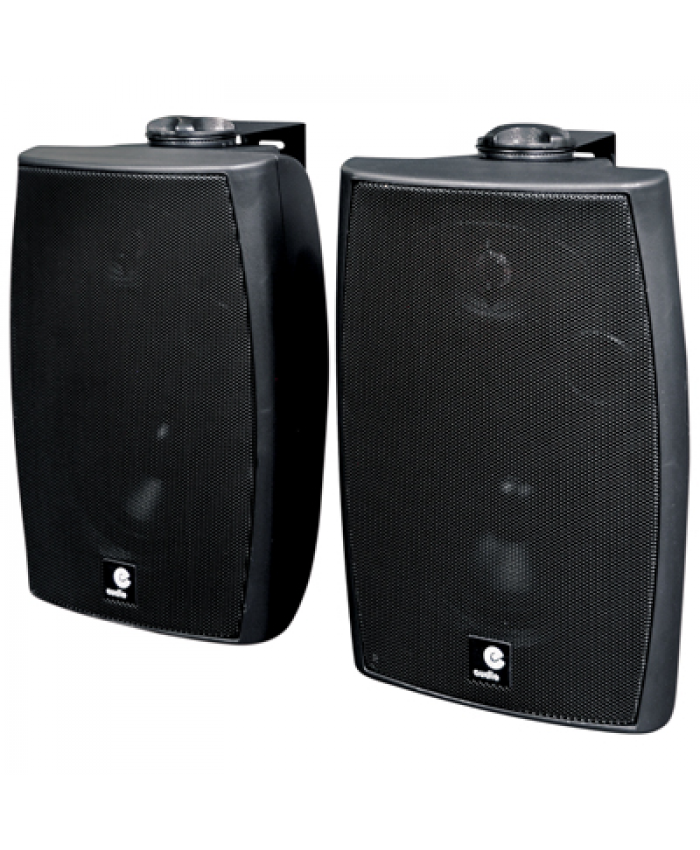

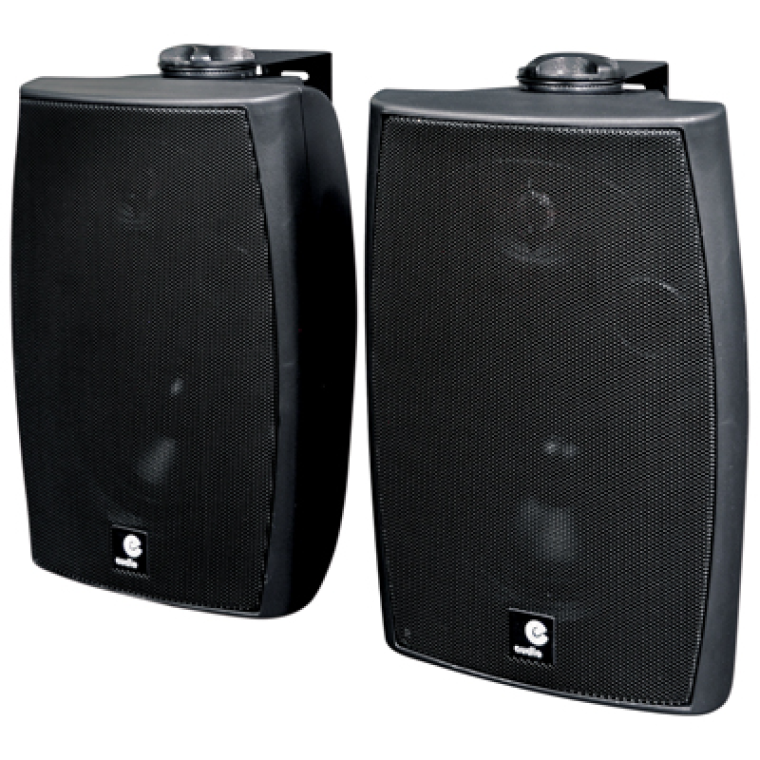

e-Audio P602YB Active/Passive Speaker Set (Yellow/Black)

System & Power Handling

• System Type: Master/Slave powered 2-way stereo speaker kit

• System Power: 2 x 30 W RMS / 2 x 60 W Peak

• Internal Amplifier Class: Class D high-efficiency stereo amplifier

• Operating Voltage: 230V AC mains (via included adapter)

Audio Performance & Transducers

• Low Frequency Driver: 5.25" polypropylene woofer

• High Frequency Driver: 0.75" silk dome tweeter

• Frequency Response: 65 – 20,000 Hz

• Sensitivity: 89 dB (1W/1m)

• Dispersion Angle: 100° x 80° (H x V)

Connectivity & Impedance Matching

• Inputs: 3.5 mm Aux input, RCA line input, Bluetooth receiver

• Output: Spring terminals on Master unit to drive Passive Slave speaker

Controls & Adjustment

• Controls: Master volume, bass, and treble controls on active unit

• Mounting Alignment: Heavy-duty wall brackets with pan/tilt flexibility

Enclosure & Hardware

• Cabinet Material: High-impact ABS plastic (black with yellow design accent)

• Environmental Protection: Indoor use

• Application Modes: Classroom presentations, retail audio, multimedia playback, and home entertainment

Physical Specifications

• Dimensions (H x W x D): 245 x 180 x 160 mm per speaker

• Weight: Active: 2.8 kg / Passive: 2.1 kg

Accessories Included

• Mains Power Adapter

• Speaker Interconnect Cable (5m)

• Wall Mount Brackets
