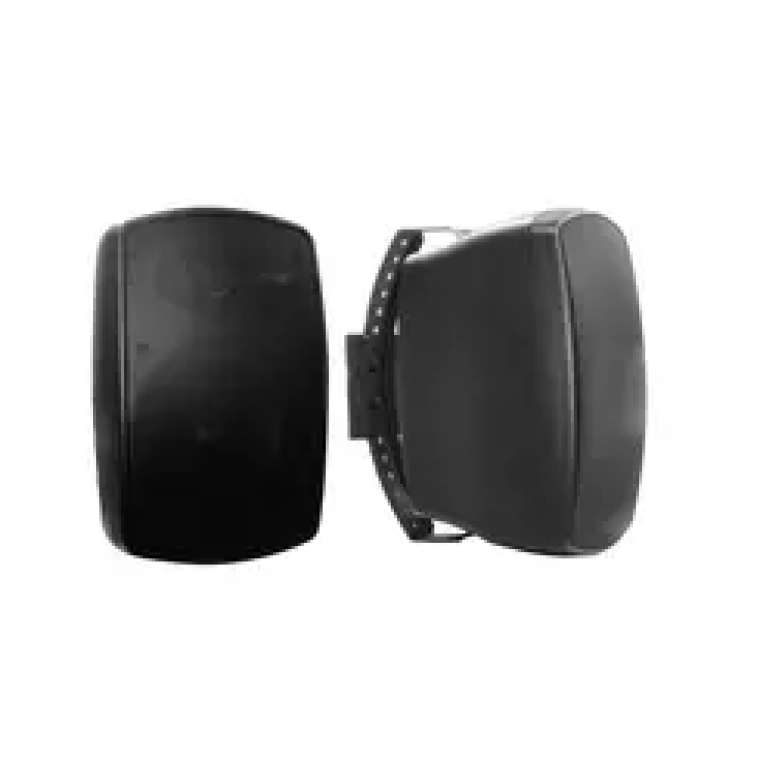

Omnitronic OD-6 Black

€79.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

OMNITRONIC OD-6 Wall Speaker 8Ohm
weather-proof speakers with mount, 6,5" woofer, 1" tweeter, 50 W RMS

  • 8-ohm PA speaker system for general applications
  • 2-way system with 16.5 cm woofer (6.5") and 2.5 cm silk dome tweeter (1")
  • Durable plastic cabinet with metal grille and cover for the connectors
  • With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
  • White aluminum grille
  • Suitable for outdoor use IP65
  • For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures

Omnitronic OD-6 Black

System & Power Handling

  • System Type: Passive 2-way wall-mount installation speaker (Low-Impedance only)

  • Power Rating: 40 W RMS / 80 W Peak

  • Impedance: 8 Ω direct connection

  • Operating Voltage: Low-impedance audio amplifiers (4–8 Ω compatible)

Audio Performance & Transducers

  • Low Frequency Driver: 6.5" (165 mm) woofer with polypropylene cone and rubber surround

  • High Frequency Driver: 0.75" (19 mm) dome tweeter

  • Frequency Response: 70 – 20,000 Hz

  • Sensitivity: 90 dB (1W/1m)

  • Max SPL: 106 dB @ 1m

  • Dispersion Angle: 90° x 60° (H x V) broad coverage pattern

Connectivity & Impedance Matching

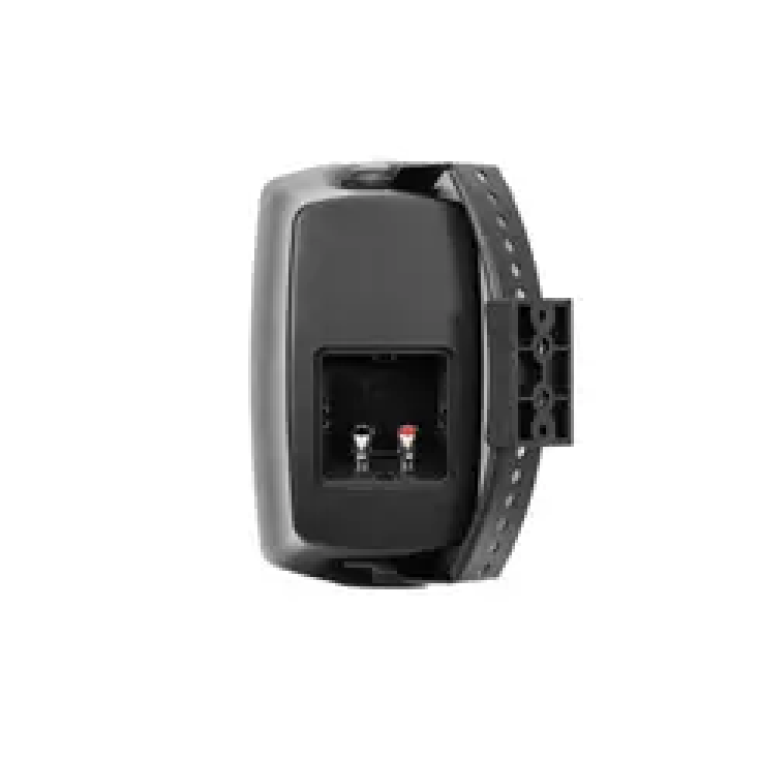

  • Connection Type: Spring-clamp terminal block for quick raw speaker wire connections

  • Impedance Matching: Fixed 8 Ω low-impedance connection (no 70V/100V line transformer)

Controls & Adjustment

  • Hardware Controls: None (direct 8 Ω low-impedance input)

  • Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment

Enclosure & Hardware

  • Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)

  • Front Protection: Perforated steel front grille (black finish)

  • Environmental Protection: IP44 rated for indoor and sheltered outdoor installations

  • Mounting Hardware: Heavy-duty adjustable wall/ceiling mounting bracket included

  • Application Modes: Low-impedance stereo or multi-zone foreground/background music systems in bars, lounges, larger retail spaces, fitness centers, home setups, and covered outdoor spaces

Physical Specifications

  • Dimensions (H x W x D): 285 x 205 x 180 mm (11.2" x 8.1" x 7.1")

  • Weight: 2.6 kg (5.73 lbs)

Accessories Included

  • Heavy-Duty Adjustable Wall/Ceiling Mounting Bracket & Hardware

  • Operating Instructions Manual
