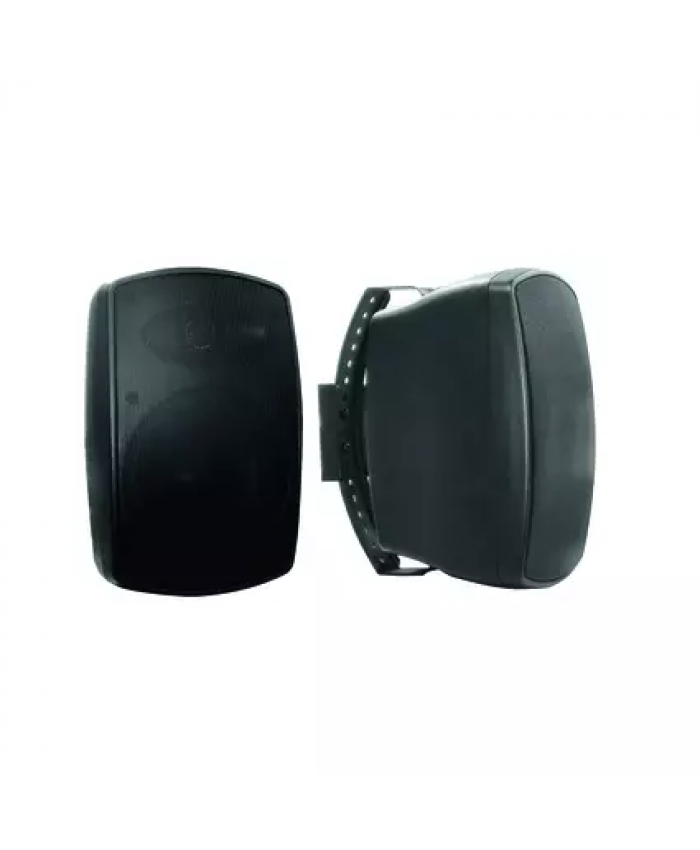

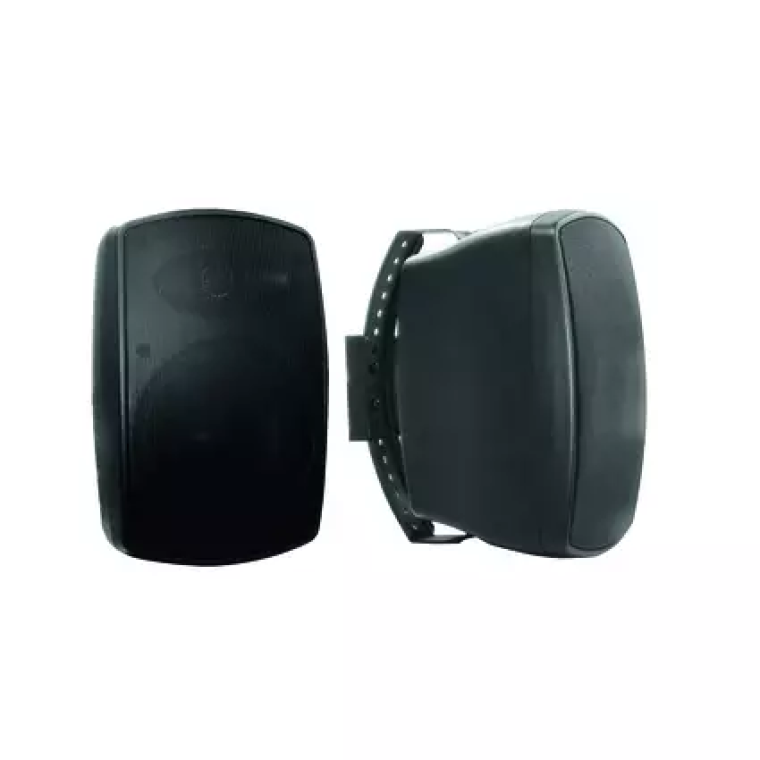

Omnitronic OD-4T Wall Speaker 100V Black

Omnitronic OD-4T Wall Speaker 100V Black

System & Power Handling

• System Type: Compact passive 2-way wall-mount installation speaker with integrated 100V line transformer

• Power Rating: 15 W RMS / 30 W Peak

• 100V Power Tappings: 15 W, 7.5 W, 3.75 W (selectable via rear rotary switch)

• Low Impedance Mode: 8 Ω direct connection bypass option

• Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

• Low Frequency Driver: 4" (100 mm) woofer with polypropylene cone and rubber surround

• High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter

• Frequency Response: 100 – 20,000 Hz

• Sensitivity: 87 dB (1W/1m)

• Max SPL: 98 dB @ 1m

• Dispersion Angle: 110° x 90° (H x V) broad coverage pattern

Connectivity & Impedance Matching

• Connection Type: Screw terminal block / spring-clamp terminals for quick speaker wire connections

• Switchable Selection: Rear-panel rotary tap switch for 8 Ω bypass and 100V line transformer wattage settings (15W / 7.5W / 3.75W / 8 Ω)

Controls & Adjustment

• Hardware Controls: Rear-panel rotary selector for power tapping and impedance bypass

• Mounting Alignment: Includes mounting bracket for vertical and horizontal pan/tilt adjustment

Enclosure & Hardware

• Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)

• Front Protection: Perforated steel front grille (black finish)

• Environmental Protection: IP44 rated for indoor and sheltered outdoor installations

• Mounting Hardware: Adjustable wall/ceiling mounting bracket included

• Application Modes: Background music, voice announcements, and commercial audio in restaurants, bars, retail stores, fitness centers, offices, and covered outdoor terraces

Physical Specifications

• Dimensions (H x W x D): 215 x 150 x 130 mm (8.5" x 5.9" x 5.1")

• Weight: 1.8 kg (3.97 lbs)

Accessories Included

• Adjustable Wall/Ceiling Mounting Bracket & Hardware

• Operating Instructions Manual
