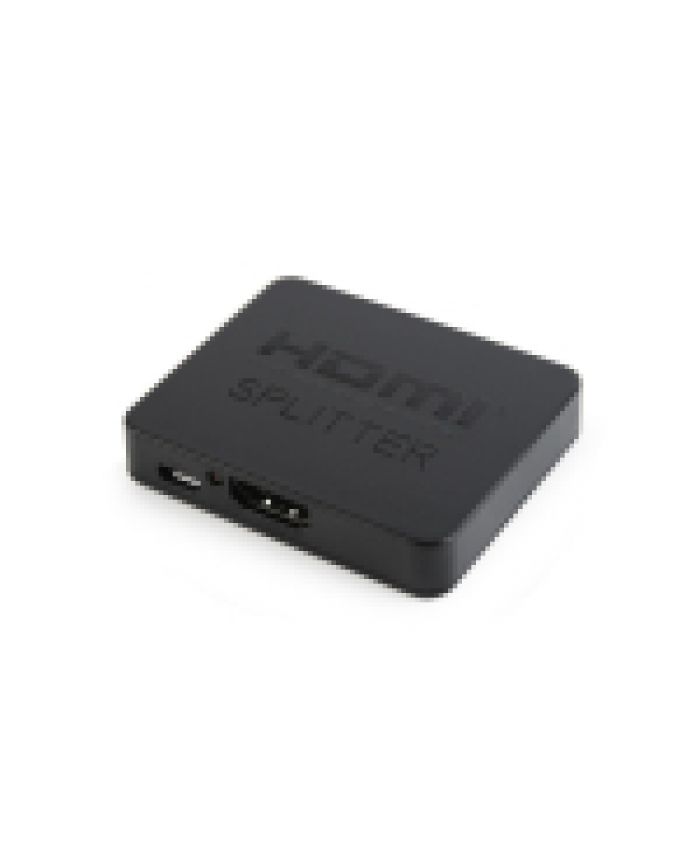

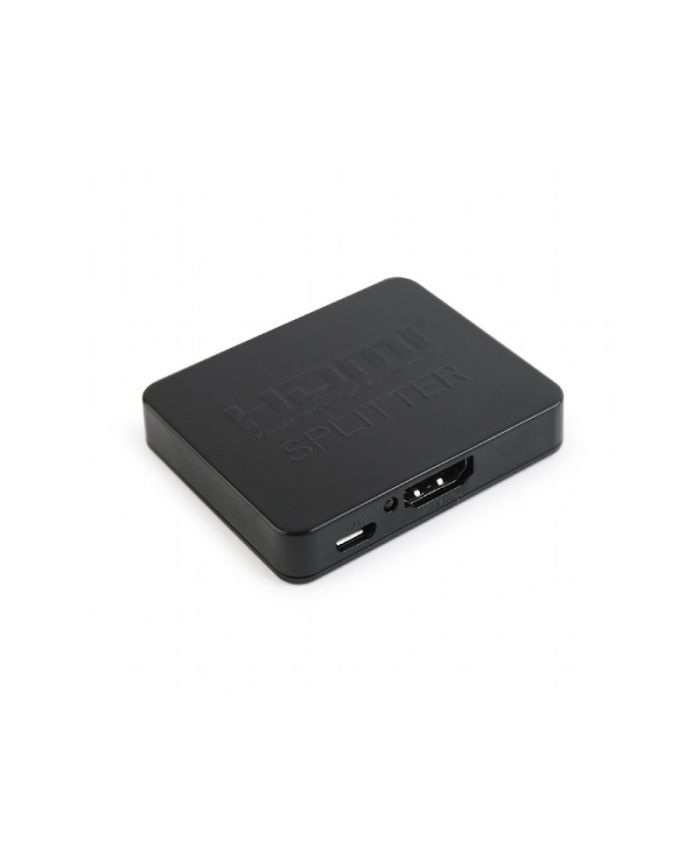

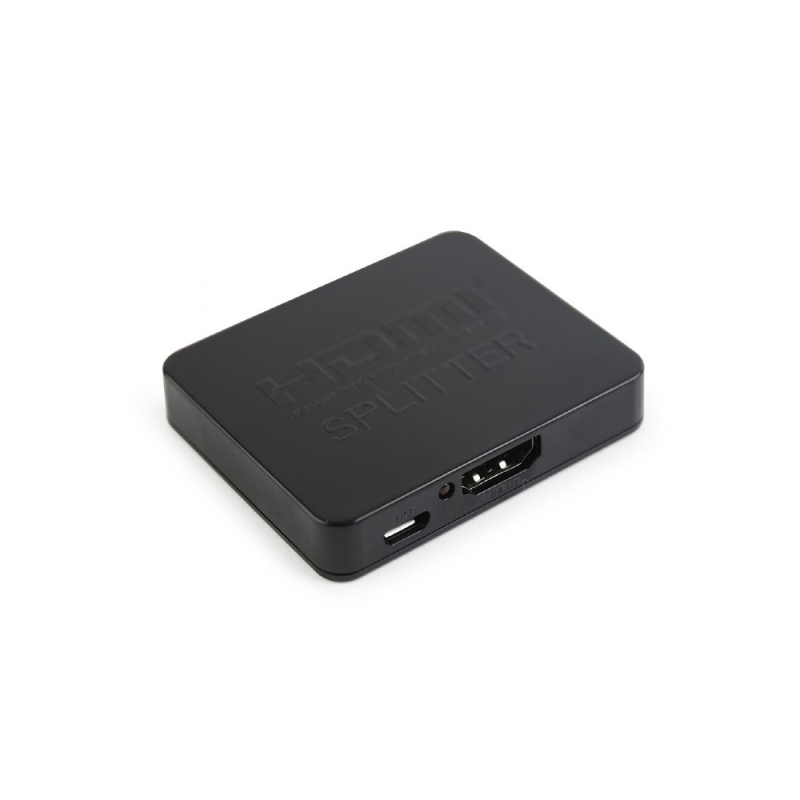

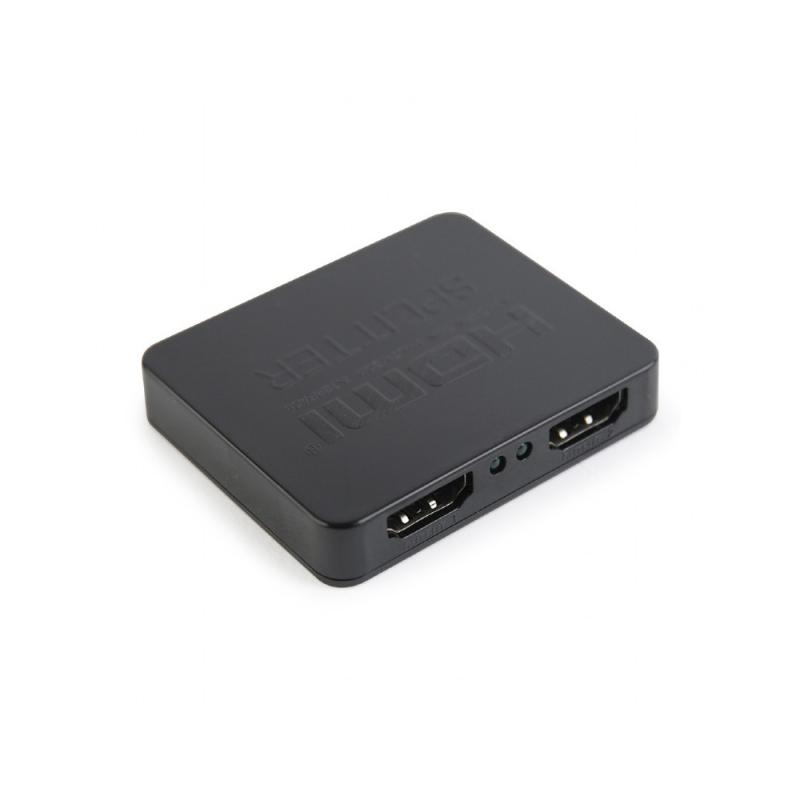

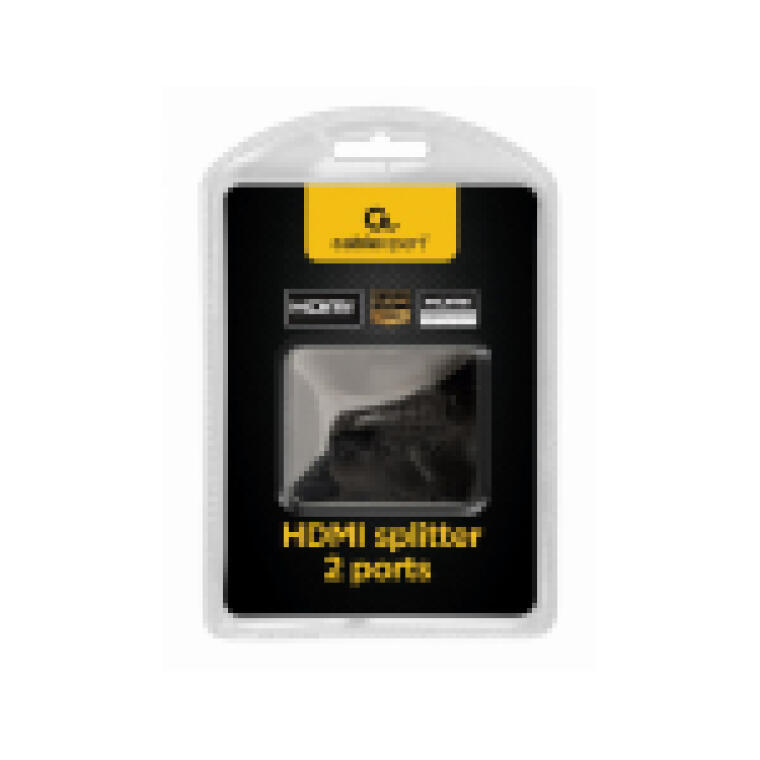

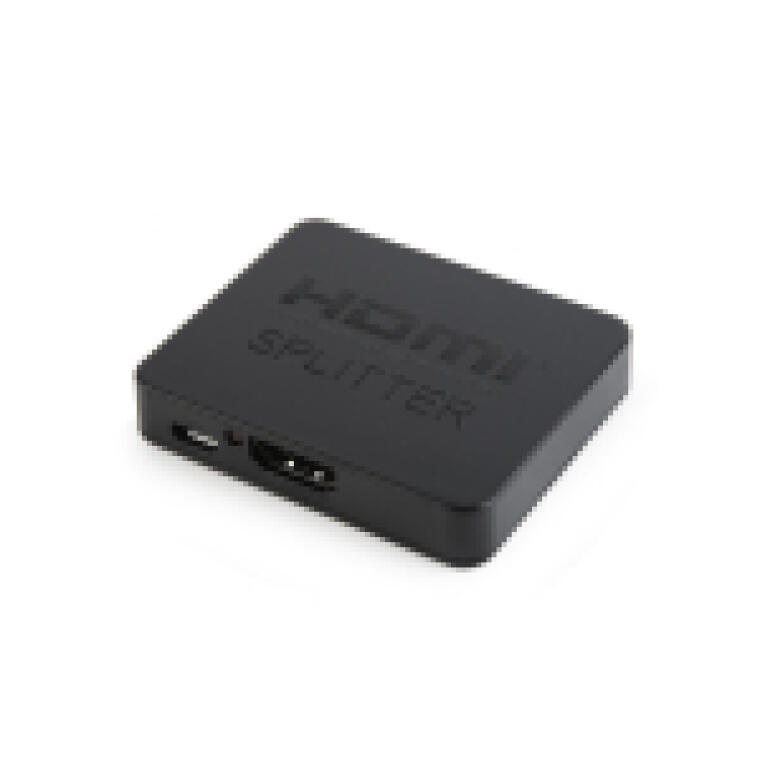

HDMI Splitter 2 Ports – DSP2PH403
€16.95
Quick Overview
– DSP2PH403
Sends a single HDMI signal to 2 separate monitors, projectors or TV’s. The digital amplifier increases the transmission distance and also improves signal quality. Supports 3D video
- Ports: one input receptacle, 2 output HDMI output receptacles, 19 pin (A)
- Interface standard: HDMI + HDCP v.1.4 (compatible with all HDMI versions)
- Video formats: HDMI (480p/576i/576p/720p/1080i/1080P)
- Maximal single-link range: 1920×1080 pixels, 1080p
- Dual-link range: up to 3840×2160 at 30 Hz; color 30bit, 36bit
- Supports Blue-Ray: 24/50/60fs/HD-DVD/xvYCC, audio DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR)
- Signal retiming support
- Working distance: up to 20 m at AWG26 HDMI cable (at 4K resolution – 8 m input max, up to 12 m output)
- Video amplifier: 0.5…1.0 Vp-p, up to 225 MHz bandwidth, DDC signal 5 Vp-p
- Power adapter specs: 5 V DC, 1 A
- Dimensions: 70 x 60 x 20 mm
- Net weight: 0.12 kg
