EUROLITE MD-1015
€0.00
Quick Overview

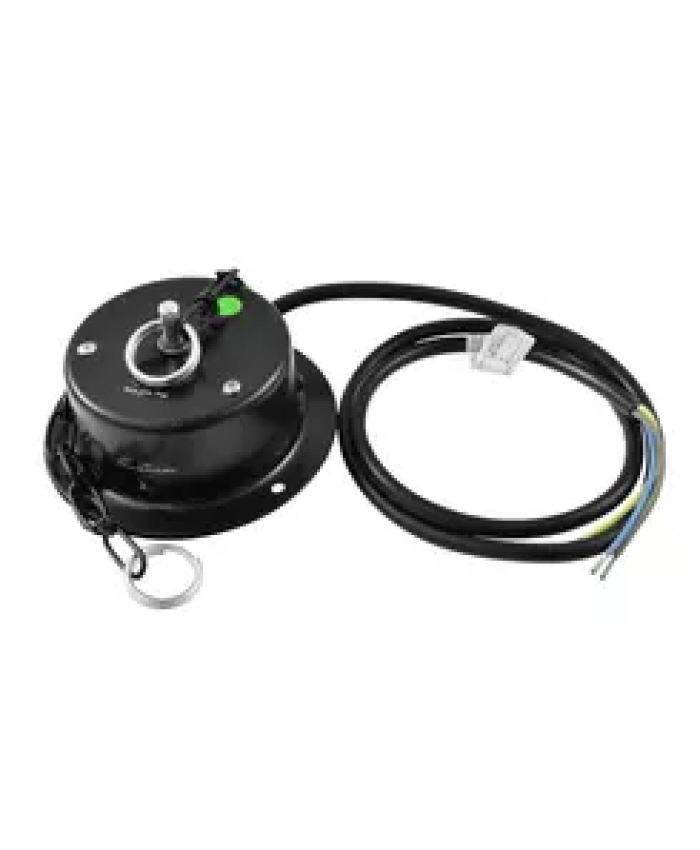

EUROLITE MD-1015 Rotary Motor w/o plug
Motor for mirror balls up to 30 cm with 1.5 RPM
- The maximum load always means the mirror ball weight including chains and the fixation material
- 1,5 rotations per minute
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 30 cm
- For application areas such as: Clubs/dancing school
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 4 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed supply cord with open wires |
| Cable construction: | 3 x 0,75 mm² H05VV-F |
| Cable length: | Approx. 0,8 m |
| Speed: | 1,5 RPM , 360 ° forward/backward |
| Maximum load: | 3 kg |
| Max. mirror ball diameter: | 30 cm (EUROLITE) |
| Diameter mounting holes: | 3 x Ø5mm |
| Material: | Metal |
| Color: | Black |
| Dimensions: | Height: 6 cm Diameter: Ø 10,8 cm |
| Weight: | 0,32 kg |
| Chain | |
| Material: | Metal, 2 mm |
| Color: | Black |
| Dimensions: | Length: 30 cm |
