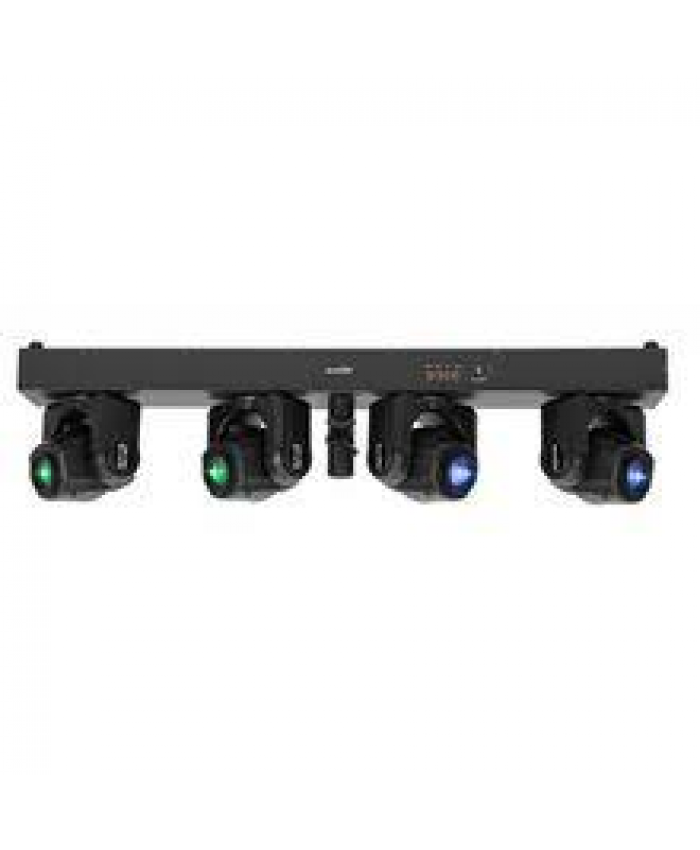

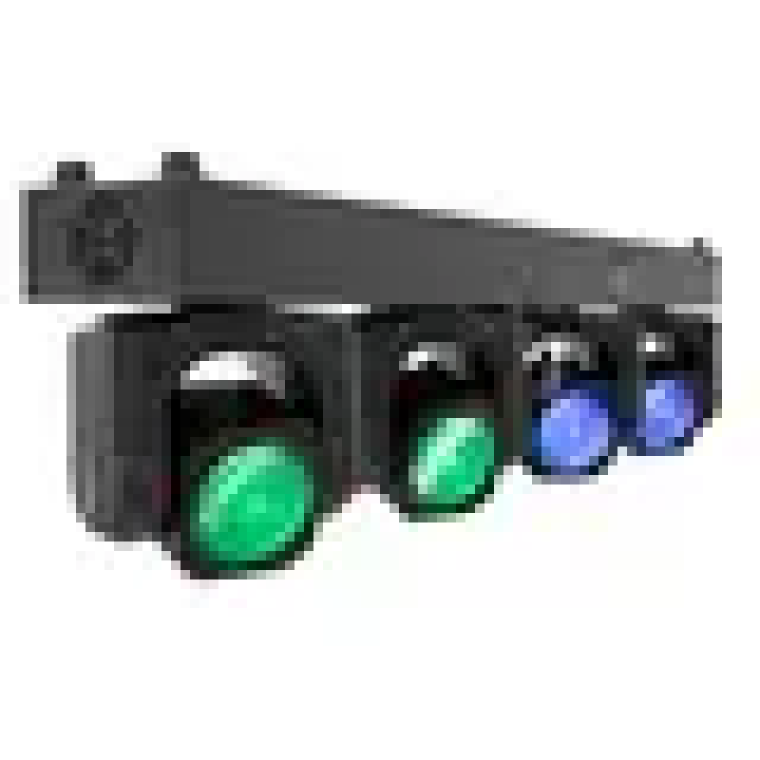

EUROLITE LED TMH Bar B240 Moving Head Beam
€0.00
Quick Overview
EUROLITE LED TMH Bar B240 Moving Head Beam
LED lighting system with 4 individually controllable 60 W moving heads
- 4 LEDs 60 W SMD 6065 4in1 QCL RGBW
moving lights effects controlled separately - Positioning within 540° PAN, 180° TILT
- Exact positioning (16 bit resolution)
- Dimmer electronic; color selection; Motion macros adjustable; color macros adjustable
- Beam effect
- 22 integrated show programs
- The device is cooled by cooling fan at the base; cooling fan at the head
- Control via stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- DMX fail mode (hold; blackout)
- With a beam angle of 2°
- With omega bracket
- 4 digit 7-segment LED display
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile use; stage; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Standing; suspended; on stand
- Preprogrammed in Light Captain; Colorchief
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 230 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A |
| Lamp type: | LED lamp |
| LED type: | 4 x 60 W SMD 6065 4in1 QCL RGBW |
| Max. TILT movement: | 180° exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) |
| Flash rate: | 2 - 15 Hz |
| DMX channels: | 4; 8; 13; 15; 23; 27; 40; 48 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 2 x cooling fan at the base 4 x cooling fan at the head |
| Control: | Stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; Colorchief |
| Projection: | Flicker-free |
| PWM frequency: | 11000 Hz |
| DMX fail mode: | Hold; blackout |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Beam angle (1/10 peak): | 3° |
| Lamp life: | 20000 h |
| Housing color: | Black |
| Attachment system: | Tube: Ø 35mm 2x omega bracket |
| Display type: | 4 digit 7-segment LED display |
| Control elements: | Power switch |
| USB port: | Type A |
| Transport aid: | 4 x rubber feet |
| Diameter mounting holes: | 2 x Ø10mm |
| Material: | Steel |
| Dimensions: | Width: 100.0 cm Depth: 17.5 cm Height: 25.5 cm |
| Weight: | 12.55 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
