Omnitronic MPVZ-180.6P PA Mixing Amplifier

Omnitronic MPVZ-180.6P PA Mixing Amplifier

€0.00

Quick Overview

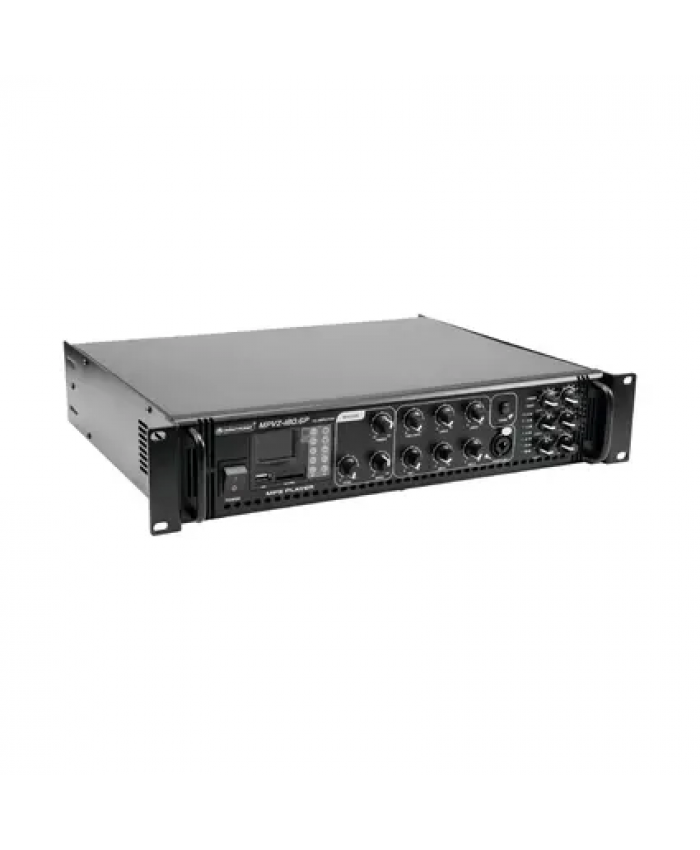

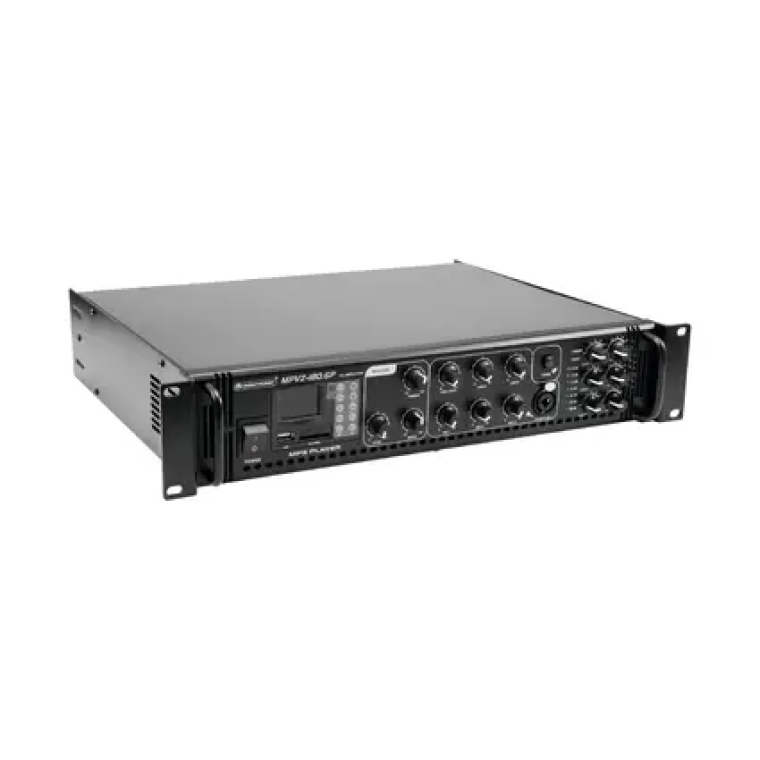

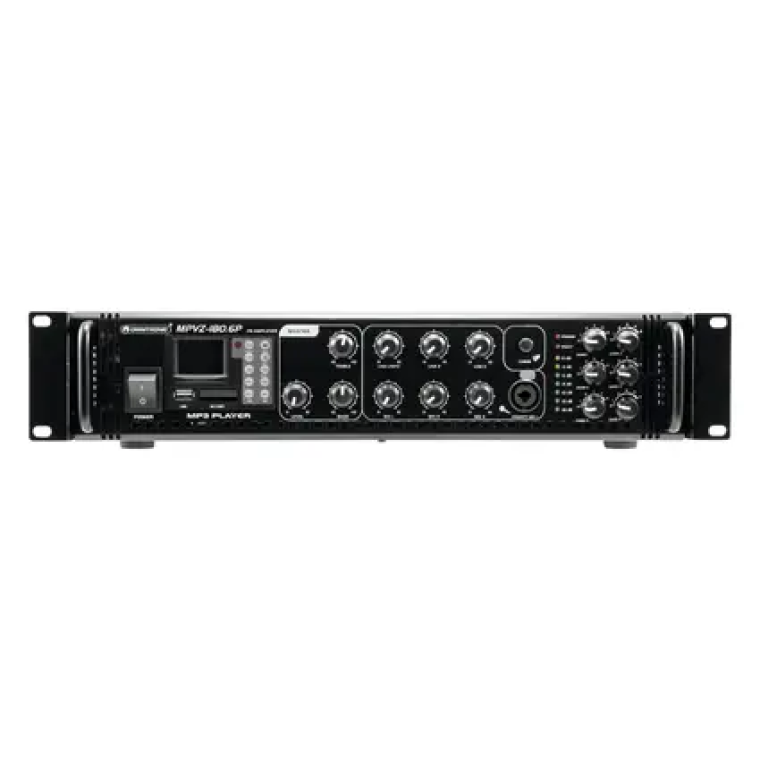

OMNITRONIC MPVZ-180.6P PA Mixing Amplifier

6-zone-PA mixing amplifier with audio player and remote control, adjustable zones, 180 W RMS

  • Comfortable control of PA speakers via 6-zone technology
  • 6 PA zone outputs with separate 5-step level controls
  • Output for low-impedance speakers (4-16 ohms)
  • SD card slot and USB port
  • Folder navigation and repeat functions (1, All)
  • 2 rear microphone inputs (6.3 mm jack, unbal.)
  • 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
  • All microphone inputs with separate level controls
  • 3 line inputs (stereo RCA) with separate level controls
  • 1 line output (stereo RCA)
  • Chime, switchable
  • Treble and bass control for the output signal
  • 7-digit LED level meter
  • Master control for the output signal
  • (19") 48.3 cm rack installation 2 U
  • Highly efficient air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms

audio player

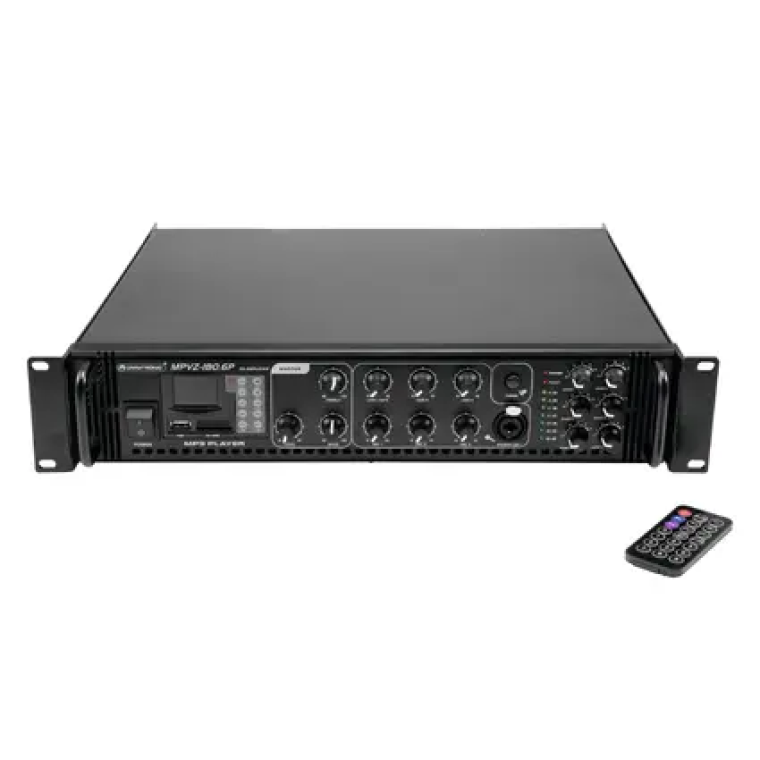

  • Control via IR remote control
  • LCD display
  • Power supply: 230 V AC, 50 Hz
    Power consumption: 360,00 W
    Protection class: Protection class I
    Output power: 180 W RMS
    Power connection: Fixed power supply cord with safety plug
    Device fuse: 5 x 20 mm, T 2 A fuse replaceable
    Frequency range: 80 - 16000 Hz
    S/N ratio: >75 dB microphone
    >85 dB line
    THD: <0,5 % at 1 kHz
    Cooling: Temperature-controlled fan , air flow from front to rear
    Impedance: Public address systems 100V; 4-16 ohms; Public address systems 70V
    Zone output: 6 adjustable zones
    Circuitry: Class AB
    Control elements: Power switch, Master control, level control per channel, tone control, regular talkover
    Controls: Current limiting; short-circuit; power on/off transient
    Status LED: Power, fault, level meter

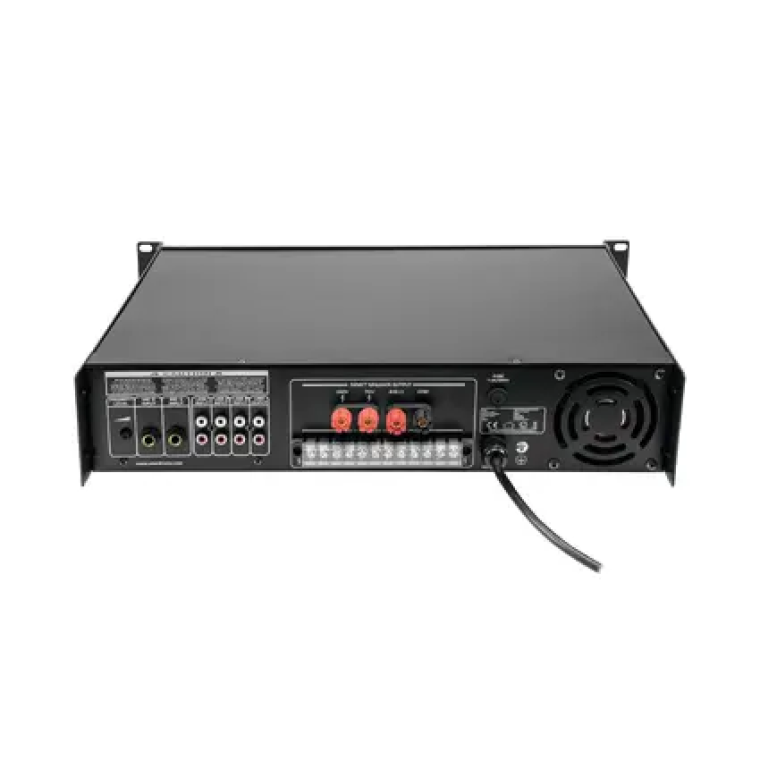

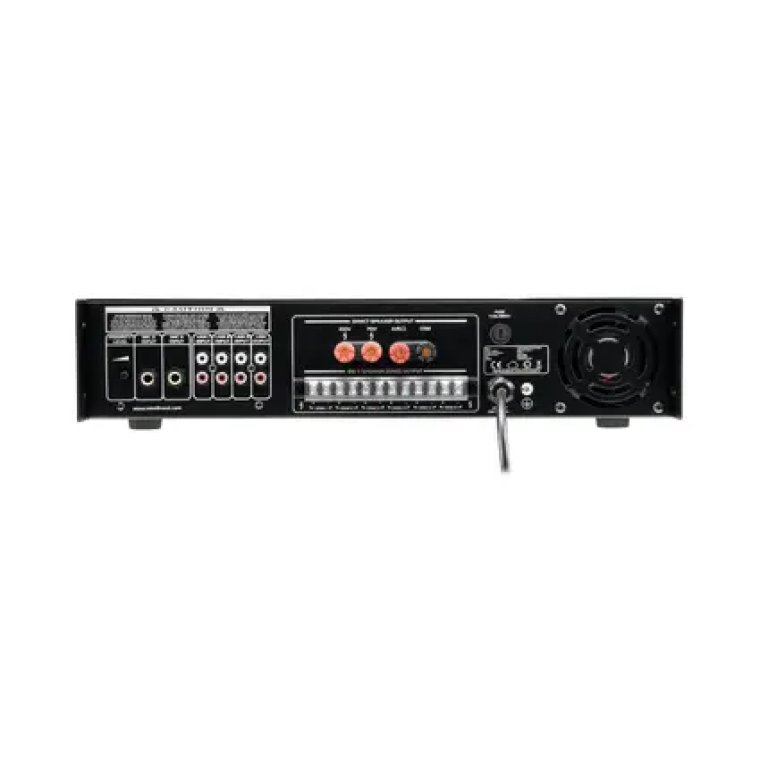

    Connections: Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
    Input: microphone via 2 x 6.3 mm plug (unbal.)
    Input: line via 3 x stereo RCA 0,3 V
    Output: line via 1 x stereo RCA
    Output: speaker via screw terminal
    Equalizer: Master: 1 x 2-band tone control mono
    Material: Metal
    Color: Black
    Housing design: (19") 48.3 cm rack installation 2 U
    Dimensions: Width: 48,3 cm
    Depth: 38,5 cm
    Height: 8,9 cm
    Weight: 9,00 kg
    Remote control
    Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
    Audio player
    Control: IR remote control
    Audio player: USB + SD
    Display type: LCD display
    Music format: MP3
    Number of files: Max. 999
    Available storage media: USB devices/SD cards max. 32GB (FAT 32)
