Eagle PA6060T (100V Line)
€0.00
Quick Overview

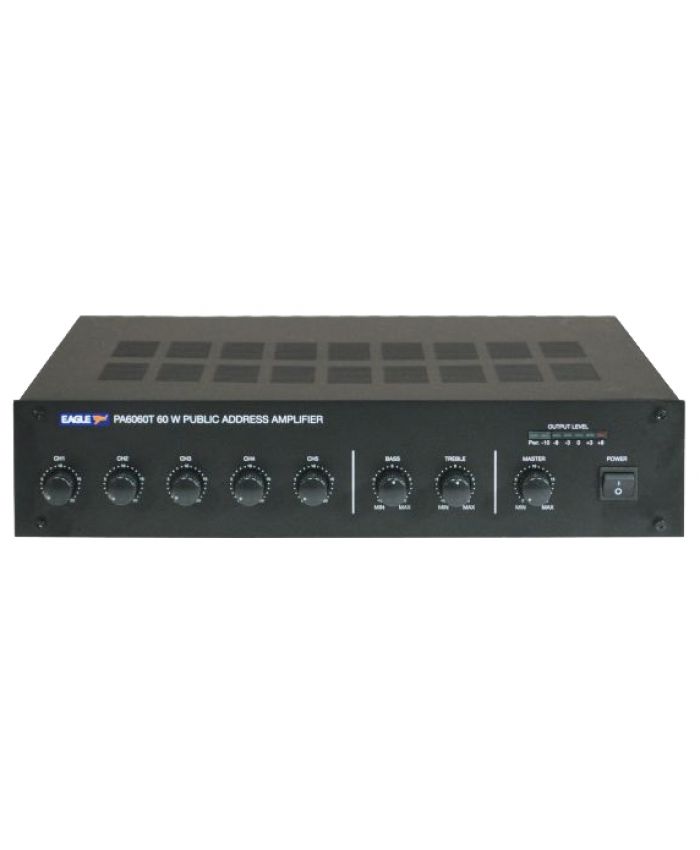

Eagle PA6060T (P648WJ)
The 6000 range of Eagle PA amplifiers offers versatile features and outstanding value for installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship and hotels. The unit features six inputs, two are balanced microphone inputs, two are auxiliary line inputs/microphone inputs and the final one is a microphone and telephone input.
- Auxillary Input 150 mV, stereo 22k,
- Booster Output 775 mV 600 Ohm
- Colour Black
- Connector Screw terminals On Output
- Current Rating (A) 5
- DC Input (V) 24
- Frequency Response (Hz) Mic: 60 - 15k ± 3dB
- Inputs Mic: 600 Ohm balanced
- Mic Priority Ch 1: 0.3 mV (Ch 1 can mute Ch 3-5, & Aux3)
- Outputs 100 V /70 V 8 Ohm
- Power Input 230 V AC @ 50 Hz
- Power RMS (W) 60
- Priority Microphone Yes (1.5 mV/600 Ohm)
- THD Less than 2%
- Vox Reduction (dB) 40
Dimensions
- Product Dimensions (mm) 90x420x310
- Net weight (kg) 8.5
