Omnitronic CPZ-120P (100V Line)

€359.00

Quick Overview

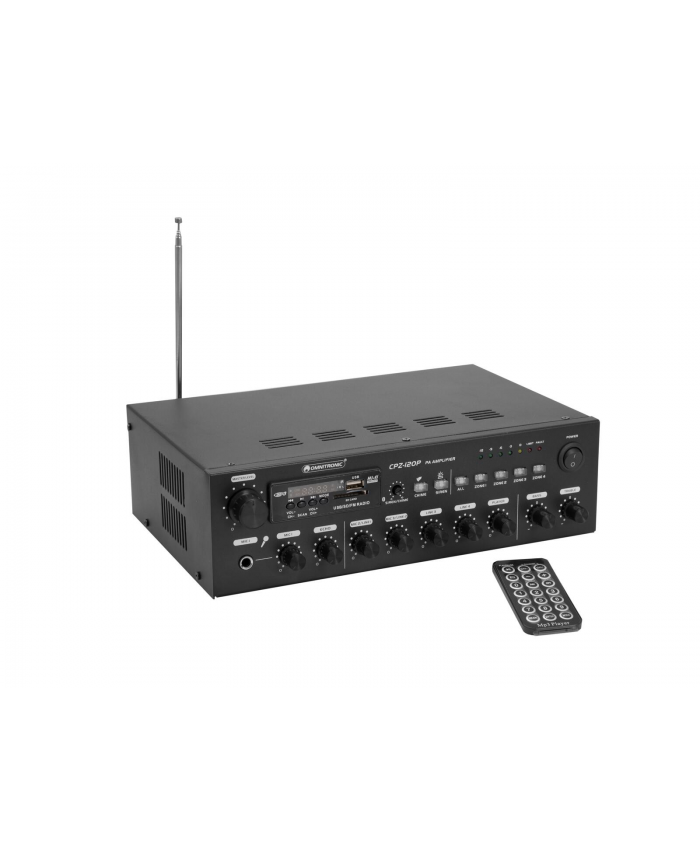

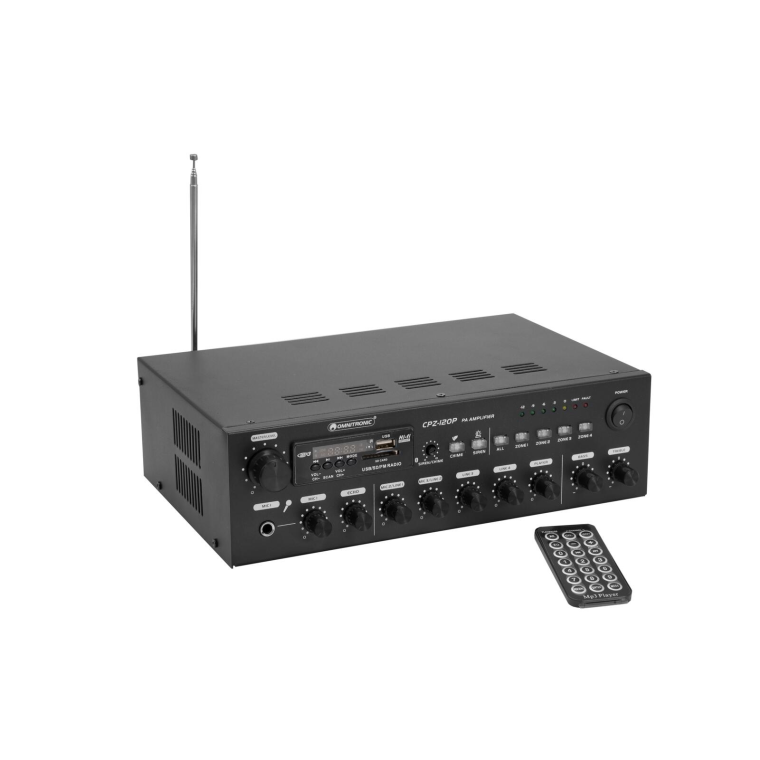

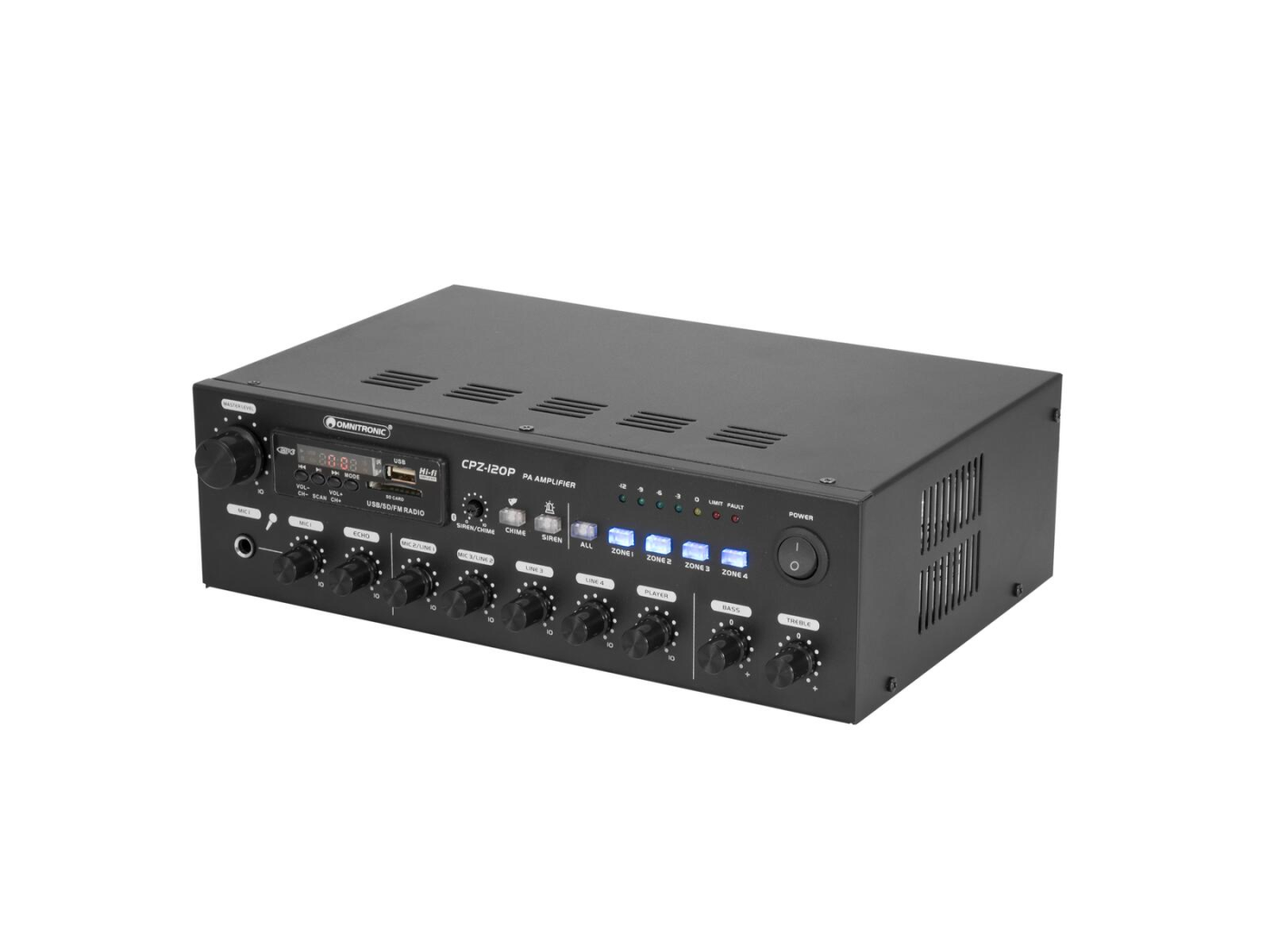

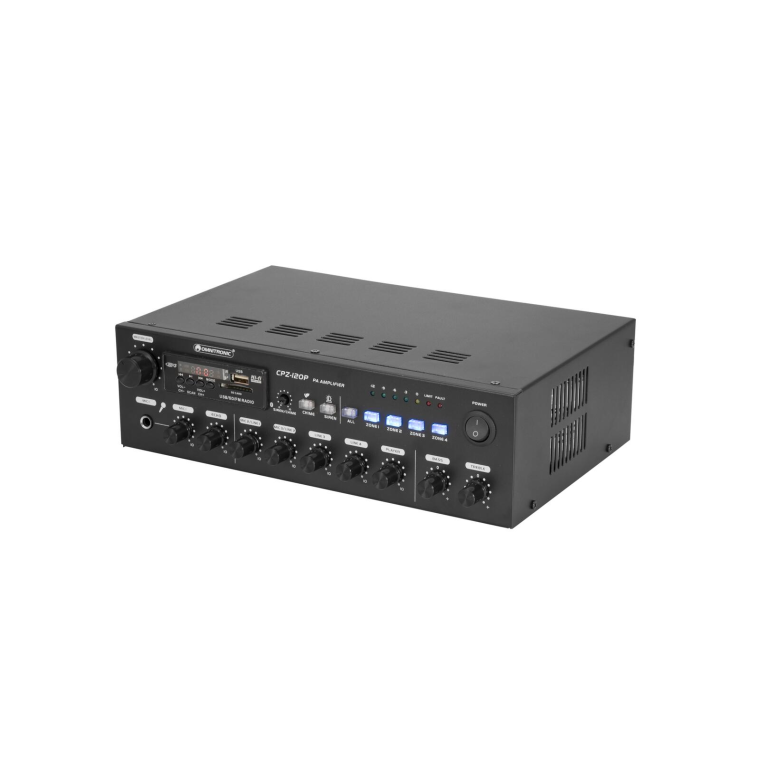

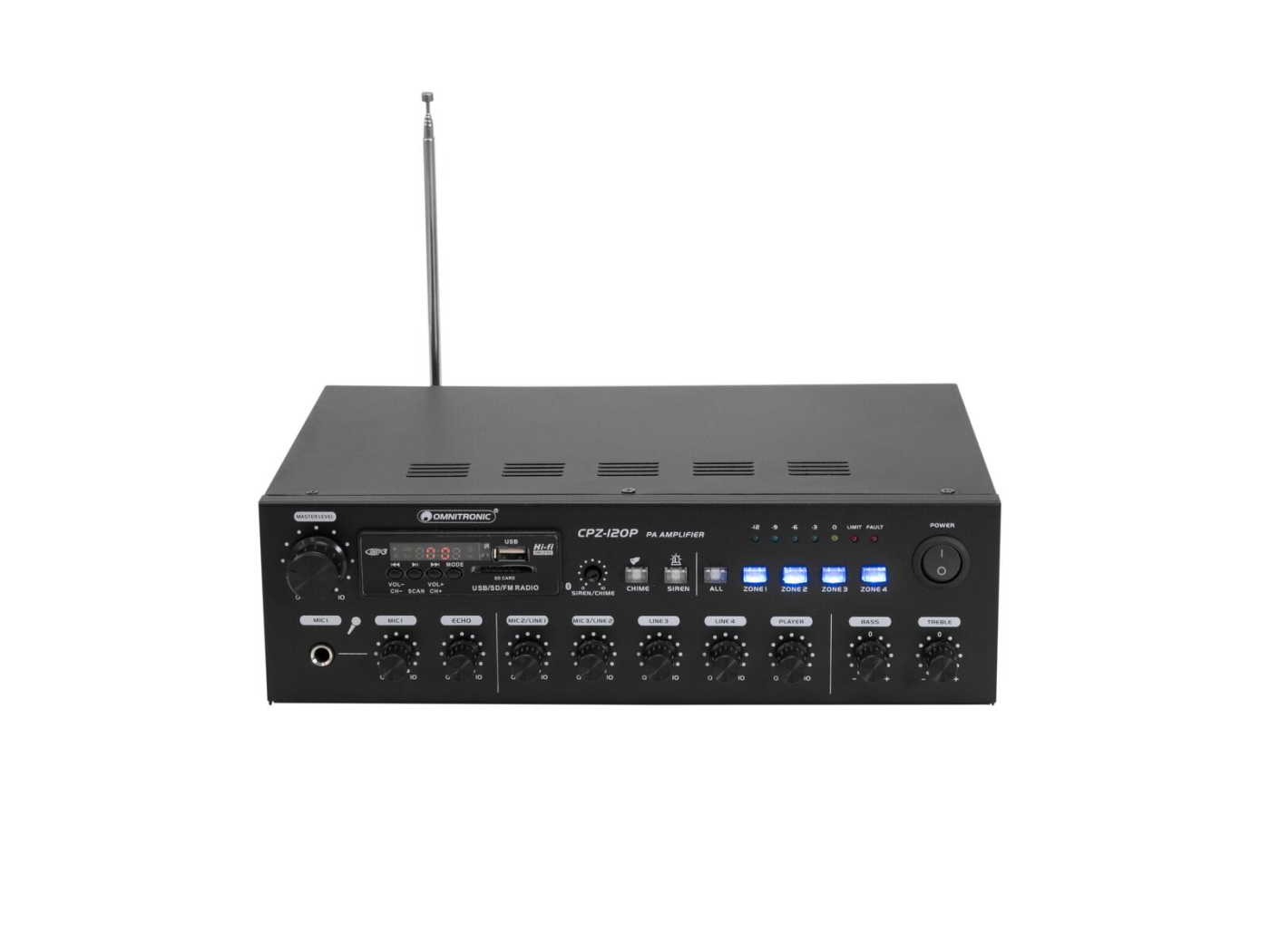

OMNITRONIC CPZ-120P PA Mixing Amplifier

Omnitronic CPZ-120P

4-zone PA mono mixing amplifier, MP3 player, Bluetooth, zones switchable, 120 W

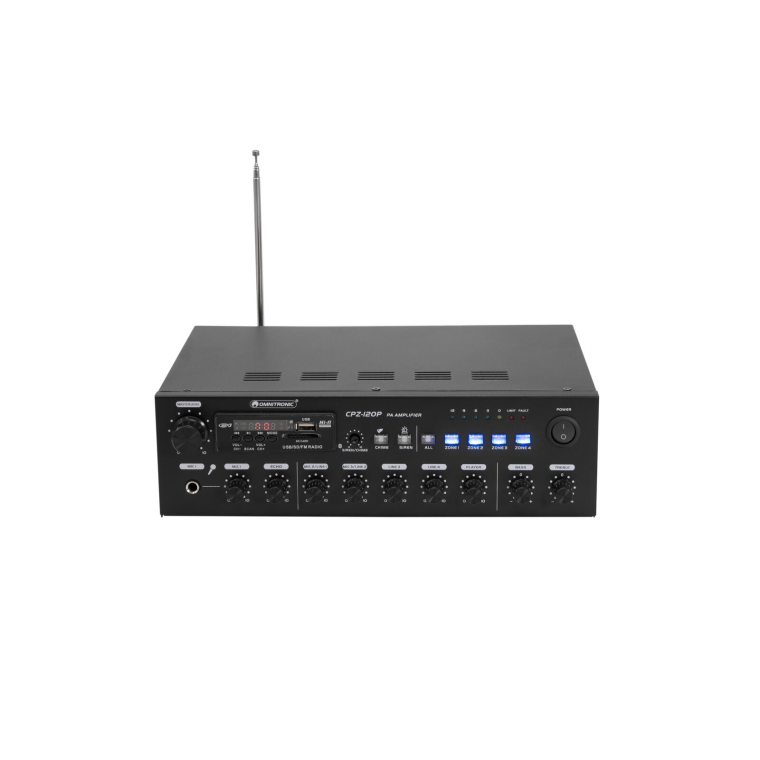

4 PA zone outputs, independently switchable on the front panel
Master PA output (70 V and 100 V)
Output for low-impedance speakers (4-16 ohms)
Built-in audio player with Bluetooth receiver and IR remote control
Integrated Bluetooth audio streaming
SD card slot and USB port
FM tuner with auto scan
3 microphone inputs with separate level controls
Mic 1 with phantom power, priority circuit and echo effect
Mic 2 and 3 switchable mic/line
2 line inputs with separate level controls
1 line output
Siren and chime, adjustable
Treble and bass and master controls for the output signal
5-digit LED level meter
Protection circuits with LED indication: overload, short circuit, clip limiter, overheat
Fan-cooled
Mains operation and 24 V emergency power operation
Desktop console

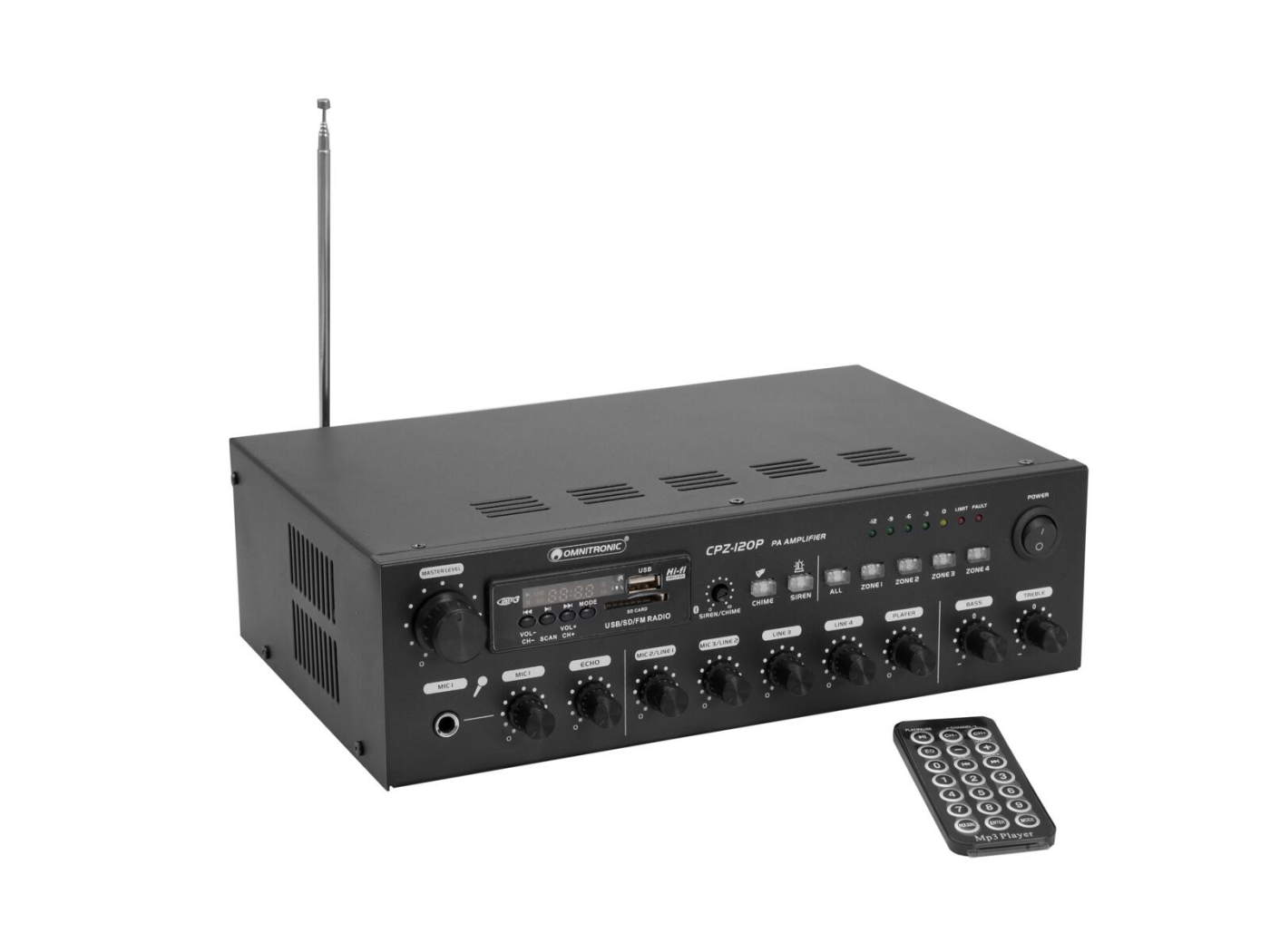

Controlling by Bluetooth; IR remote control included
2 U

Power supply: 100-240 V AC, 50/60 Hz or 24 V
Power consumption: 240 W
Output power: 120 W RMS
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Battery/battery pack (not included)
Battery: 1 x button cell CR2025 Button cell 3.0 V CR2025 lithium manganese built-in
Impedance: 1 x 4 ohms; 1 x 8 ohms; 1 x 16 ohms; 1 x Public address systems 100V
Control: Bluetooth; IR remote control included
Audio player: USB + SD + Bluetooth + FM Radio
Zone output: 4 switchable zones
Circuitry: Class D
Equalizer: Master: 1 x 2-band tone control

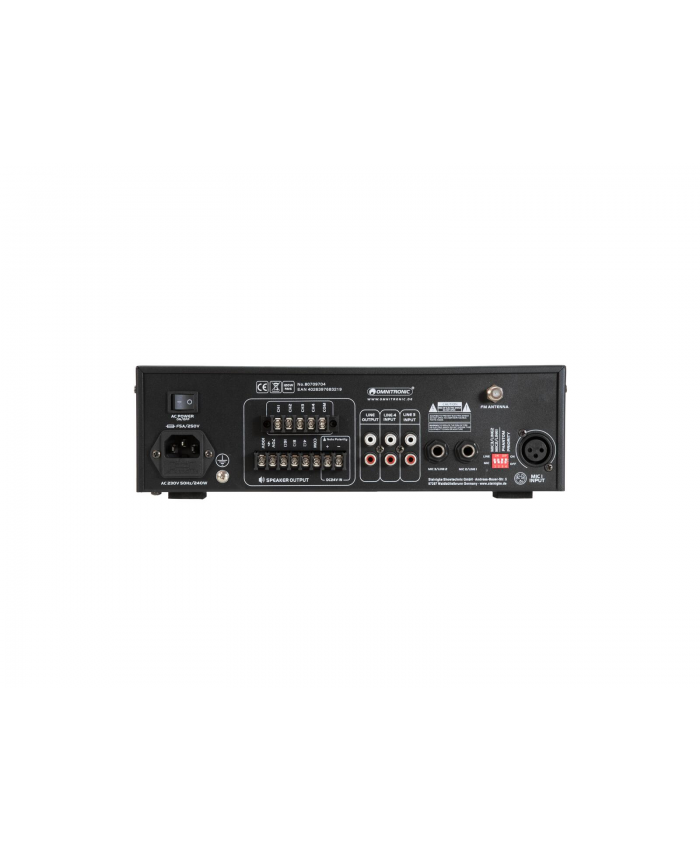

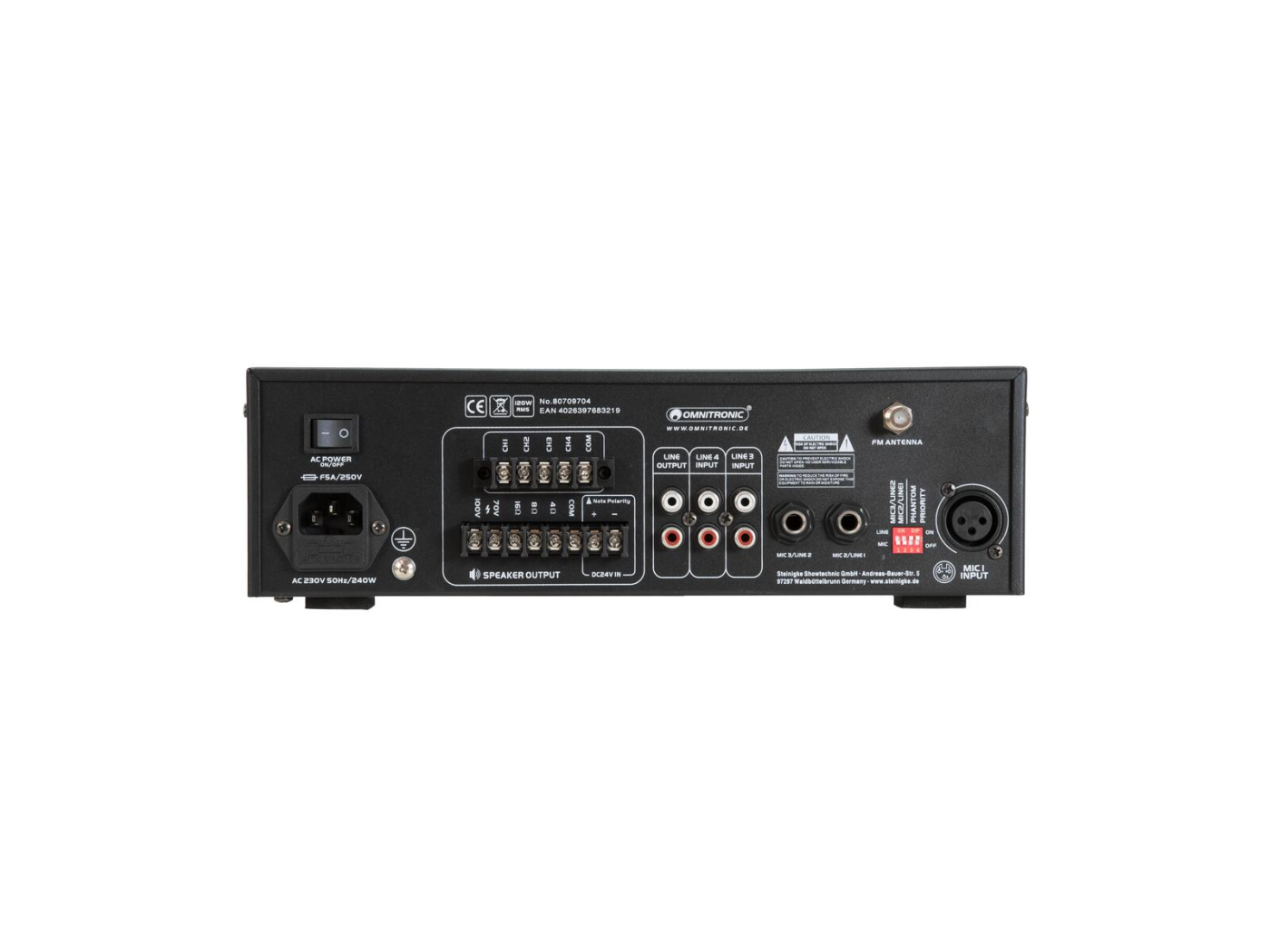

Connections: Input: Microphone via 1 x 3-pin XLR
Input: mic/line via 2 x 6.3 mm jack socket (stereo) mounting version
Input: line via 2 x stereo RCA
Output: line via 1 x stereo RCA 0,774 V
Output: speakers via screw terminal
Format: MP3
Housing design: 2 U
