Omnitronic DJP-900P (100V Line)
€299.00
Quick Overview

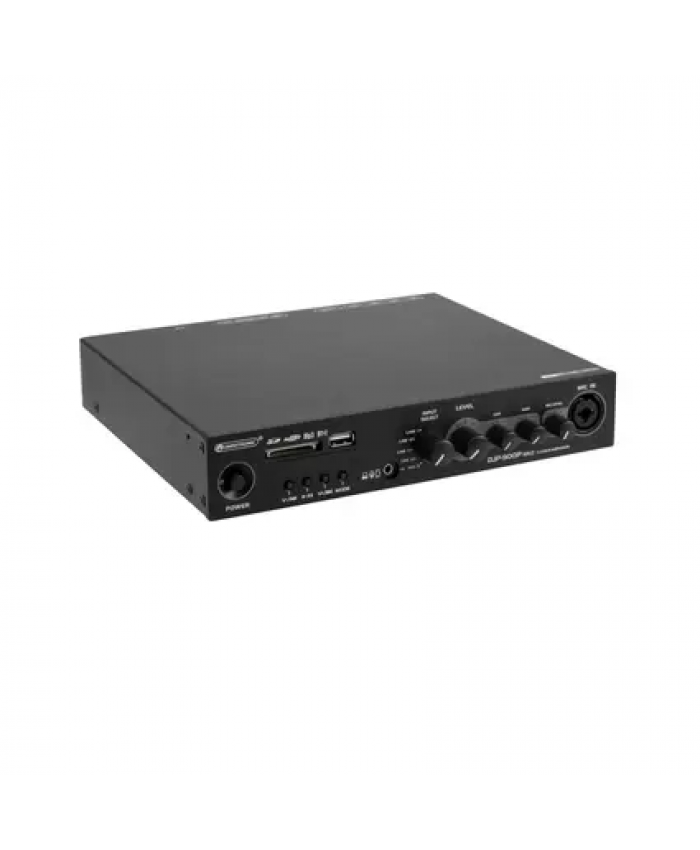

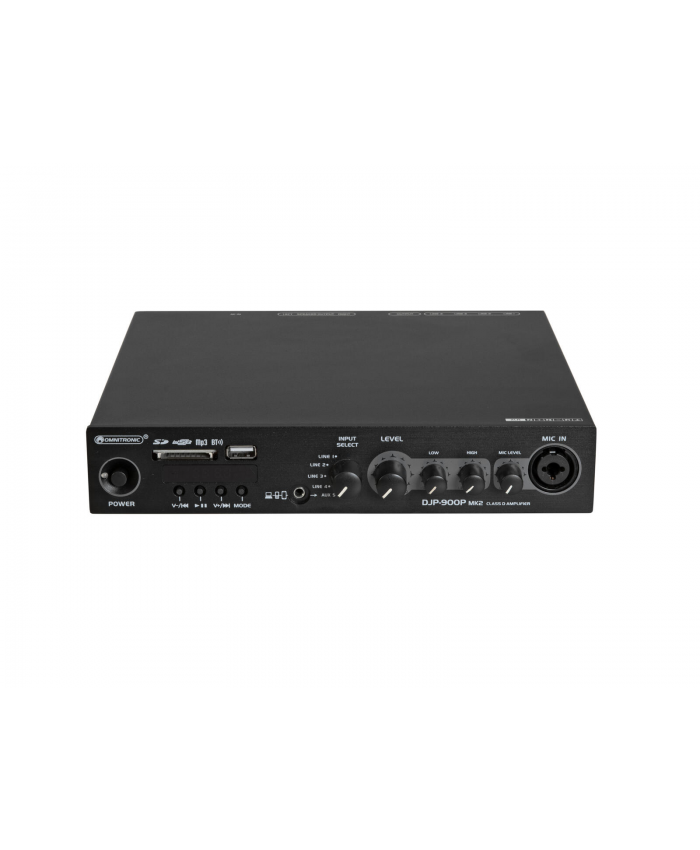

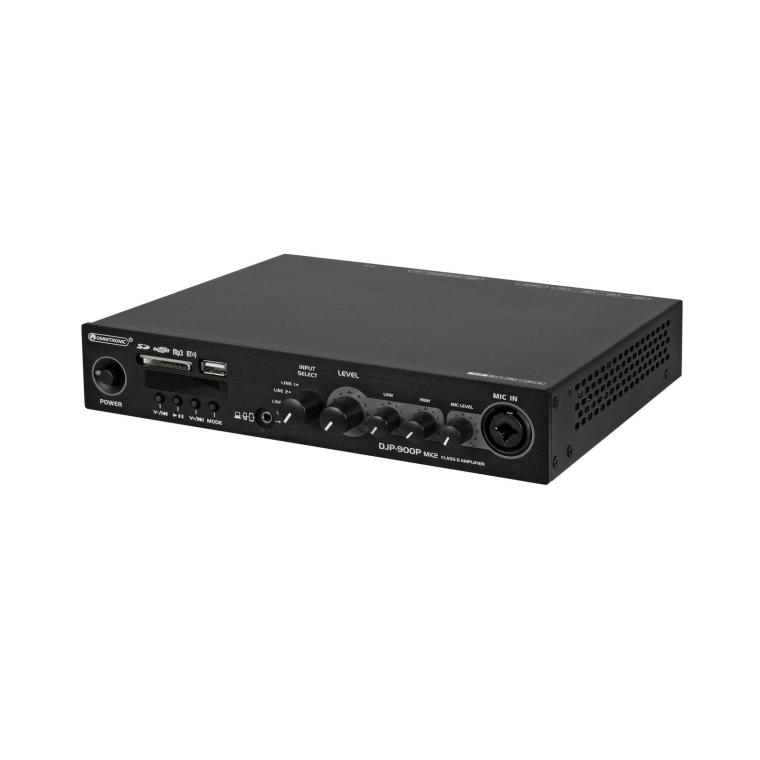

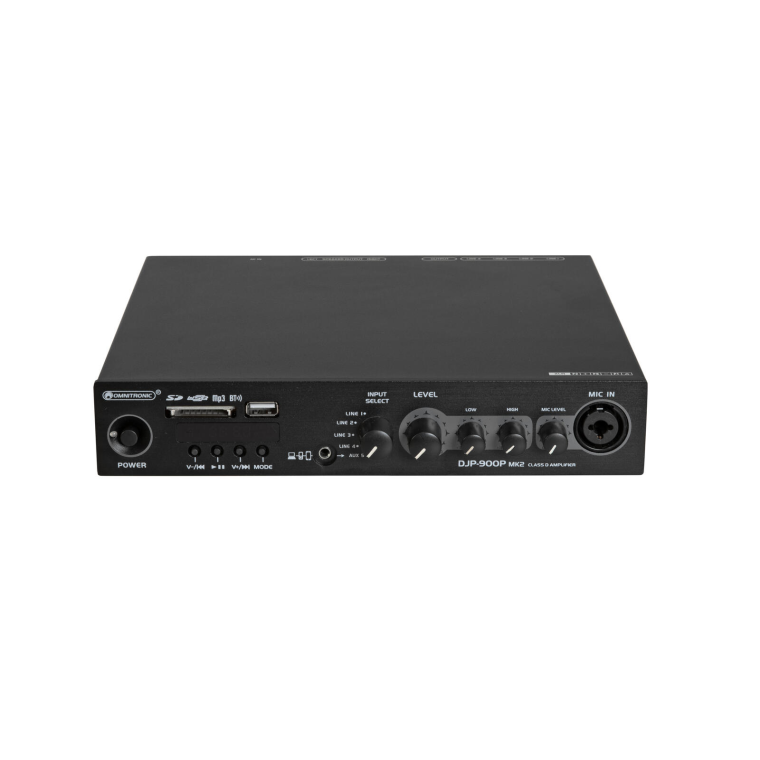

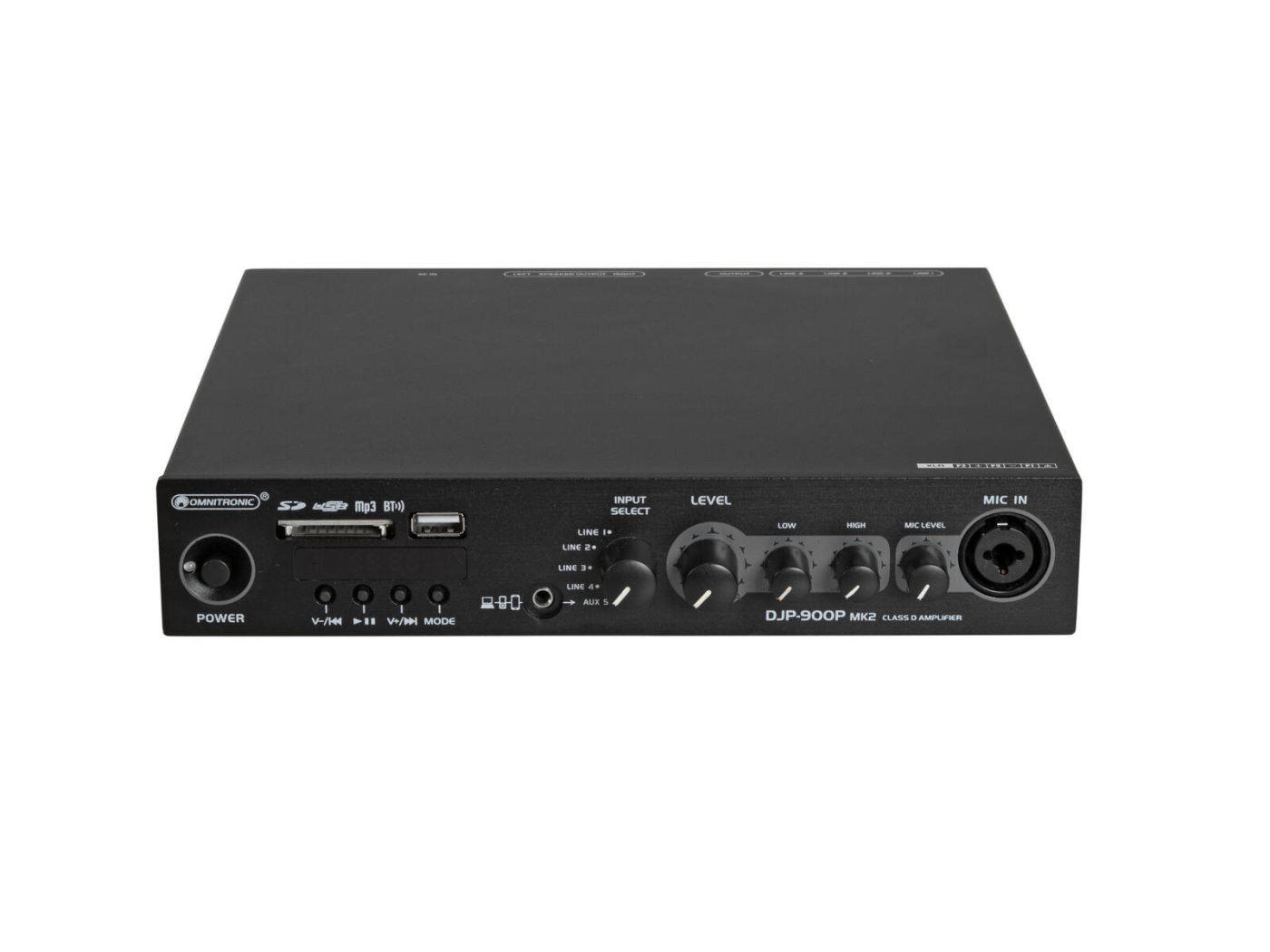

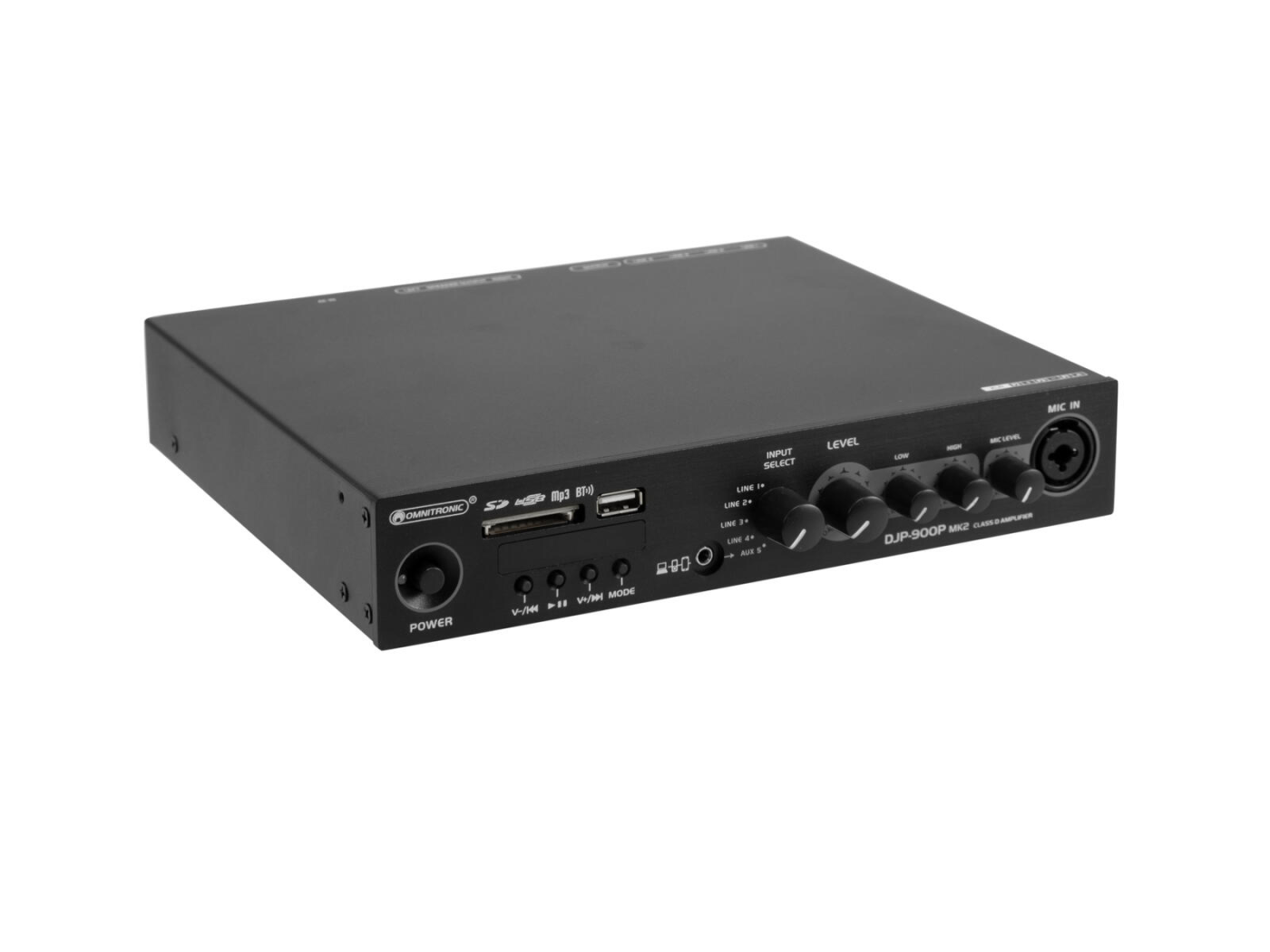

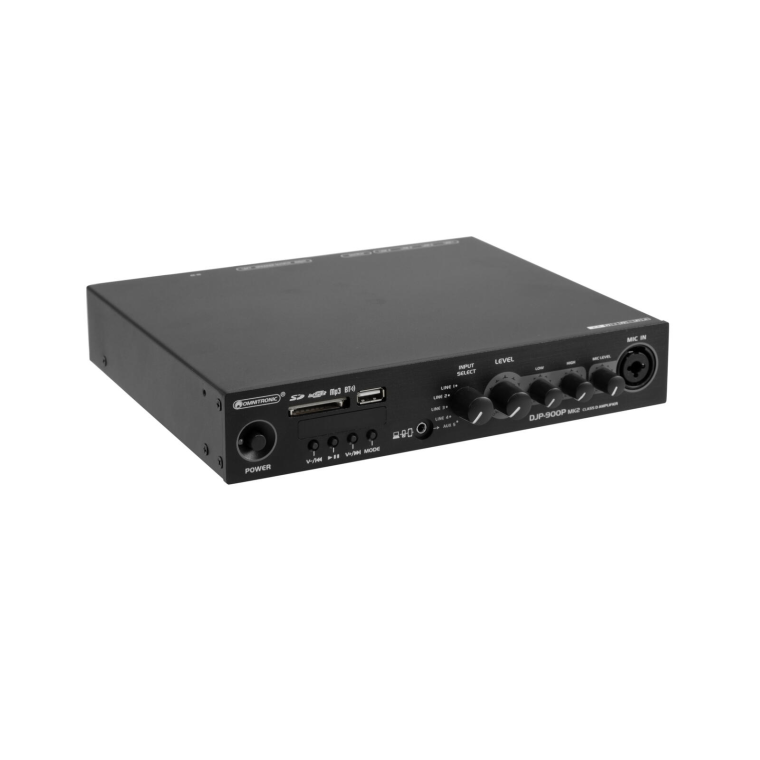

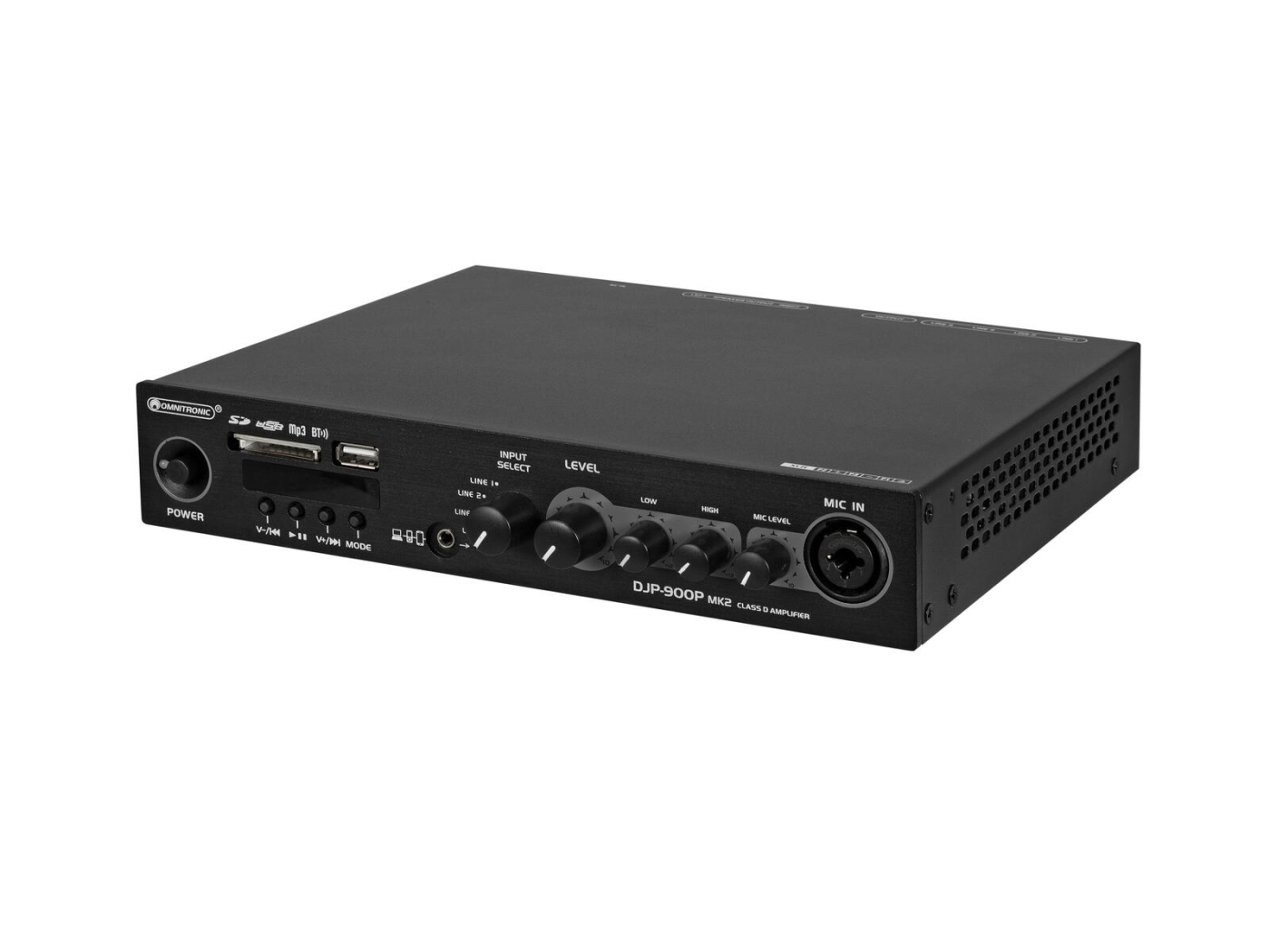

OMNITRONIC DJP-900P Class D Amplifier
Omnitronic DJP-900P
DJP-900P OMNITRONIC CLASS-D AMPLIFIER
Control music - easily and comfortably
VARIOUS CONNECTIONS
Connect up to four line sources, connect your smartphone to the amplifier via Bluetooth, insert an SD card or USB stick or use the AUX connection for an MP3 player, for example. The various possibilities for connection give you flexibility.
A potentiometer makes it easy to select from the connected sources. A microphone input with an extra volume control also allows you to make announcements and speeches.
QUIET AND PRACTICAL
The amplifier is fanless and therefore absolutely quiet during operation. Thanks to its low overall height, it can be easily installed without taking up a lot of space. Its sturdy steel chassis also provides the necessary robustness for daily use.
FEATURES
Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms
- For quick-access music playback control in restaurants, fitness studios and retail locations
- Built-in audio player with Bluetooth receiver
- Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Speaker switch-on delay and auto limiters
- 1 mono microphone input with volume control on the front panel
- Audio source selector
- Extensive protective circuits
- Robust steel chassis with aluminum front panel
- The device is cooled by passive convection
- Desktop console housing; (19") 48.3 cm rack installation (provided) 1 U
Audio player
- Controlling by Bluetooth
- Bluetooth: Use a operating range up to 10m
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 140 W 1/8 power |
| Output power: | 2 x 460 W RMS (4 ohms) 2 x 240 W RMS (8 ohms) Max. 260 W bridged (100 V) Max. 900 W bridged (8 ohms) |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20,000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,05 % at 1 kHz |
| Cooling: | Passive convection |
| Impedance: | 4 ohms; 8 ohms; 16 ohms; Public address systems 100V |
| Impedance: | Input 20 kOhm , bal. Input 10 kOhm , bal. |
| Circuitry: | Class D |
| Slew rate: | >14 V/µs |
| Damping factor: | >300 |

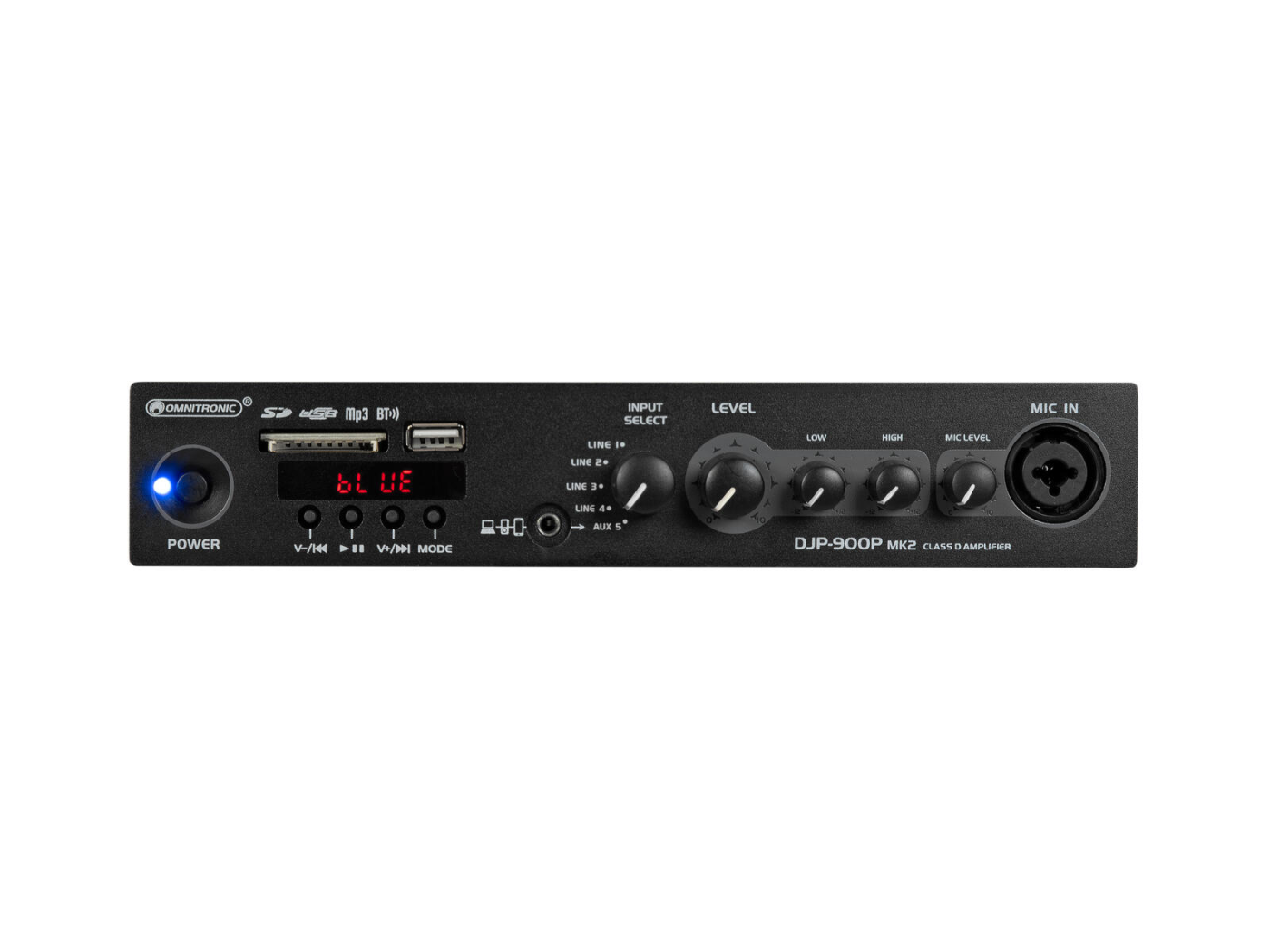

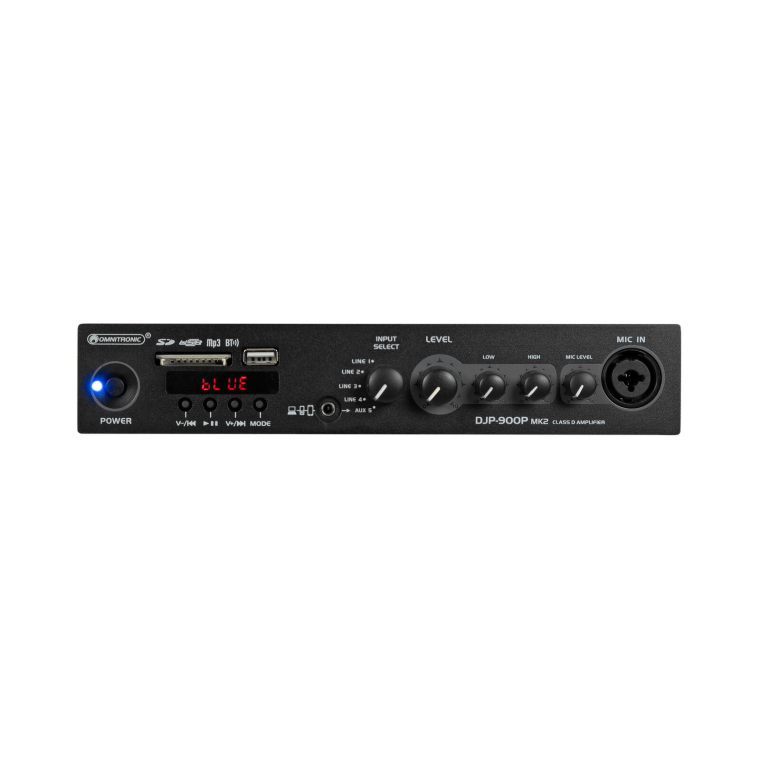

| Control elements: | Power switch, source selector, EQ controls, level control, mode switch (stereo / bridged/100V) |
| Controls: | Softstart; short-circuit; overheat; overload; DC voltage; VHF |
| Equalizer: | Master: 1 x 2-band tone control stereo |
| Status LED: | Power |

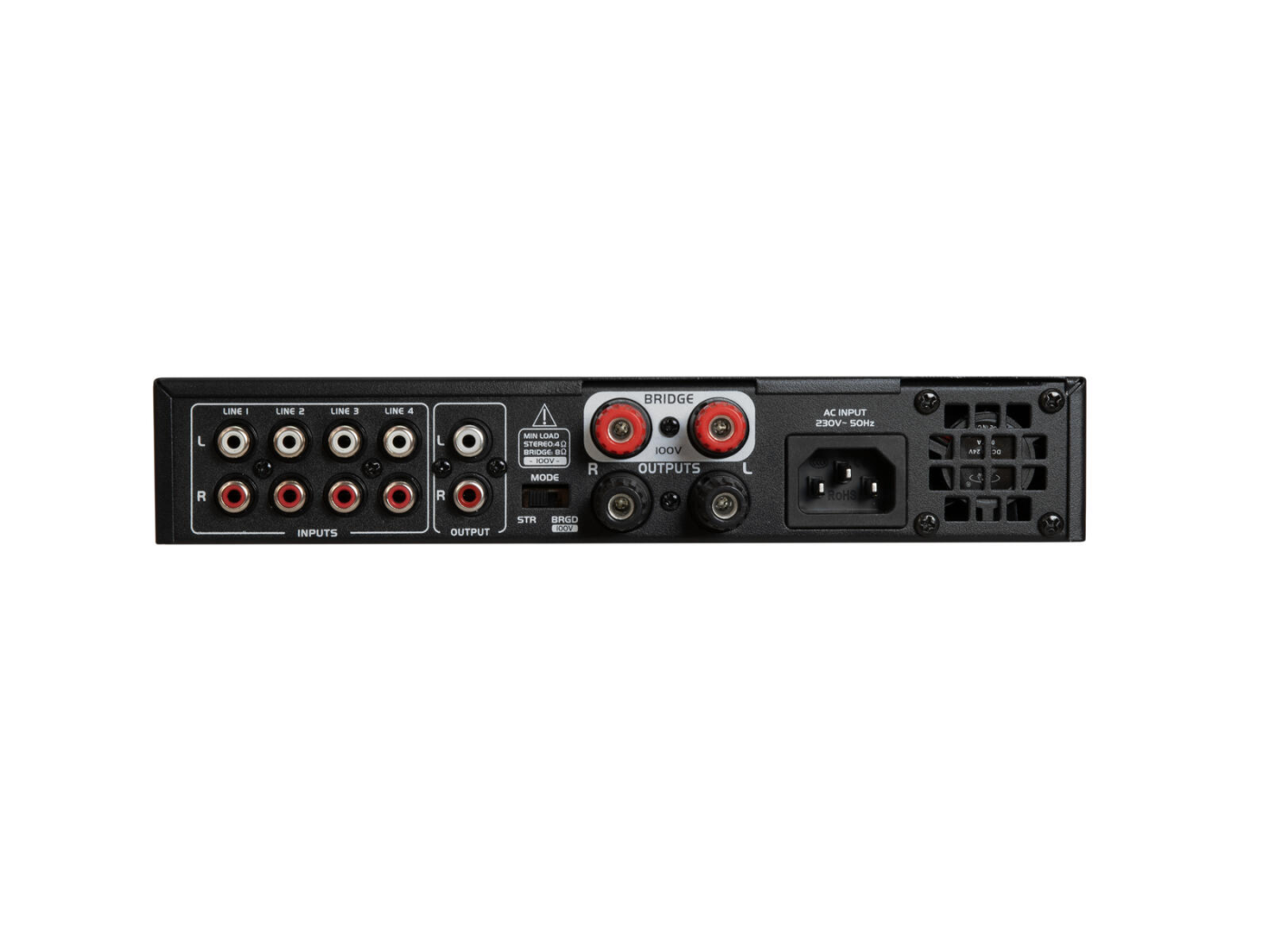

| Connections: | Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 4 x stereo RCA Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: speakers via 1 x screw terminal Output: rec. via 1 x stereo RCA |
| Input sensitivity: | 1 V |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation (provided) 1 U |
| Dimensions: | Width: 24,1 cm Depth: 25,6 cm Height: 4,45 cm |
| Weight: | 2,54 kg |
| Audio player | |
| Control: | Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Format: | MP3, WMA; WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 16/32) |
| Range: | 10 m Bluetooth |
