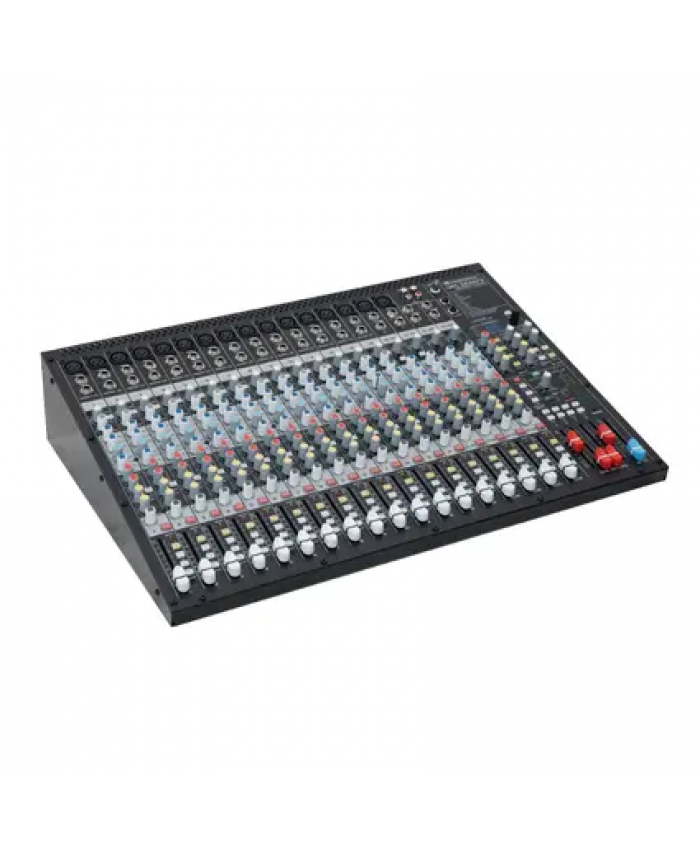

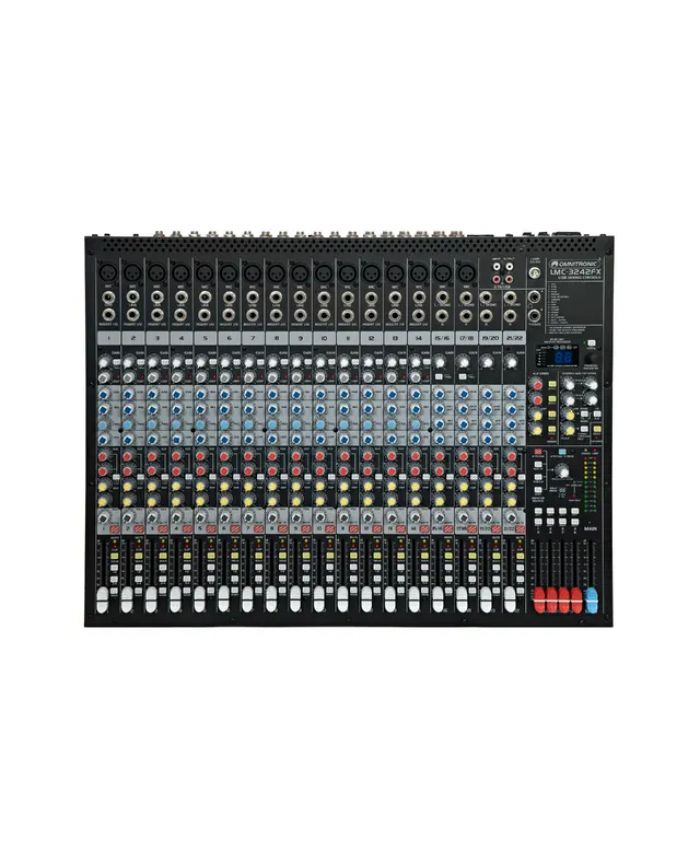

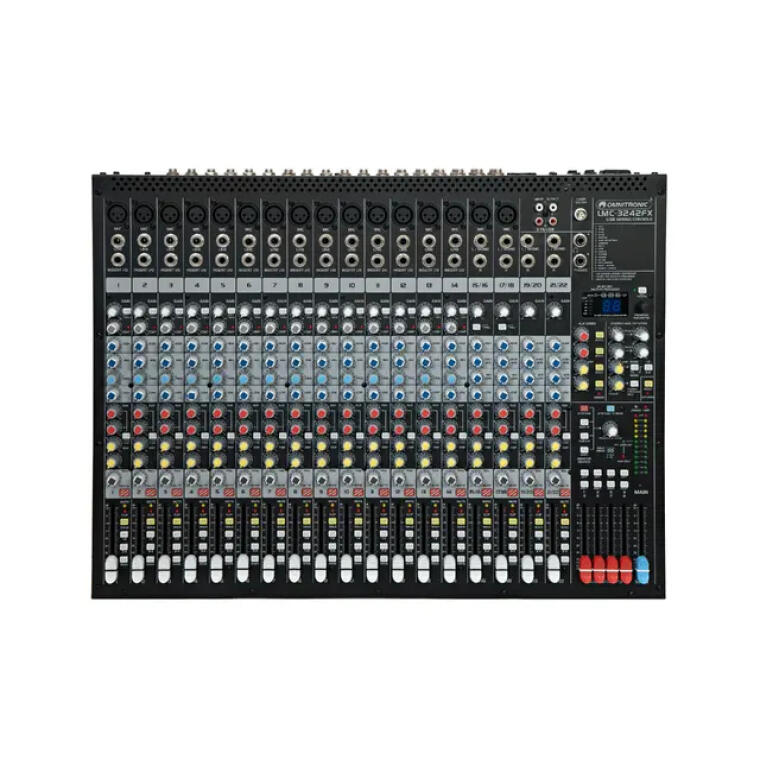

OMNITRONIC LMC-3242FX USB Mixing Console

OMNITRONIC LMC-3242FX USB Mixing Console

€0.00

Quick Overview

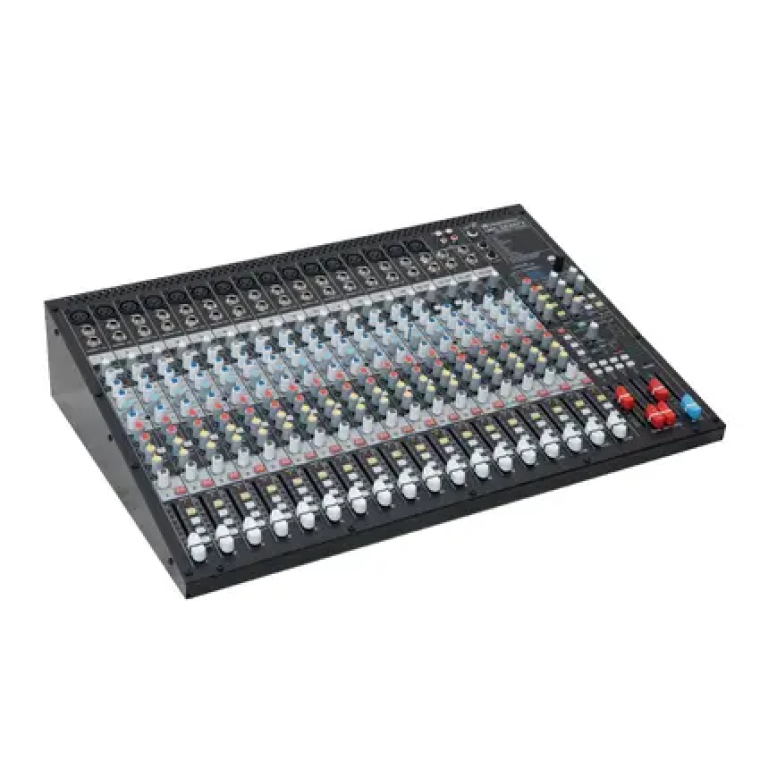

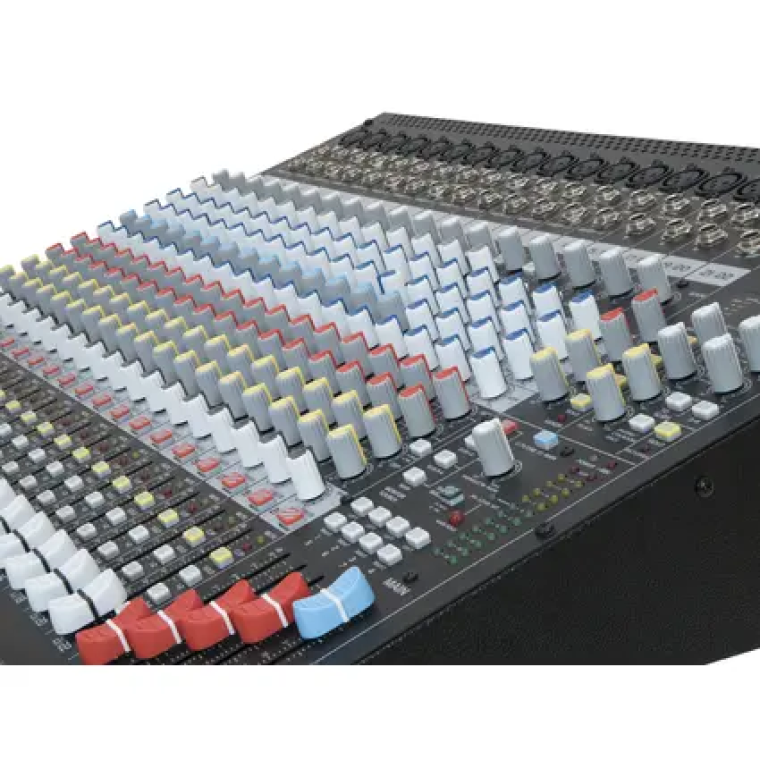

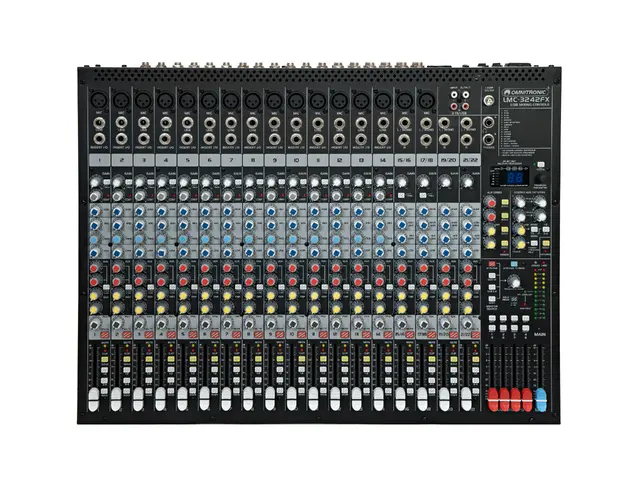

OMNITRONIC LMC-3242FX USB Mixing Console

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

  • 14 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
  • 14 inserts for flexible connection of outboard equipment on each mono channel
  • 4 stereo input channels with gain control, 4-way EQ, low cut and balance control
  • State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
  • Exceptional British EQs for warm and musical sound
  • Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
  • 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
  • Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
  • Intelligent feedback detection system makes eliminating feedback frequencies easy
  • 4 AUX sends per channel: 2 pre/post-fader switchable for flexible routing
  • 4 subgroups with separate faders and outputs for added routing flexibility
  • 4 stereo AUX returns with flexible routing
  • 14 direct outputs for recordings
  • Clip LEDs on all channels
  • Routing switches for mute, main mix, subgroup and solo/PFL on all channels
  • 2 separate main mix outputs with inserts
  • 2 phones and control room outputs with multi-input source matrix
  • CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
  • Precise 12-digit LED level meter
  • BNC lamp socket
  • FX mute with remote control via footswitch
  • +48 V phantom power, can be switched centrally
  • Digital signal processor 24 bit with 16 effects
  • Monochrome 2 digit 7-segment LED display
  • The device can be connected via USB to the PC
  • For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 50 W
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >110 dB
THD: <0.05 % at 1 kHz
DSP: Digital signal processor 24 bit with 16 effects
Phantom power: Or 48 V DC
Impedance: Input: microphone 2.6 kOhm , bal.
Input: line 10 kOhm , bal.
Input: 2-Track 10 kOhm
Input: AUX returns 10 kOhm , bal.
Insert: 10 kOhm , unbal.
Gain: Input: variable
Crosstalk: >89 dB
Display type: Monochrome 2 digit 7-segment LED display
Control elements: Encoder, power switch, phantom power switch
Status LED: Master level meter, clip, gain reduction, Mute, phantom power; power

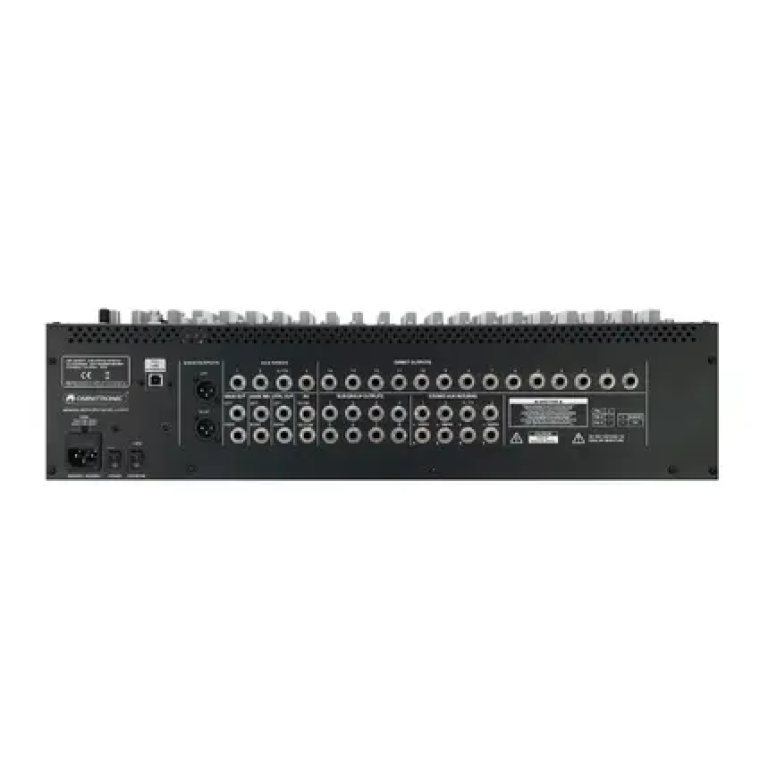

Connections: Lamp via 1 x BNC (F)
Input: microphone via 16 x 3-pin XLR
Input: line via 22 x 6.3 mm jack socket (mono) mounting version
Input: 2-Track via 1 x stereo RCA
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 2 x 6.3 mm jack socket (mono) mounting version
Output: sub groups via 8 x 6.3 mm jack socket (mono) mounting version
Output: direct out via 14 x 6.3 mm jack socket (mono) mounting version
Output: AUX sends via 4 x 6.3 mm jack socket (mono) mounting version
Output: foot control via 1 x 6.3 mm jack socket (stereo) mounting version
Output: control room via 2 x 6.3 mm jack socket (mono) mounting version
Output: AUX returns via 8 x 6.3-mm-jack (bal.)
Insert: channel via 14 x 6.3 mm jack socket (stereo) mounting version
Insert: master via 2 x 6.3 mm jack socket (stereo) mounting version
Channels: Input chanel: 14 x mono via XLR or jack, channel control via 60mm fader, 3-band EQ-Poti with semiparametric mid-band EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, low cut switch, adjustable single-knob compressor, routing sub group bus switch, routing master bus switch, panoramacontol, mute control, solo switch
Input chanel: 2 x stereo via XLR or jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/100-8kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, low cut switch, routing sub group bus switch, routing master bus switch, balancecontrol, mute control, solo switch
Input chanel: 2 x stereo via jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, routing sub group bus switch, routing master bus switch, balancecontrol, mute control, solo switch
Master output: stereo, channel control via 60mm fader
Crossover frequency: High-pass 75 Hz, 18db/oct
Max. level: Output: master +28 dBu, bal.
Output: sub groups +22 dBu, unbal.
Output: control room +22 dBu, unbal.
Output: direct out +22 dBu, unbal.
Output: rec. +22 dBu
Output: headphones +19 dBu, unbal.
Output: AUX sends +22 dBu, unbal.
USB port: Type B
PC connect: Via USB

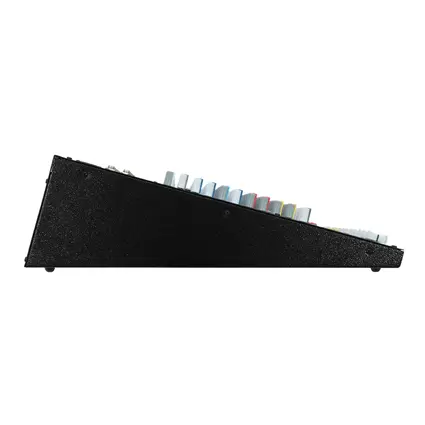

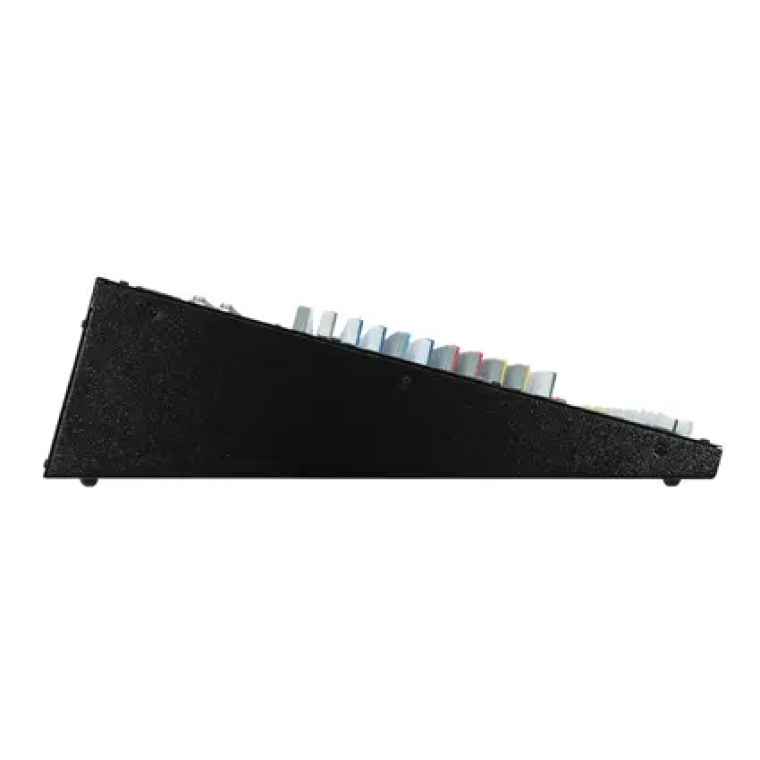

Dimensions: Width: 59.2 cm
Depth: 45 cm
Height: 13.7 cm
Weight: 9.30 kg
