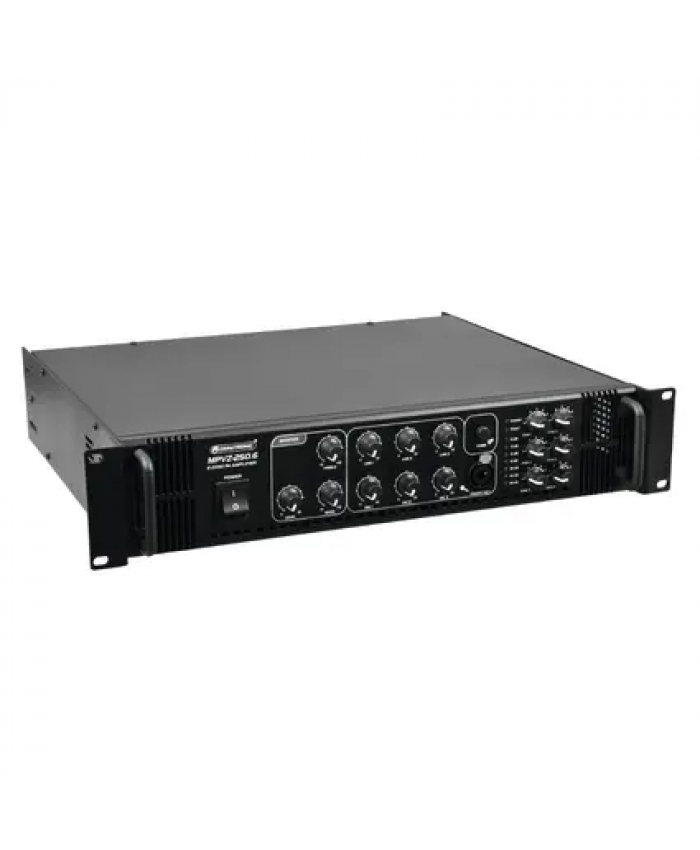

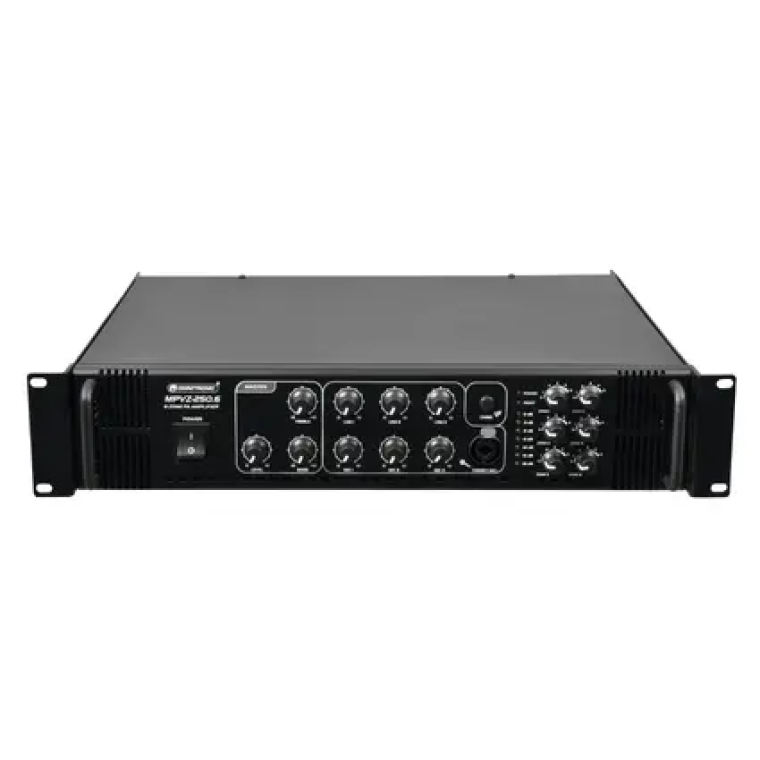

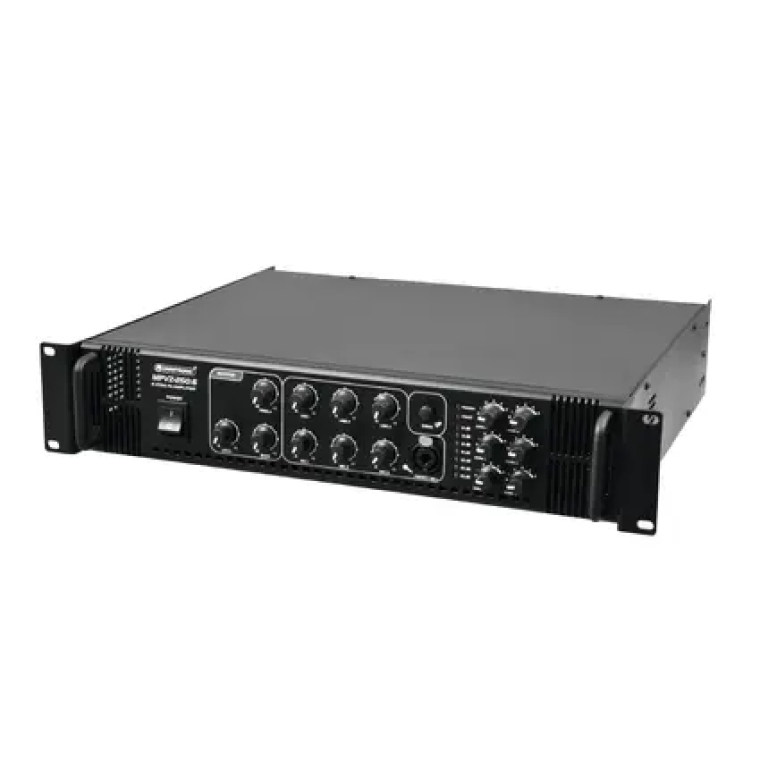

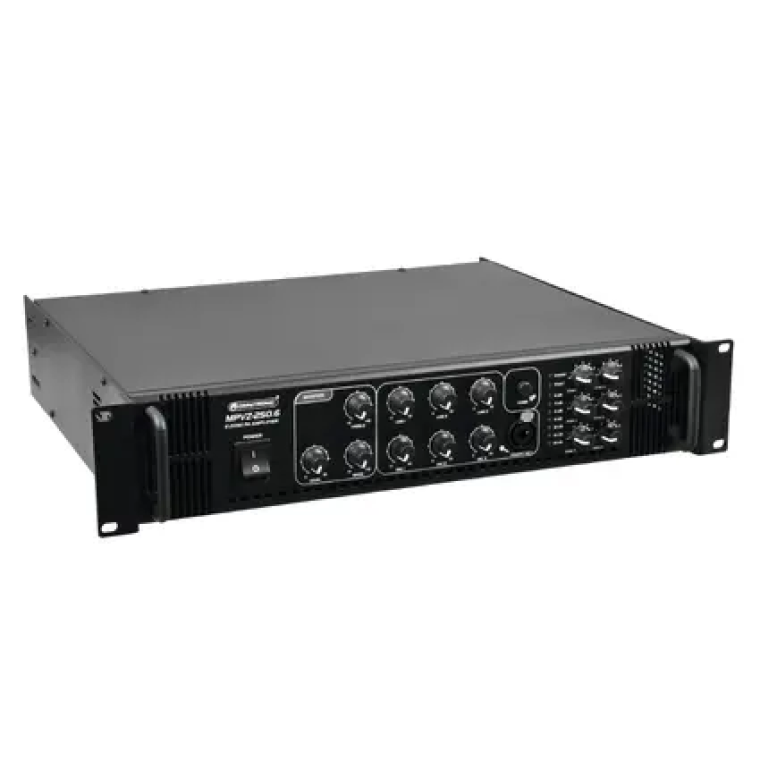

6 zone PA mixing amplifier adjustable zones, 250 W RMS
Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs with separate 5-step level controls
Output for low-impedance speakers (4-16 ohms)
2 rear microphone inputs (6.3 mm jack, unbal.)
1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-digit LED level meter
Master control for the output signal
(19") 48.3 cm rack installation 2 U
The device is cooled by temperature-controlled fan
For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Omnitronic MPVZ-250.6 – Technical Specifications
Power Supply & Consumption
Power Supply: 230 V AC, 50 Hz
Power Consumption: 500 W
Power Connection: Fixed power supply cord with safety plug
Audio Performance
Output Power (RMS): 250 W RMS across 6 switchable zones
Speaker Outputs: 6 Zone Outputs (100V Line) with 5-step level controls + Master output (70V, 100V line, or 4-16 Ω low impedance)
Output Current: Max.2.5 A (100V), 3.6 A (70V)
Amplifier Class: Class AB
Frequency Range: 80 - 16,000 Hz
S/N Ratio: >85 dB (Line), >75 dB (Mic)
THD: <0.5% @ 1 kHz
Connectivity & Media Playback
Integrated Media Player: Built-in MP3 player with blue backlit LCD display
Storage & Formats: USB port and SD(HC) card slot (up to 32 GB, FAT32);MP3 audio format
Zone Management: 6 individually switchable zone outputs with dedicated 5-step level attenuators
Chime Function: Switchable chime generator
Remote Control: IR remote control included for media player
Controls & Indicators
Display: Blue backlit LCD for media player status, 7-digit LED output level meter
Control Elements: Master volume knob, 6 Zone volume attenuators, 2-band EQ (Bass & Treble), individual level controls for Mic 1-3 and Line 1-3, Chime switch
Protection Circuits: Soft-start/turn-on delay, current limiting, short-circuit, overvoltage protection;temperature-controlled fan cooling

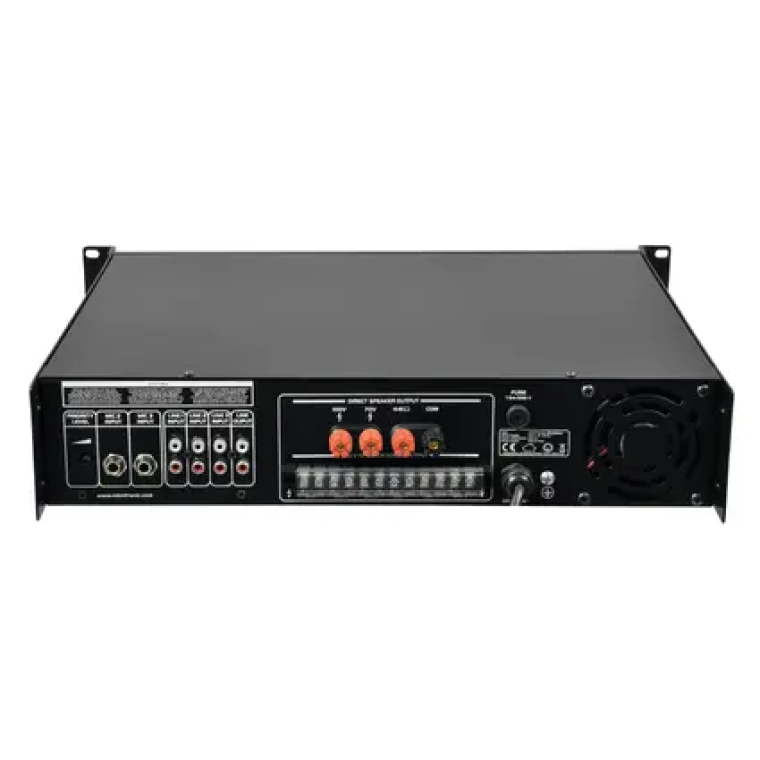

Inputs & Outputs
Inputs:
Microphone: 1 x Combo XLR / 6.35 mm jack (Mic 1 front panel with priority override), 2 x 6.35 mm jack (Mic 2 & 3 rear panel)
