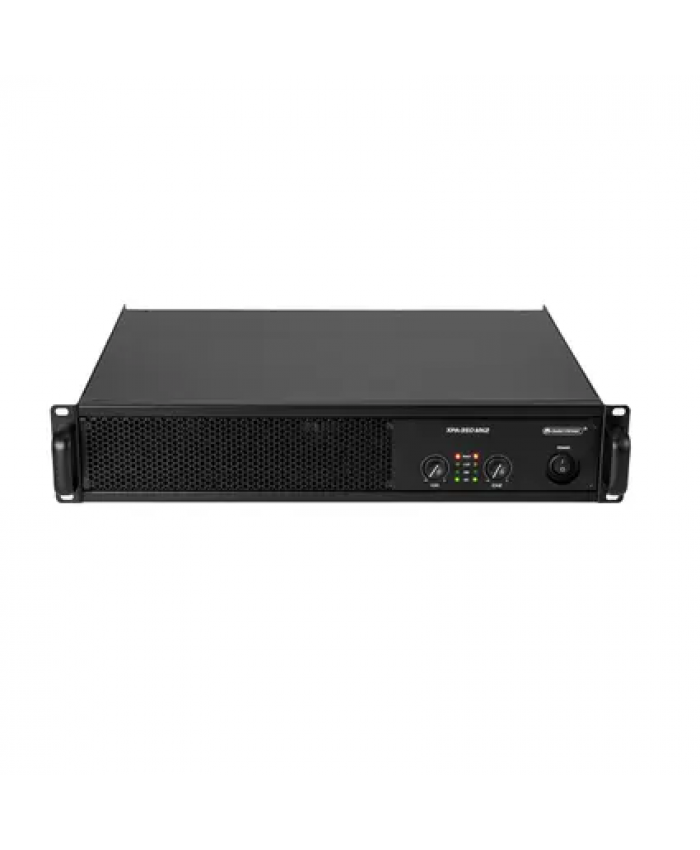

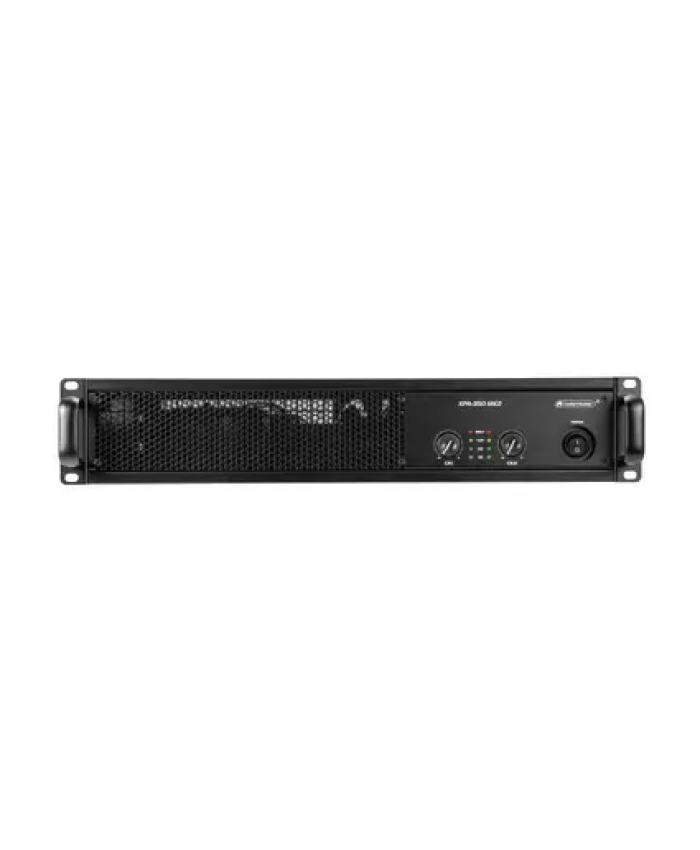

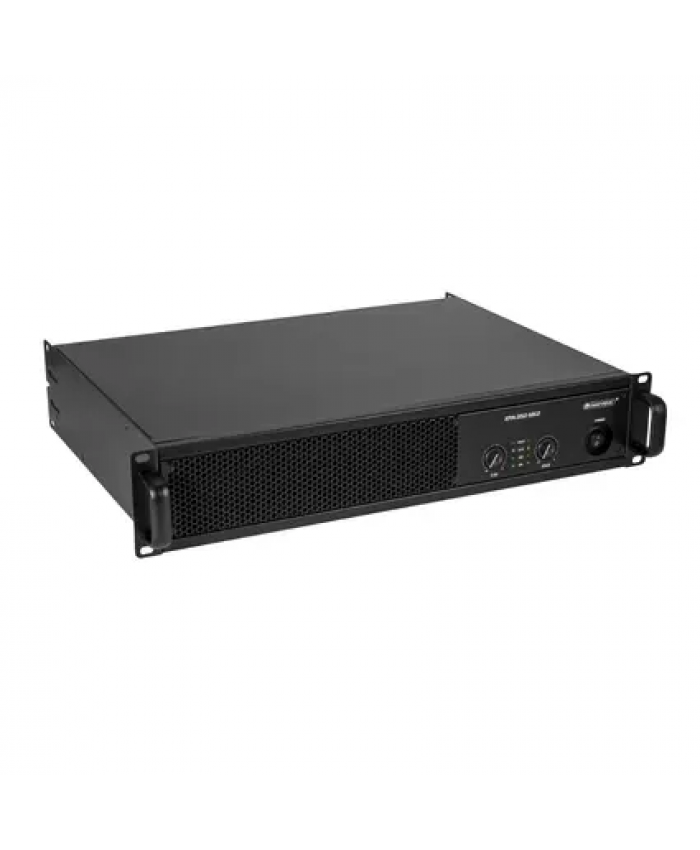

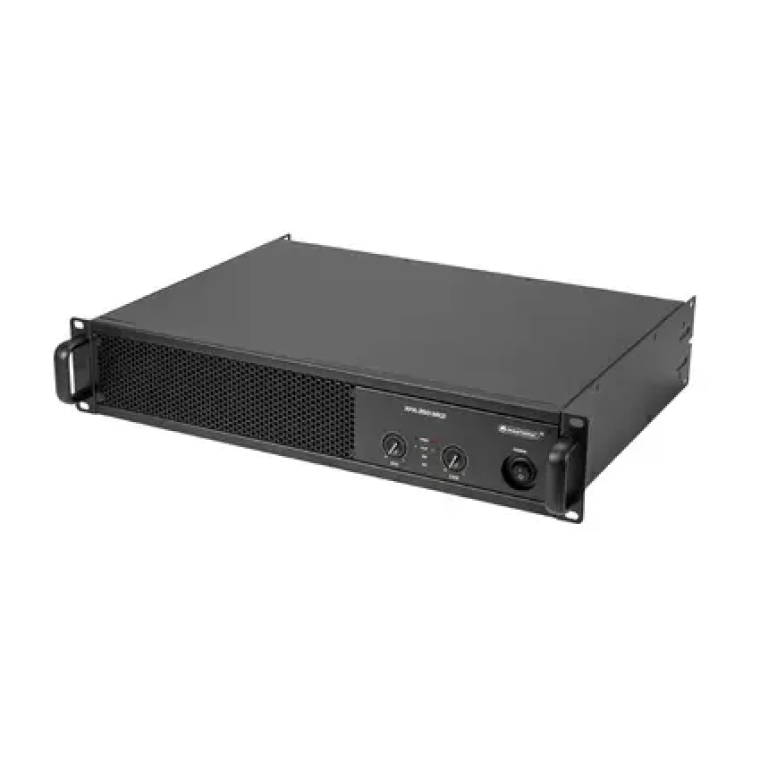

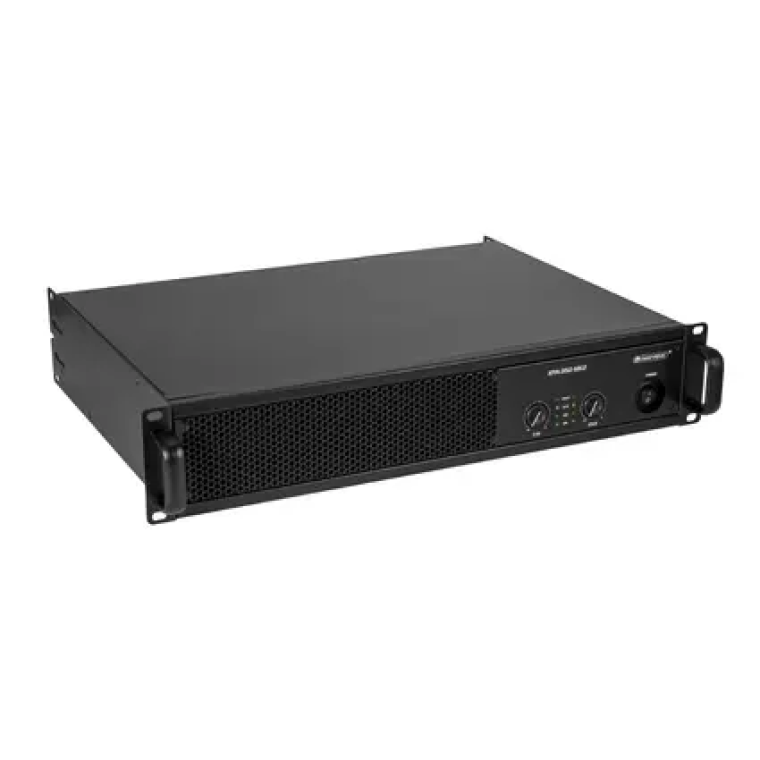

Omnitronic XPA-350 MK2 Amplifier

Omnitronic XPA-350 MK2 Amplifier – Technical Specifications

Power Supply & Consumption

• Power Supply: 230 V AC, 50 Hz

• Power Consumption: 800 W (1/8 power)

Audio Performance

• Output Power (RMS):

  • 2 x 350 W @ 4 Ω

  • 2 x 200 W @ 8 Ω

  • 1 x 700 W @ 8 Ω (Bridged)

• Frequency Range: 20 - 20,000 Hz, ±0.5 dB

• S/N Ratio: >100 dB

• THD: <0.05%

• Damping Factor: >200

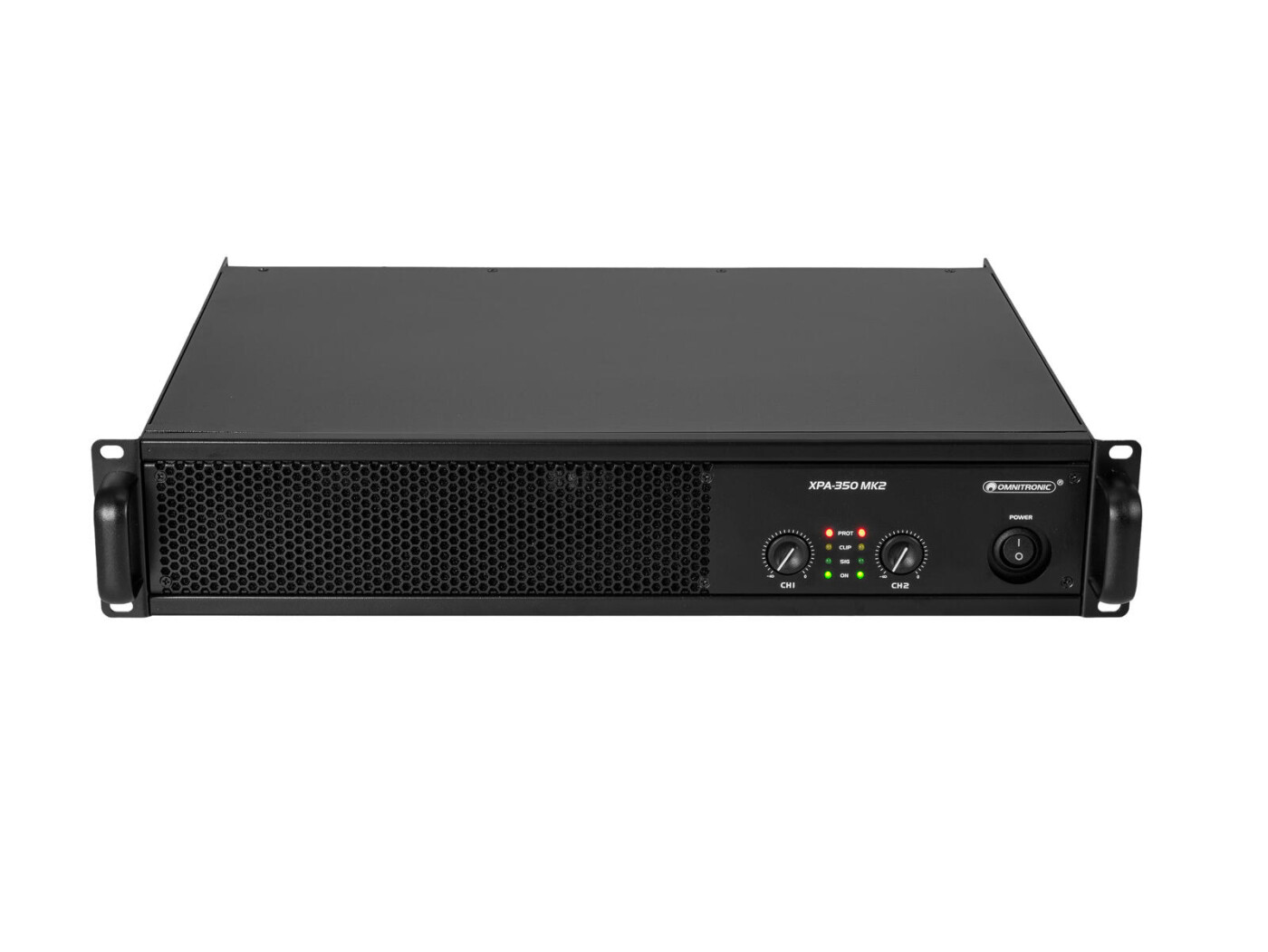

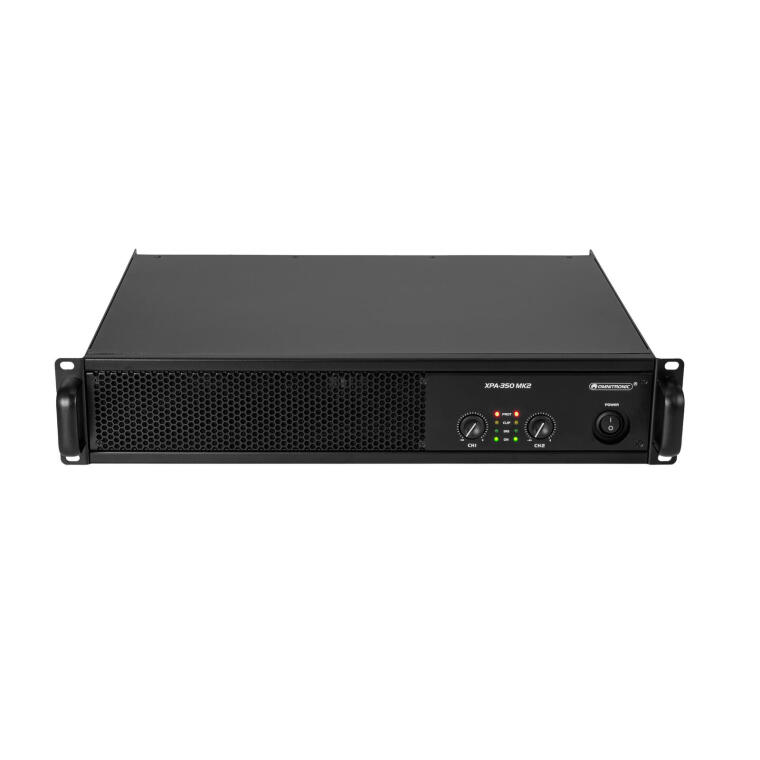

Controls & Indicators

• Control Elements: Power switch, gain controls for Channel 1 & 2, mode switch (Stereo/Parallel/Bridged), ground lift switch

• Protection Circuits: Softstart, short-circuit, DC voltage, overheat, turn-on/off transients

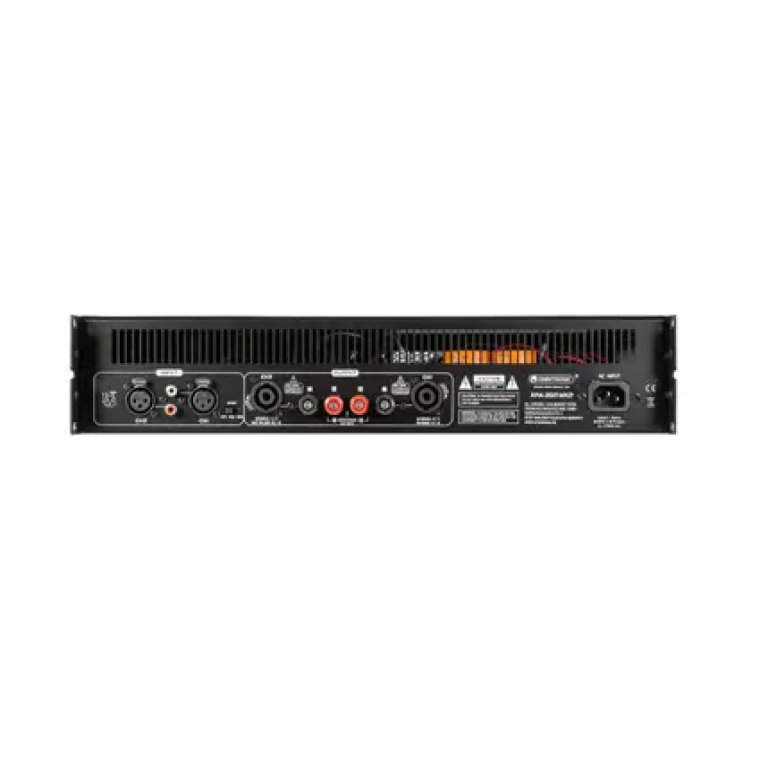

Inputs & Outputs

• Inputs:

  • 2 x XLR (Balanced)

  • 2 x 6.35 mm Jack (Unbalanced)

• Outputs:

  • 2 x Speaker outputs (Speaker-compatible sockets)

  • 2 x Pair of screw terminal binding posts

  • 2 x XLR Feed-through outputs (Link Out)

Physical Specifications

• Rack Installation: 19" Rack format (2 U height)

• Housing Design: Heavy-duty steel chassis

• Dimensions (W x D x H): 483 x 354 x 89 mm

• Weight: 9.5 kg

Accessories Included

• AC Power Cable, User Manual
