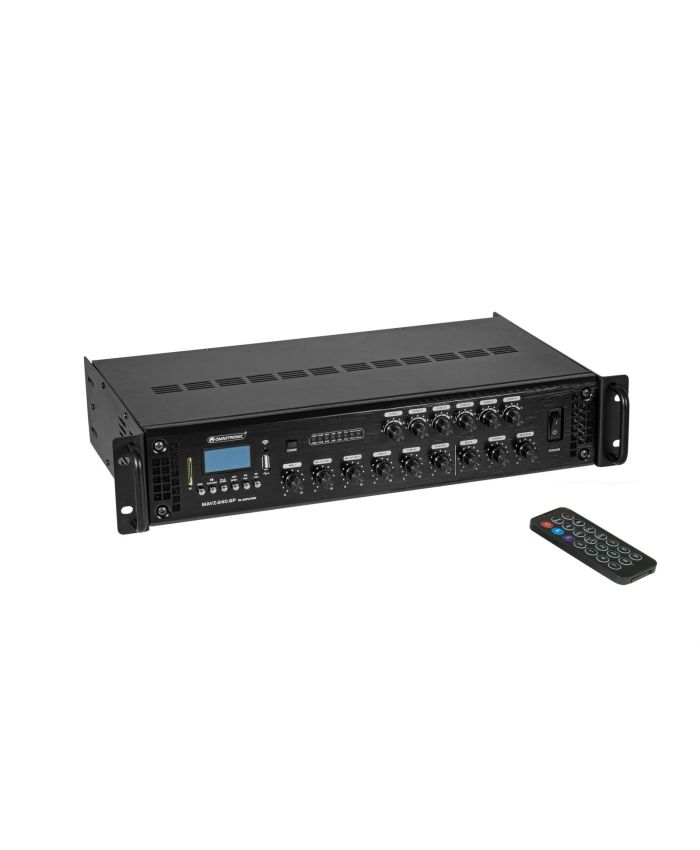

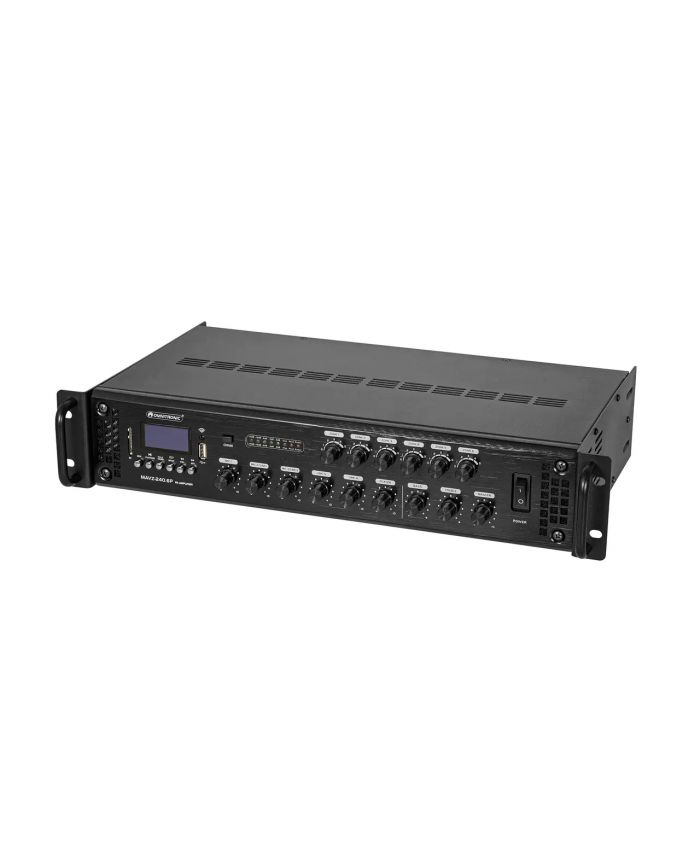

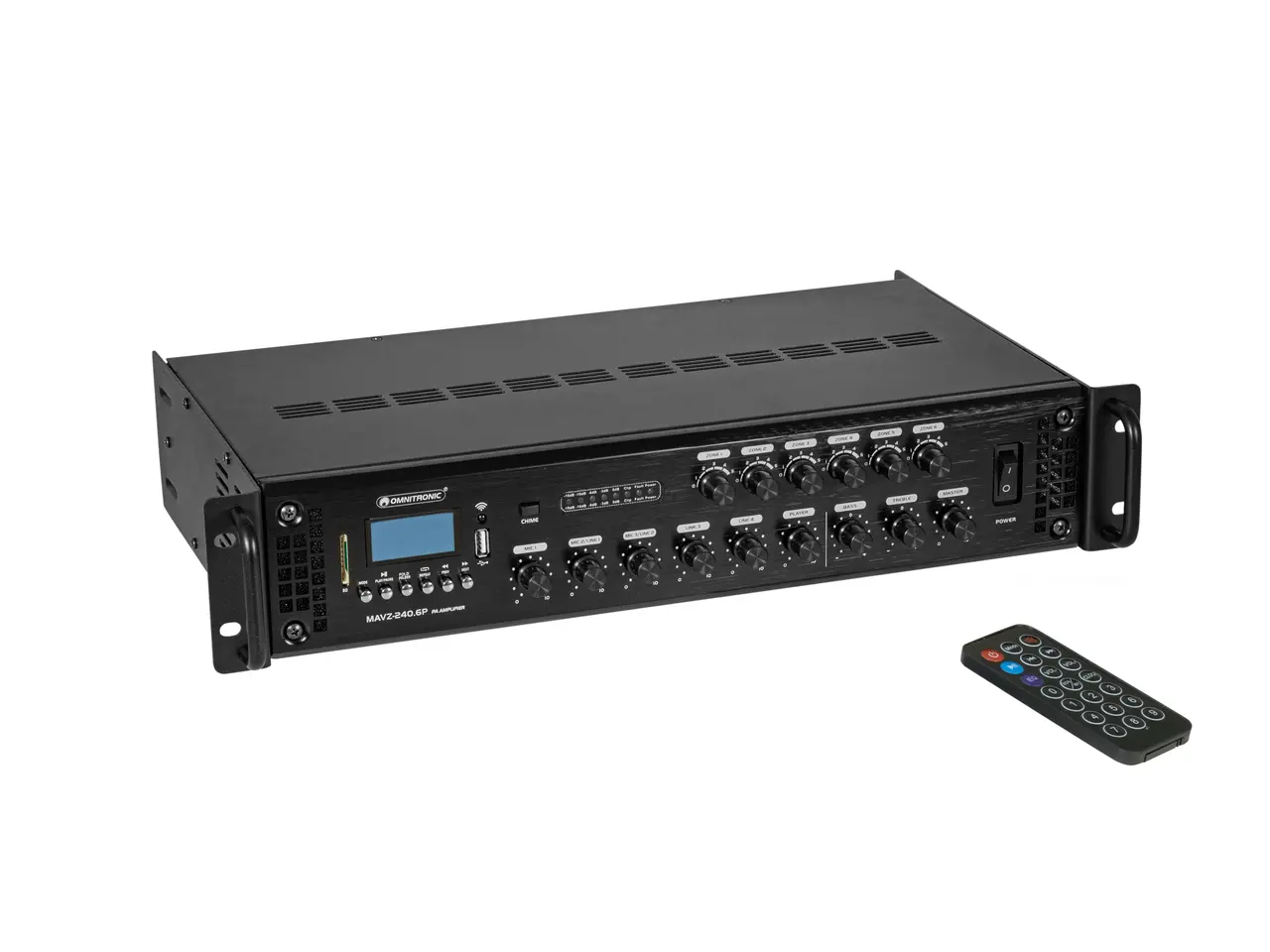

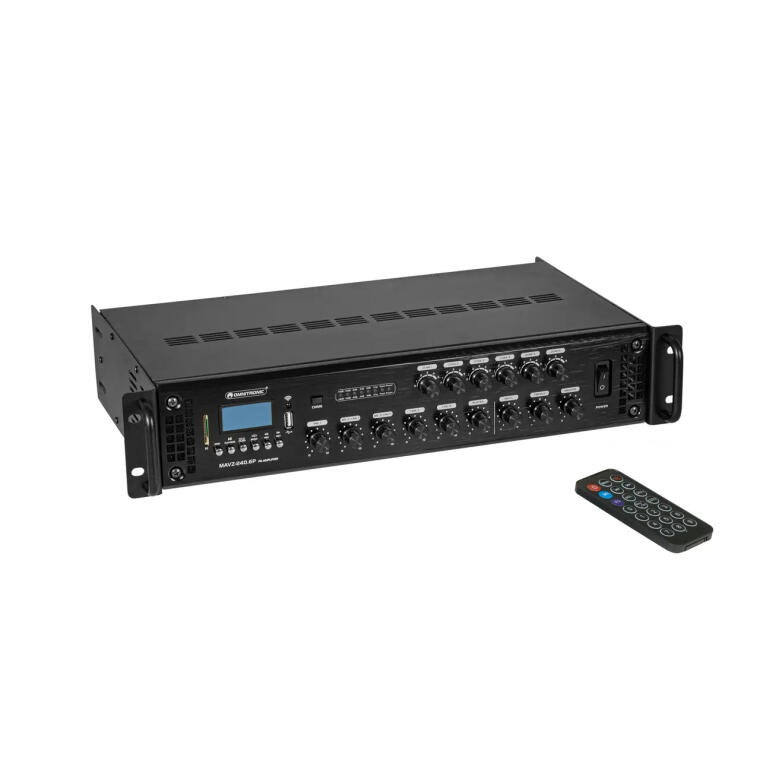

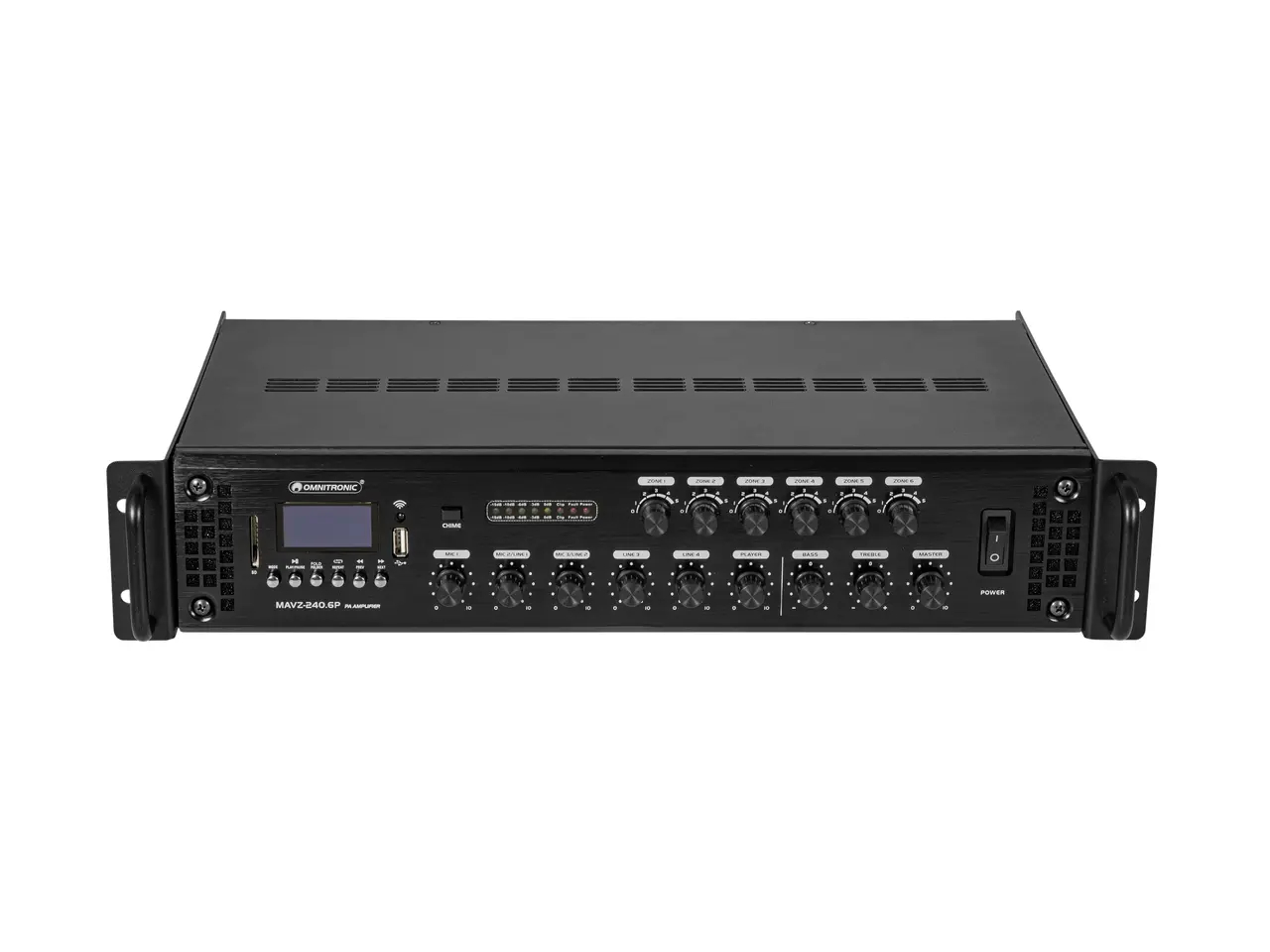

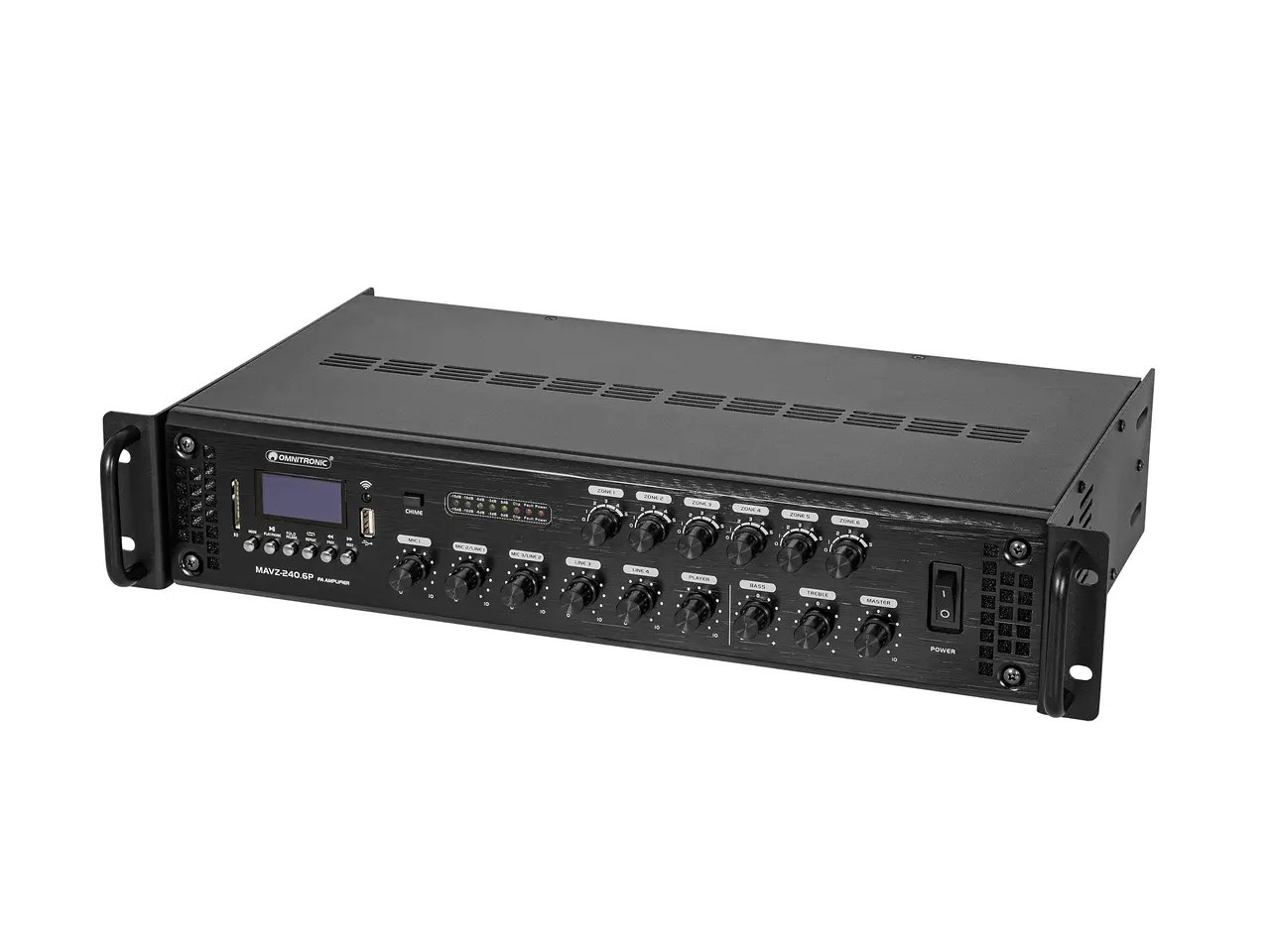

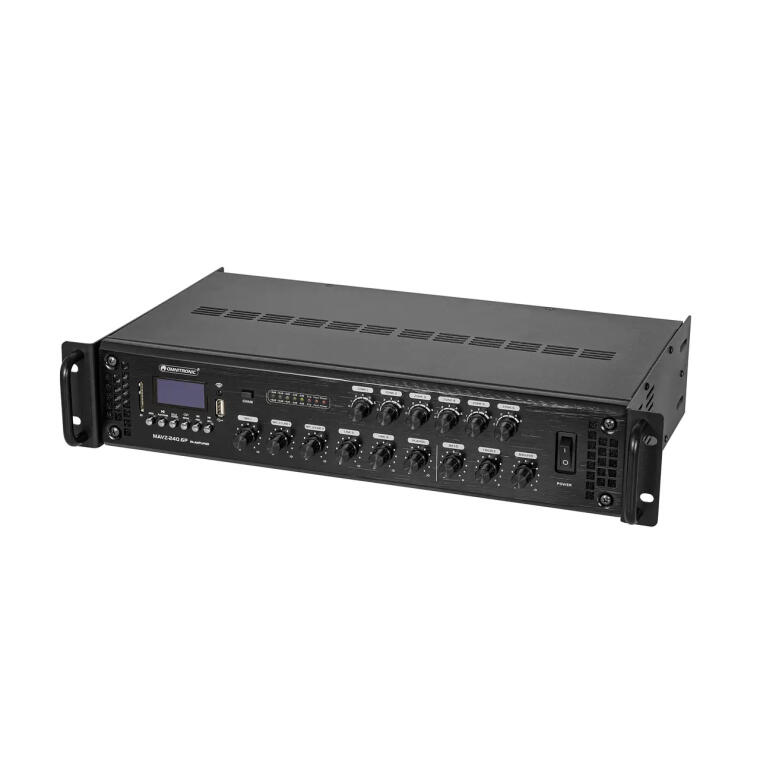

Omnitronic MAVZ-240.6P (100v line)

€529.00 incl. VAT
Out of stock
Interested in this product?
Call us

Overview

6-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, adjustable zones,

6-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, adjustable zones, 240 W RMS

  • Comfortable control of PA speakers via 6-zone technology
  • 6 PA zone outputs with separate 5-step level controls
  • Output for low-impedance speakers (4-16 ohms)
  • SD card slot and USB port
  • Folder navigation, repeat functions and random play
  • 3 microphone inputs with separate level controls
  • Mic 1 with phantom power and priority circuit
  • Mic 2 and 3 switchable mic/line
  • 2 line inputs with separate level controls
  • 1 line output
  • Treble and bass and master controls for the output signal
  • 5-digit LED level meter
  • Chime, switchable
  • The device is cooled by cooling fan
  • Control via IR remote control; Bluetooth
  • (19") 48.3 cm rack installation 2 U

Omnitronic MAVZ-240.6P – Technical Specifications

Power Supply & Consumption

  • Power Supply: 230 V AC, 50 Hz

  • Power Consumption: 480 W

Audio Performance

  • Output Power (RMS): 240 W RMS across 6 switchable zones

  • Speaker Outputs: 6 Zone Outputs (100V Line) with individual 5-step level controls + Main low-impedance Output (4-16 Ω) / 70V Line

  • Frequency Range: 50 - 18,000 Hz

  • S/N Ratio: >85 dB (Line), >75 dB (Mic)

  • THD: <0.5% @ 1 kHz

Connectivity & Media Playback

  • Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player

  • Supported Media Formats: MP3 (USB/SD max 32 GB, FAT32)

  • Zone Management: 6 individually switchable zone outputs with dedicated 5-step level attenuators

  • Chime Function: Switchable chime generator

  • Remote Control: IR remote control included for media player

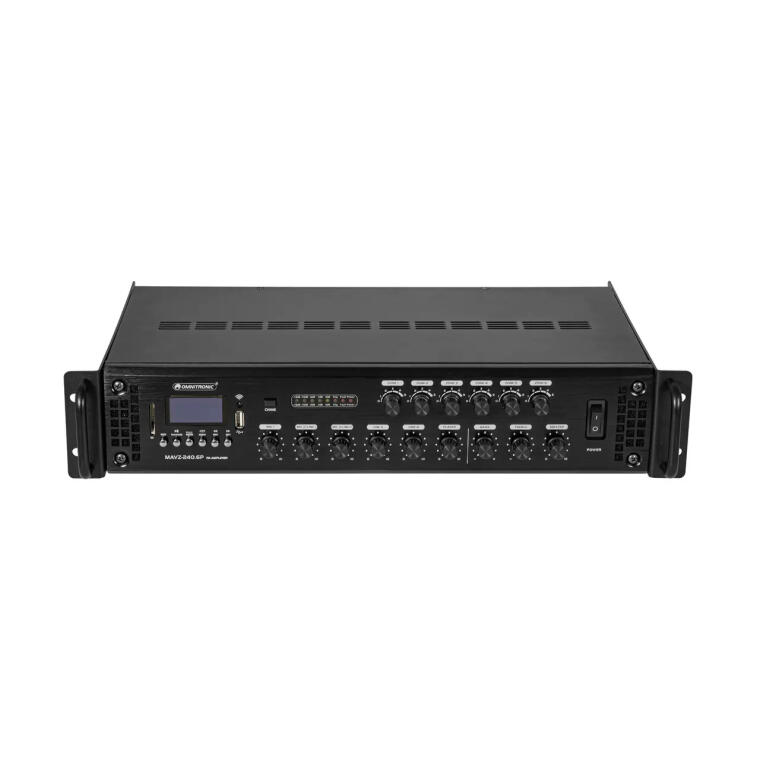

Controls & Indicators

  • Display: 5-digit LED output level meter

  • Control Elements: Master volume knob, 6 Zone volume attenuators and switches, 2-band EQ (Bass & Treble), separate level controls for Mic 1-3 and Line 1-2, Chime switch

  • Protection Circuits: Power turn-on/off transient delay, overvoltage, short-circuit protection; cooling fan

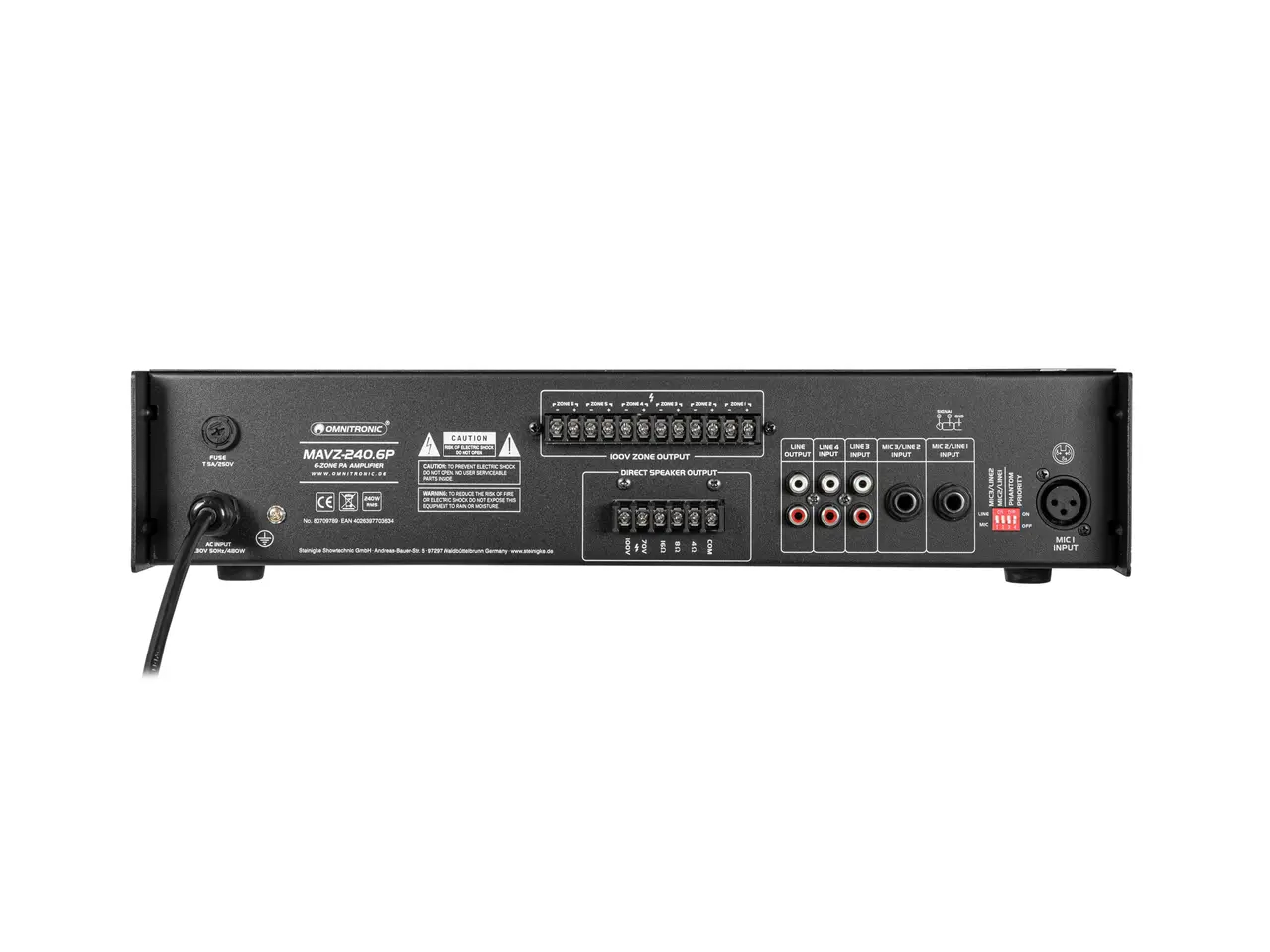

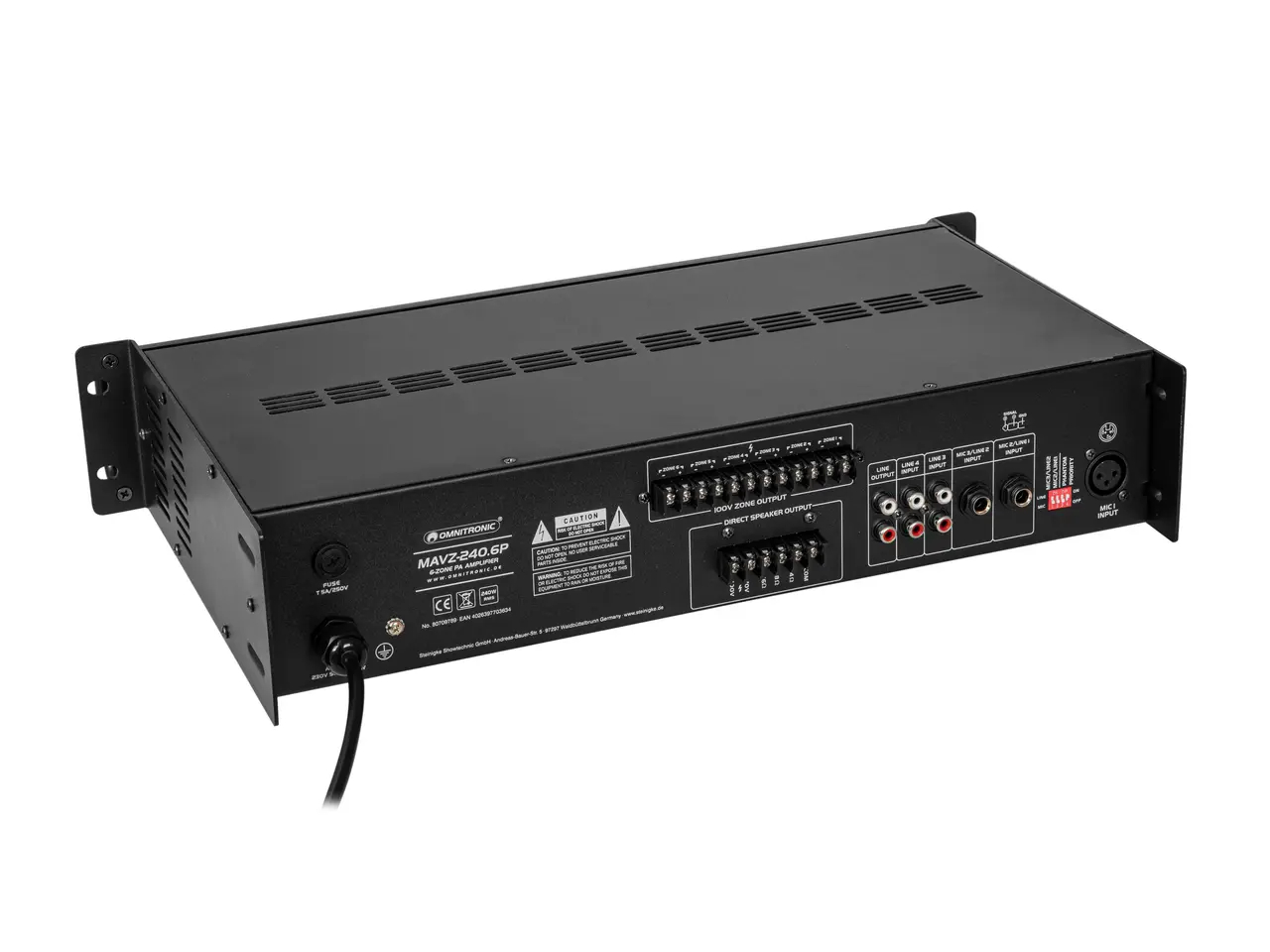

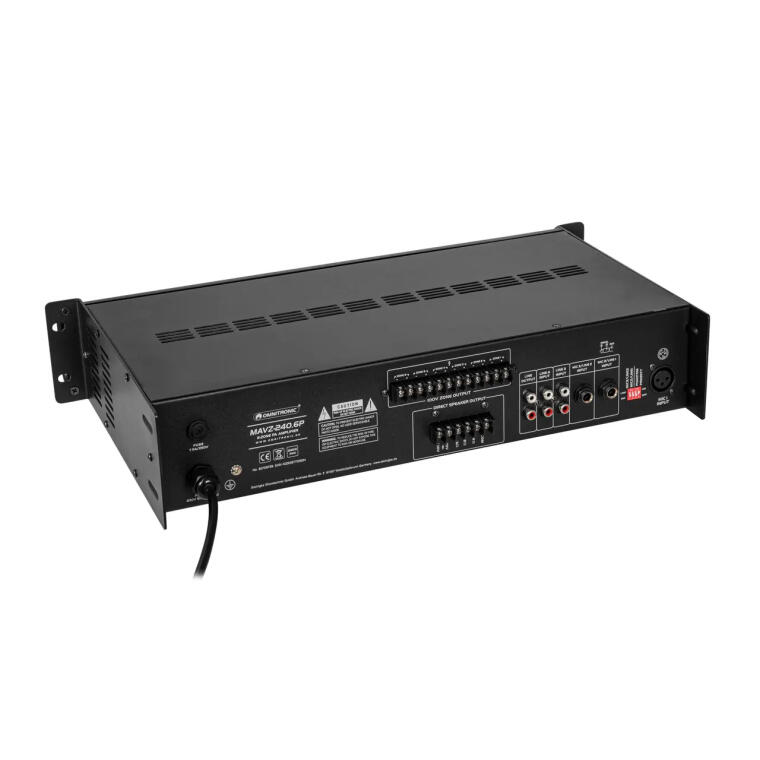

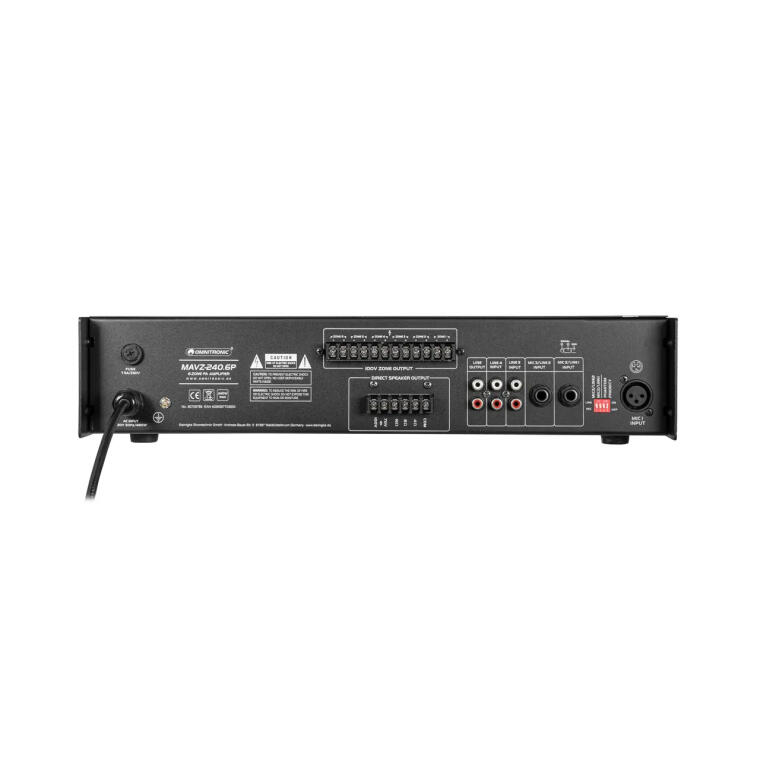

Inputs & Outputs

  • Inputs:

    • Microphone: 1 x 3-pin XLR (Mic 1 with phantom power & priority override), 2 x 6.35 mm jack (Mic 2 & 3 switchable mic/line)

    • Aux/Line: 3 x Stereo RCA

  • Outputs:

    • Line Output: 1 x Stereo RCA

    • Speaker Terminals: Screw terminal block (6 x 100V Zone Outputs with attenuators, 4-16 Ω main output)

Physical Specifications

  • Rack Installation: 19" Rack format (2 U height)

  • Housing Design: Steel chassis with front panel controls

  • Dimensions (W x D x H): 483 x 320 x 92 mm

  • Weight: 6.90 kg

Accessories Included

  • Fixed Power Supply Cord with safety plug, IR Remote Control (CR2025 battery included), Rack Mount Brackets, User Manual
