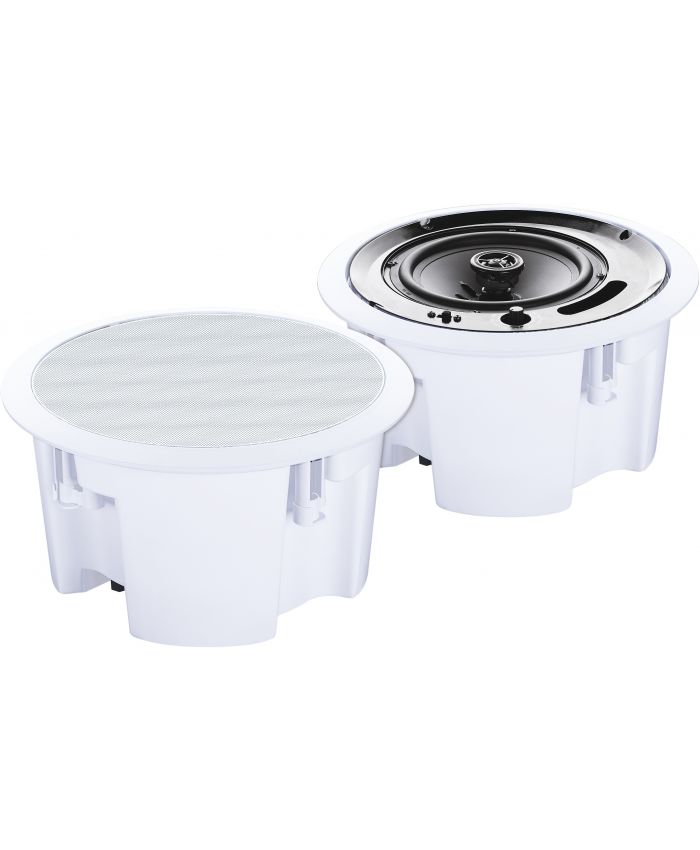

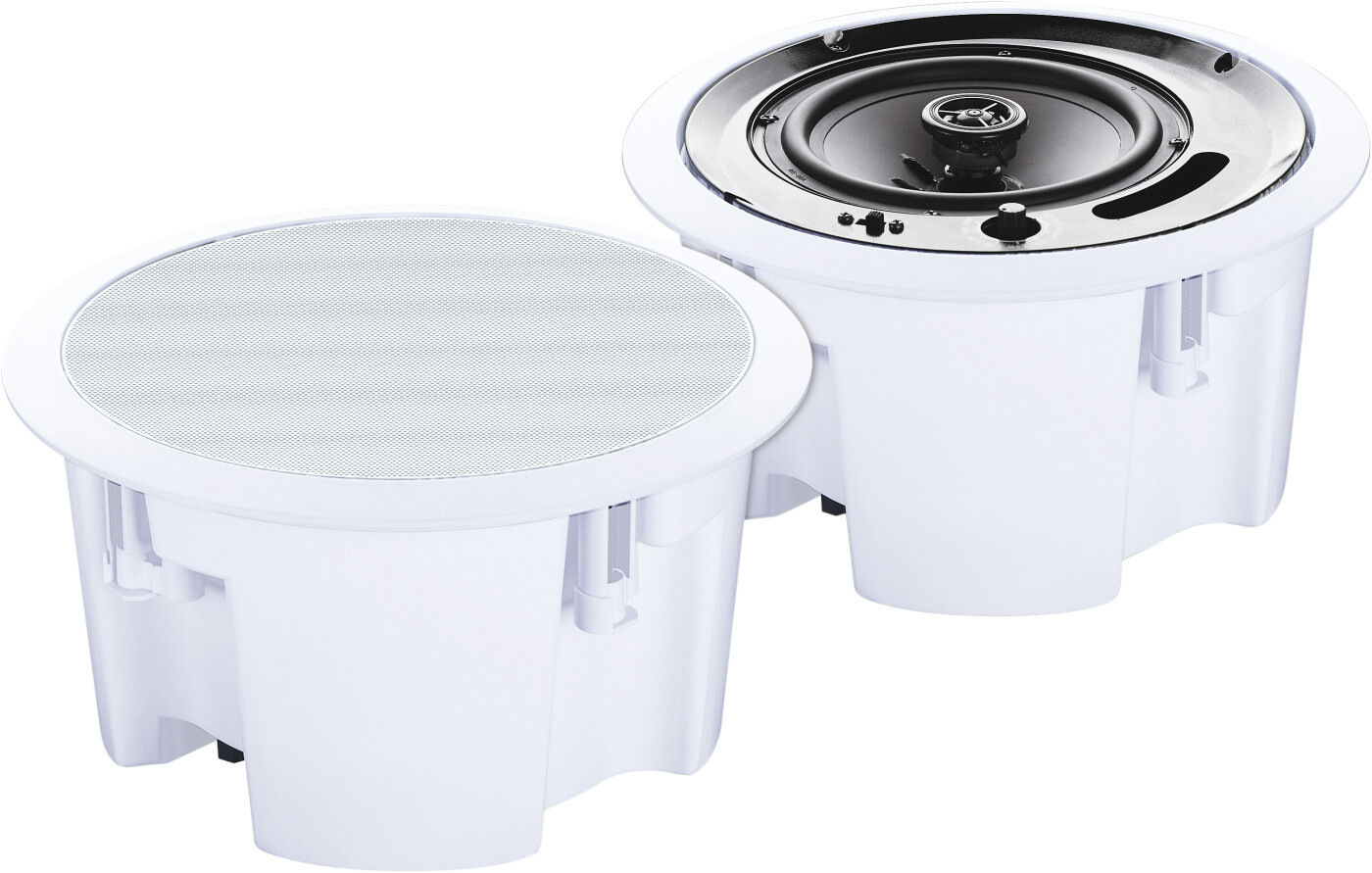

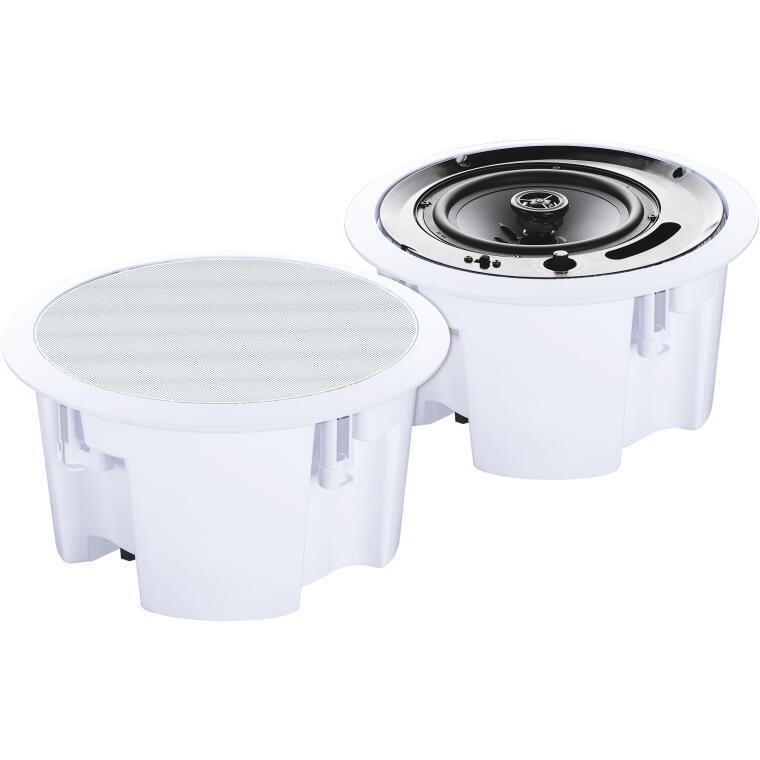

Eagle B306


Quick Overview

High powered moisture resistant 100V Line speaker with 2 way polypropylene coaxial driver and a fixed tweeter in a UV protective housing with a Vented Port which Enhances Low Frequencies. These high quality speakers which support 100V, or low-ohm systems are designed to provide up to 30W of playback with low distortion for a variety of both commercial and residential applications. The added feature an 8ohm setting means that you can experience high quality audio in any room of your home whether this be the kitchen, bathroom, bedroom or even outdoors in a pelmet. Supplied with a cut out template for easy-fit convenience. Priced and sold individually.

Eagle B306

Technical Specifications

  • Cut-Out Dimensions (mm) 204
  • Frequency Response (Hz) 80-20000
  • Impedance (Ohms) 8 ohm
  • Mounting Depth (mm) 140
  • Peak Music Power (W) 50
  • Power RMS (W) 30
  • Sensitivity (dBV/Pa) 88
  • Size 5.25 inch
  • Tappings 8 ohm or 0.25, 0.5, 1, 2.5, 5, 7.5, 15, 30


  • Product Dimensions (mm) 240x240x140
  • Net weight (kg) 2.06
