Bosch LHM0606 (100V Line)

€39.00 incl. VAT

In stock

Interested in this product?

Call us

Overview

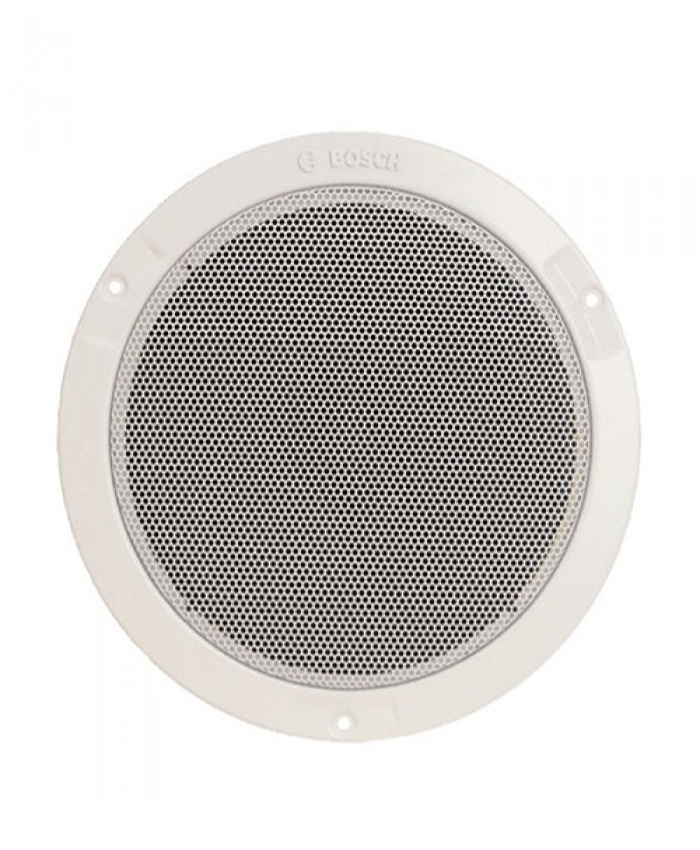

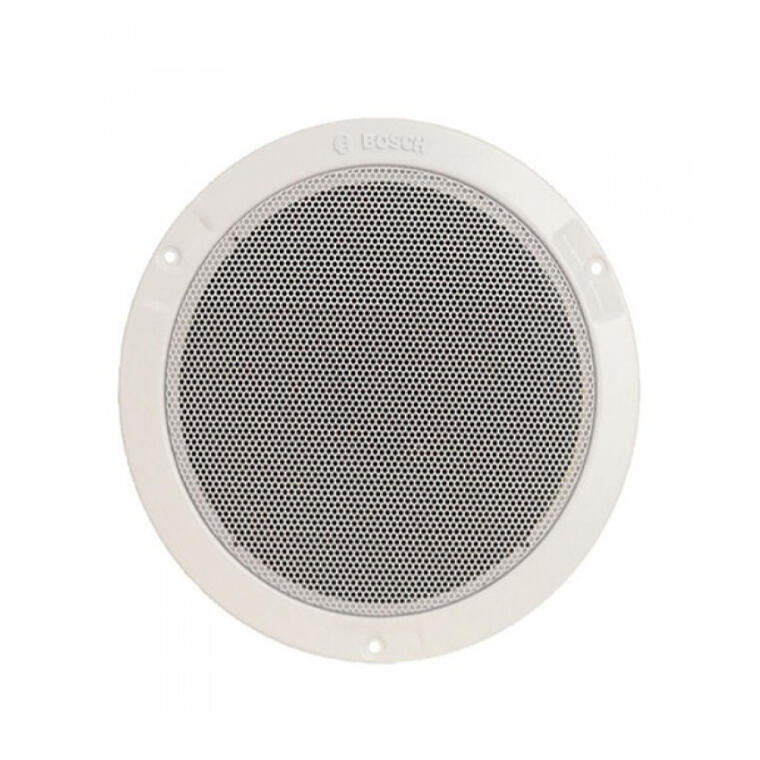

Bosch LHM0606 (100V Line)

The Bosch LHM 0606/10 is a general purpose, 6 watt, 100 volt line, cost-effective ceiling loudspeaker. Flush mounted into the ceiling, the LHM0606/10 speaker is rated at 6 watts and suitable for 100 volt line distributed sound systems. Suitable for both speech and music and ideal for public address and background music systems in shops, schools, offices, hotels and restaurants. Quick and easy to install using two integral spring loaded ceiling locking clamps.

Bosch LHM0606/10 100V Line Ceiling Speaker

System & Power Handling

System Type: Flush-mount 100V line ceiling loudspeaker
Power Rating: 6 W RMS / 9 W Peak
100V Power Tappings: 6 W, 3 W, 1.5 W, 0.75 W (flying lead connection)
Operating Voltage: 100V Line PA networks

Audio Performance & Transducers

Full-Range Driver: 6" (152 mm) cone driver
Frequency Response: 80 – 18,000 Hz
Sensitivity: 94 dB (1W/1m)
Max SPL: 102 dB @ 1m
Dispersion Angle: 175° broad coverage

Connectivity & Impedance Matching

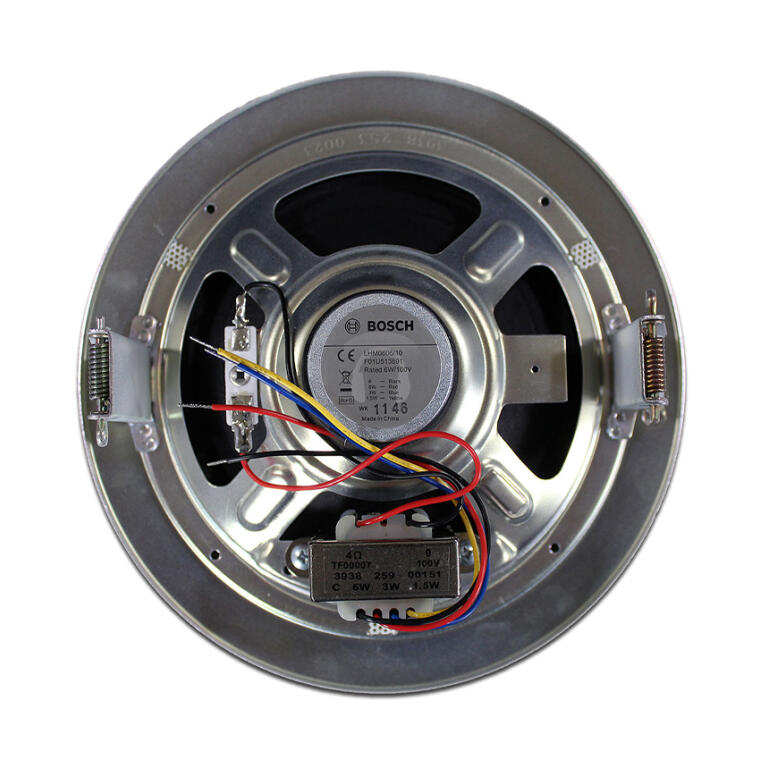

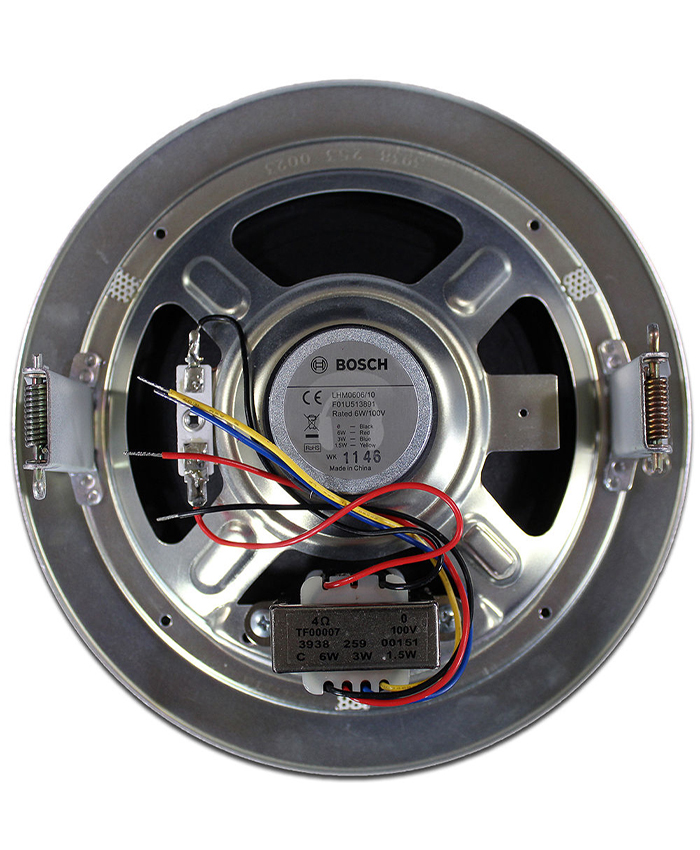

Connection Type: 3-way screw terminal block on transformer
Tapping Selection: Wiring connections to transformer color leads

Controls & Adjustment

Alignment: Clamp spring mounting clips into ceiling cutout

Enclosure & Hardware

Frame & Grille: All-metal construction (white finish RAL 9010)
Environmental Protection: EVAC compliant / flame retardant design
Application Modes: Emergency voice alarm paging and background music distribution in public buildings
