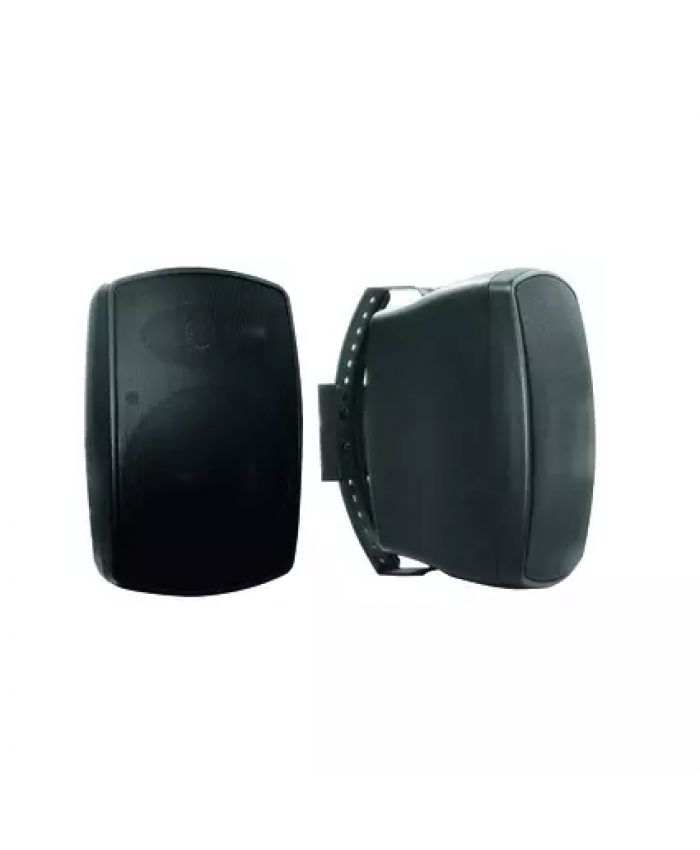

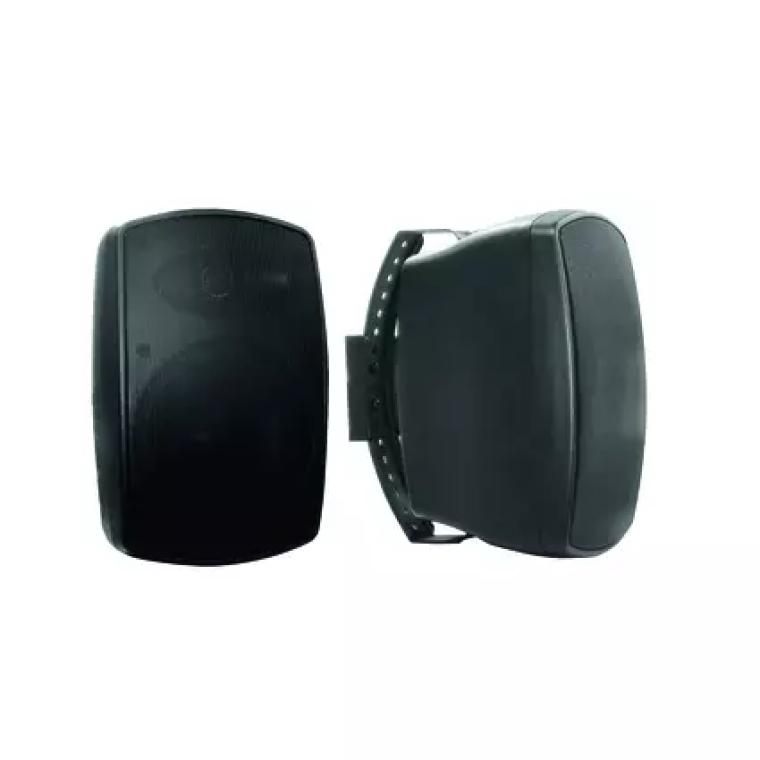

2 weather-proof speakers with mount, 4" woofer, 0,5" tweeter, 30 W RMS
OMNITRONIC OD-4 Wall Speaker 8Ohms
Omnitronic OD-4 Wall Speaker 8Ohms Black
System & Power Handling
System Type: Compact passive 2-way wall-mount installation speaker (Low-Impedance only)
Power Rating: 15 W RMS / 30 W Peak
Impedance: 8 Ω direct connection
Operating Voltage: Low-impedance audio amplifiers (4–8 Ω compatible)
Audio Performance & Transducers
Low Frequency Driver: 4" (100 mm) woofer with polypropylene cone and rubber surround
High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter
Frequency Response: 100 – 20,000 Hz
Sensitivity: 87 dB (1W/1m)
Max SPL: 98 dB @ 1m
Dispersion Angle: 110° x 90° (H x V) broad coverage pattern
Connectivity & Impedance Matching
Connection Type: Spring-clamp terminal block for quick raw speaker wire connections
Impedance Matching: Fixed 8 Ω low-impedance connection (no 70V/100V line transformer)
Controls & Adjustment
Hardware Controls: None (direct 8 Ω low-impedance input)
Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment
Enclosure & Hardware
Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)
Front Protection: Perforated steel front grille (black finish)
Environmental Protection: IP44 rated for indoor and sheltered outdoor installations
Mounting Hardware: Adjustable wall/ceiling mounting bracket included
Application Modes: Low-impedance stereo or multi-zone background music systems in bars, lounges, retail stores, fitness centers, home studios, and covered outdoor spaces
Physical Specifications
Dimensions (H x W x D): 215 x 150 x 130 mm (8.5" x 5.9" x 5.1")
Weight: 1.45 kg (3.2 lbs)
Accessories Included
Adjustable Wall/Ceiling Mounting Bracket & Hardware
