Weather-proof wall speaker (IP65) with 6,5" woofers and 50 W RMS

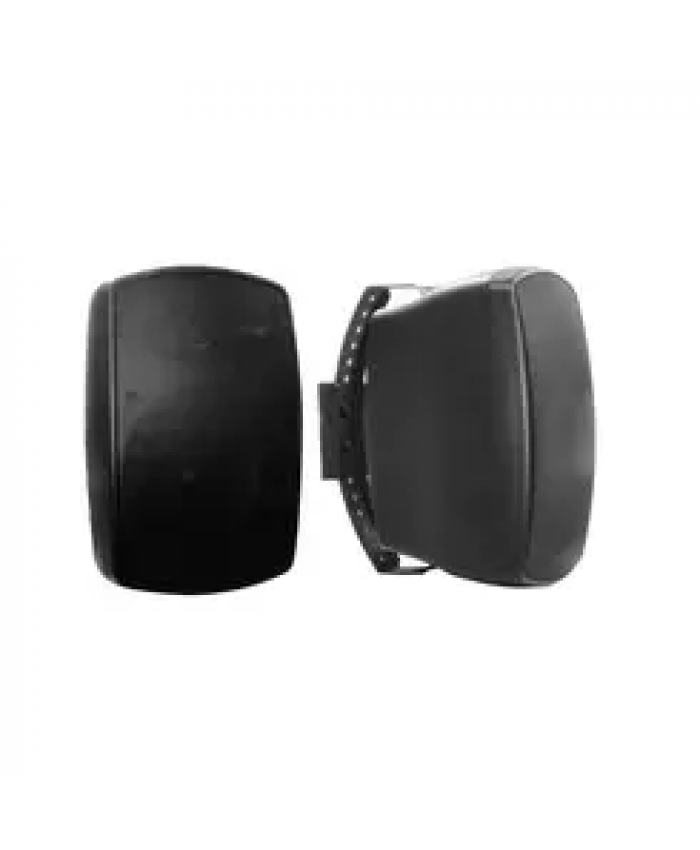

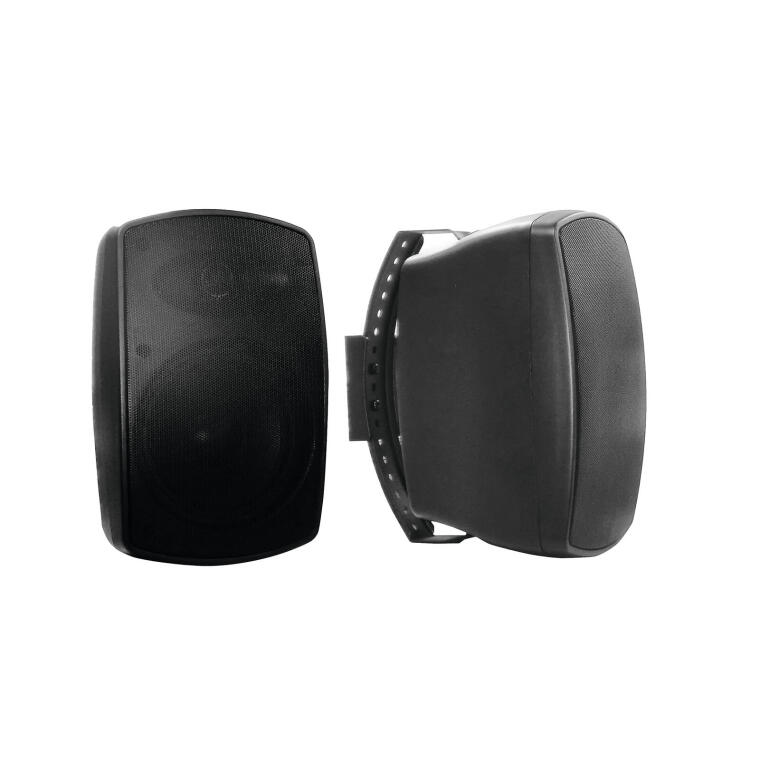

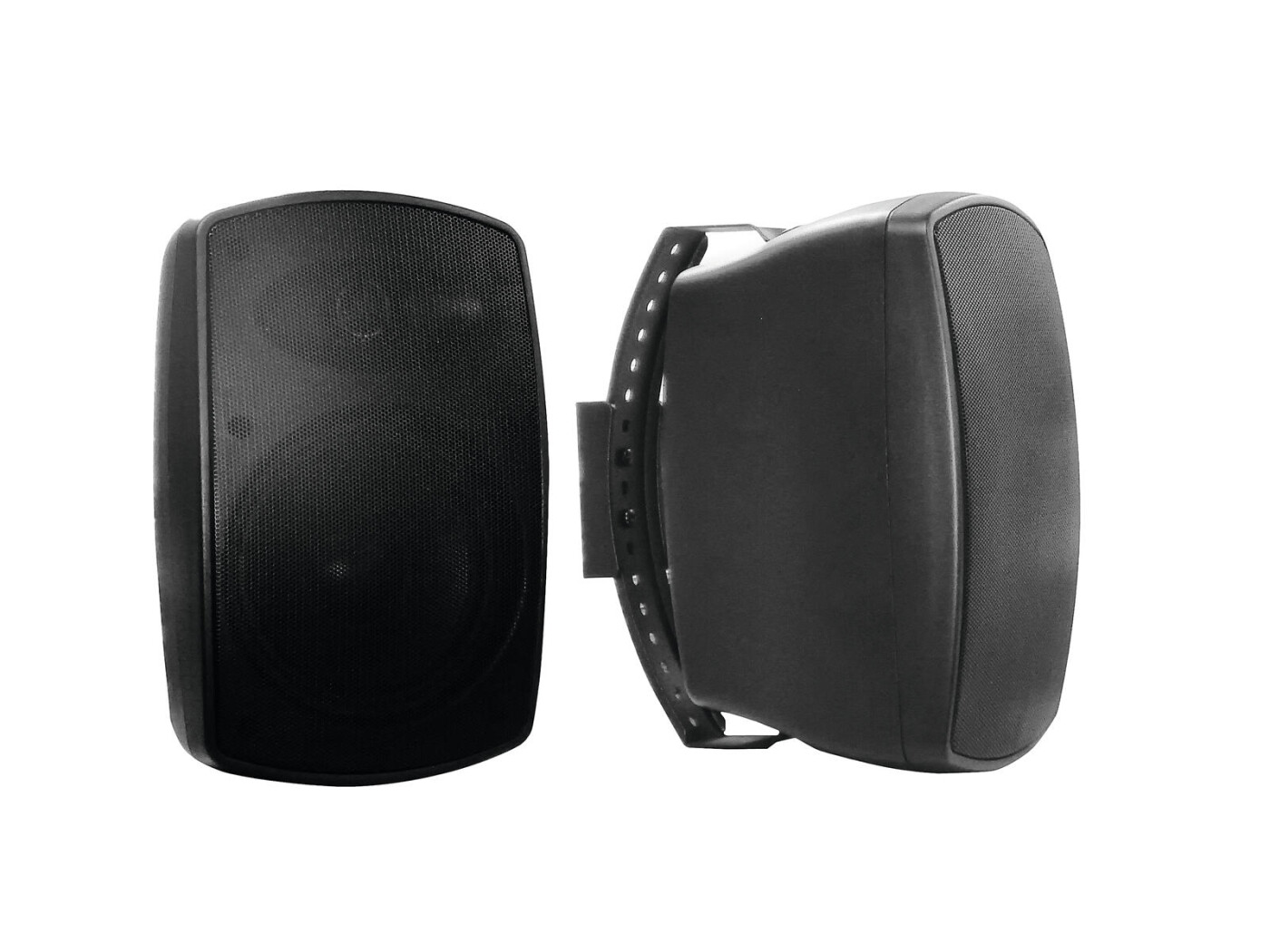

Omnitronic OD-6T Black
System & Power Handling
System Type: Passive 2-way wall-mount installation speaker with integrated 100V line transformer
Power Rating: 40 W RMS / 80 W Peak
100V Power Tappings: 40 W, 20 W, 10 W (selectable via rear rotary switch)
Low Impedance Mode: 8 Ω direct connection bypass option
Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems
Audio Performance & Transducers
Low Frequency Driver: 6.5" (165 mm) woofer with polypropylene cone and rubber surround
High Frequency Driver: 0.75" (19 mm) dome tweeter
Frequency Response: 70 – 20,000 Hz
Sensitivity: 90 dB (1W/1m)
Max SPL: 106 dB @ 1m
Dispersion Angle: 90° x 60° (H x V) broad coverage pattern
Connectivity & Impedance Matching
Connection Type: Screw terminal block / spring-clamp terminals for quick speaker wire connections

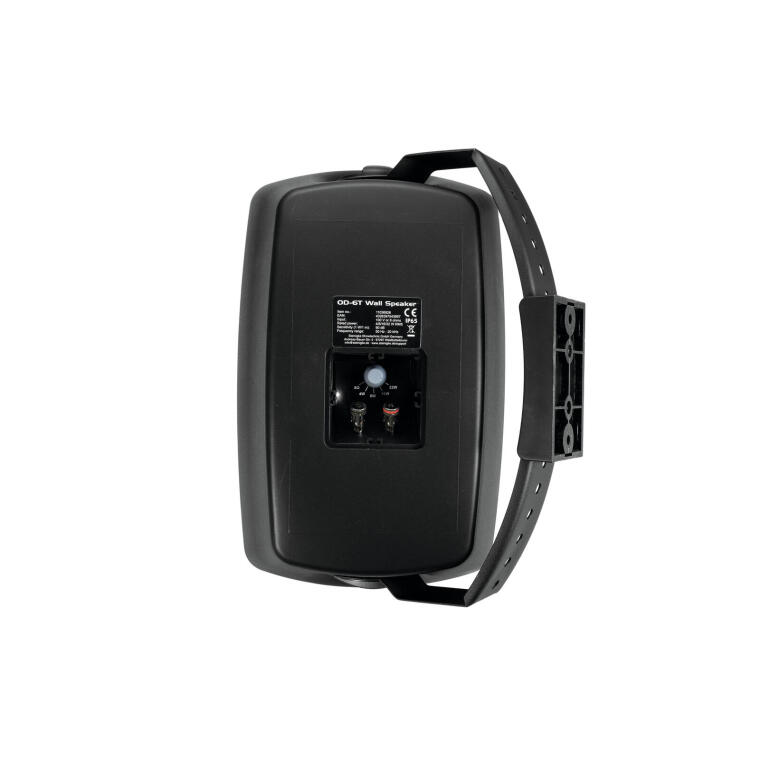

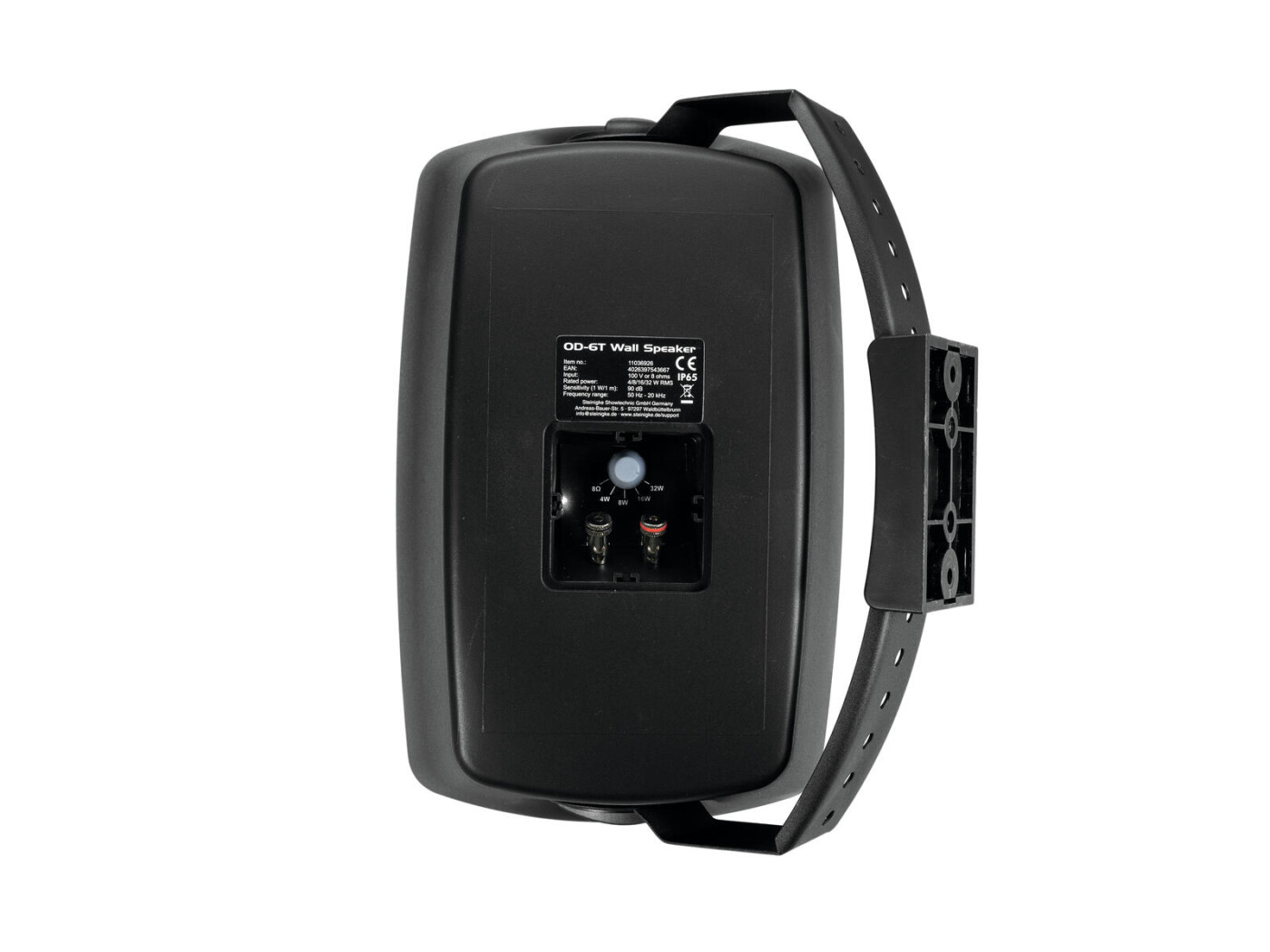

Switchable Selection: Rear-panel rotary tap switch for 8 Ω bypass and 100V line transformer wattage settings (40W / 20W / 10W / 8 Ω)
Controls & Adjustment
Hardware Controls: Rear-panel rotary selector for power tapping and impedance bypass
Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment
Enclosure & Hardware
Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)
Front Protection: Perforated steel front grille (black finish)
Environmental Protection: IP44 rated for indoor and sheltered outdoor installations
Mounting Hardware: Heavy-duty adjustable wall/ceiling mounting bracket included
Application Modes: Foreground and background music, voice announcements, and commercial sound reinforcement in larger venues, bars, lounges, retail halls, fitness facilities, and covered outdoor spaces
Physical Specifications
Dimensions (H x W x D): 285 x 205 x 180 mm (11.2" x 8.1" x 7.1")
Weight: 3.2 kg (7.05 lbs)
Accessories Included
Heavy-Duty Adjustable Wall/Ceiling Mounting Bracket & Hardware
