Penton RCS6T (100V Line)

Price on request

In stock

Interested in this product?

Call us

Overview

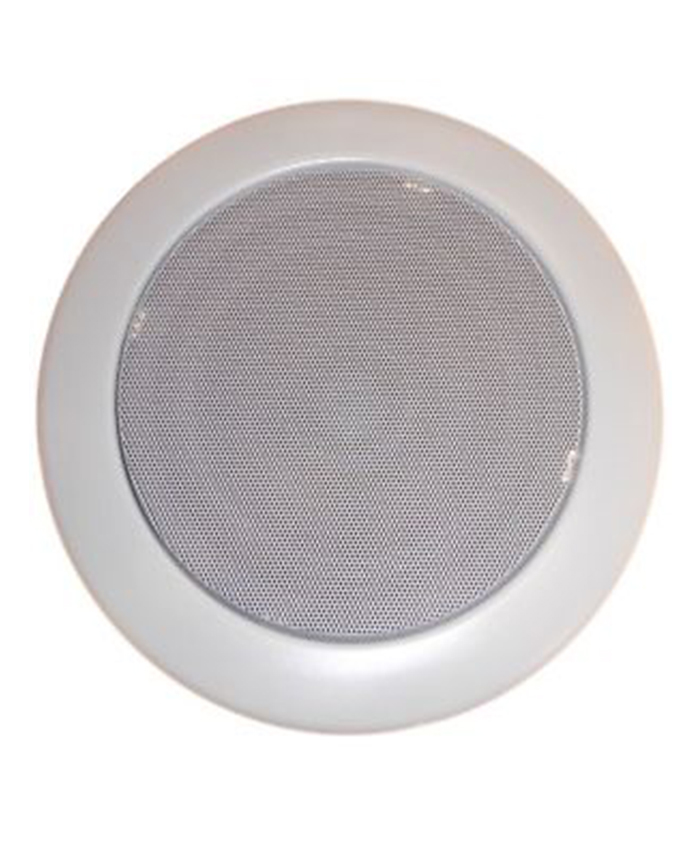

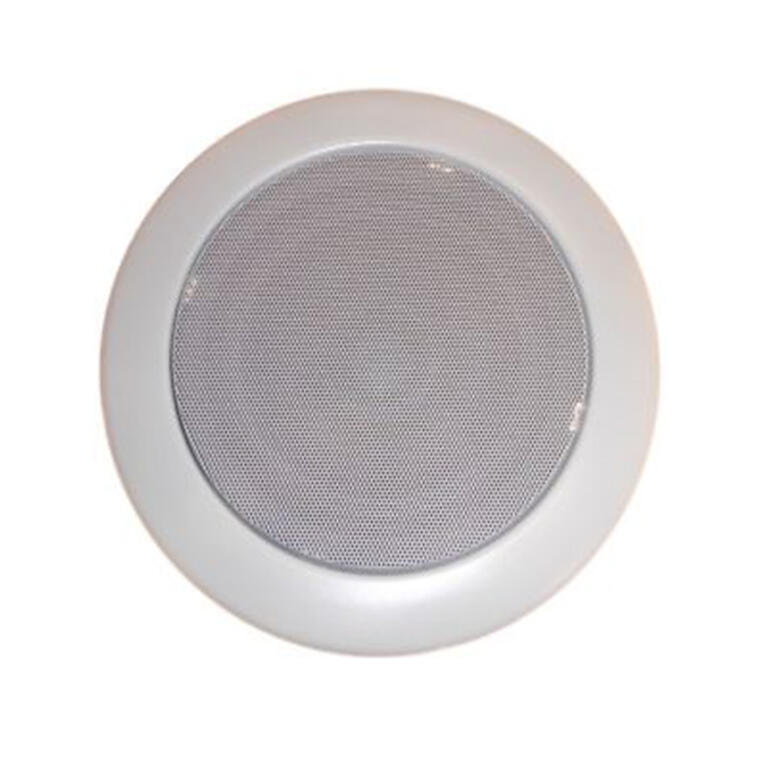

Penton RCS6T (100V Line)

This unit shall be the PENTON model RCS6/T or equal and approved. The loudspeaker baffle shall be a round two part bezel comprising an inner metal mesh grille, and chassis with integral loudspeaker having no visible fixings. Installation shall be by pre-mounted torsion-springs. The speaker assembly shall comprise of a twin cone loudspeaker and shall be fitted with a 6 watt/100 volt line factory mounted transformer with the power taps clearly marked on the assembly. The loudspeaker shall have a wide-angle dispersion. The cone shall be a damped, high compliance type with a smooth extended frequency response.

Penton RCS6T 100V Line Ceiling Speaker

System & Power Handling

System Type: Round torsion-spring ceiling loudspeaker with 100V line transformer
Power Rating: 6 W RMS
100V Power Tappings: 6 W, 3 W, 1.5 W, 0.75 W, 0.25 W
Operating Voltage: 100V Line distributed systems

Audio Performance & Transducers

Full-Range Driver: 6.5" (165 mm) twin-cone transducer
Frequency Response: 65 – 18,500 Hz
Sensitivity: 95 dB (1W/1m)
Max SPL: 103 dB @ 1m
Dispersion Angle: 180° uniform coverage

Connectivity & Impedance Matching

Connection Type: 4-way ceramic terminal block with spade-lug transformer taps
Tapping Selection: Terminal block jumper connection

Controls & Adjustment

Mounting Alignment: Torsion spring bracket assembly for hardware-free appearance

Enclosure & Hardware

Construction: Cold rolled steel grille and chassis (baked white epoxy finish RAL 9016)
Environmental Protection: IP21 rated
Application Modes: Value-designed in-ceiling audio, voice paging, and public address in schools, offices, banks, and retail stores
