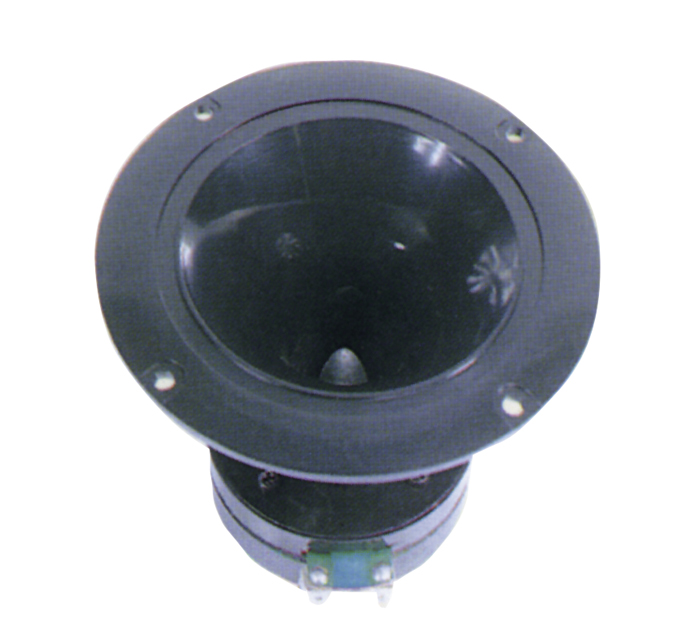

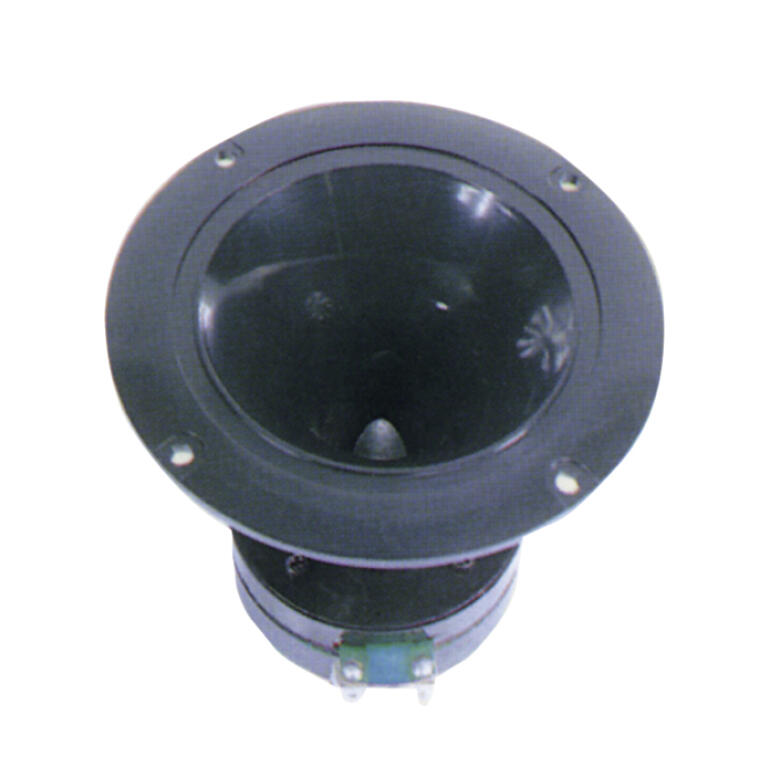

Soundlab L050E

Price on request
In stock
Interested in this product?
Call us

System & Power Handling

  • System Type: Mid/high frequency exponential piezo horn driver

  • Power Rating: 100 W RMS / 200 W Peak

  • Operating Voltage: High-impedance piezo drive

Audio Performance & Transducers

  • High Frequency Transducer: Piezo ceramic element connected to a 3" x 7" flared horn

  • Frequency Response: 2,500 – 20,000 Hz

  • Sensitivity: 94 dB (1W/1m)

  • Dispersion Angle: 90° x 45° (H x V)

Connectivity & Impedance Matching

  • Connection Type: Spade terminals

  • Impedance Matching: Direct parallel installation across speaker line

Controls & Adjustment

  • Hardware Controls: None

  • Mounting Alignment: Flush baffle screw mount

Enclosure & Hardware

  • Housing Material: Molded ABS plastic

  • Application Modes: High-frequency reinforcement in PA cabinets and disco speaker builds

Physical Specifications

  • Cutout Dimensions: 155 x 75 mm

  • Dimensions (H x W x D): 188 x 90 x 105 mm

  • Weight: 0.22 kg

Accessories Included

  • Mounting Leaflet
