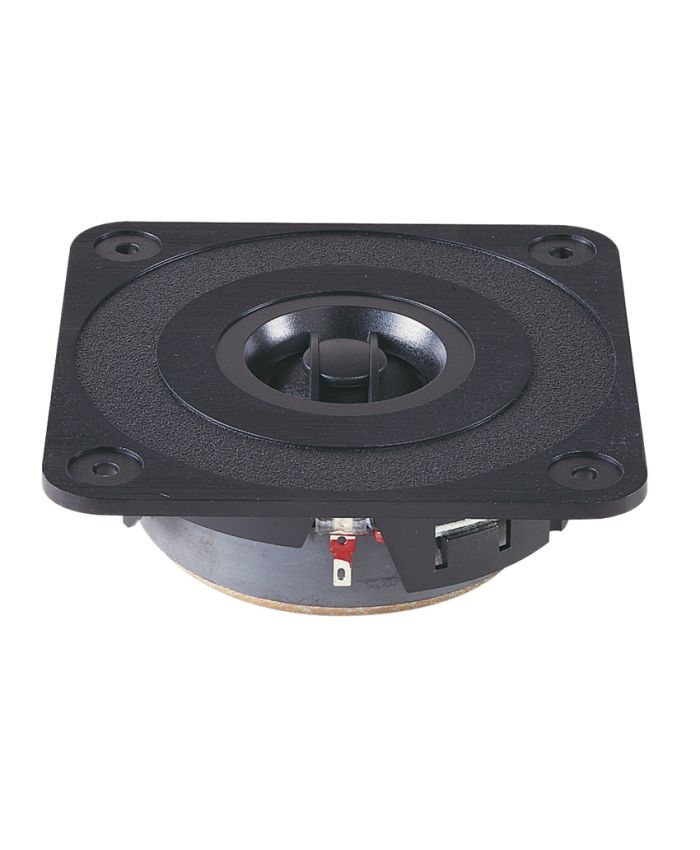

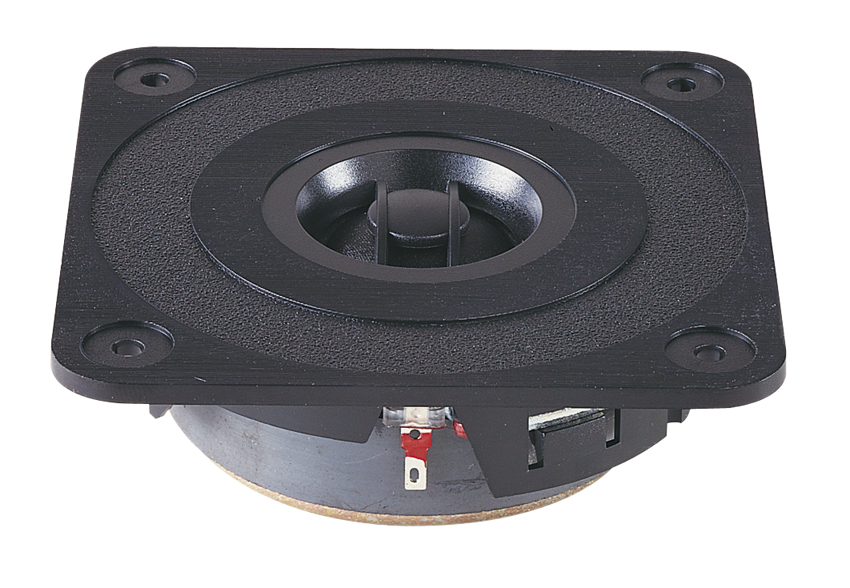

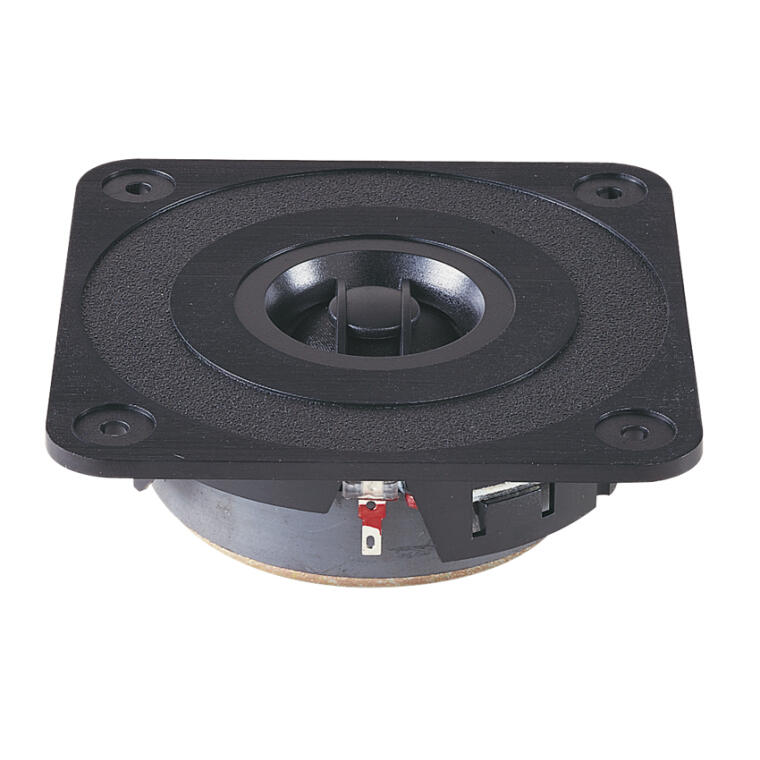

Soundlab L063J

Price on request
In stock
Interested in this product?
Call us

System & Power Handling

  • System Type: Mid-bass replacement woofer driver

  • Power Rating: 60 W RMS / 120 W Peak

  • Impedance: 8 Ω

  • Operating Voltage: Standard 8 Ω amplifier outputs

Audio Performance & Transducers

  • Low Frequency Driver: 5.25" (133 mm) polypropylene cone with rubber surround

  • Frequency Response: 60 – 8,000 Hz

  • Sensitivity: 88 dB (1W/1m)

Connectivity & Impedance Matching

  • Connection Type: Push-on solder terminals

  • Impedance Matching: Fixed 8 Ω connection

Controls & Adjustment

  • Hardware Controls: None

  • Mounting Alignment: 4-point rim flange fixing

Enclosure & Hardware

  • Chassis Material: Steel basket (black finish)

  • Application Modes: Bookshelf speakers, home hi-fi replacements, and compact monitor cabinets

Physical Specifications

  • Cutout Diameter: 120 mm

  • Dimensions (Diameter x Depth): 133 x 65 mm

  • Weight: 0.85 kg

Accessories Included

  • Data Sheet
