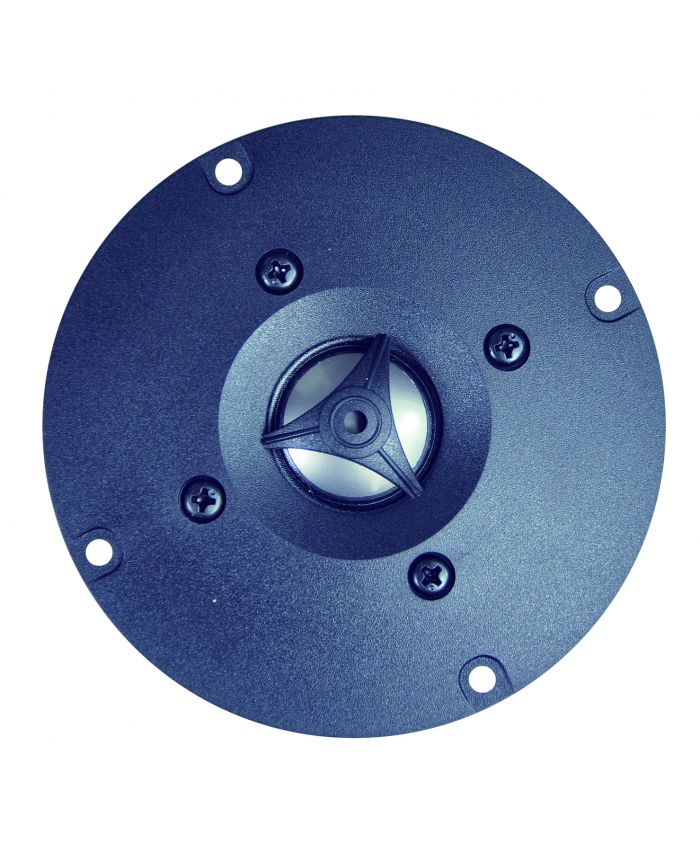

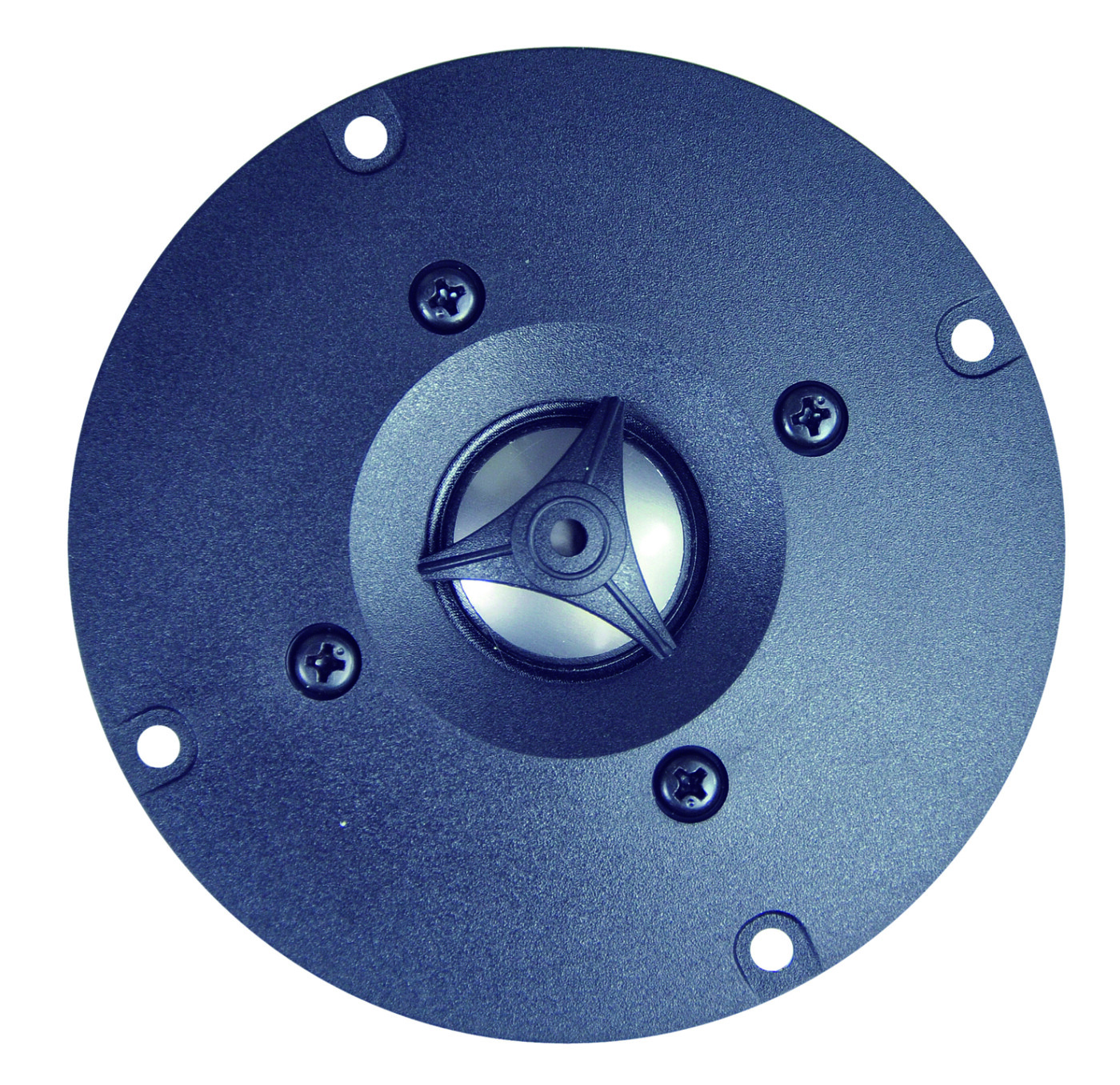

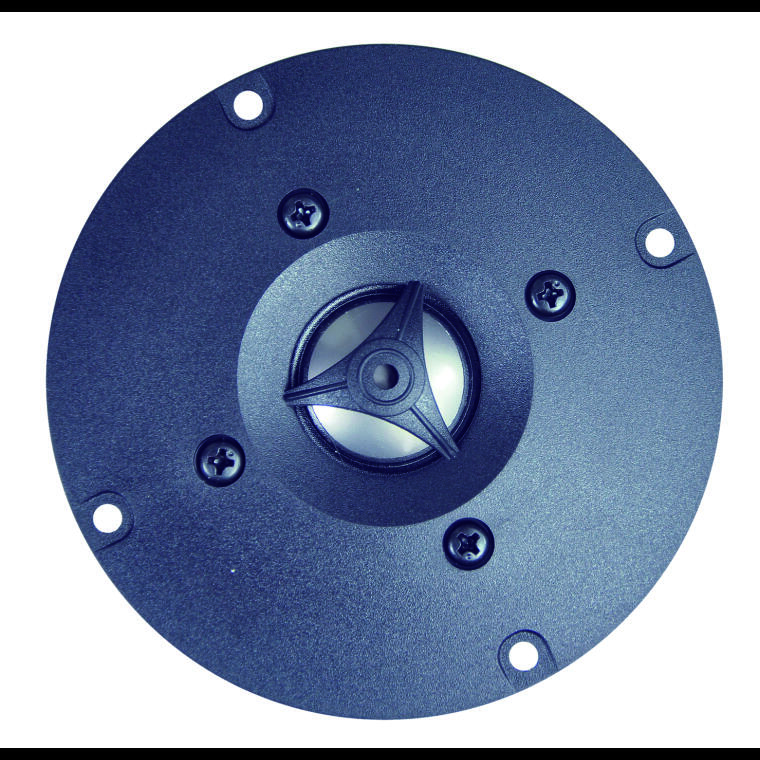

Soundlab L063L

Price on request
In stock
Interested in this product?
Call us

System & Power Handling

  • System Type: Low-frequency hi-fi woofer transducer

  • Power Rating: 120 W RMS / 240 W Peak

  • Impedance: 8 Ω

  • Operating Voltage: Low-impedance audio amplifiers

Audio Performance & Transducers

  • Low Frequency Driver: 8" (200 mm) black polypropylene cone with rolled rubber surround

  • Magnet Weight: 22 oz ferrite magnet

  • Frequency Response: 40 – 5,000 Hz

  • Sensitivity: 90 dB (1W/1m)

Connectivity & Impedance Matching

  • Connection Type: Spade terminals / solder lugs

  • Impedance Matching: Fixed 8 Ω input

Controls & Adjustment

  • Hardware Controls: None

  • Mounting Alignment: 4-hole mounting pattern

Enclosure & Hardware

  • Chassis Material: Pressed steel frame

  • Application Modes: Stereo loudspeaker repairs, custom cabinet builds, and home theater subs

Physical Specifications

  • Cutout Diameter: 182 mm

  • Dimensions (Diameter x Depth): 208 x 90 mm

  • Weight: 1.6 kg

Accessories Included

  • Technical Leaflet
