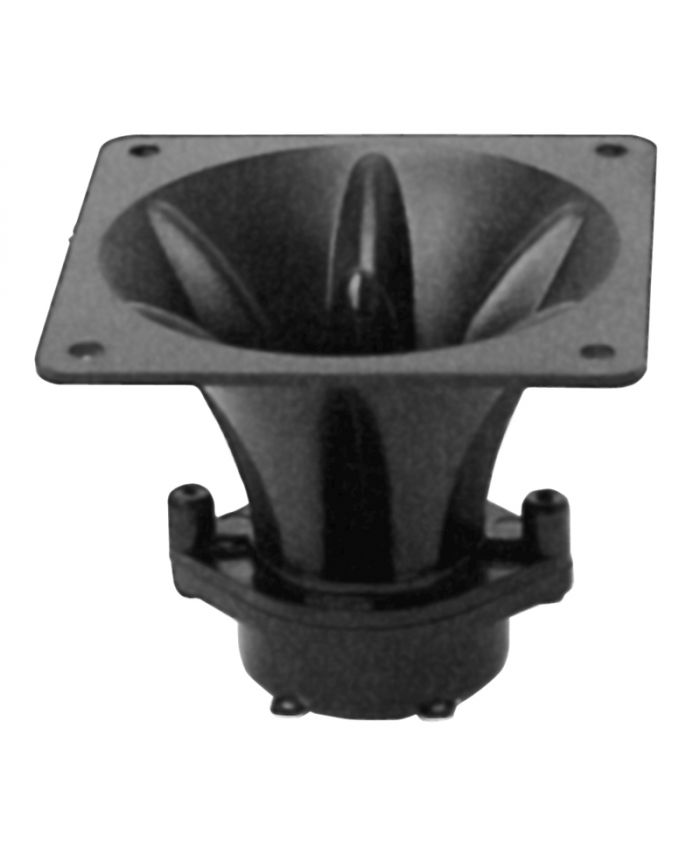

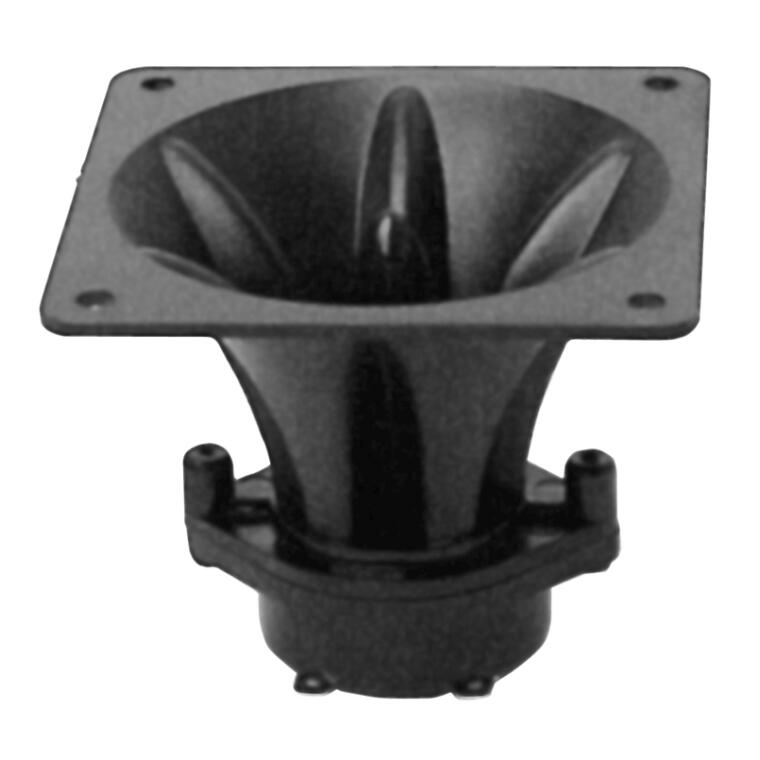

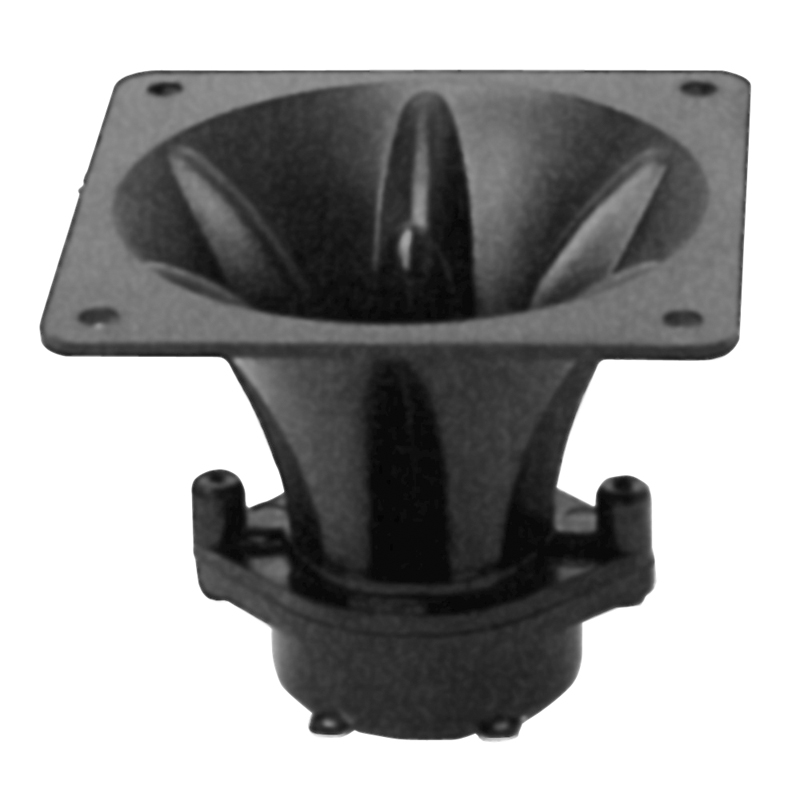

Soundlab L060AD

Price on request
In stock
Interested in this product?
Call us

Technical Specifications

  • Product Dimensions (mm): 70x90x90
  • Net weight (kg): 0.15
  • Colour: Black
  • Cutout Depth (mm): 75
  • Frequency Response (Hz): 3500-30000
  • Impedance (Ohms): 1000
  • Power RMS (W): 35
  • Sensitivity (dBV/Pa): 100
  • Weight (kg): 0.062

System & Power Handling

  • System Type: Low-frequency raw transducer replacement driver

  • Power Rating: 150 W RMS / 300 W Peak

  • Impedance: 8 Ω

  • Operating Voltage: Low-impedance audio power amplifiers

Audio Performance & Transducers

  • Low Frequency Driver: 10" (250 mm) reinforced paper cone with treated cloth surround

  • Magnet Weight: 30 oz ferrite magnet

  • Frequency Response: 45 – 4,500 Hz

  • Sensitivity: 92 dB (1W/1m)

Connectivity & Impedance Matching

  • Connection Type: Heavy-duty solder terminals / push tabs

  • Impedance Matching: Fixed 8 Ω load

Controls & Adjustment

  • Hardware Controls: None

  • Mounting Alignment: 4-point steel basket mounting flange

Enclosure & Hardware

  • Chassis Material: Pressed steel frame

  • Application Modes: Bass-reflex enclosures, PA mid-bass replacements, and combo amplifiers

Physical Specifications

  • Cutout Diameter: 232 mm

  • Dimensions (Diameter x Depth): 256 x 105 mm

  • Weight: 2.3 kg

Accessories Included

  • Specification Sheet
