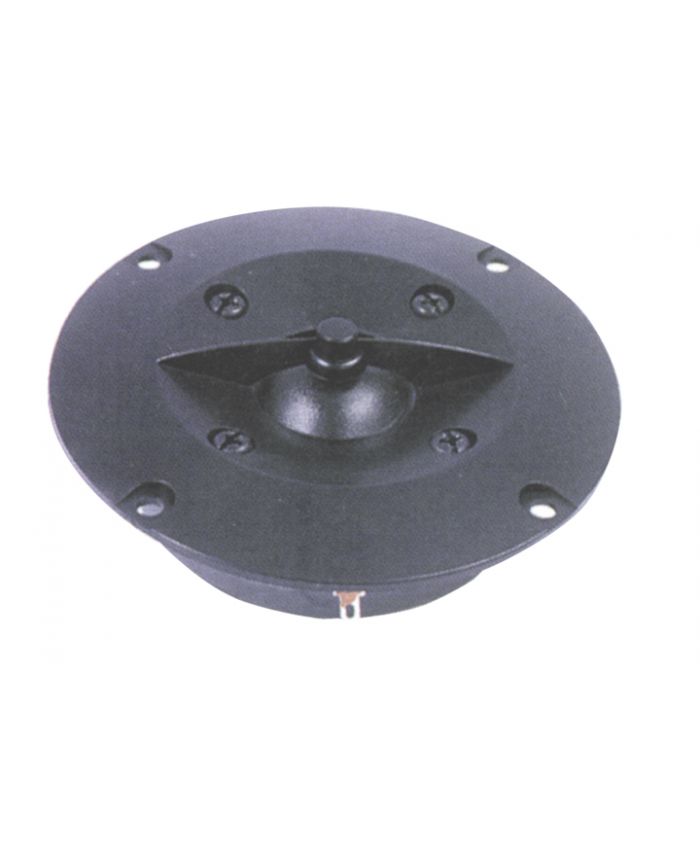

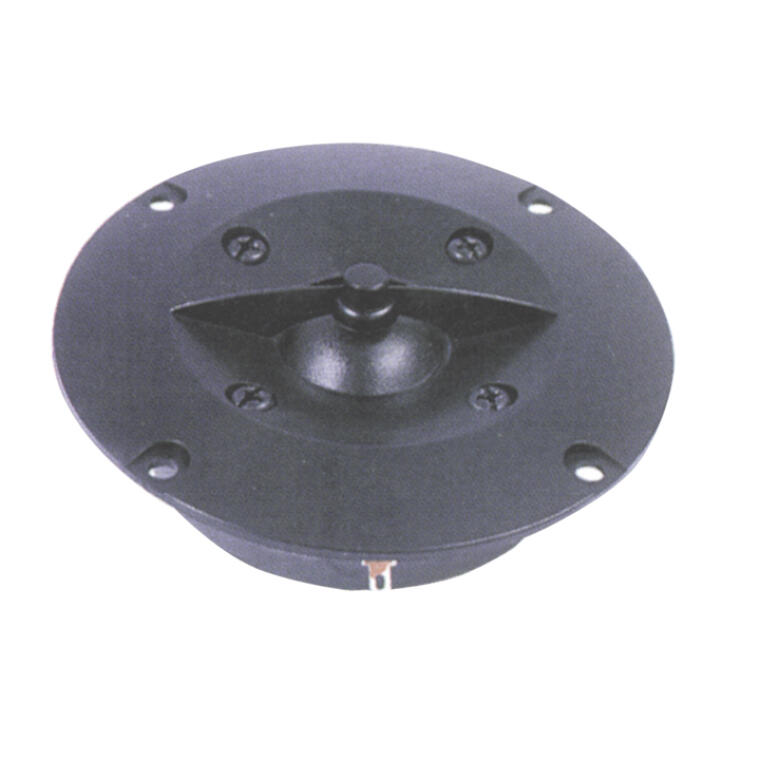

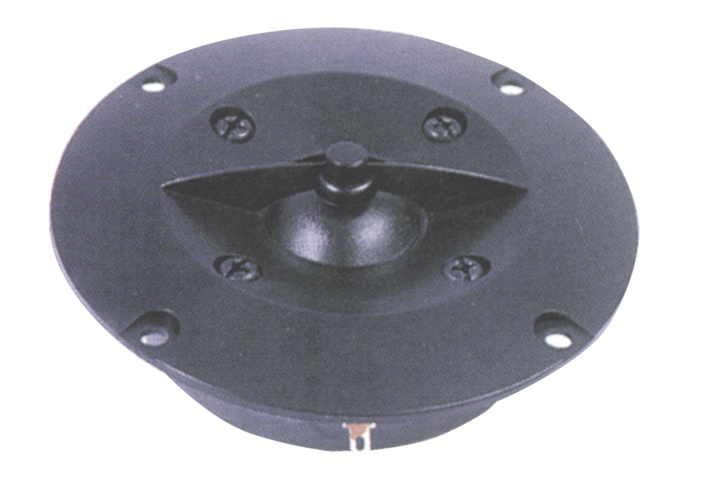

Soundlab L062F

Price on request
In stock
Interested in this product?
Call us

System & Power Handling

  • System Type: General purpose full-range chassis driver

  • Power Rating: 40 W RMS / 80 W Peak

  • Impedance: 8 Ω

  • Operating Voltage: Low-impedance audio amplifiers

Audio Performance & Transducers

  • Full-Range Driver: 5" (127 mm) dual-cone paper transducer

  • Frequency Response: 80 – 16,000 Hz

  • Sensitivity: 88 dB (1W/1m)

Connectivity & Impedance Matching

  • Connection Type: Faston solder tabs

  • Impedance Matching: Fixed 8 Ω load

Controls & Adjustment

  • Hardware Controls: None

  • Mounting Alignment: 4-hole chassis mounting

Enclosure & Hardware

  • Chassis Material: Pressed steel frame

  • Application Modes: Ceiling speaker replacement, background music cabinets, and arcade audio systems

Physical Specifications

  • Cutout Diameter: 115 mm

  • Dimensions (Diameter x Depth): 130 x 55 mm

  • Weight: 0.65 kg

Accessories Included

  • Specification Sheet
