Midea XTREME 24,000


Quick Overview

Midea XTREME Series 24,000 BTU

Midea XTREME 24,000

The new Midea Xtreme air conditioning series “flexes its muscles” in terms of product performance, combining a refined and compact design with extreme performance to meet the challenges of the most difficult installations, with the certainty of the promise of comfort, regardless the environmental conditions.

Product details:

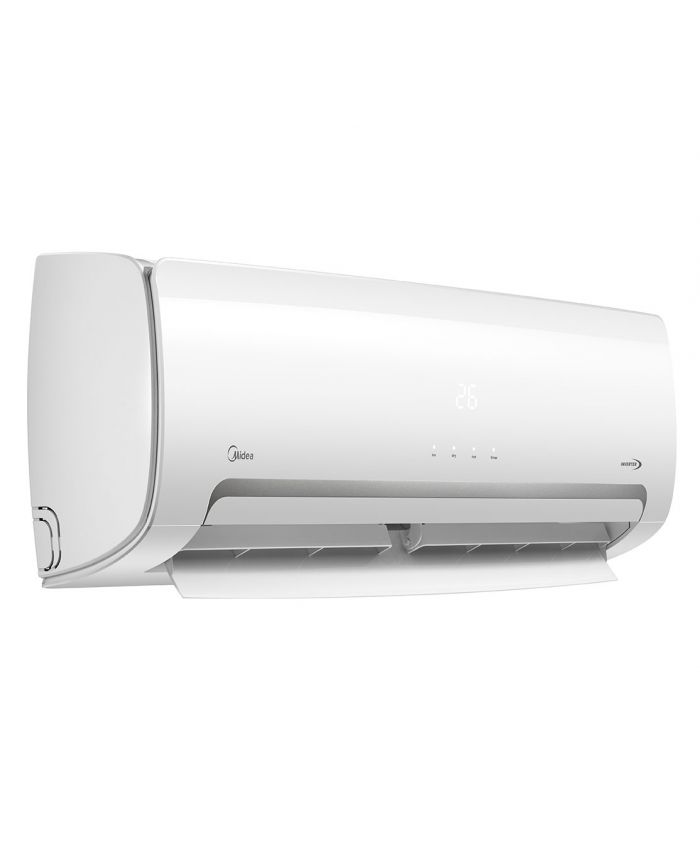

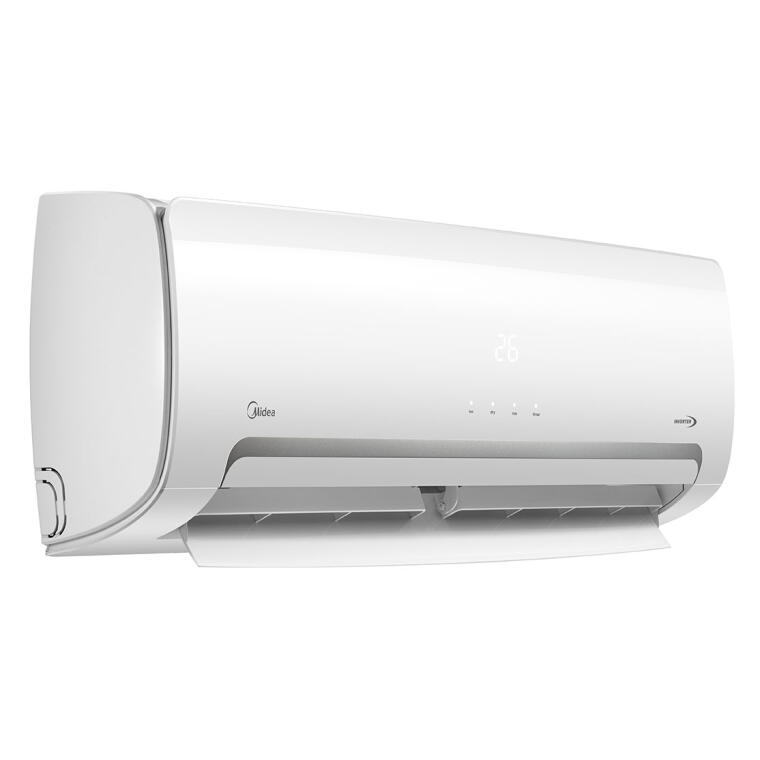

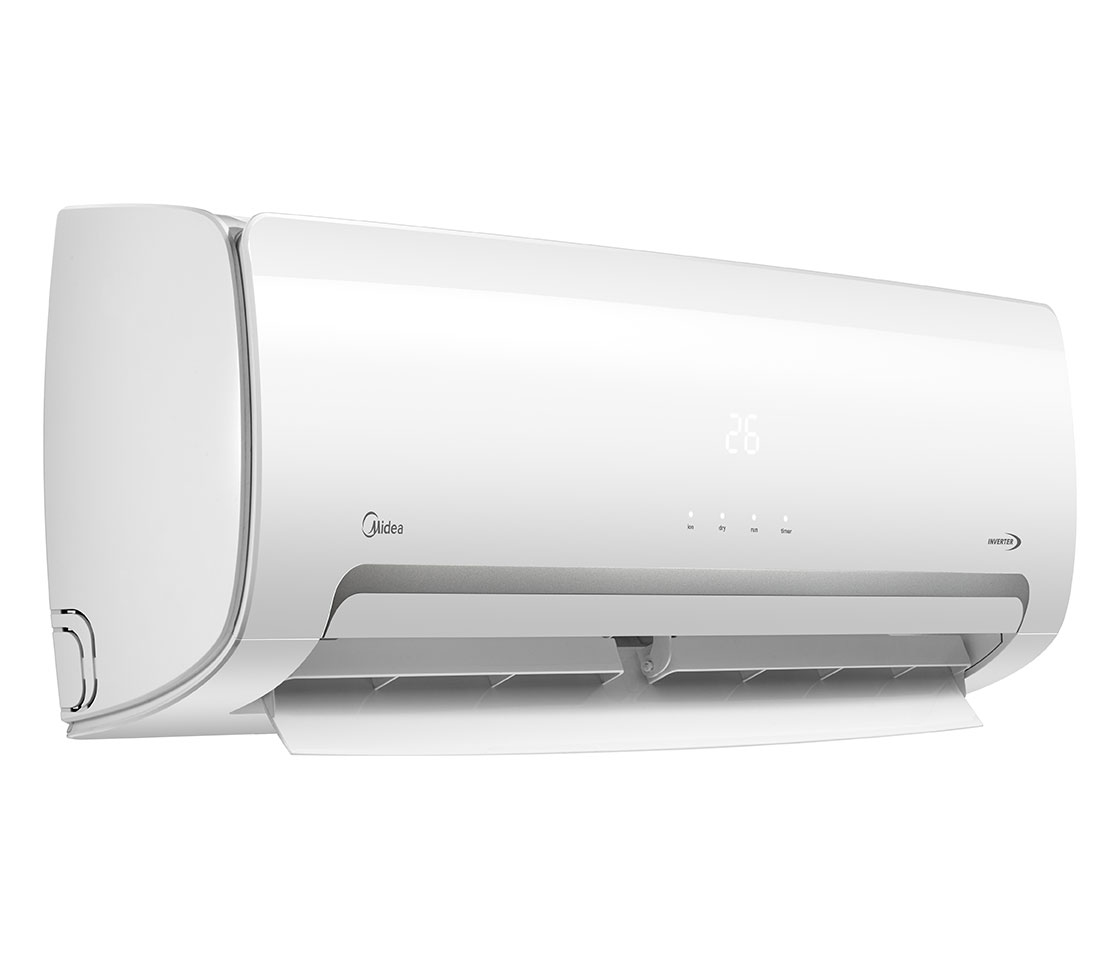

  • Indoor unit code:  MSAGDU-24HRFN8
  • Outdoor unit code:  MOX401-24HFN8

Energy efficiency:

  • SEER: 6.4
  • SCOP: 4.0
  • Energy Efficiency Class (cooling): A ++
  • Energy Efficiency Class (heating) A +++
  • Annual energy consumption cooling / heating kWh / A: 383 / 1715
  • Min-nom-max cooling capacity:  2.58-7.33-8.44
  • Power absorbed in cooling min-nom-max: 230-2402-3350  W
  • Min-nom-max heating capacity: 1.52-7.62-9.44 kW
  • Power absorbed in heating min-nom-max:  230-2177-3370  W
  • Air flow (Min-med-Max) m3 / min: 640-830-1020
  • Indoor unit  sound pressure (Min-Med-Max) (db (A)): 30-40-46
  • Sound power indoor unit max db (A); 62
  • Max external unit sound pressure (db (A)): 60
  • Max external unit sound power  (db (A)): 67


  • Power supply (V / Hz / Φ): 230/50/1
  • Liquid / Gas Line Refrigerant Piping: mm (inch) 9.52 / 15.88
  • Type of refrigerant: R32

Dimensions and weight:

  • Indoor Unit (LxWxH): 1083-377-244 mm ; 13 Kg
  • Outdoor Unit (LxWxH): 890-673-342  mm; 51 Kg

Midea smart kit (WiFi technology):

The indoor units of the Right series are equipped with the Midea smart kit.  The unit can be operated by the dedicated MIDEA AIR APP via a WLAN connection.

Product warranty:  All genuine residential Midea Air Conditioning Units sold in Malta are new, packaged and have a warranty of 5 Years from the date of purchase.
