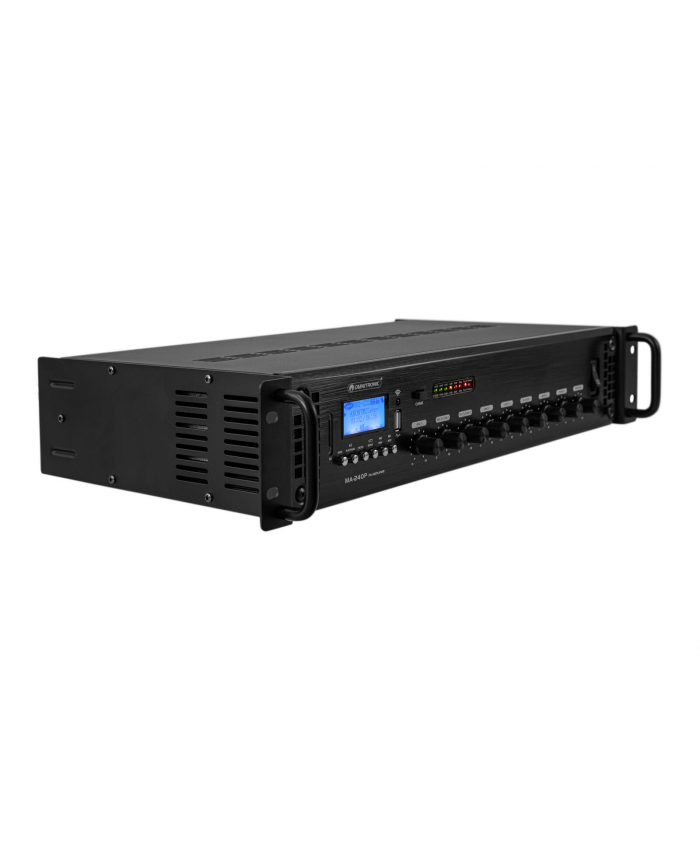

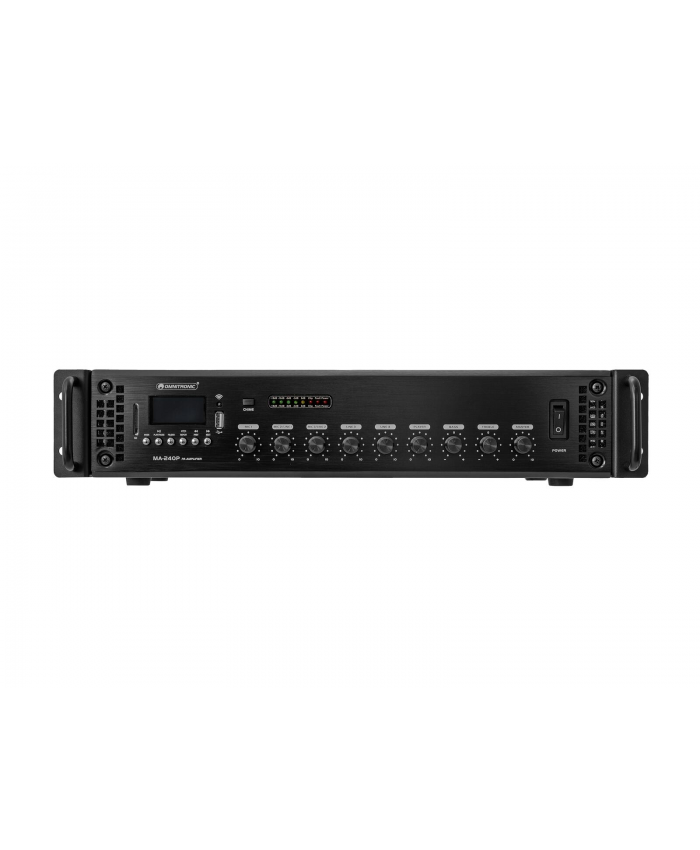

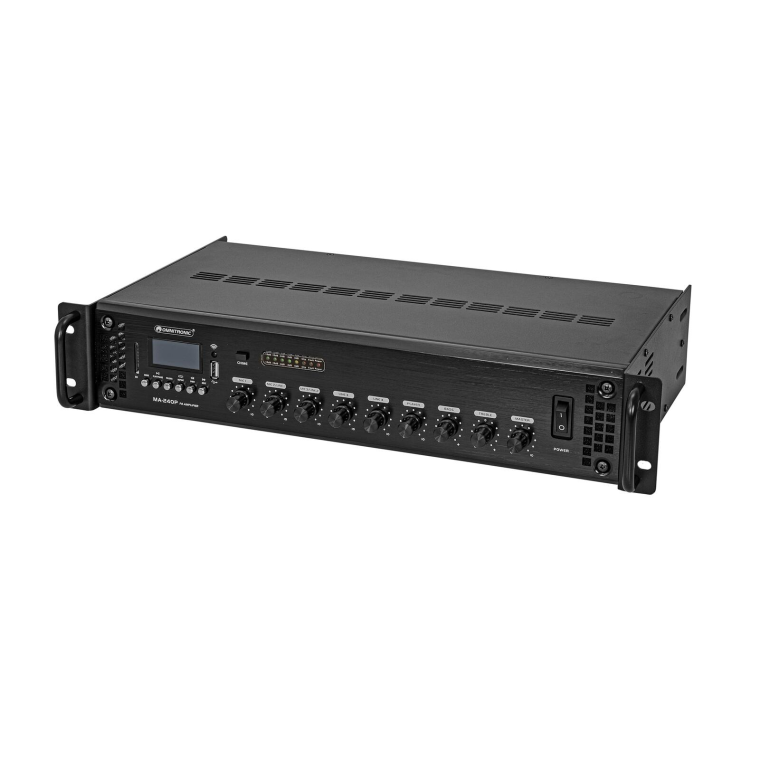

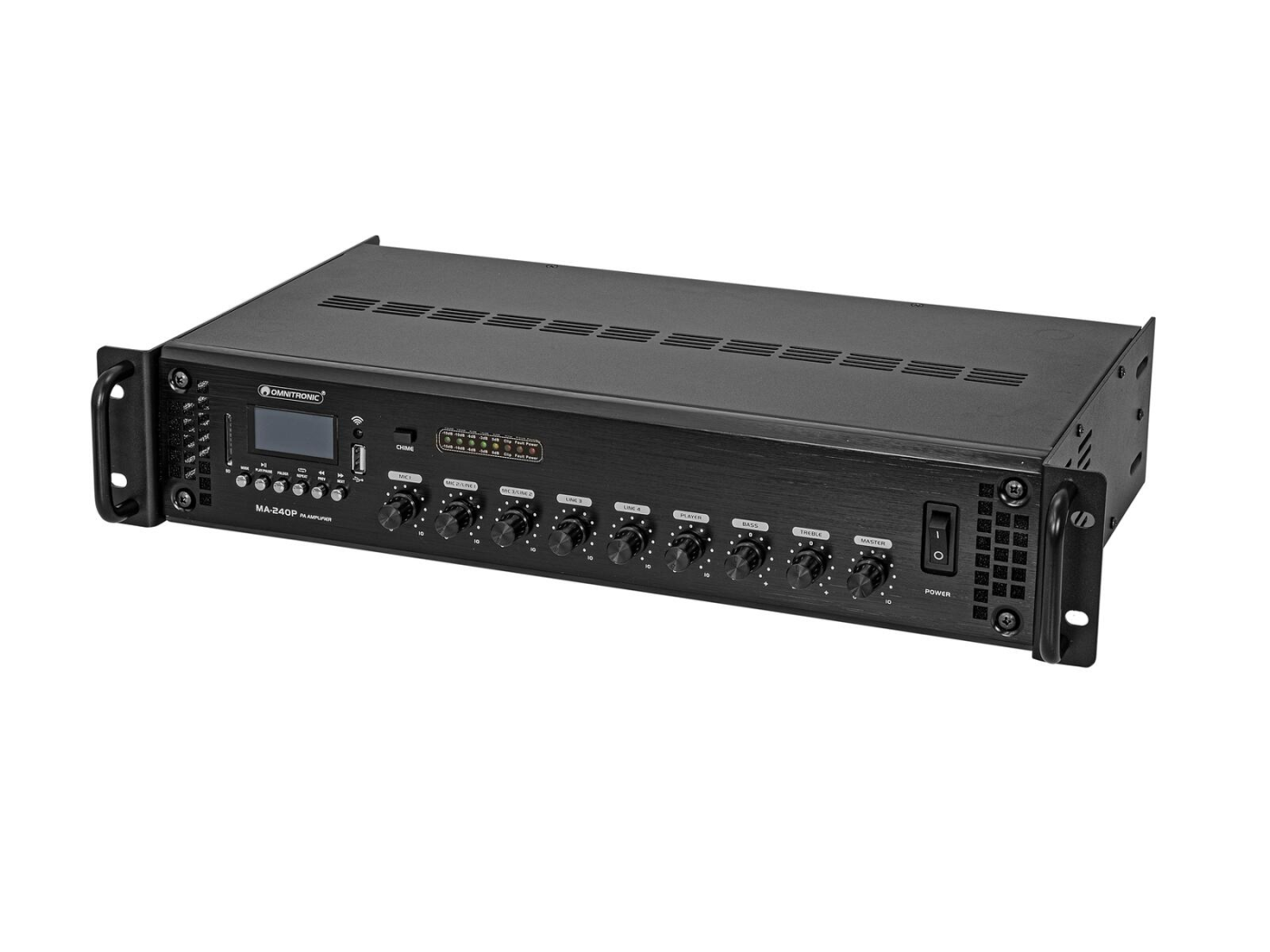

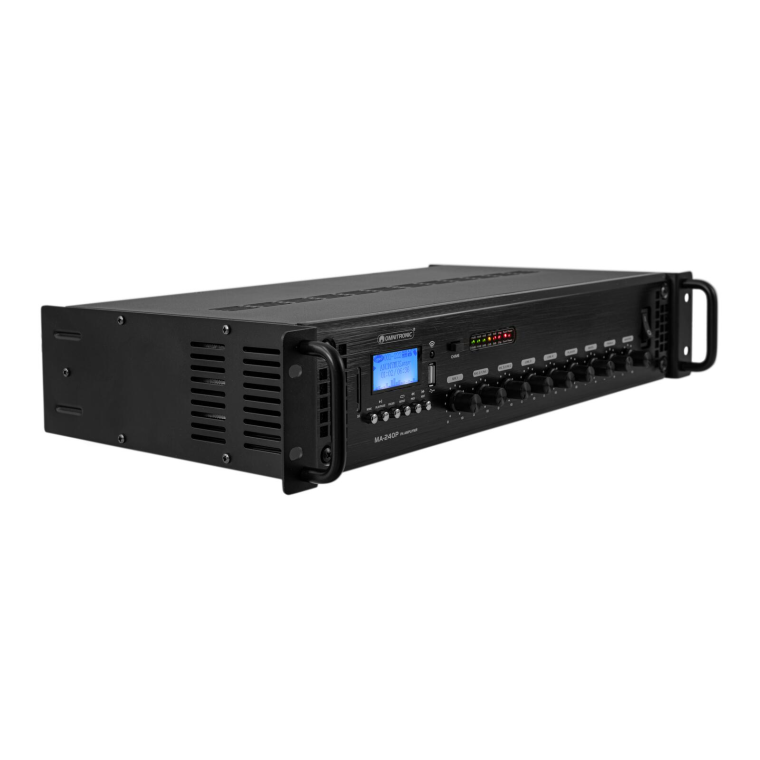

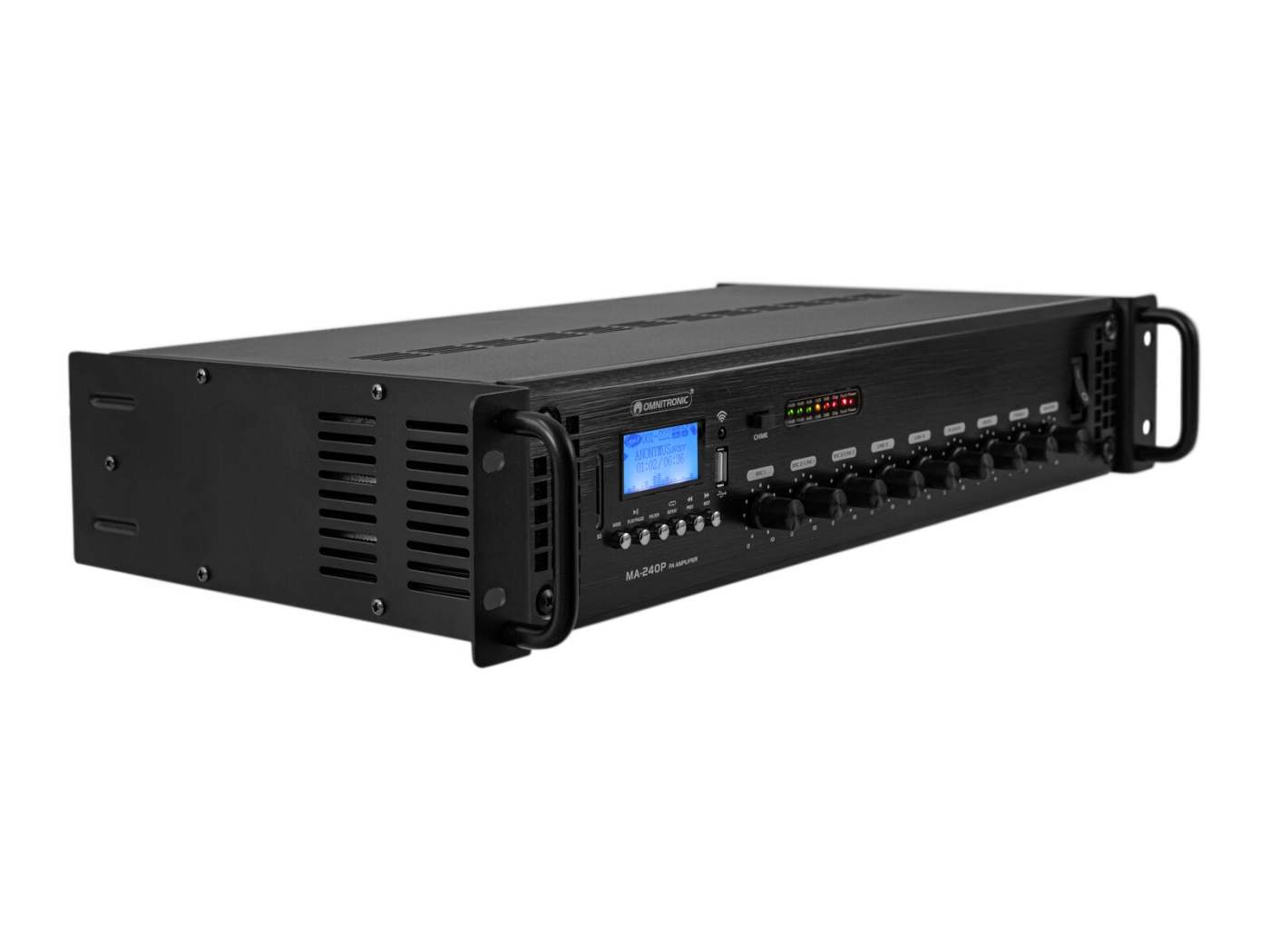

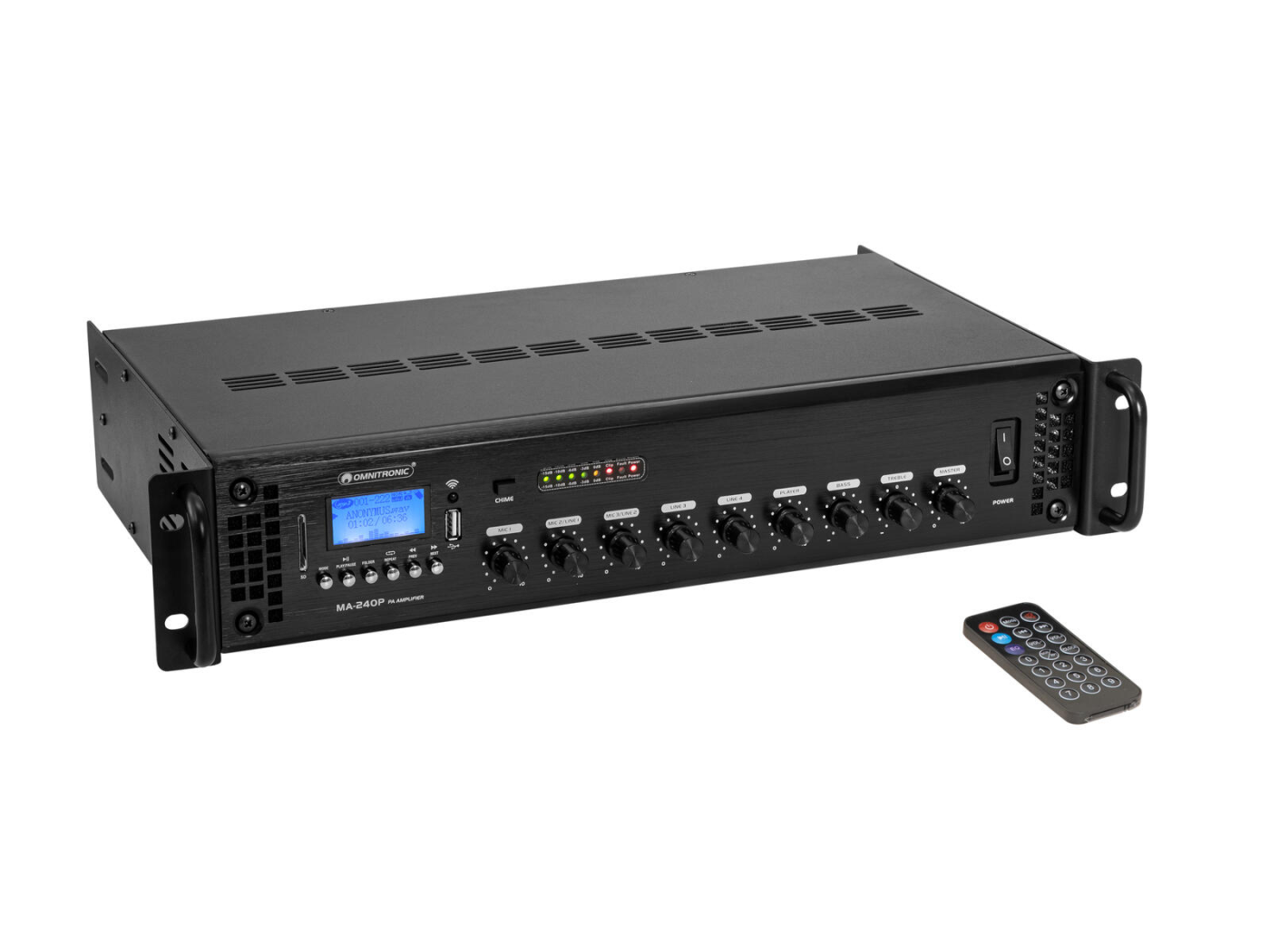

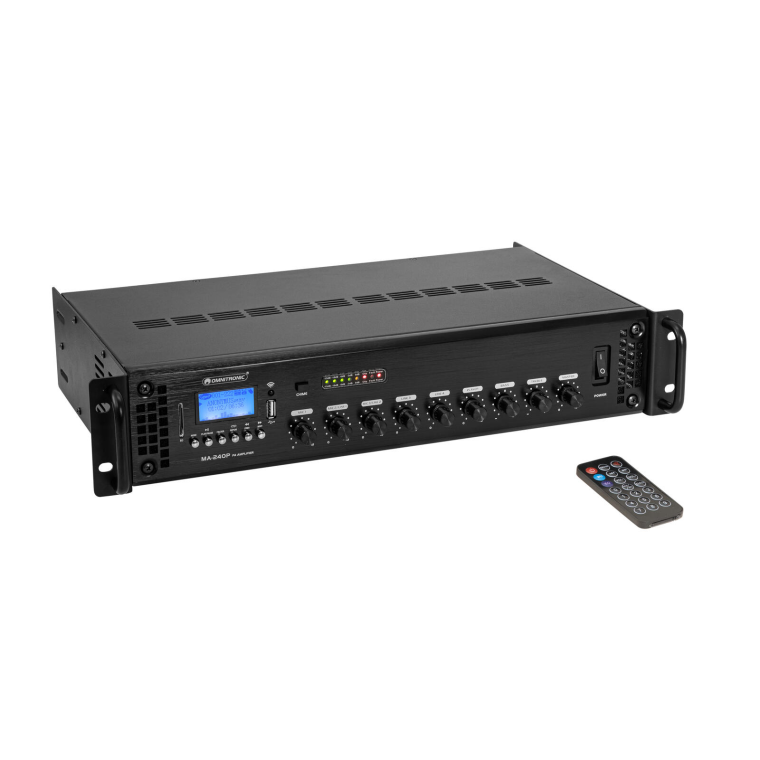

Omnitronic MA-240P (100v line)

Omnitronic MA-240P – Technical Specifications

Power Supply & Consumption

• Power Supply: 230 V AC, 50 Hz

• Power Consumption: 480 W

Audio Performance

• Output Power (RMS): 240 W RMS

• Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance

• Frequency Range: 50 - 18,000 Hz

• S/N Ratio: >85 dB (Line), >75 dB (Mic)

• THD: <0.5% @ 1 kHz

Connectivity & Media Playback

• Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player

• Media File Formats: MP3 (max. 32 GB USB/SD storage)

• Chime Function: Switchable chime generator

• Remote Control: IR remote control included for media player

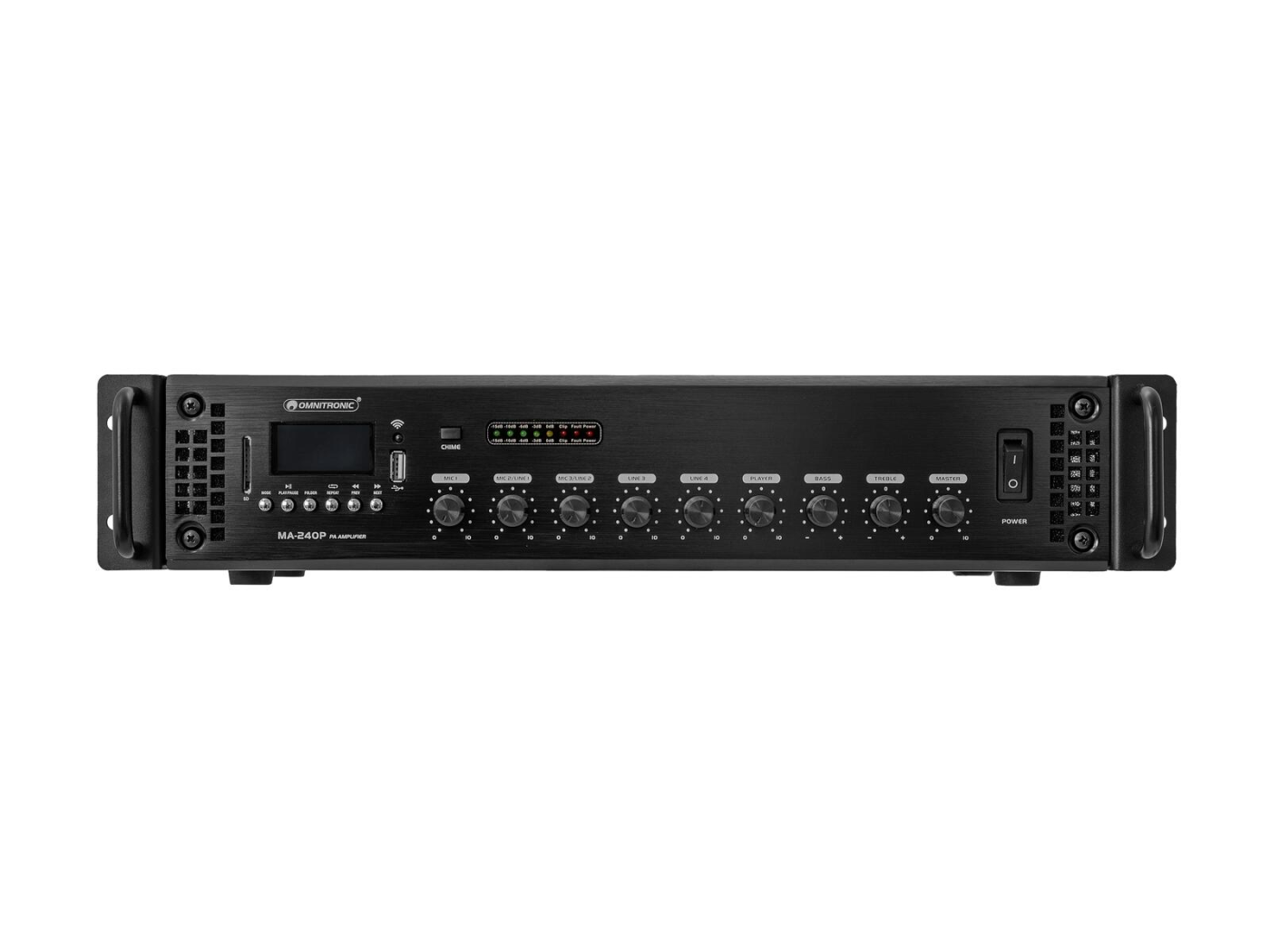

Controls & Indicators

• Display: 5-digit LED level meter

• Control Elements: Master volume knob, 2-band EQ (Bass & Treble), separate level controls for Mic 1-3 and Line 1-2, Chime switch

• Protection Circuits: Overload, short-circuit, limiter, overheat protection; active cooling fan

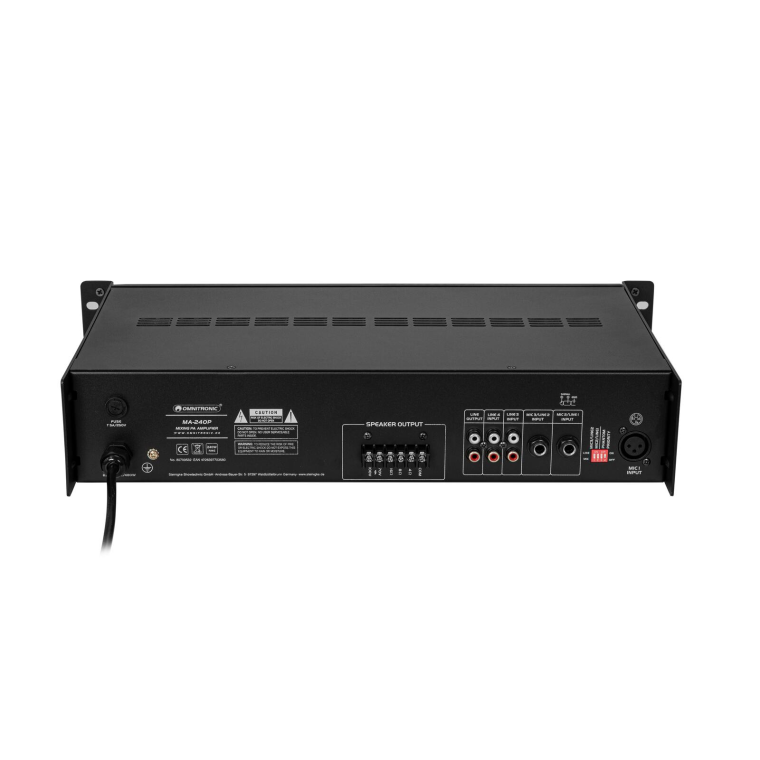

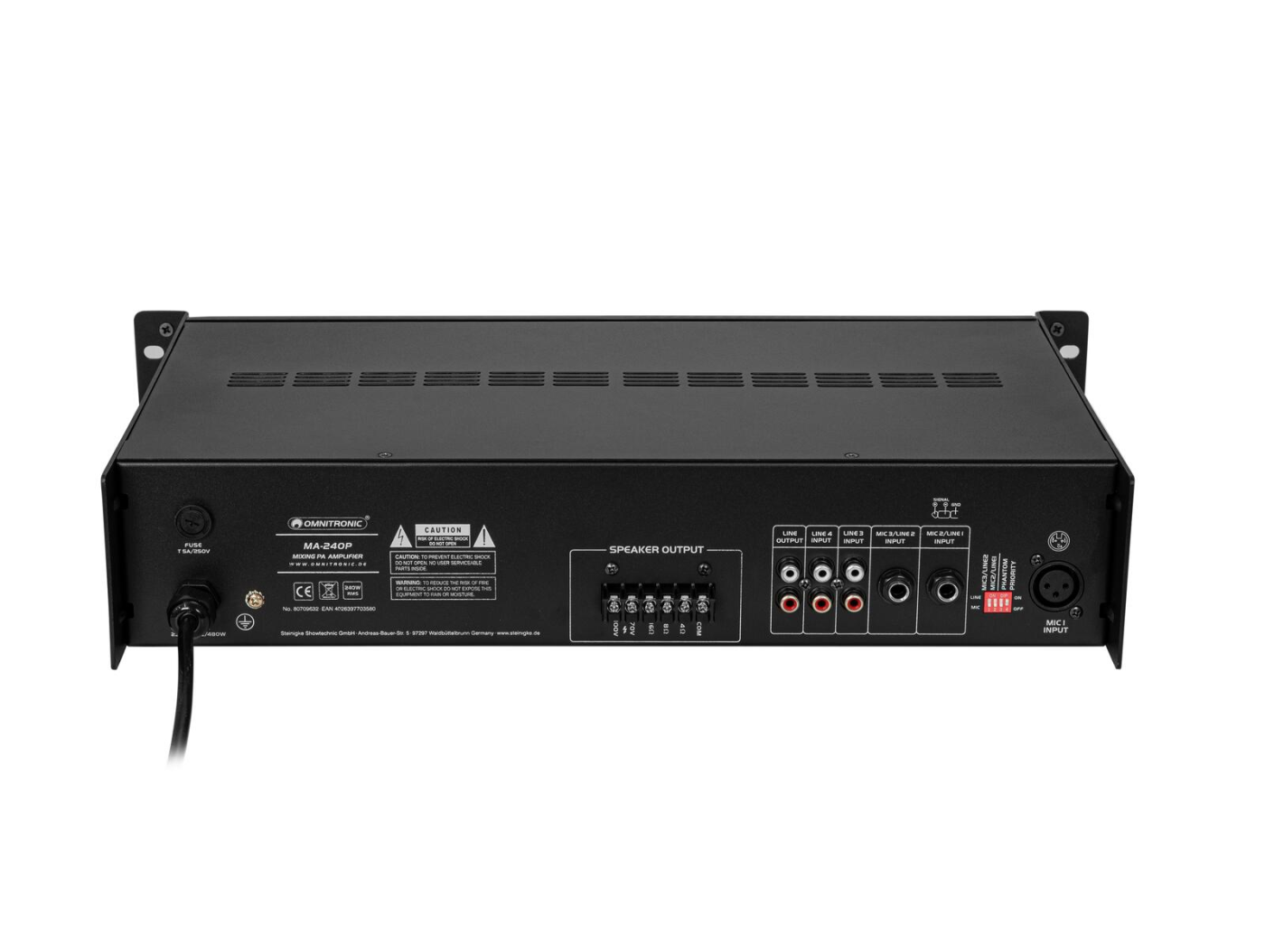

Inputs & Outputs

• Inputs:

  • Microphone: 1 x XLR (Mic 1 with phantom power & priority override), 2 x 6.35 mm jack (Mic 2 & 3 switchable mic/line)

  • Aux/Line: 3 x Stereo RCA

• Outputs:

  • Line Output: 1 x Stereo RCA

  • Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)

Physical Specifications

• Rack Installation: 19" Rack format (2 U height)

• Housing Design: Steel chassis with aluminum front panel

• Dimensions (W x D x H): 483 x 320 x 92 mm

• Weight: 6.8 kg

Accessories Included

• Power Cord, IR Remote Control (CR2025 battery included), Rack Mounting Kit, User Manual
