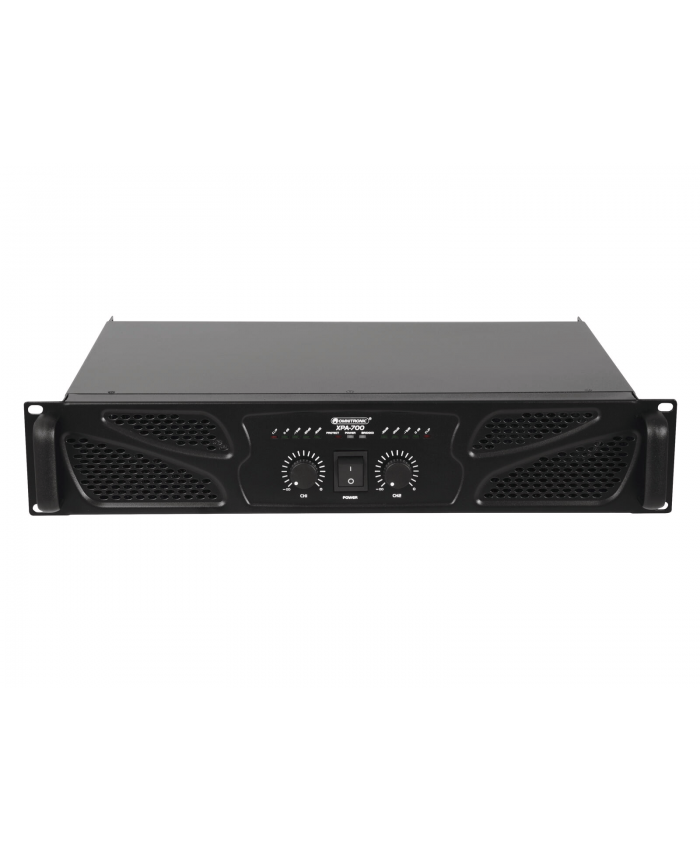

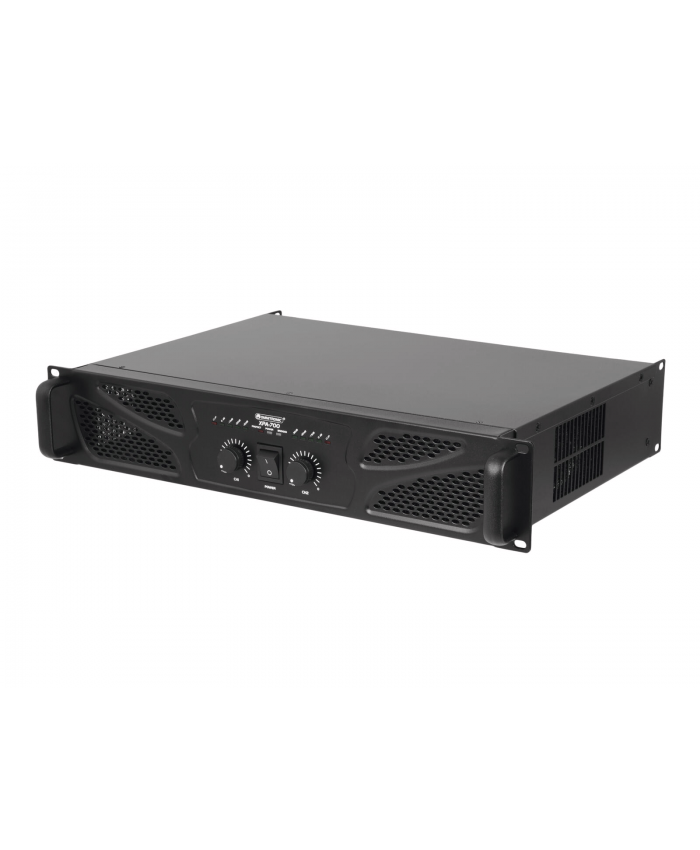

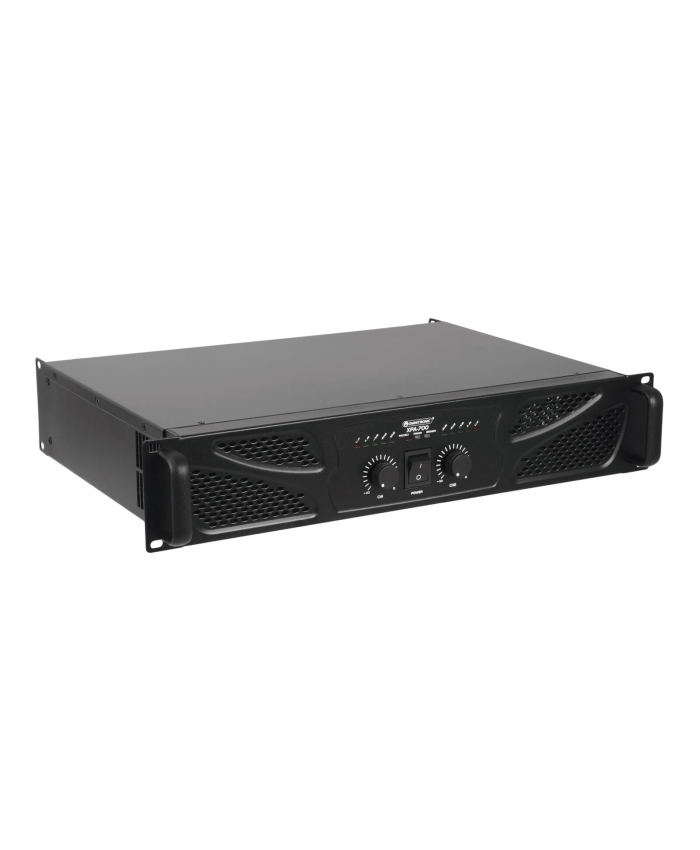

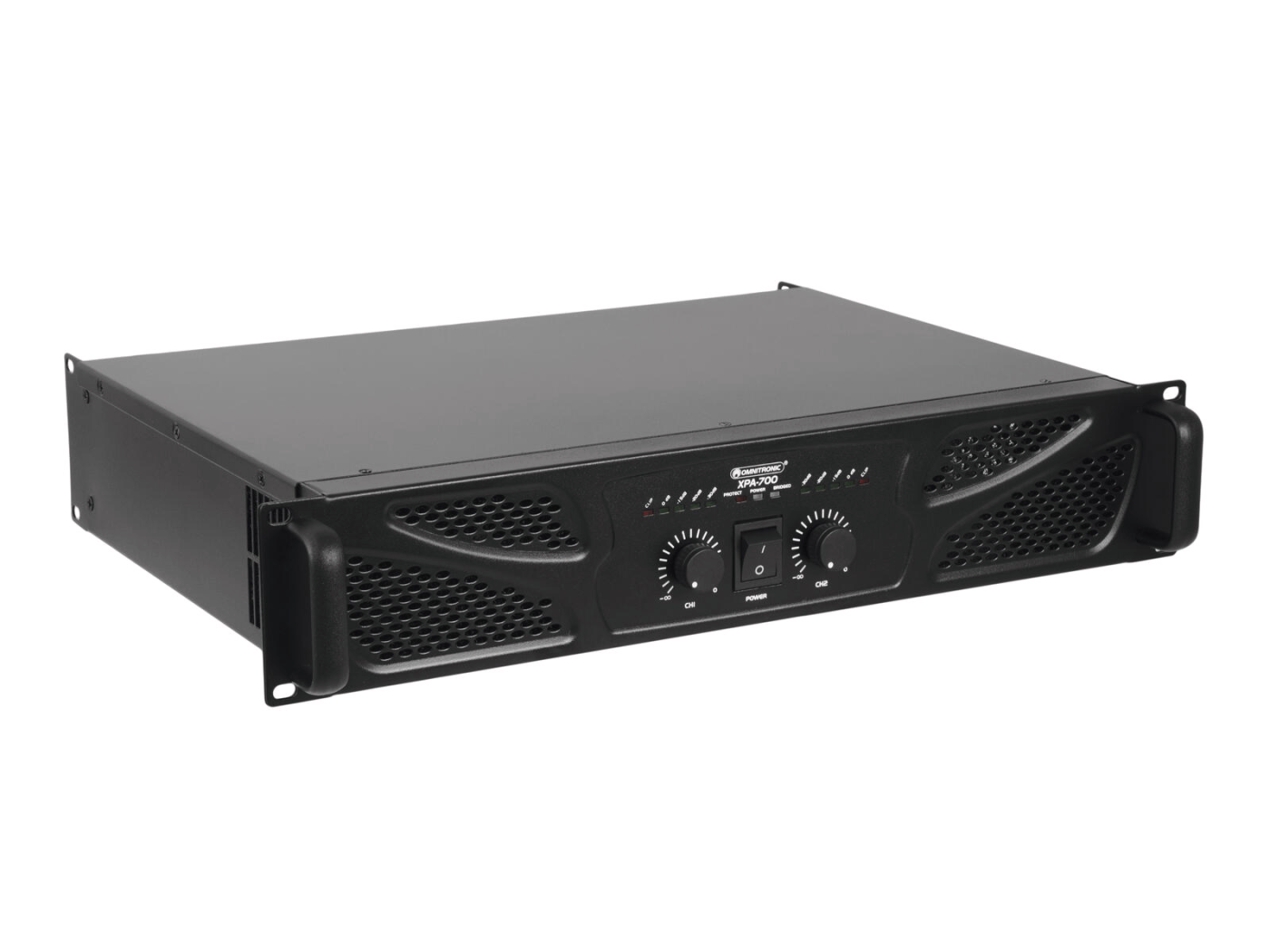

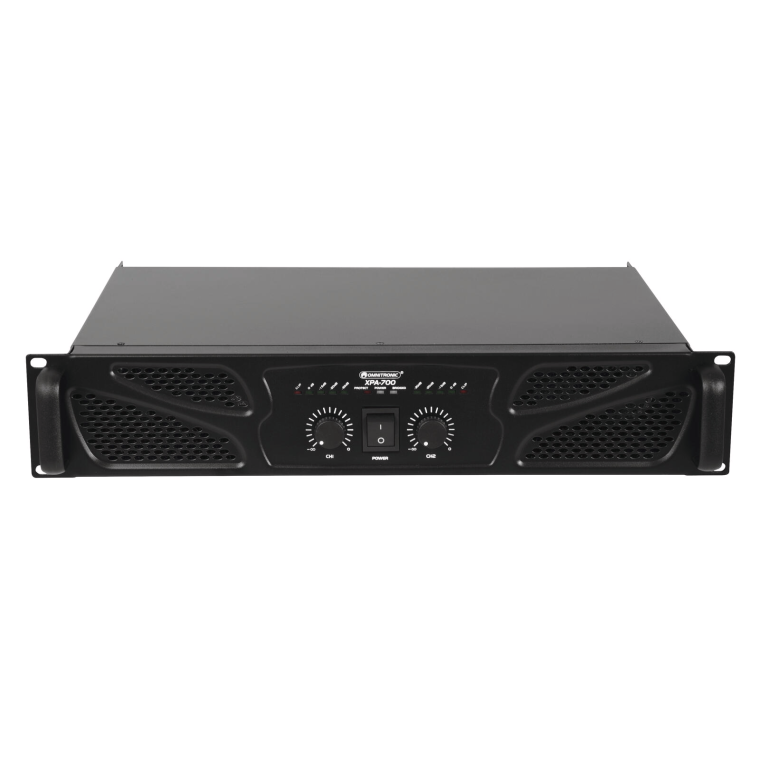

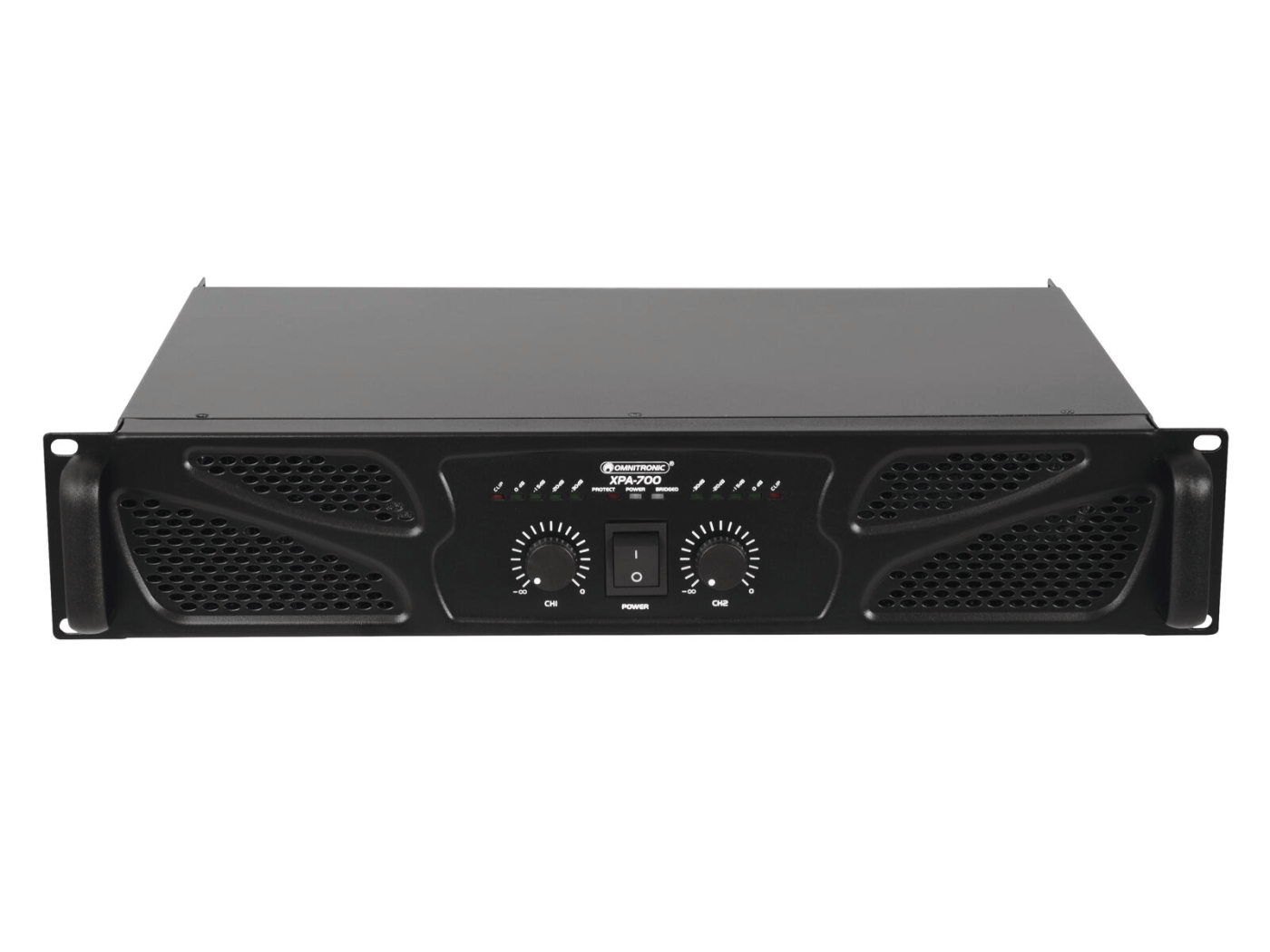

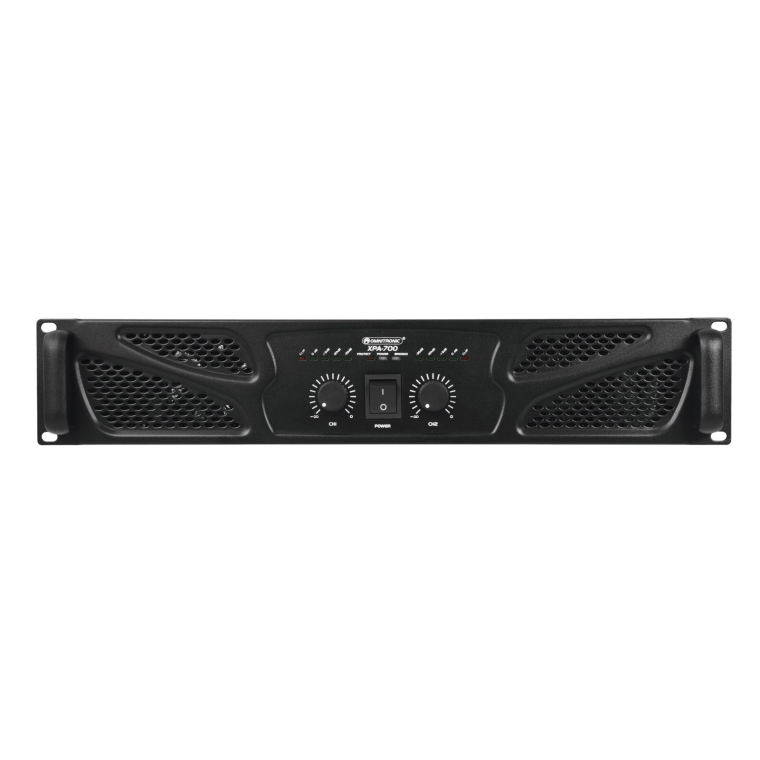

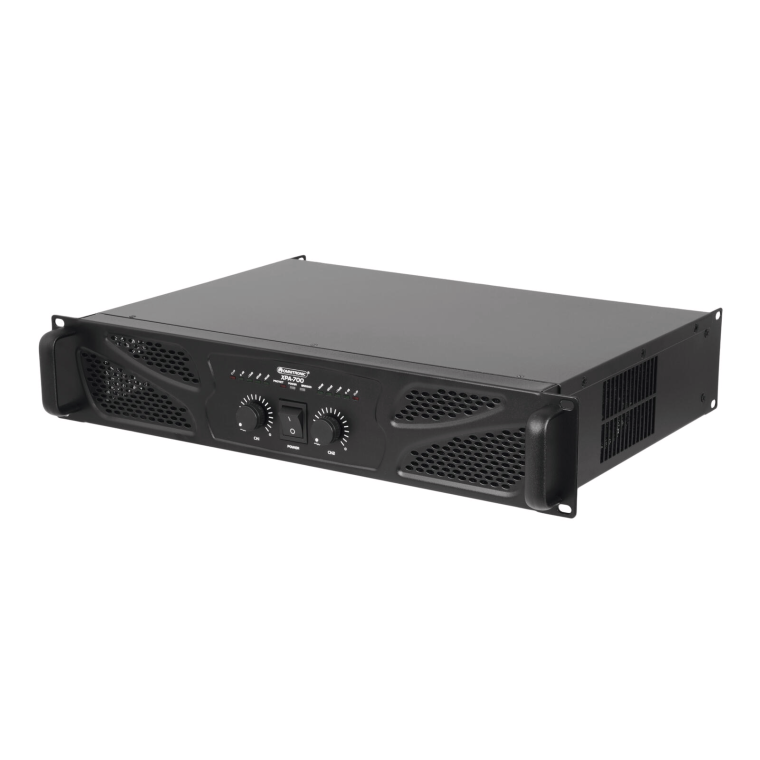

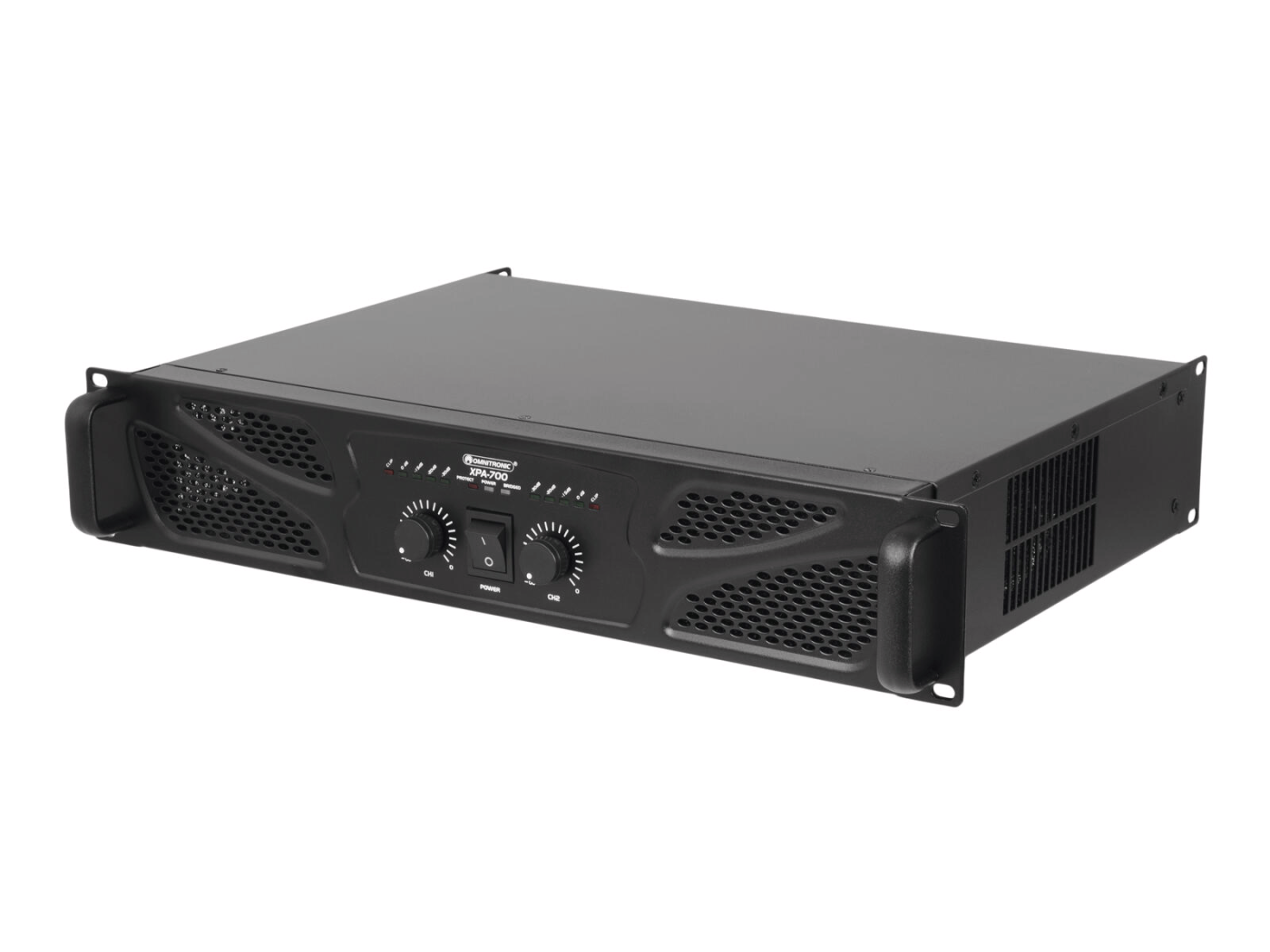

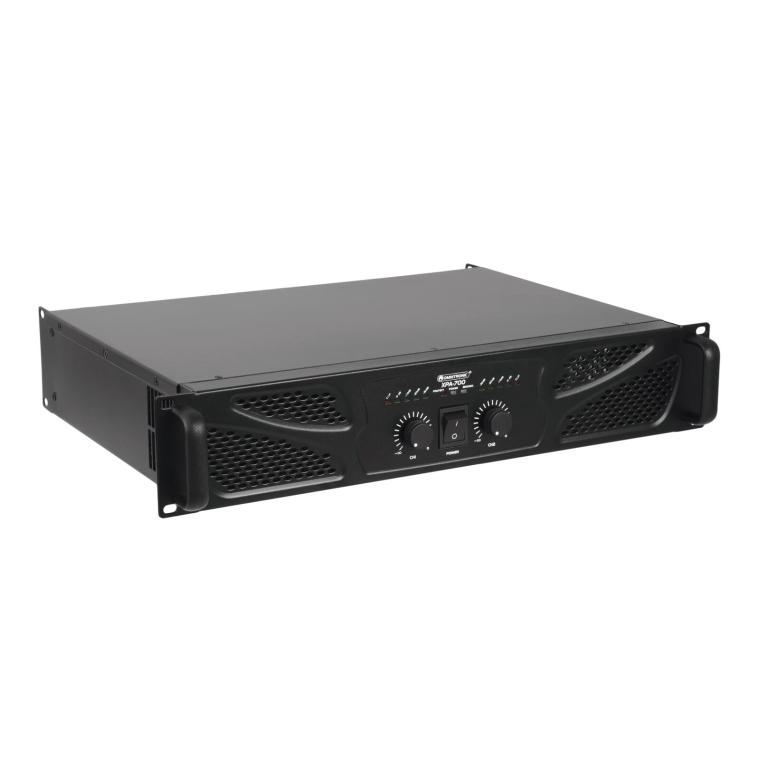

Omnitronic XPA-700 (Slave)
€305.00
incl. VAT
In stock
Interested in this product?
Overview
Class AB PA amplifier with limiter,
- 2 operating modes can be selected (stereo or bridged)
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Signal inputs via XLR or 6.3mm jack connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Additional Speaker plug for 8-ohm bridge operation
- Class AB circuitry
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms
Omnitronic XPA-700 – Technical Specifications
Power Supply & Consumption
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: 1400 W (1/8 power)
Audio Performance
-
Output Power (RMS):
-
2 x 700 W @ 4 Ω
-
2 x 450 W @ 8 Ω
-
1 x 1400 W @ 8 Ω (Bridged)
-
-
Frequency Range: 20 - 20,000 Hz, ±0.5 dB
-
S/N Ratio: >100 dB
-
THD: <0.05%
-
Damping Factor: >200

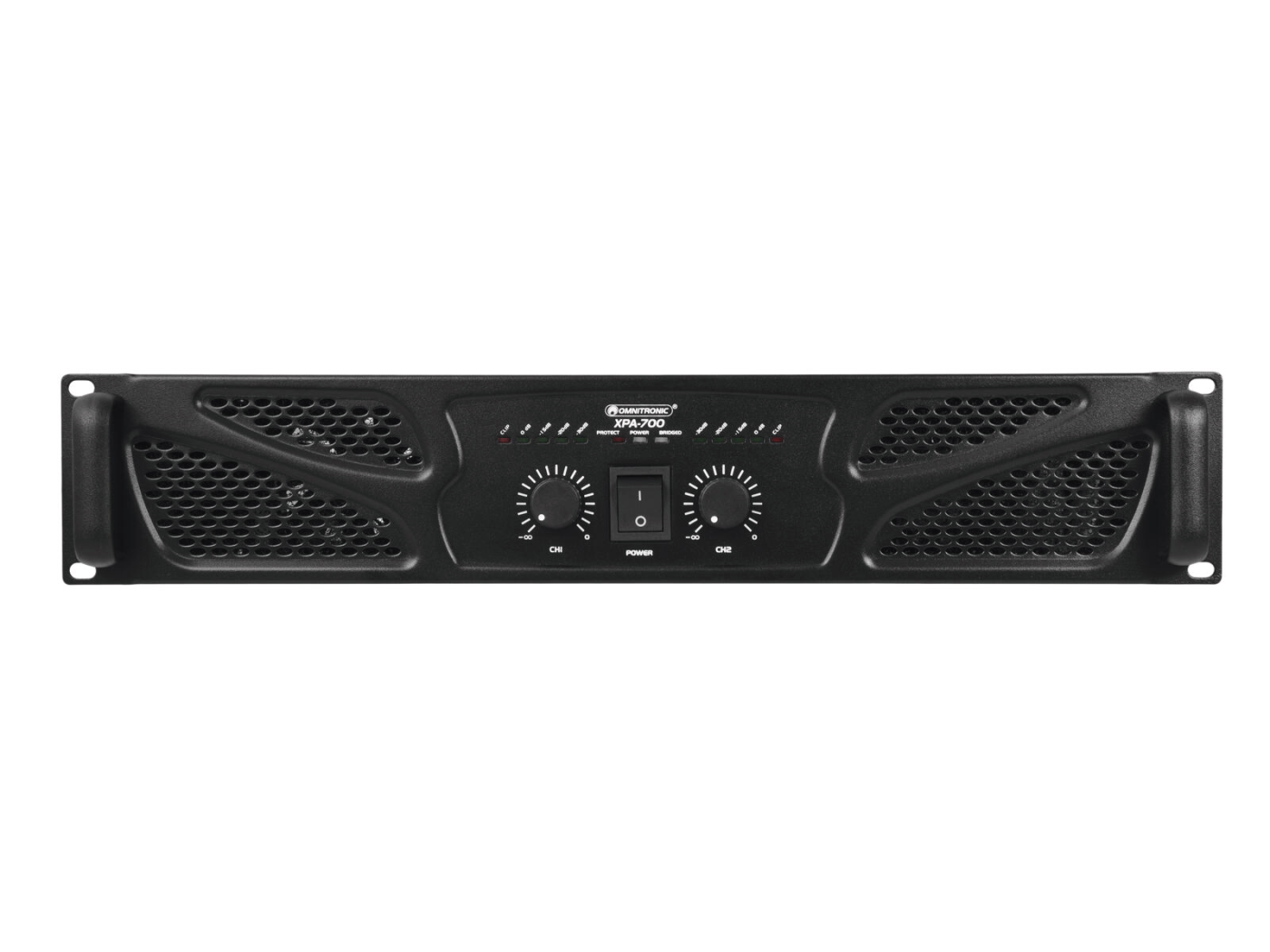

Controls & Indicators
-
Control Elements: Power switch, gain controls for Channel 1 & 2, mode switch (Stereo/Parallel/Bridged), ground lift switch
-
Protection Circuits: Softstart, short-circuit, DC voltage, overheat, turn-on/off transients

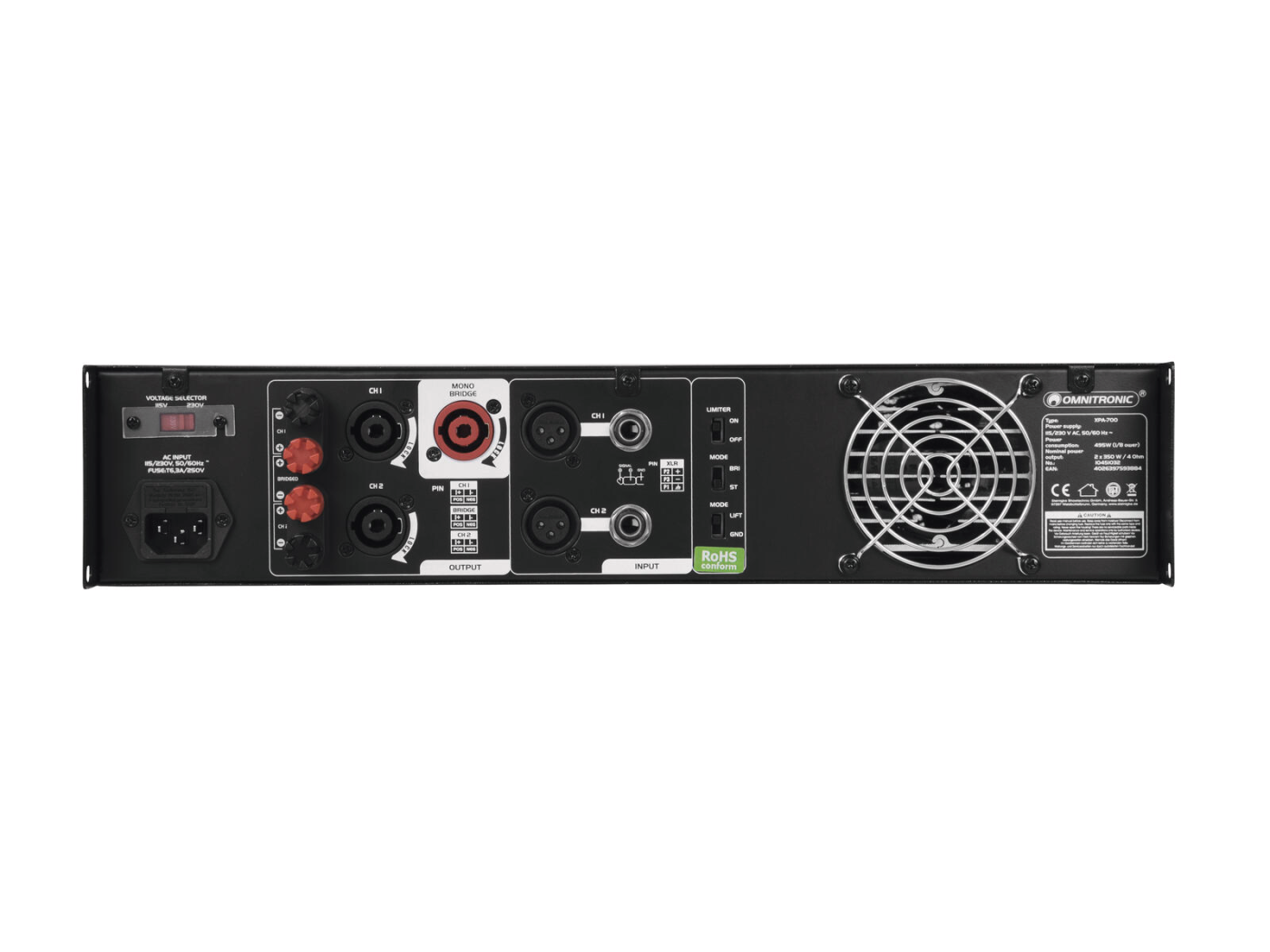

Inputs & Outputs
-
Inputs:
-
2 x XLR (Balanced)
-
2 x 6.35 mm Jack (Unbalanced)
-
-
Outputs:
-
2 x Speaker outputs (Speaker-compatible sockets)
-
2 x Pair of screw terminal binding posts
-
2 x XLR Feed-through outputs (Link Out)
-
Physical Specifications
-
Rack Installation: 19" Rack format (2 U height)
-
Housing Design: Heavy-duty steel chassis
-
Dimensions (W x D x H): 483 x 354 x 89 mm
-
Weight: 13.8 kg
Accessories Included
-
AC Power Cable, User Manual
