PSSO DDA-2700 MK2 2-channel Amplifier

€649.00 incl. VAT

In stock

Interested in this product?

Call us

Class TD stereo PA amplifier with SMPS, 2 x 1350 W RMS (4 ohms), 2 x 1000 W RMS (8 ohms)

Low weight and height due to integrated switch mode power supply

Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)

Limiter and speaker switch-on delay

3 operating modes can be selected (stereo, parallel or bridged)

2 calibrated level controls for precise level adjustment

Input sensitivity adjustable

LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel

Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs

Speaker outputs via lockable speaker jacks and pairs of screw terminals

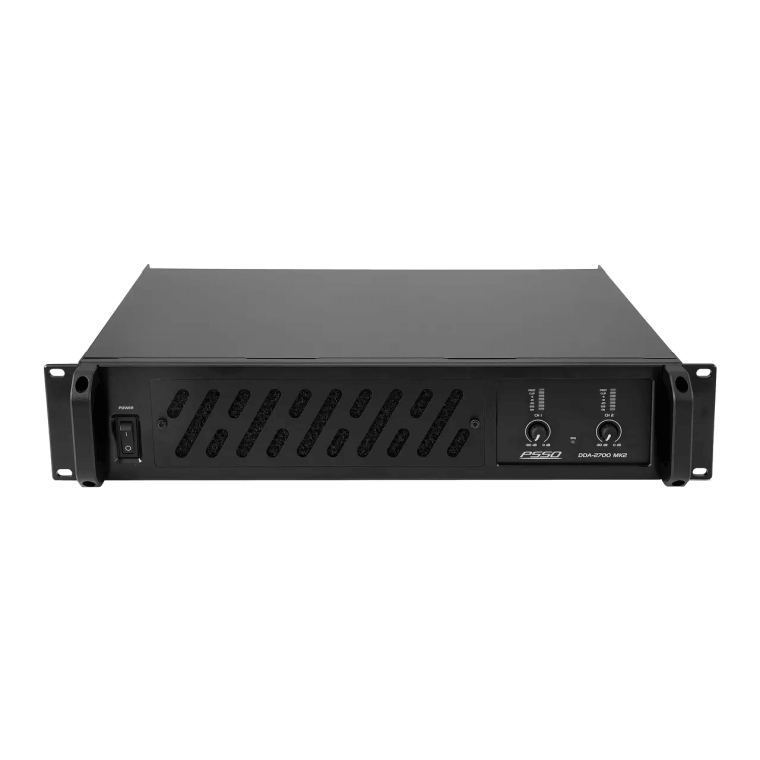

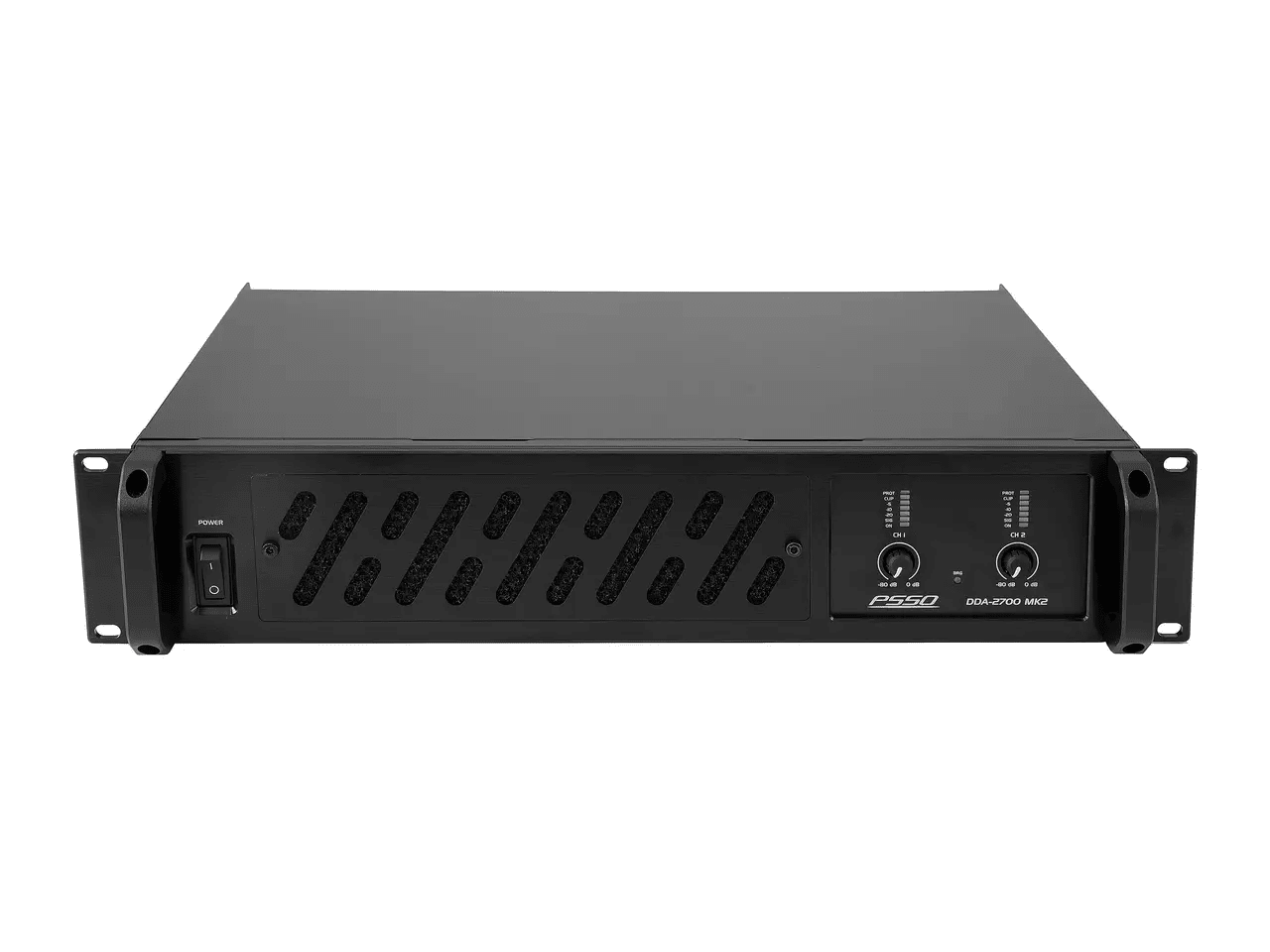

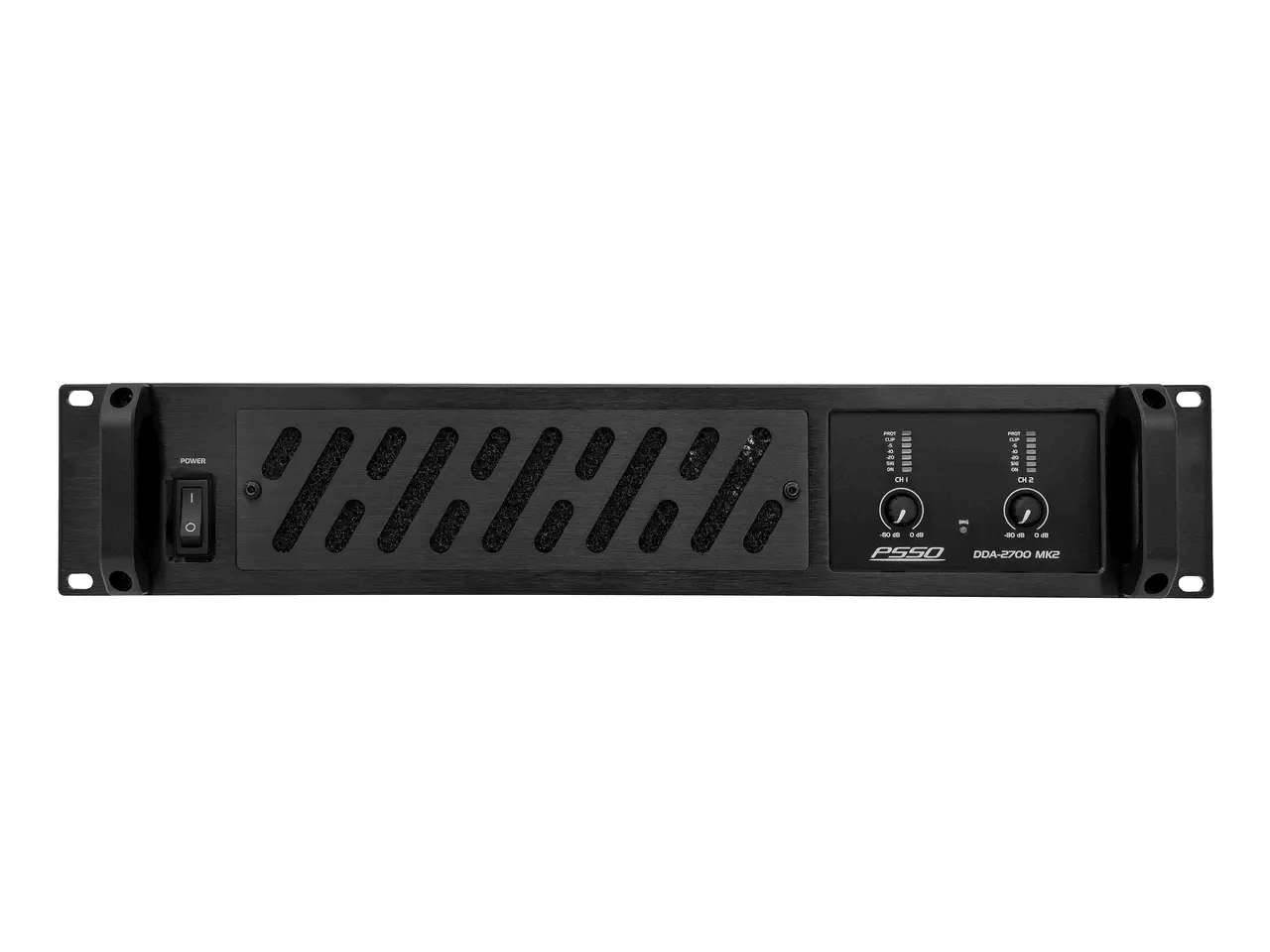

Rugged steel chassis with aluminum front panel

(19") 48.3 cm rack installation 2 U

Highly efficient air flow from front to rear

The device is cooled by temperature-controlled fan

Power Supply: 100-240 V AC, 50/60 Hz
Power Consumption: 740 W (1/8 power)
Power Connection: Mains input via P-Con (blue), power supply cord with safety plug included

Output Power (RMS):
- Stereo Mode: 2 x 1350 W RMS (4 Ω), 2 x 1000 W RMS (8 Ω)
- Bridged Mode: 1 x 2600 W RMS (8 Ω)
Amplifier Class: Class TD with Switch Mode Power Supply (SMPS)
Frequency Range: 20 - 20,000 Hz
S/N Ratio: >100 dB
THD: <0.05% @ 1 kHz
Damping Factor: >400
Slew Rate: >15 V/µs
Gain: 32 dB / 36 dB / 41 dB (switchable)
Crosstalk: >70 dB

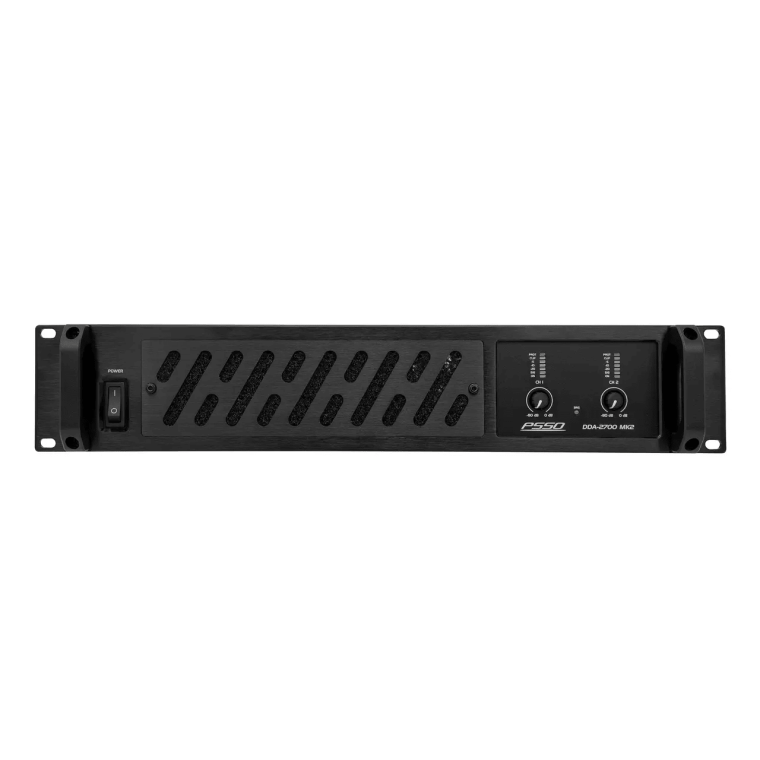

Front Panel Controls: Power switch, 2 calibrated volume level controls

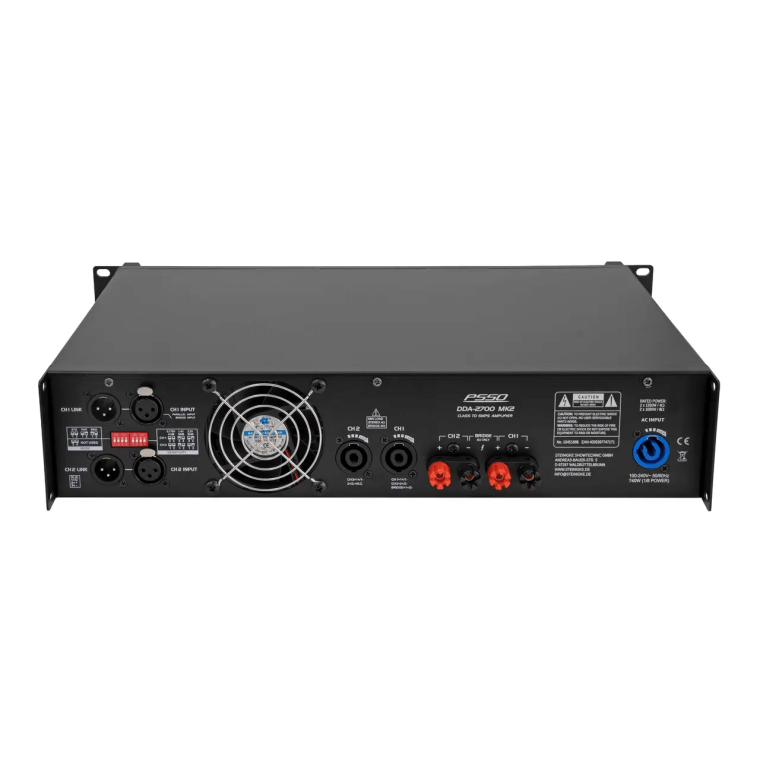

Rear Panel Controls: Input sensitivity switch (0.775 V / 1.4 V / 2.2 V), Mode switch (Stereo/Parallel/Bridged)
Indicators: Status LEDs for Power, Signal, Level meter, Clip, Protect, and Bridged mode
Protection Circuits: DC voltage, short-circuit, limiter, softstart, overheat, VHF, overload, power switch-on delay
Cooling System: 2 x temperature-controlled fans, front-to-rear airflow

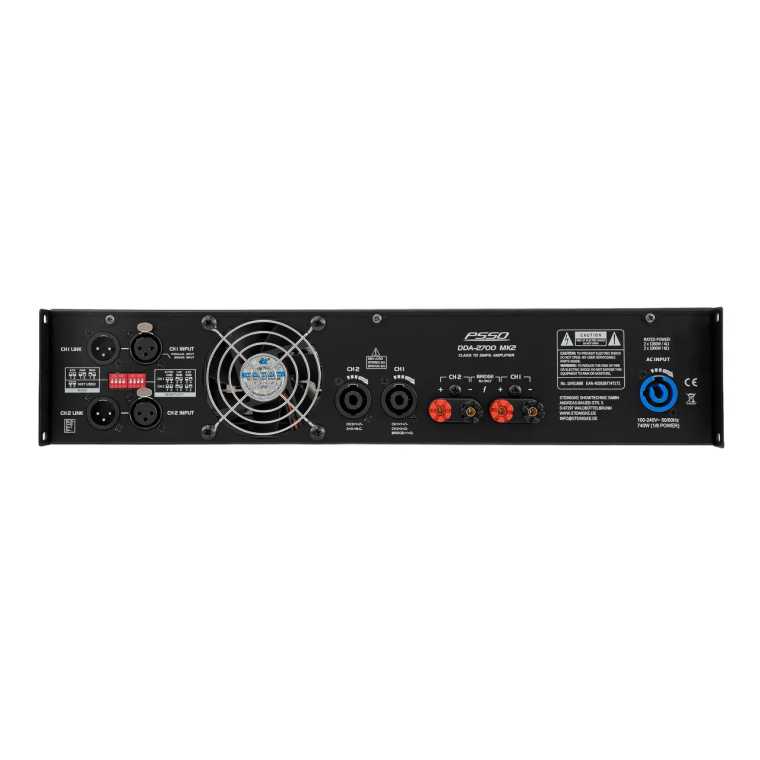

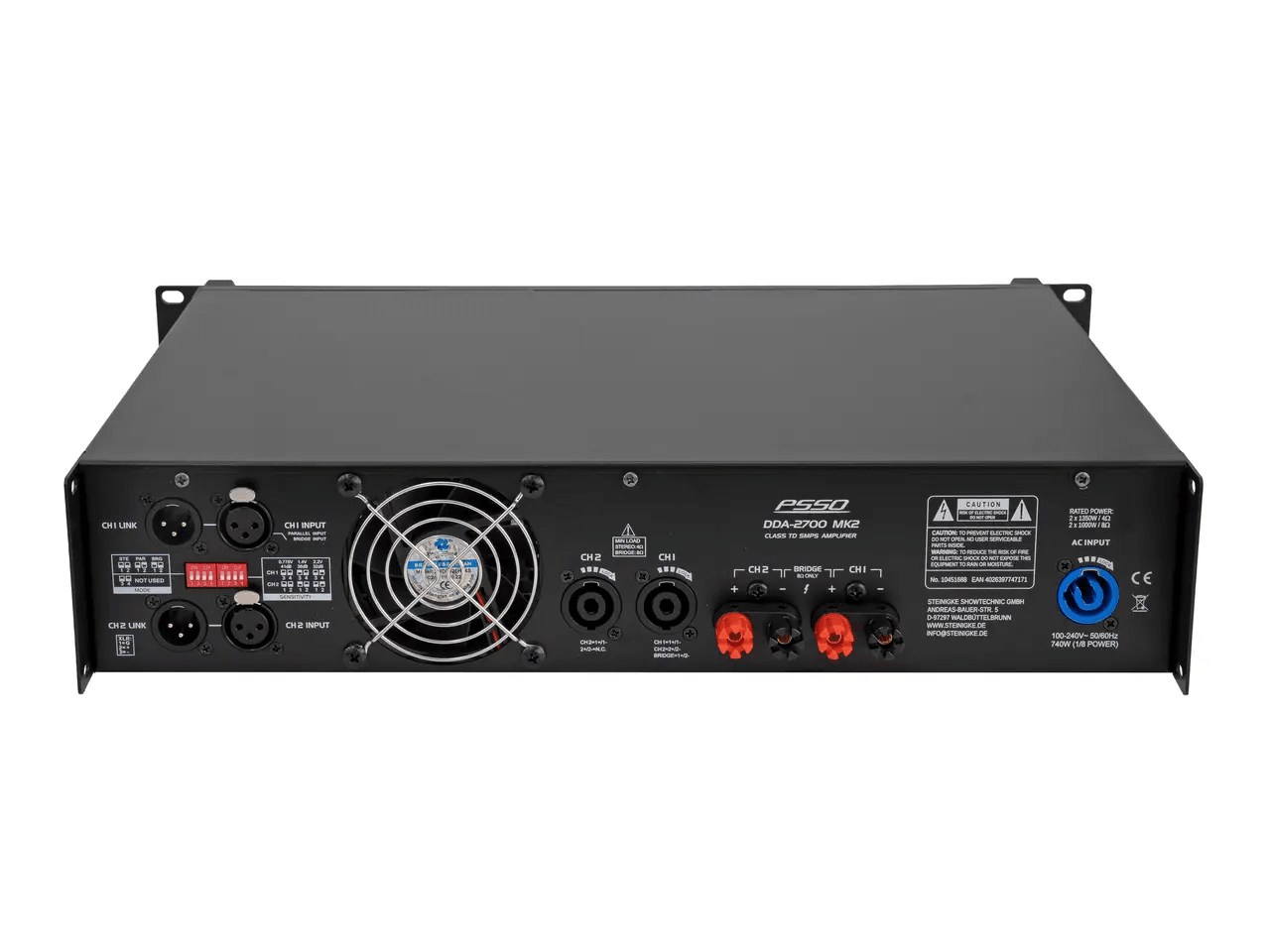

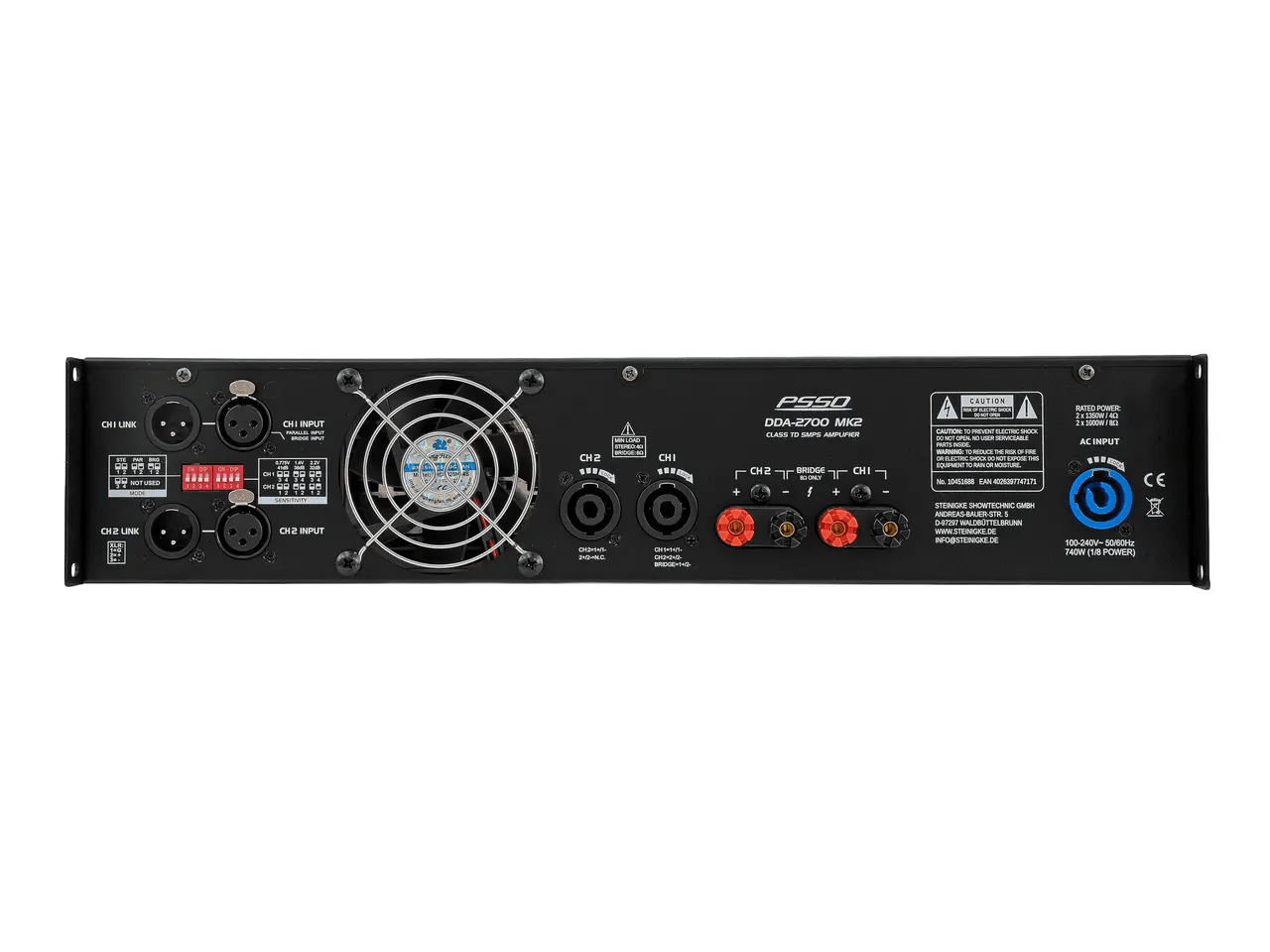

Inputs:
- Line Input: 2 x 3-pin XLR (balanced)
Outputs:
- Feed-through Output: 2 x 3-pin XLR (line loop-through)
- Speaker Outputs: 2 x Lockable speaker sockets (Speakon format), 2 x pairs of heavy-duty screw terminals

Housing Design: Rugged steel chassis with aluminum front panel (black matte finish)
Rack Installation: 19" Rack format (2 U height, mounting depth: 33.8 cm)
Dimensions (W x D x H): 483 x 340 x 89 mm
Weight: 6.80 kg
