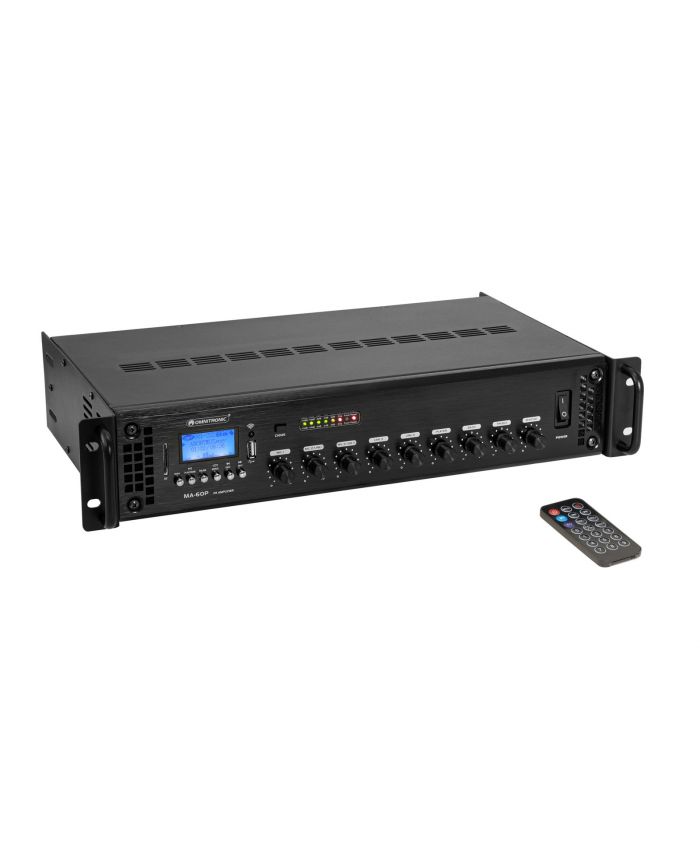

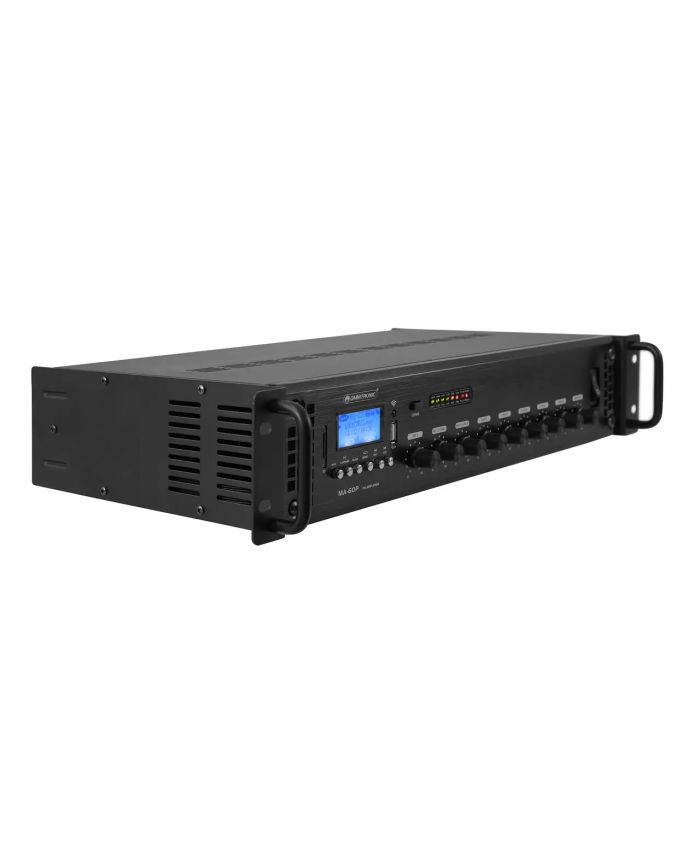

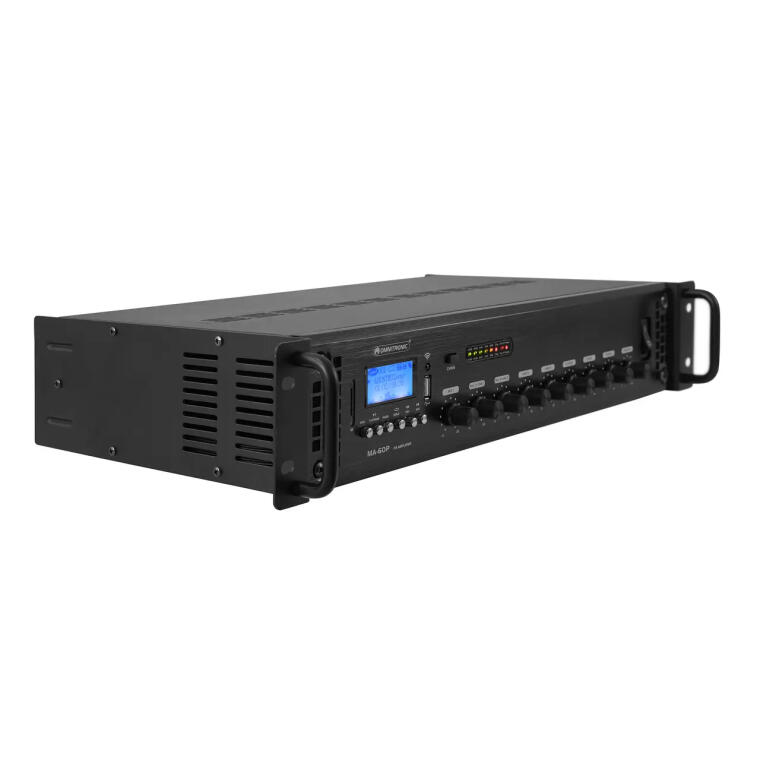

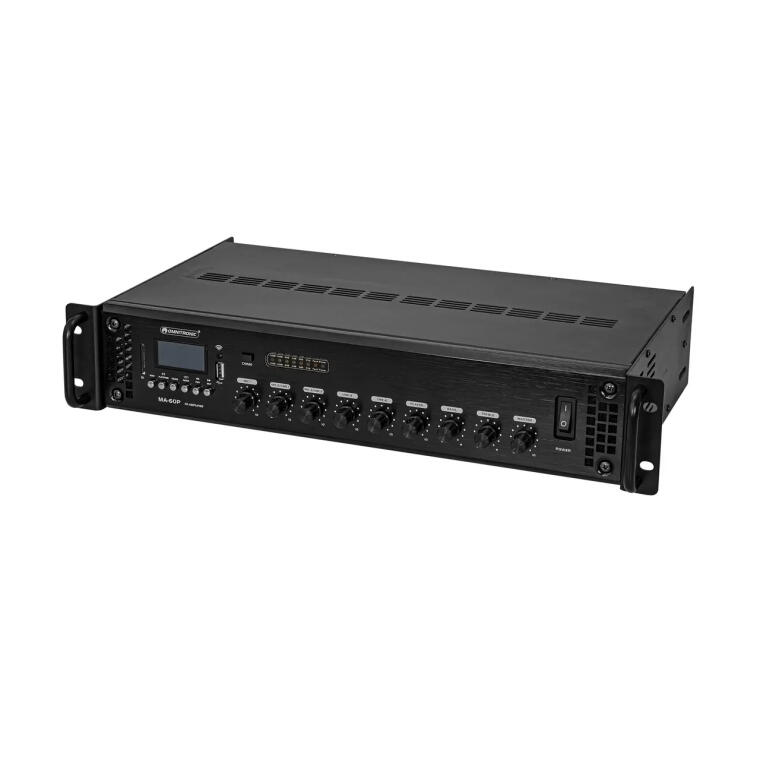

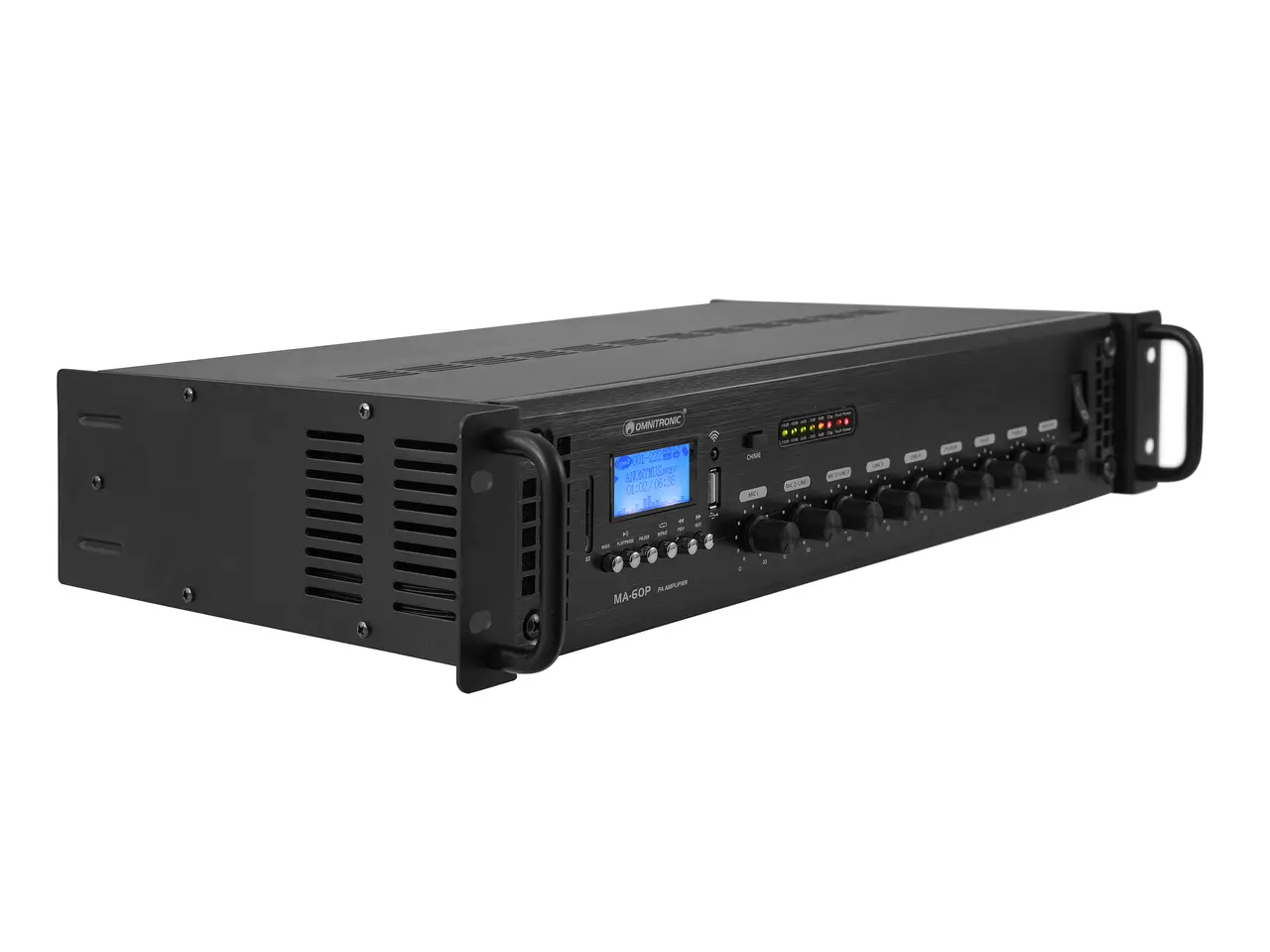

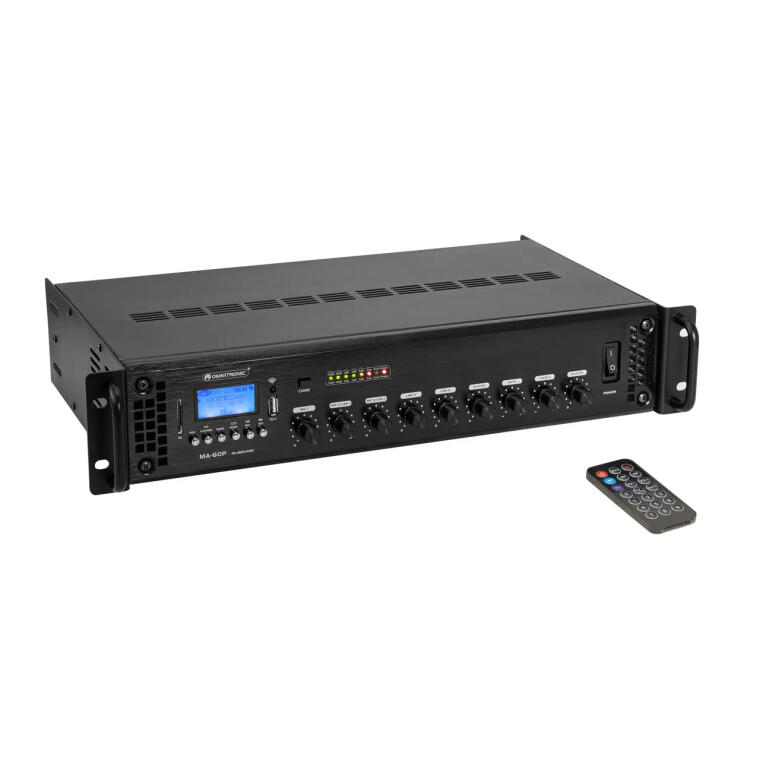

Omnitronic MA-60P (100v line)

Omnitronic MA-60P – Technical Specifications

Power Supply & Consumption

• Power Supply: 100 V Line / 230 V AC, 50 Hz or 24 V DC

• Power Consumption: ~100 W

Audio Performance

• Output Power (RMS): 60 W RMS

• Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance

• Frequency Range: 80 - 16,000 Hz, ±3 dB

• S/N Ratio: >75 dB (Line), >65 dB (Mic)

• THD: <1% @ 1 kHz

Connectivity & Media Playback

• Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player, FM tuner

• Chime Function: Integrated chime generator with dedicated trigger button

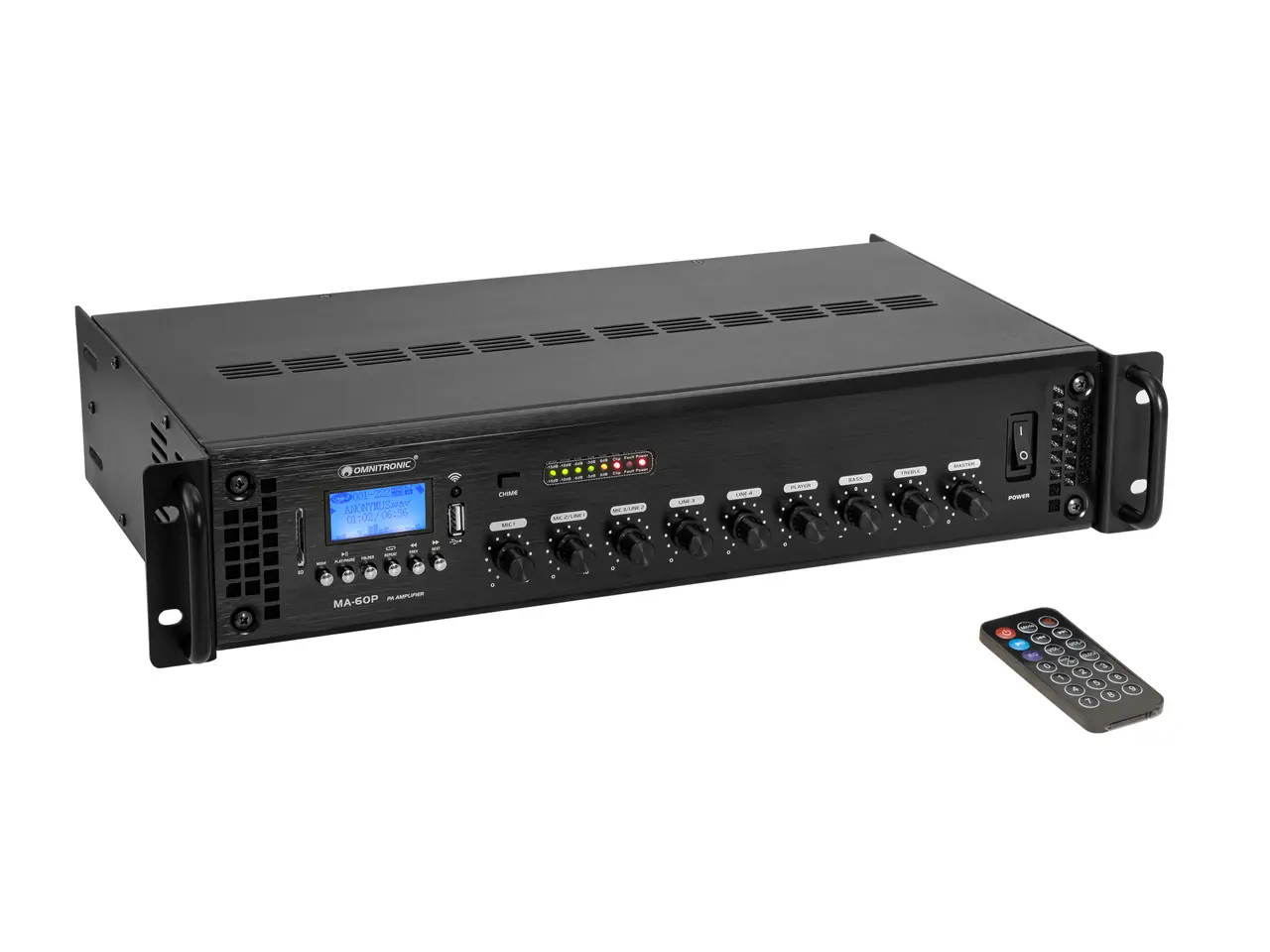

• Remote Control: IR remote control included for media player

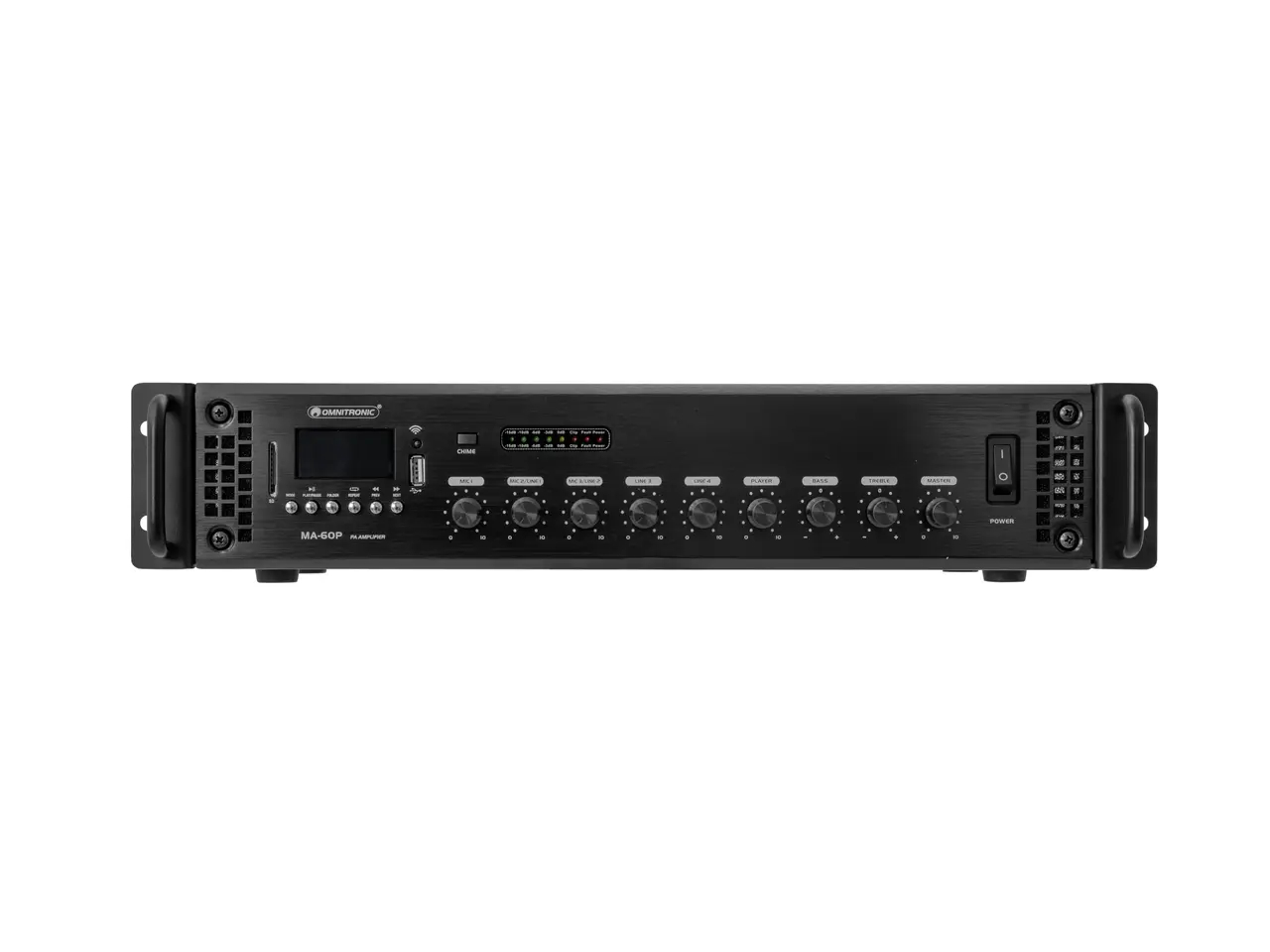

Controls & Indicators

• Display: Blue backlit LCD display for media player status

• Control Elements: Master volume knob, individual MIC 1, MIC 2, and AUX volume controls, 2-band EQ (Bass & Treble)

• Indicators: 5-digit LED output level meter, Power LED

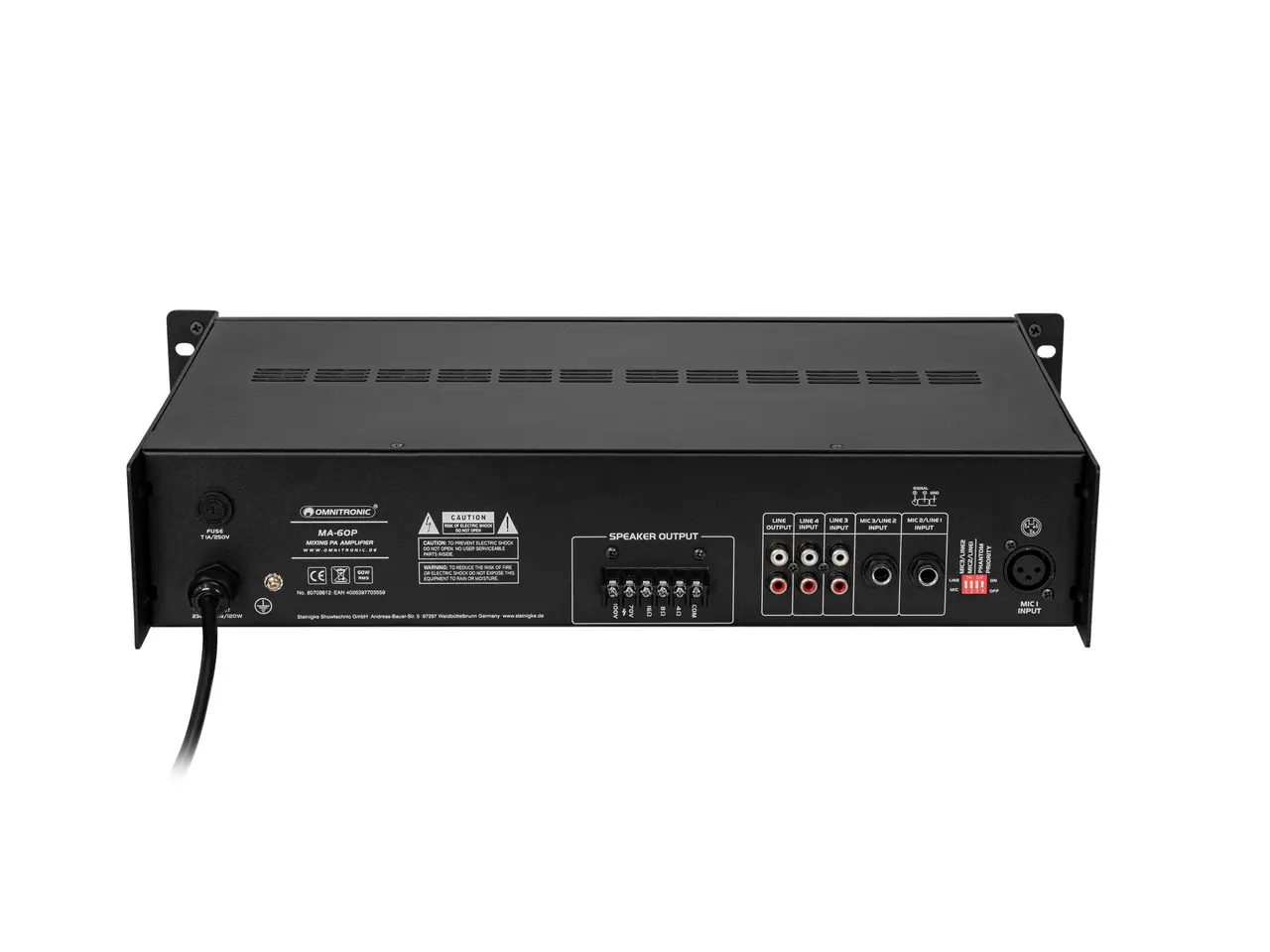

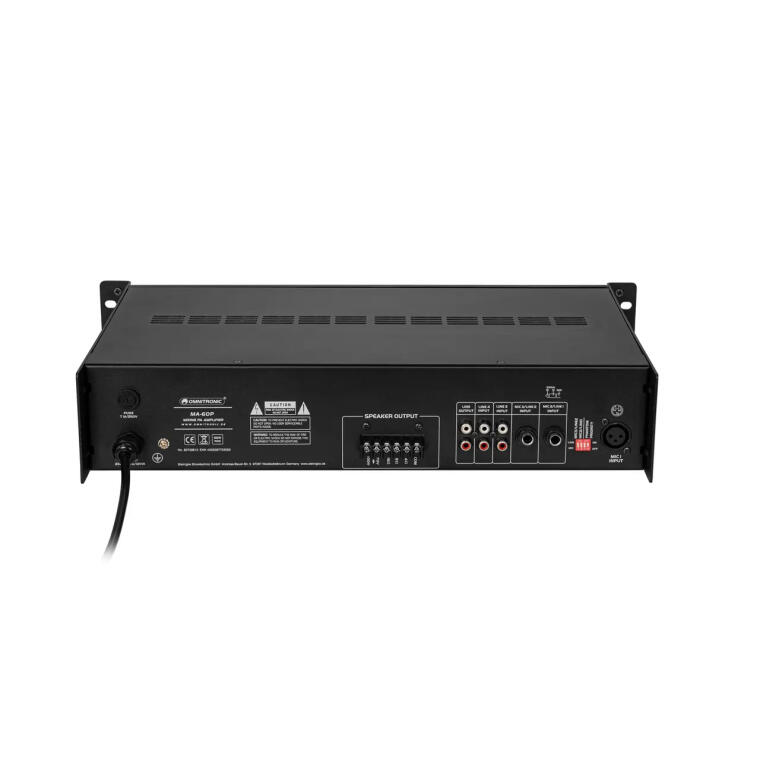

Inputs & Outputs

• Inputs:

  • Microphone: 2 x 6.35 mm jack (MIC 1 with priority override)

  • Aux/Line: 1 x Stereo RCA

• Outputs:

  • Line Output: 1 x Stereo RCA (Pre-Out)

  • Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)

Physical Specifications

• Housing Design: Compact tabletop / shelf steel enclosure (rack ears available separately)

• Dimensions (W x D x H): 320 x 210 x 90 mm

• Weight: 4.2 kg

Accessories Included

• AC Power Cable, IR Remote Control, FM Antenna, User Manual
