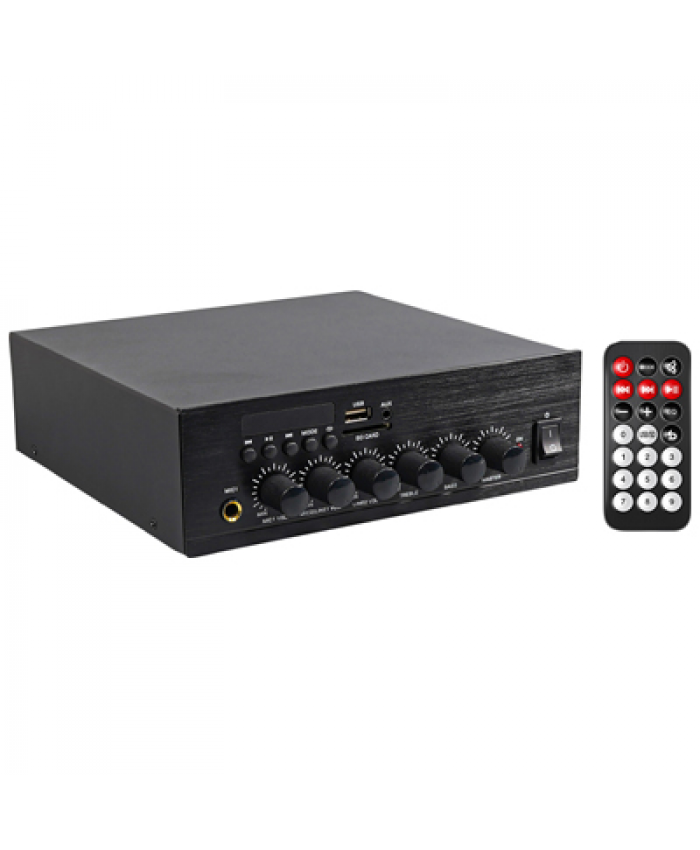

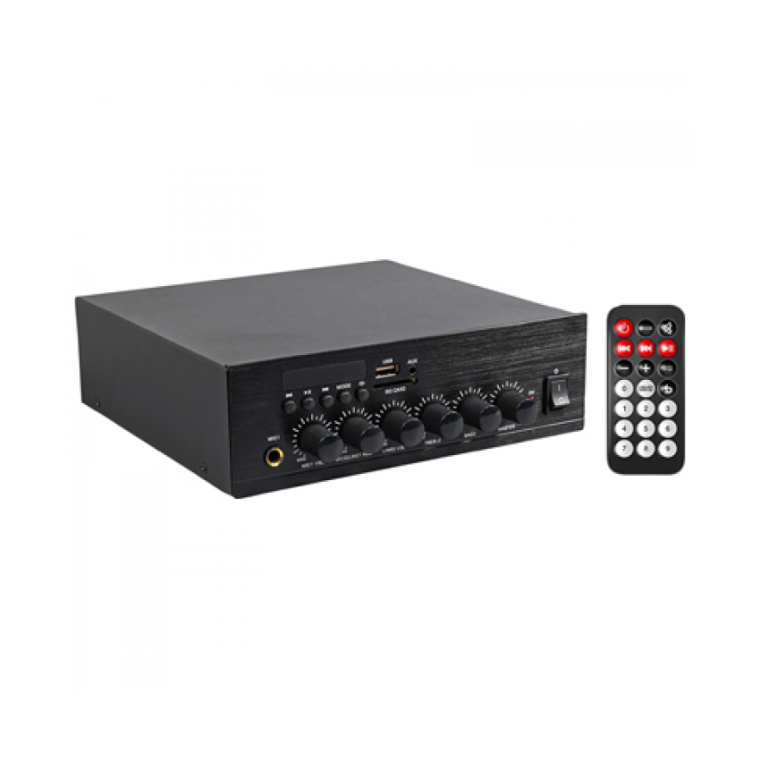

Eagle Desktop Stereo Mixer Amplifier P649 BC

Eagle Desktop Stereo Mixer Amplifier P649 BC – Technical Specifications

Power Supply & Consumption

• Power Supply: Dual power supply options – 230 V AC, 50 Hz or 12 V DC

• Power Connection: Mains supply lead / 12 V DC connection terminals

Audio Performance

• Output Power (RMS): 2 x 30 W RMS

• Speaker Impedance: 4 – 8 Ω low-impedance

• Frequency Range: 20 – 20,000 Hz

• Microphone Priority: Automatic priority muting on Mic 1

• Phantom Power: +48V switchable for condenser microphones

Connectivity & Media Playback

• Integrated Media Player: Built-in Bluetooth receiver, USB port, SD card slot

• Bluetooth Version: Version 2.0

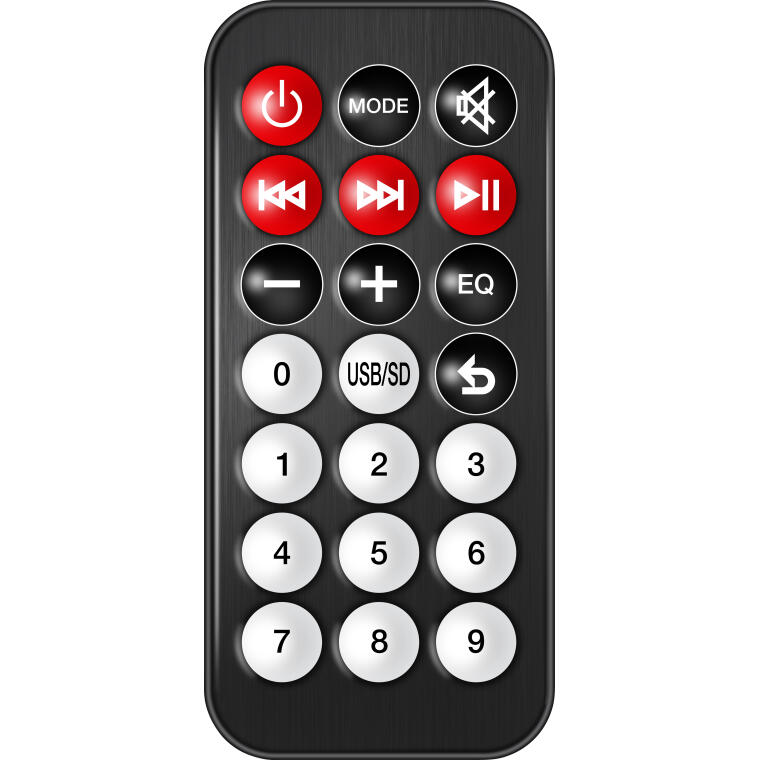

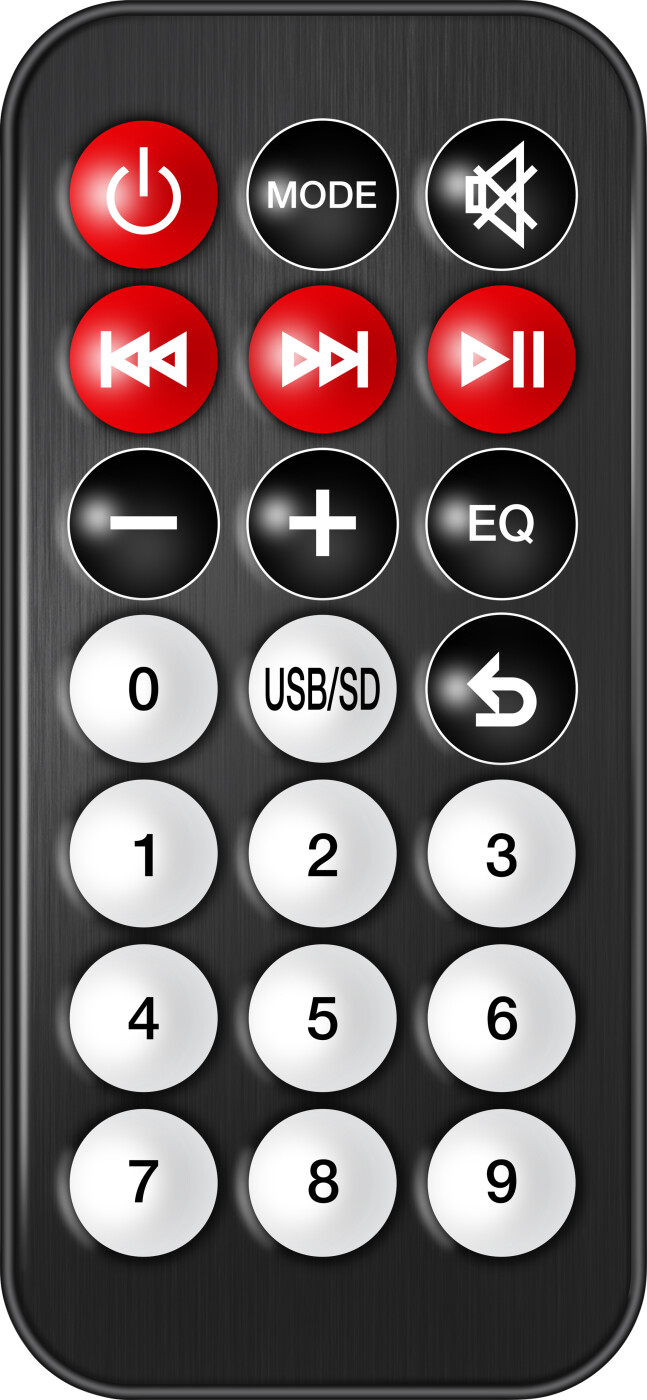

• Remote Control: IR remote control included for media player operation

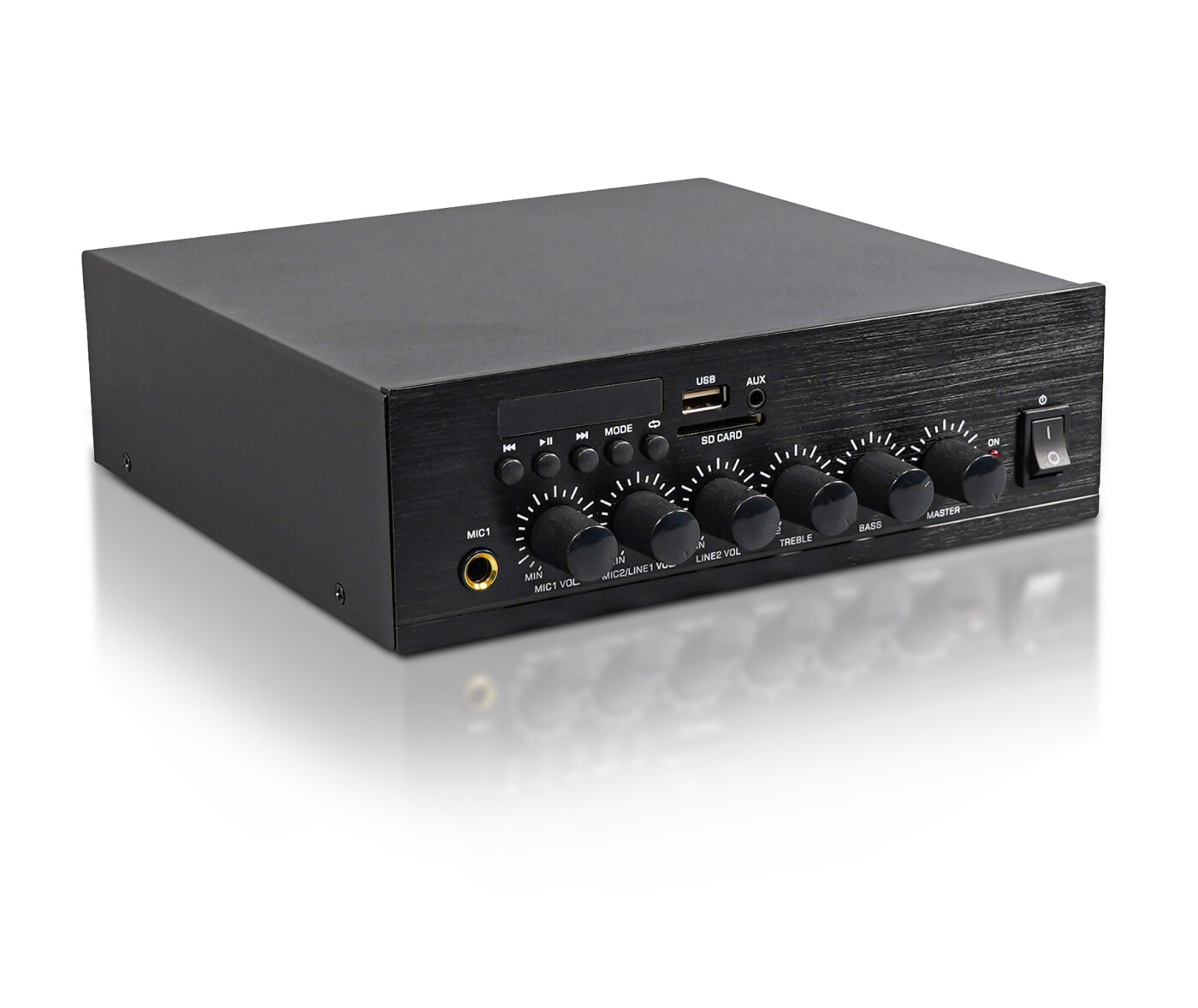

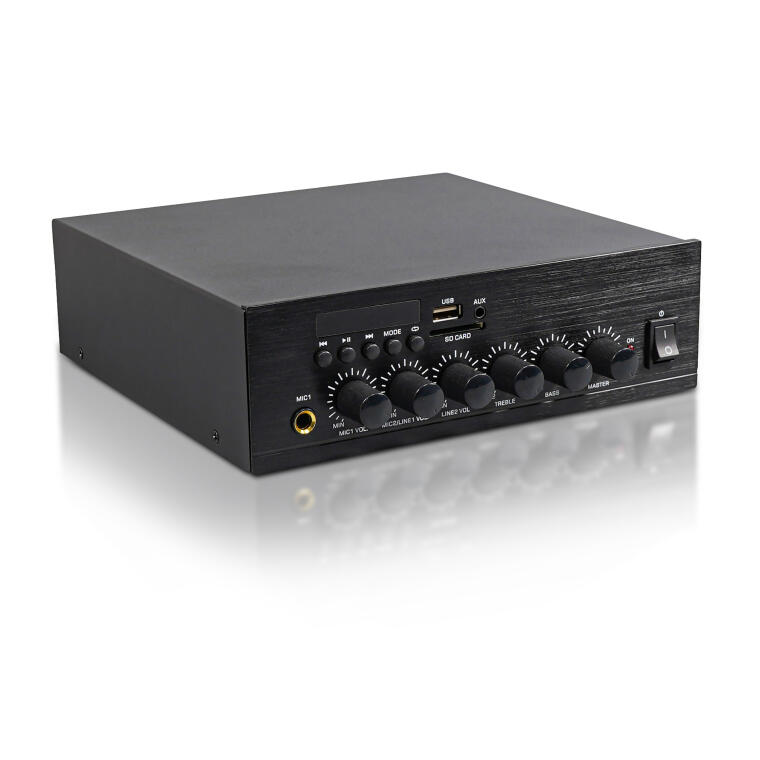

Controls & Indicators

• Control Elements: Independent input volume controls (Mic 1, Line/Mic 2, Aux), 2-band master EQ (Bass & Treble controls)

• Switches: Phantom power switch, power ON/OFF button

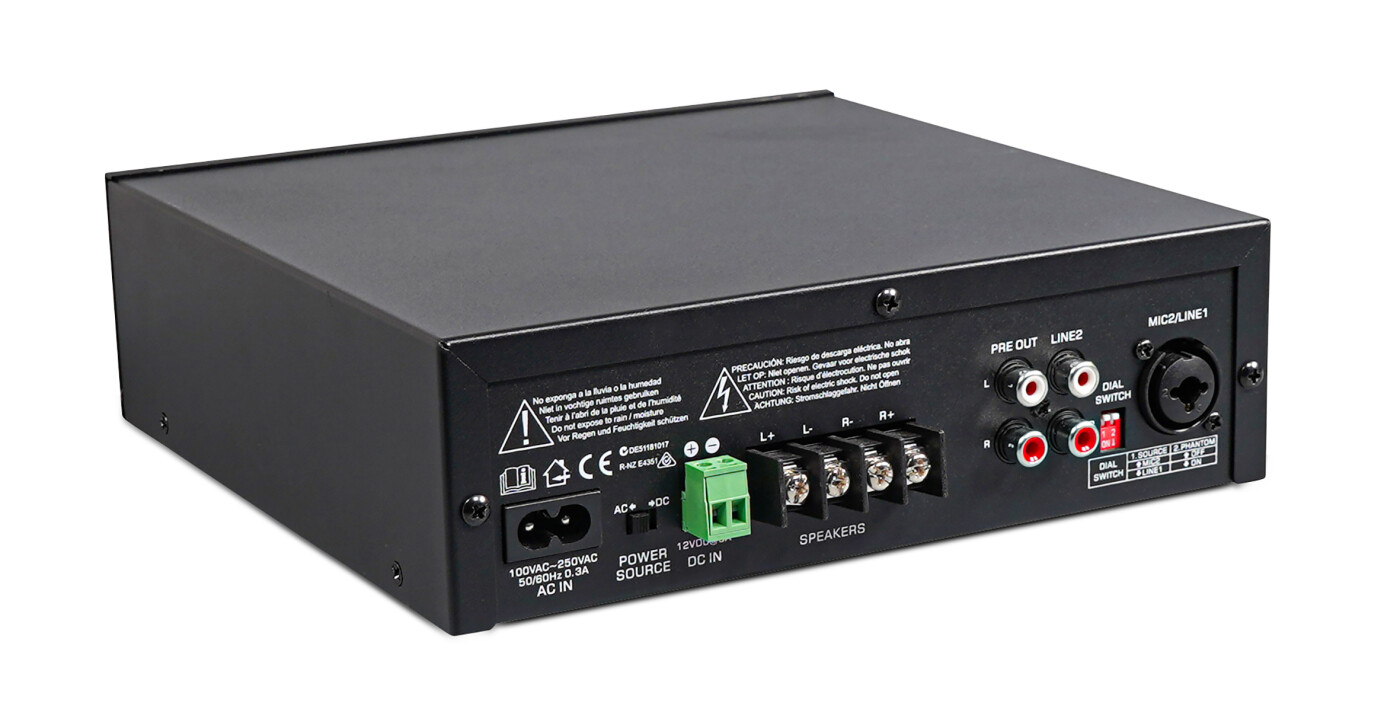

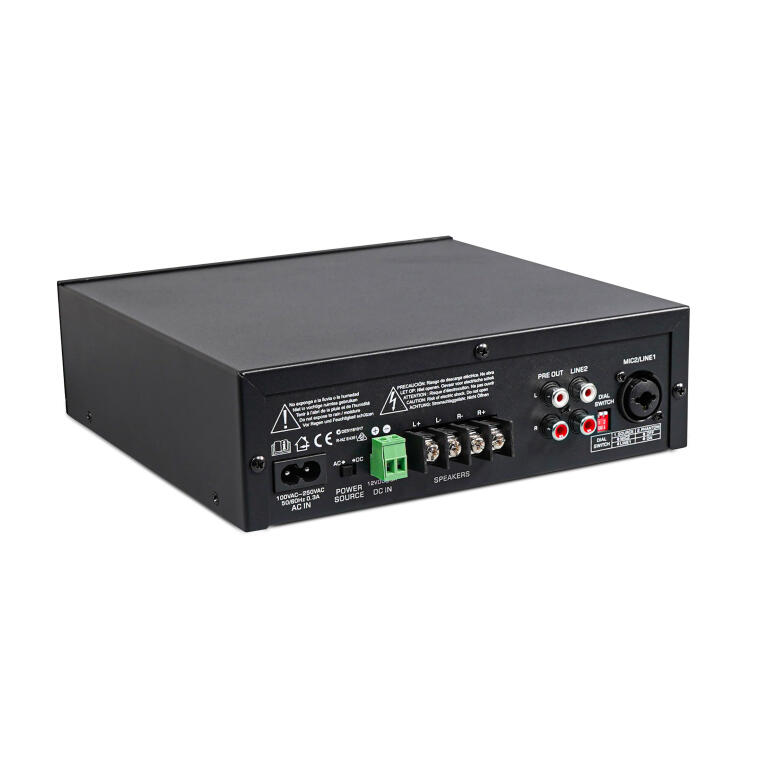

Inputs & Outputs

• Inputs:

  • Microphone: 1 x 6.35 mm (1/4") Jack (Front Panel), 1 x Balanced/Unbalanced Line/Mic input with Phantom Power (Rear Panel)

  • Aux/Line: 1 x Stereo RCA (Rear Panel), 1 x 3.5 mm AUX input (Front Panel)

• Outputs:

  • Speaker Terminals: Screw terminal block outputs for Left and Right channels

Physical Specifications

• Housing Design: Compact desktop enclosure (metal chassis, black finish)

• Dimensions (W x D x H): 210 x 200 x 70 mm

• Weight: 1.30 kg

Accessories Included

• AC Power Cord, IR Remote Control, User Manual
