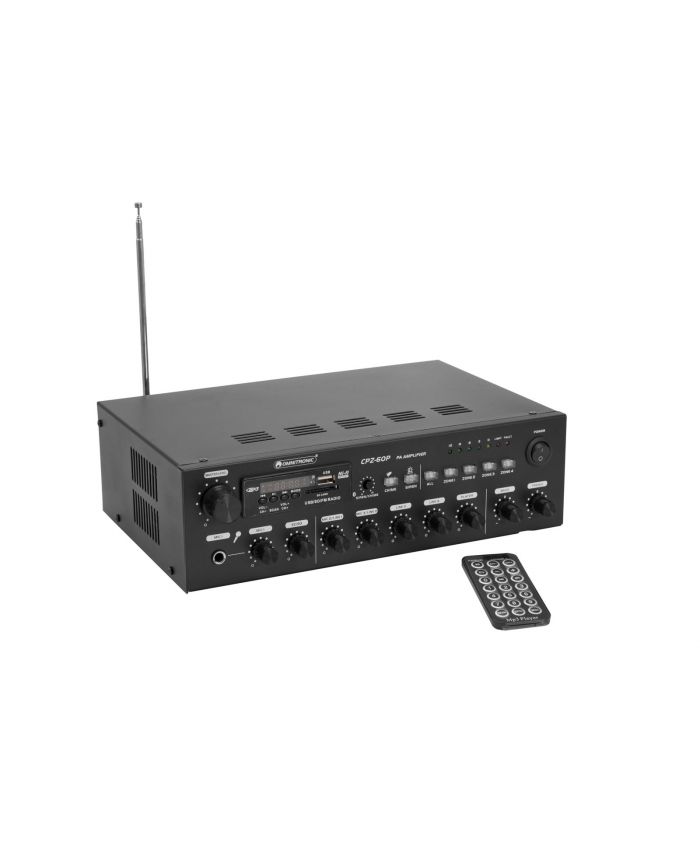

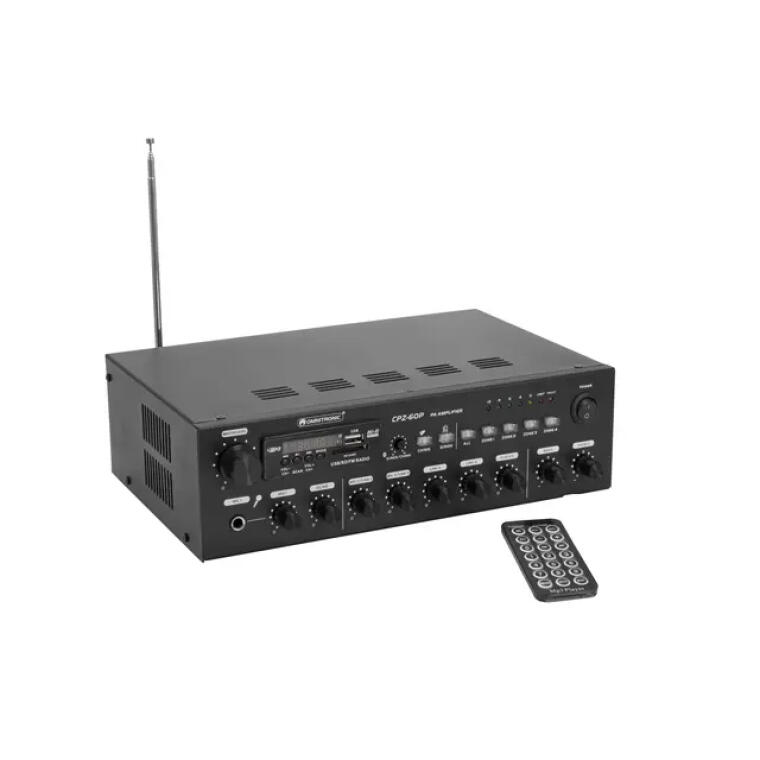

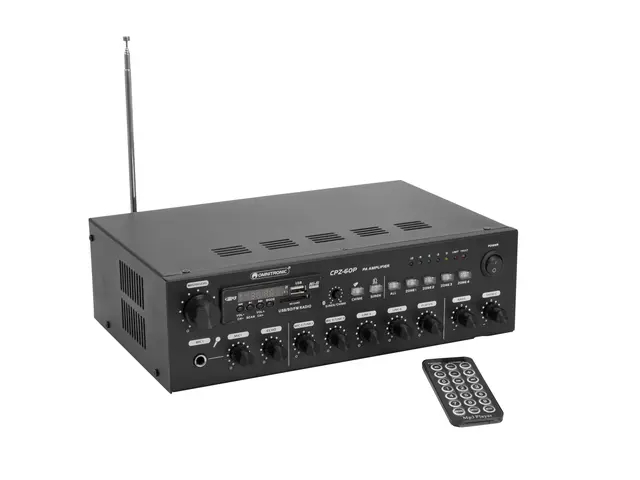

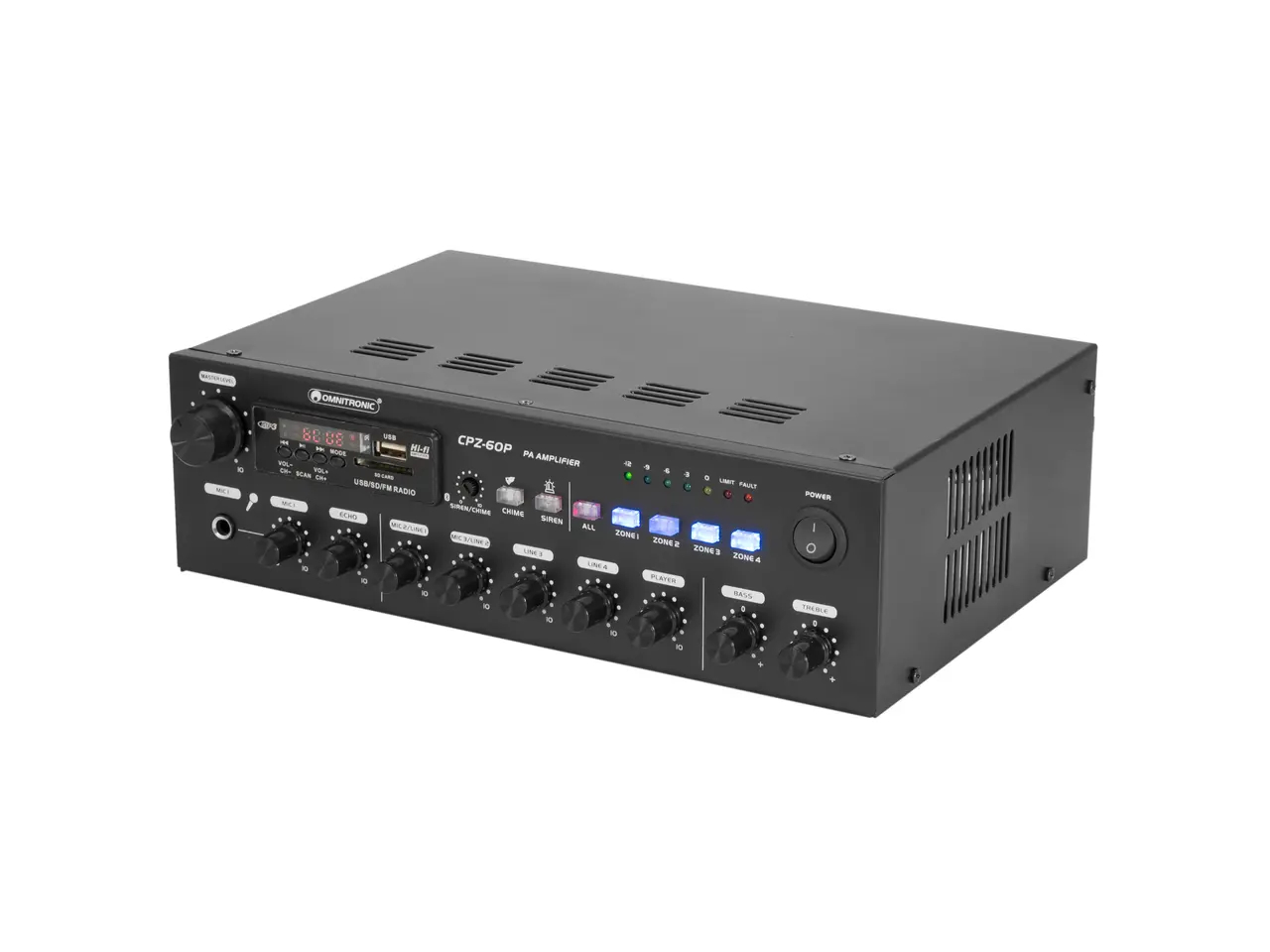

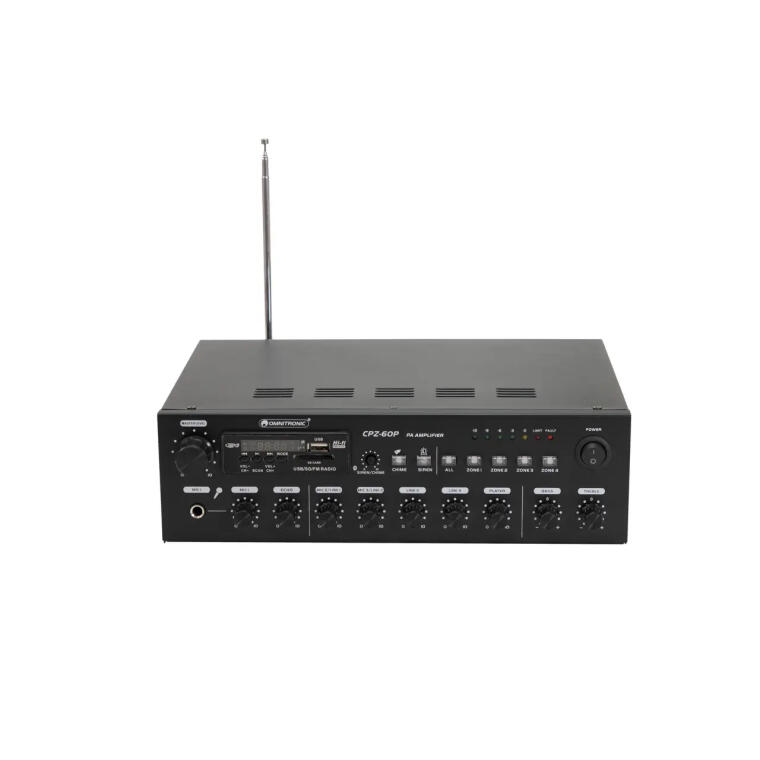

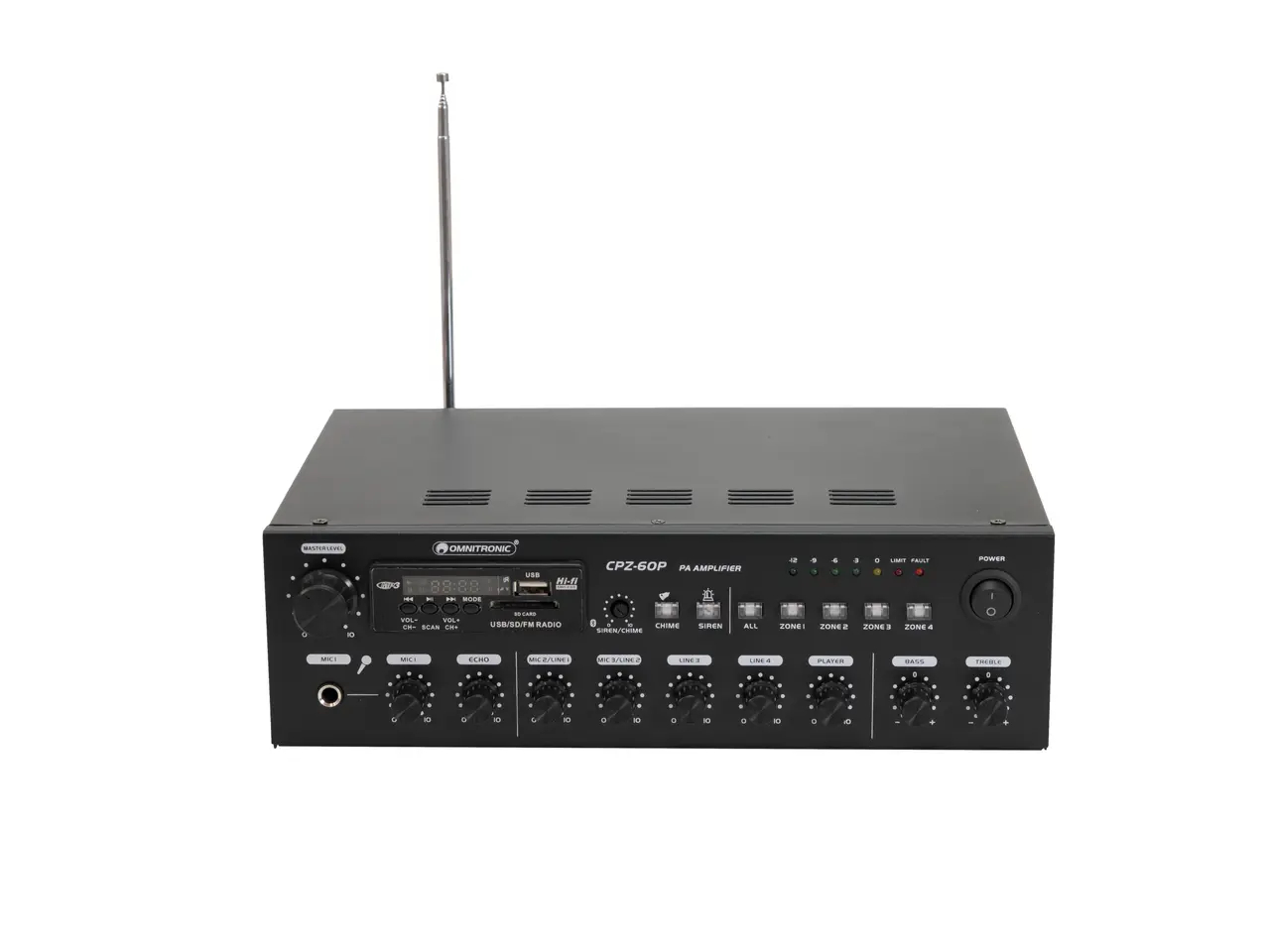

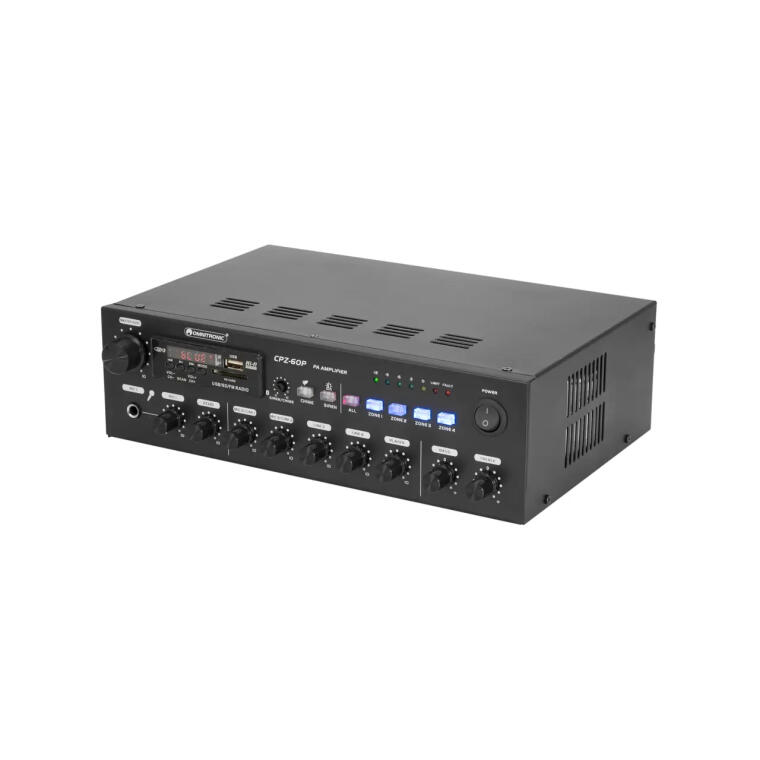

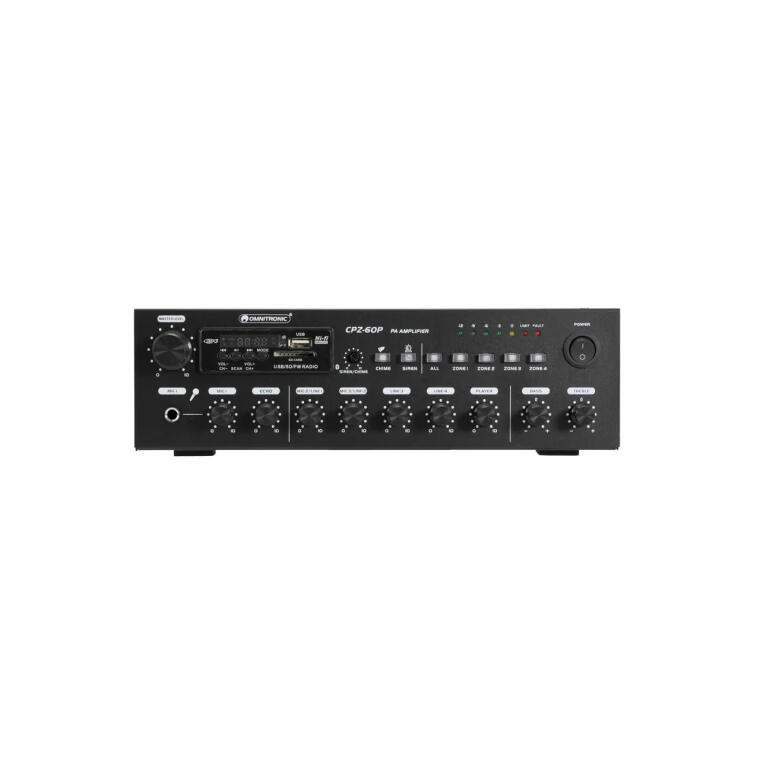

Omnitronic CPZ-60P (100v line)
€239.00
incl. VAT
Out of stock
Interested in this product?
Overview
4-zone PA mono mixing amplifier, MP3 player, Bluetooth, zones switchable,
- 4 PA zone outputs, independently switchable on the front panel
- Output for low-impedance speakers (4-16 ohms)
- SD card slot and USB port
- FM tuner with auto scan
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power, priority circuit and echo effect
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Siren and chime, adjustable
- Treble and bass and master controls for the output signal
- 5-digit LED level meter
- Mains operation and 24 V emergency power operation
- Control via Bluetooth; IR remote control
- 2 U
- Desktop console housing
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Omnitronic CPZ-60P – Technical Specifications
Power Supply & Consumption
-
Power Supply: 100 V Line / 230 V AC, 50 Hz
-
Power Consumption: ~90 W
Audio Performance
-
Output Power (RMS): 60 W RMS across 6 switchable zones
-
Speaker Outputs: 6 Zone Outputs (100V Line) + Main low-impedance Output (4-16 Ω)
-
Frequency Range: 80 - 16,000 Hz
-
S/N Ratio: >75 dB (Line), >65 dB (Mic)
-
THD: <1% @ 1 kHz
Connectivity & Media Playback
-
Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player, FM tuner
-
Zone Management: 6 individually switchable zone outputs on front panel
-
Remote Control: IR remote control included for media player

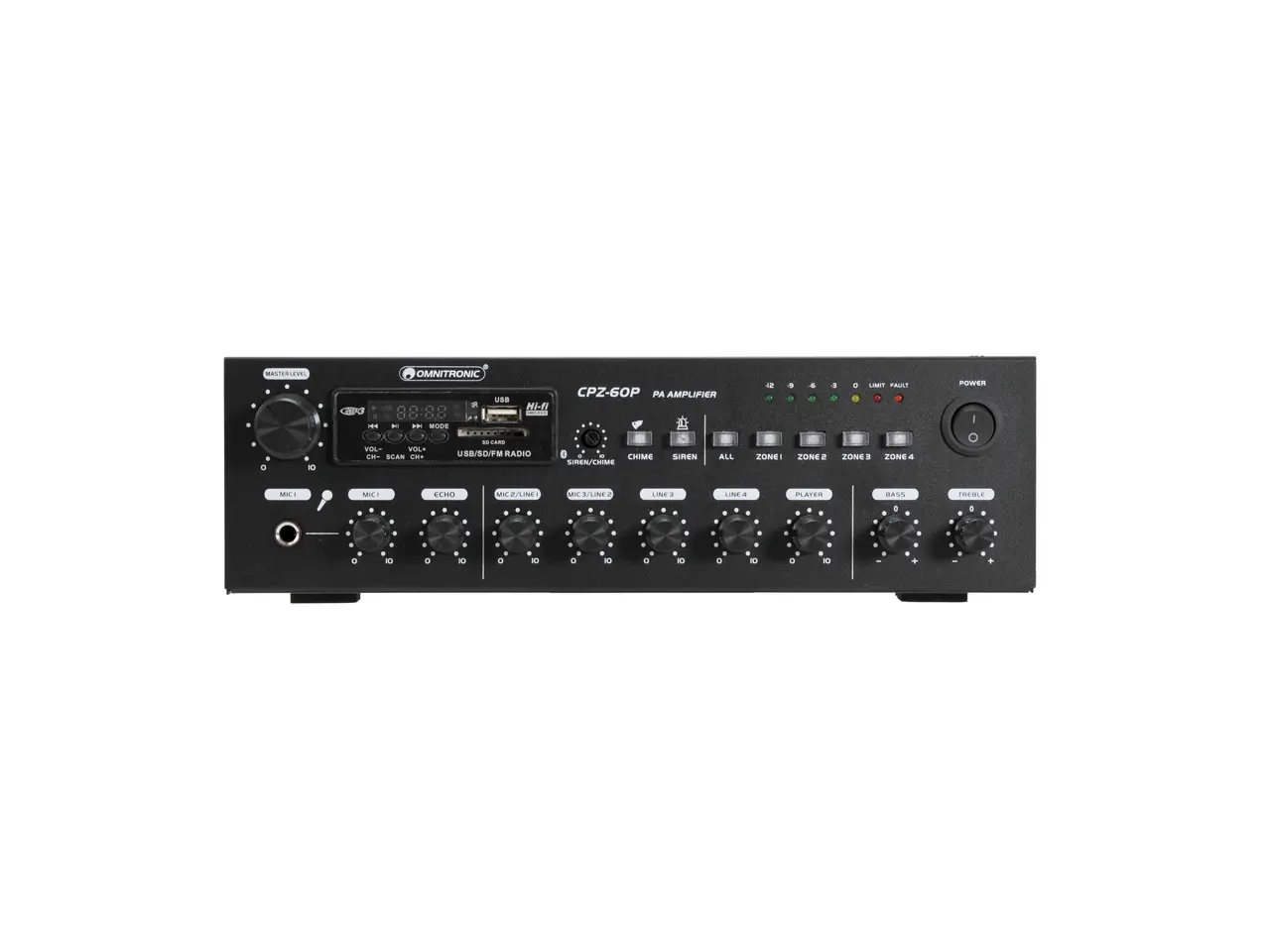

Controls & Indicators
-
Display: LED indicator lights for Power, Signal, Clip, and Zone status
-
Control Elements: Master volume knob, 6 Zone ON/OFF switches, independent MIC 1, MIC 2, and AUX volume controls, 2-band EQ (Bass & Treble)

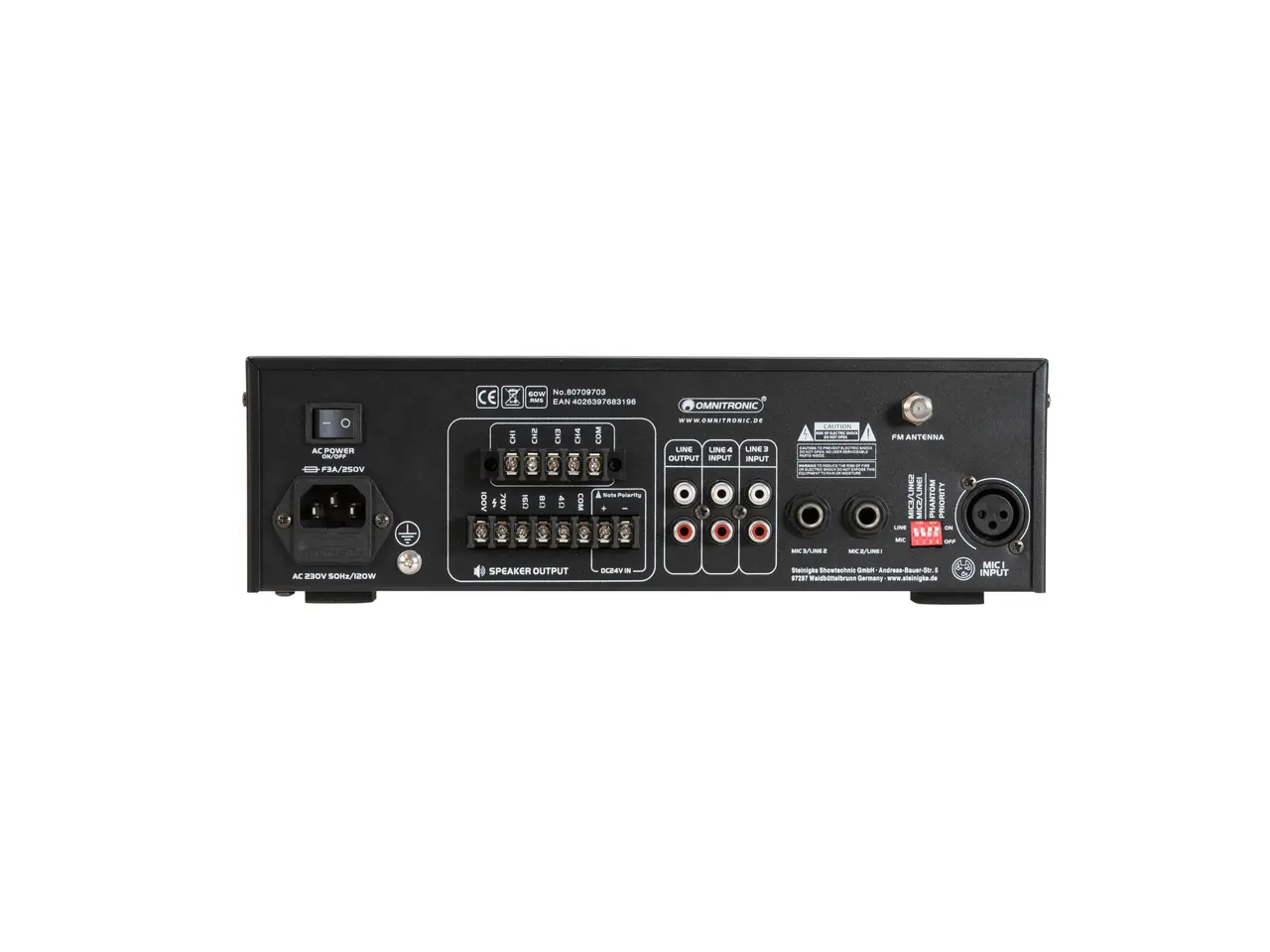

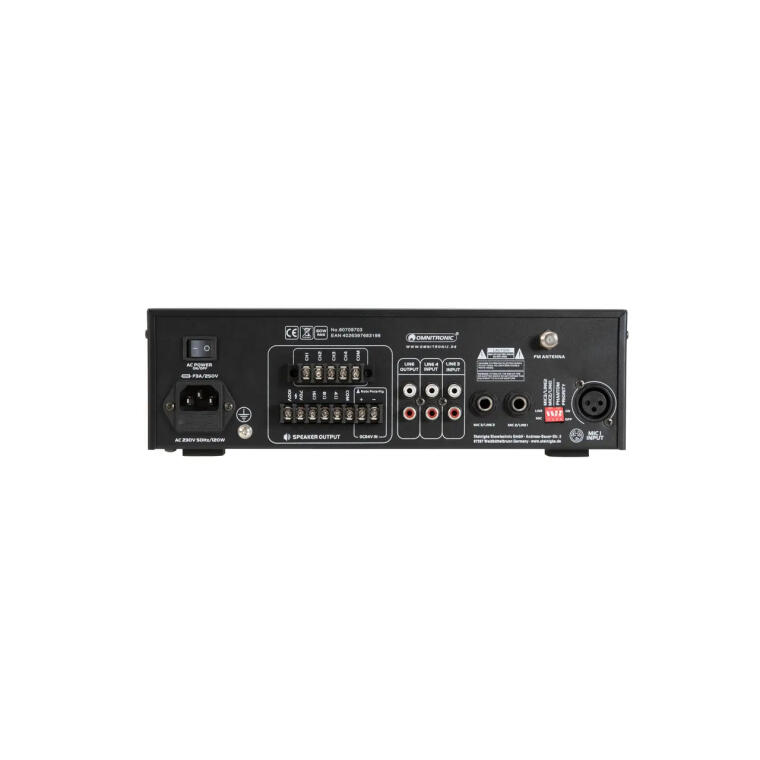

Inputs & Outputs
-
Inputs:
-
Microphone: 2 x 6.35 mm jack (MIC 1 with priority override)
-
Aux/Line: 1 x Stereo RCA
-
-
Outputs:
-
Line Output: 1 x Stereo RCA (Pre-Out)
-
Speaker Terminals: Screw terminal block (6 x 100V Zone Outputs, 4-16 Ω main output)
-
Physical Specifications
-
Housing Design: Compact tabletop / shelf steel enclosure
-
Dimensions (W x D x H): 280 x 220 x 66 mm
-
Weight: 3.8 kg
Accessories Included
-
AC Power Cable, IR Remote Control, User Manual
