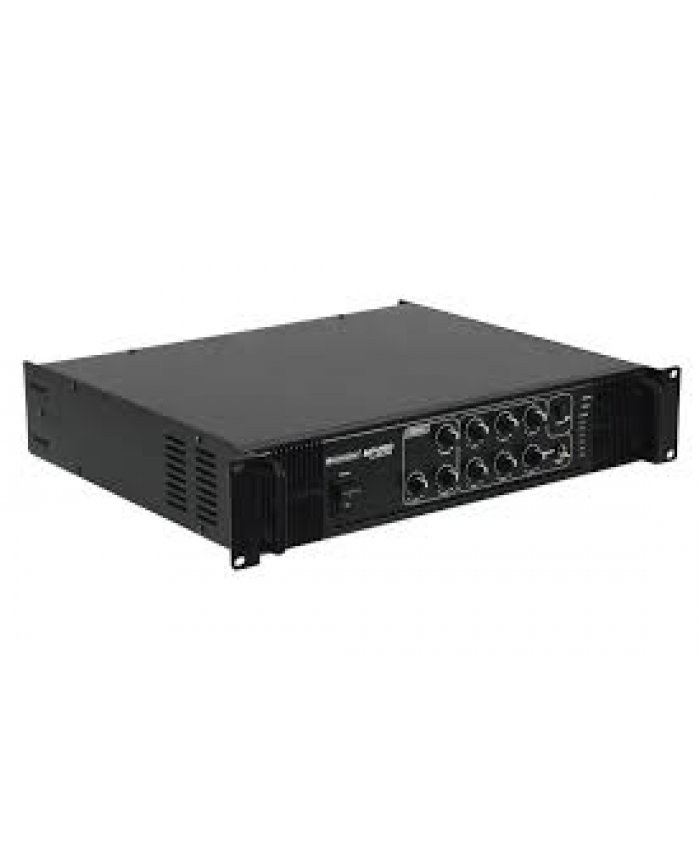

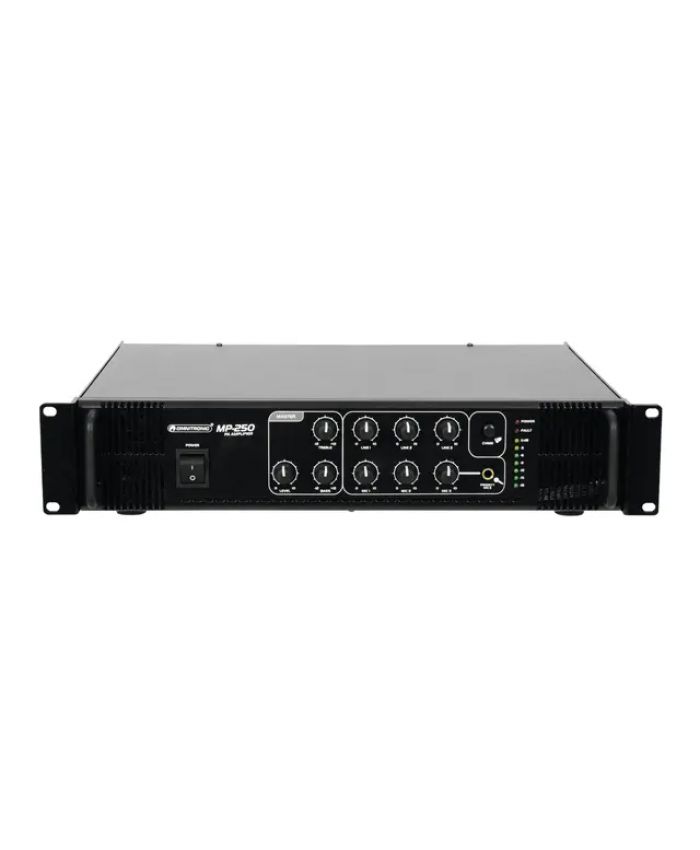

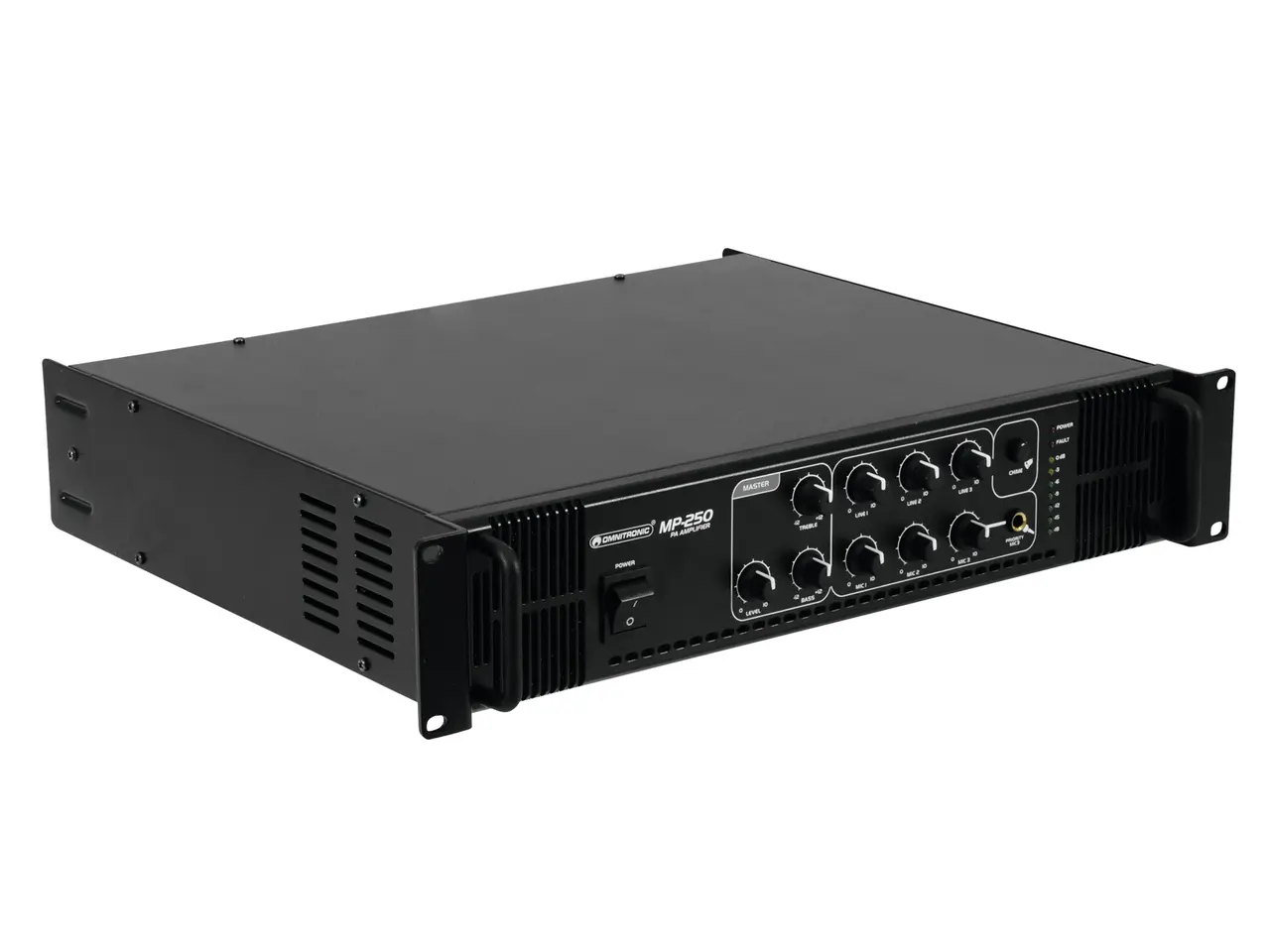

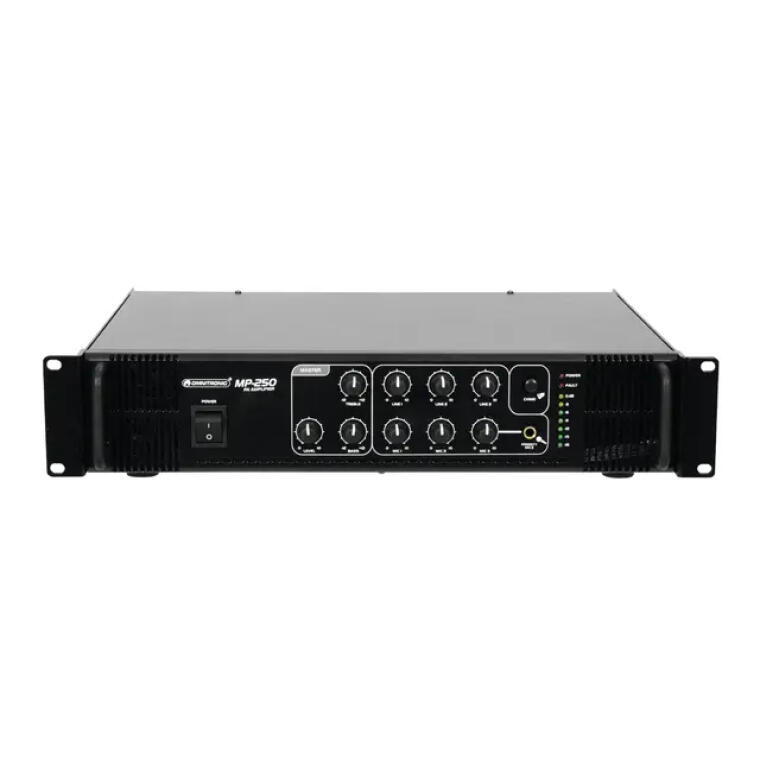

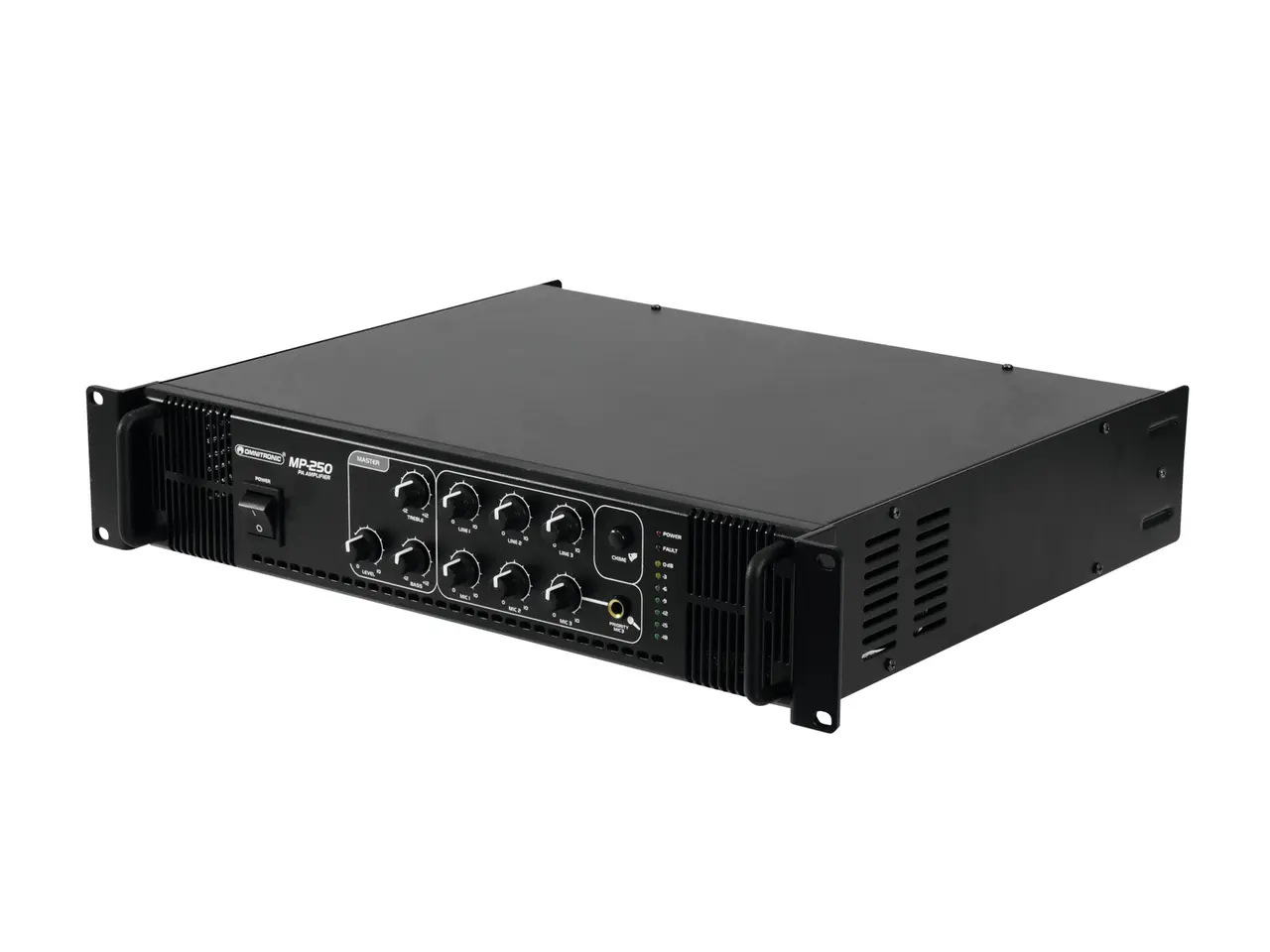

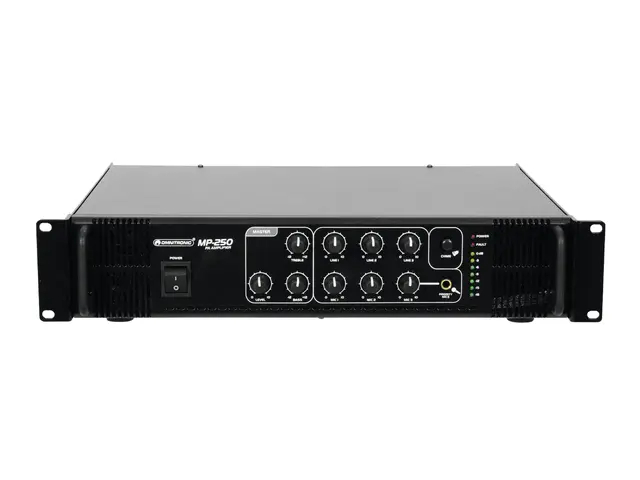

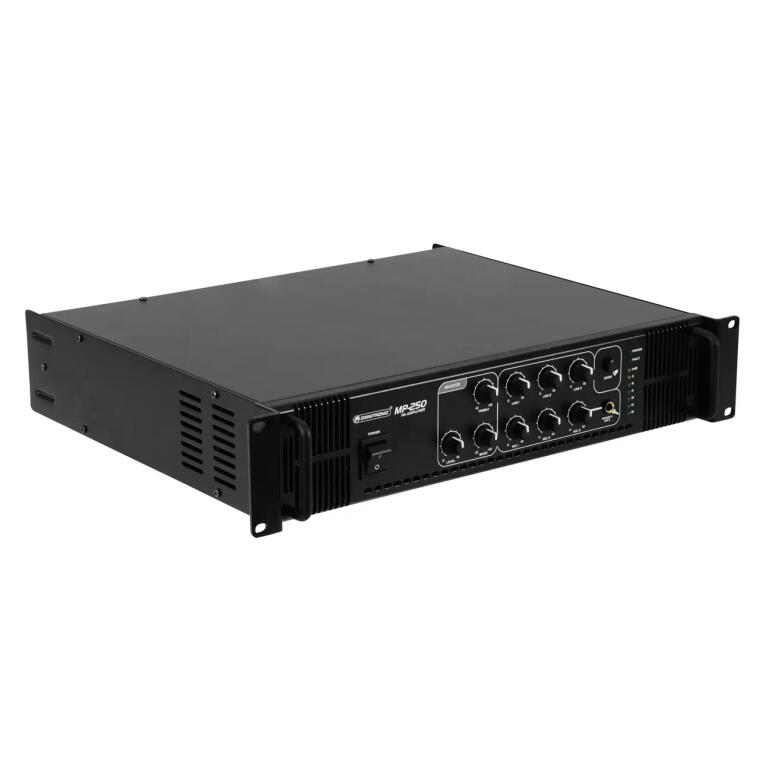

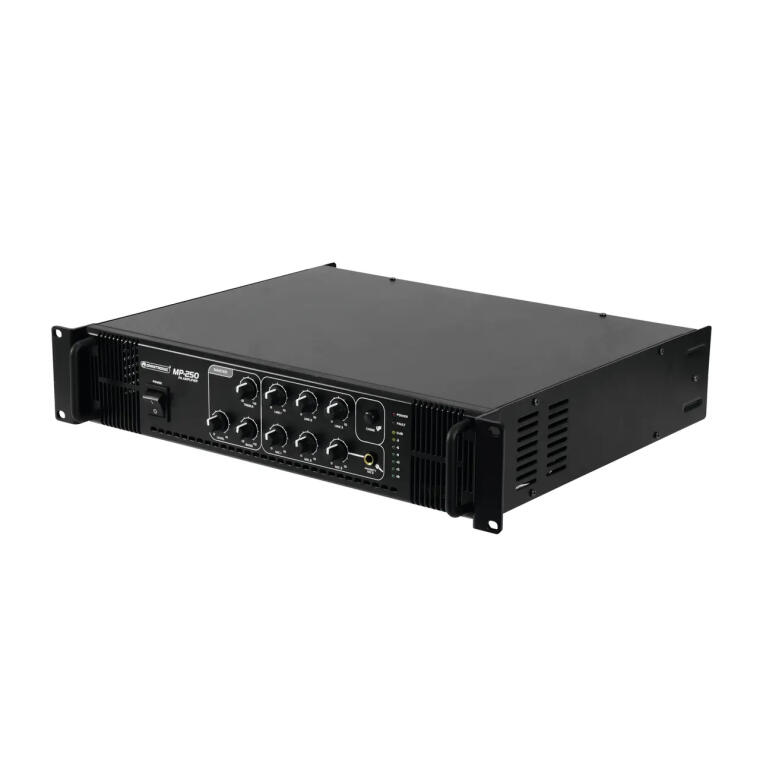

OMNITRONIC MP-250 PA Mixing Amplifier
High reliability with a maximum of flexibility
The Omnitronic MP-250 ELA mixing amplifier is your reliable partner when working with ELA sound systems. Thanks to its 19" format, it is ideally suited for both mobile and fixed installations.
Outputs for ELA loudspeakers with 70 V and 100 V audio transformers or 4-16 ohms loudspeakers leave nothing to be desired. In addition, you can also connect a device with line level (e.g. mixing console) to the line output. With 6 mixable inputs you always stay flexible. Connect up to 3 microphones and 3 line level devices.
Announcements are a priority
The microphone input 3 on the front panel offers an adjustable priority circuit. It enables you to make important announcements with automatic, continuously adjustable level reduction of all signals. Use the gong to additionally point out your announcement.
Protective features
A fan protects the interior of your MP-250 from overheating. In addition to a switch-on delay, it has overvoltage and short-circuit protection circuits. In these cases, your speakers are electrically isolated from the amplifier. The FAULT LED lights up then and both the MP-250 and your speakers are protected against damage.
The Omnitronic MP-250 ELA mixing amplifier is your reliable partner when working with ELA sound systems. Thanks to its 19" format, it is ideally suited for both mobile and fixed installations.
Outputs for ELA loudspeakers with 70 V and 100 V audio transformers or 4-16 ohms loudspeakers leave nothing to be desired. In addition, you can also connect a device with line level (e.g. mixing console) to the line output. With 6 mixable inputs you always stay flexible. Connect up to 3 microphones and 3 line level devices.
Announcements are a priority
The microphone input 3 on the front panel offers an adjustable priority circuit. It enables you to make important announcements with automatic, continuously adjustable level reduction of all signals. Use the gong to additionally point out your announcement.
Protective features
A fan protects the interior of your MP-250 from overheating. In addition to a switch-on delay, it has overvoltage and short-circuit protection circuits. In these cases, your speakers are electrically isolated from the amplifier. The FAULT LED lights up then and both the MP-250 and your speakers are protected against damage.
PA mixing amplifier, 250 W RMS
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- (19") 48.3 cm rack installation 2 U
- The device is cooled by cooling fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Omnitronic MP-250 – Technical Specifications
Power Supply & Consumption
-
Power Supply: 230 V AC, 50 Hz or 24 V DC
-
Power Consumption: ~500 W
Audio Performance
-
Output Power (RMS): 250 W RMS
-
Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance
-
Frequency Range: 50 - 16,000 Hz, ±3 dB
-
S/N Ratio: >70 dB (Line), >60 dB (Mic)
-
THD: <1% @ 1 kHz
Connectivity & Media Playback
-
Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player, FM tuner
-
Chime & Siren: Integrated chime/siren generator with dedicated trigger button
-
Remote Control: IR remote control included for media player
Controls & Indicators
-
Display: Blue backlit LCD display for media player status
-
Control Elements: Master volume knob, individual volume controls for Mic 1-3 and Aux 1-2, 2-band EQ (Treble, Bass), Chime button
-
Indicators: 5-digit LED output level meter, Power LED

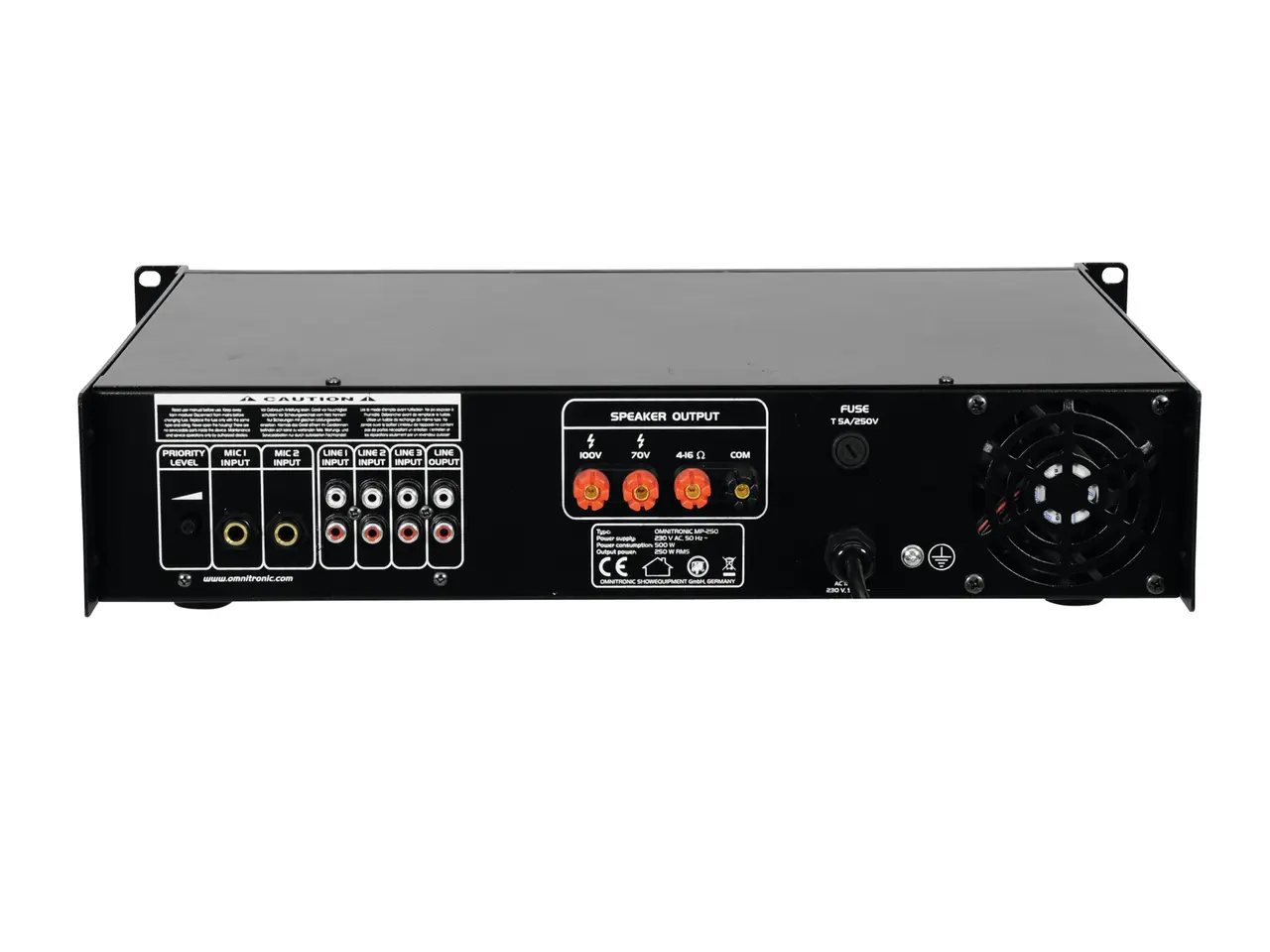

Inputs & Outputs
-
Inputs:
-
Microphone: 3 x 6.35 mm jack / XLR (Mic 1 with adjustable priority mute)
-
Aux/Line: 2 x Stereo RCA
-
-

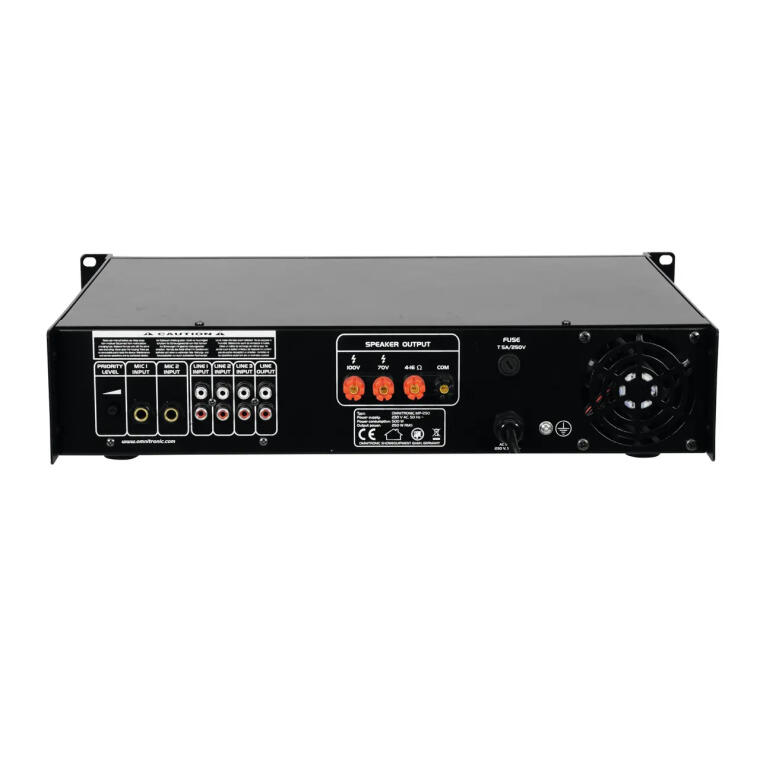

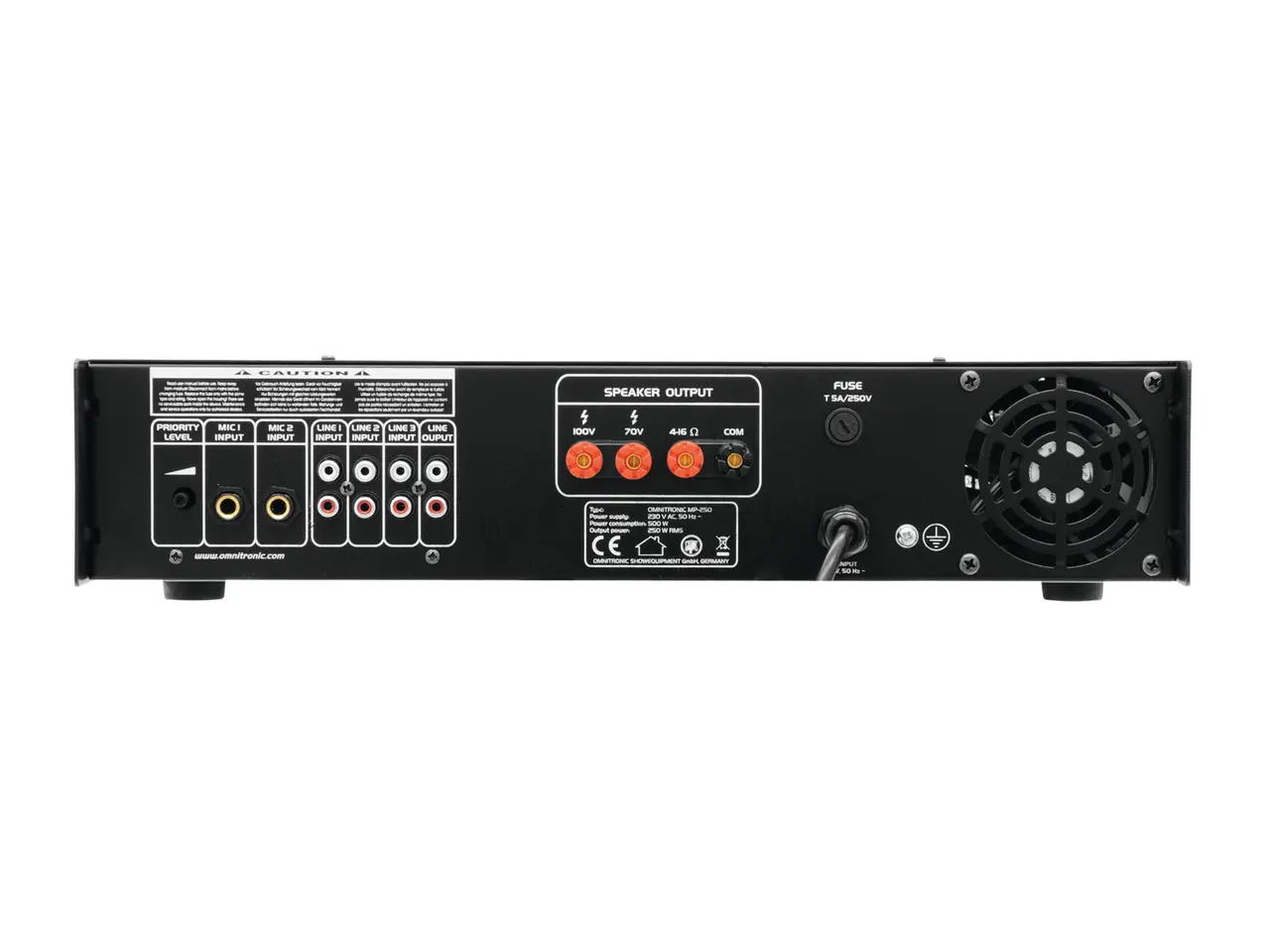

Outputs:
-
Line Output: 1 x Stereo RCA (Pre-Out)
-
Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)
-
Physical Specifications
-
Rack Installation: 19" Rack format (2 U height, rack ears included)
-
Housing Design: Steel chassis with aluminum front panel
-
Dimensions (W x D x H): 483 x 385 x 89 mm
-
Weight: 10.5 kg
Accessories Included
-
AC Power Cable, IR Remote Control, FM Antenna, Rack Mounting Kit, User Manual
