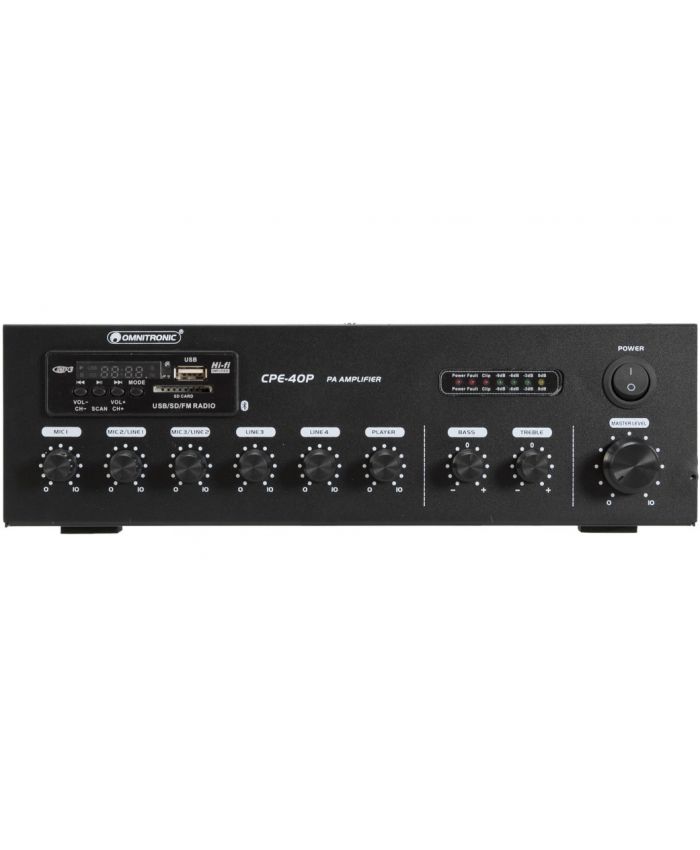

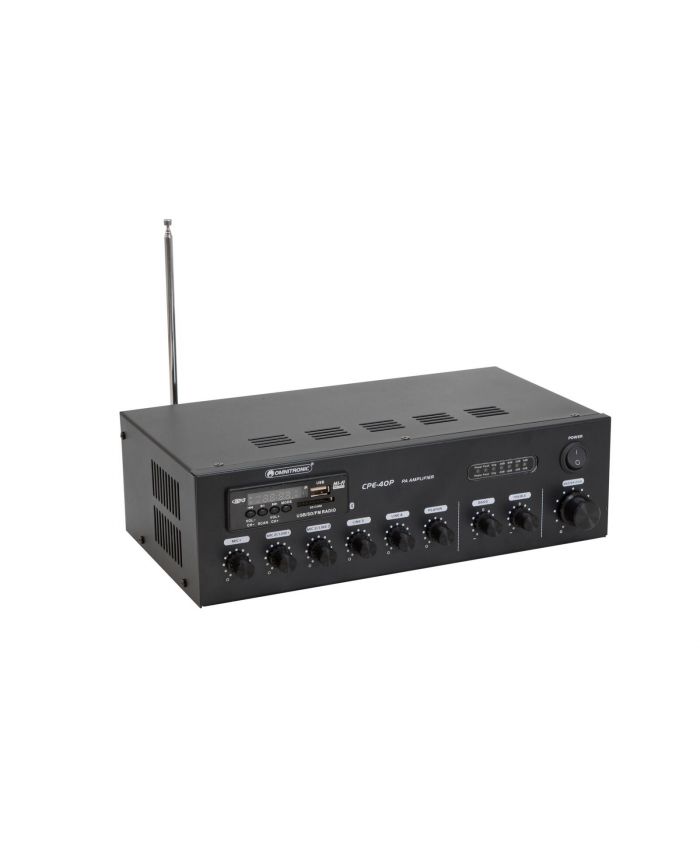

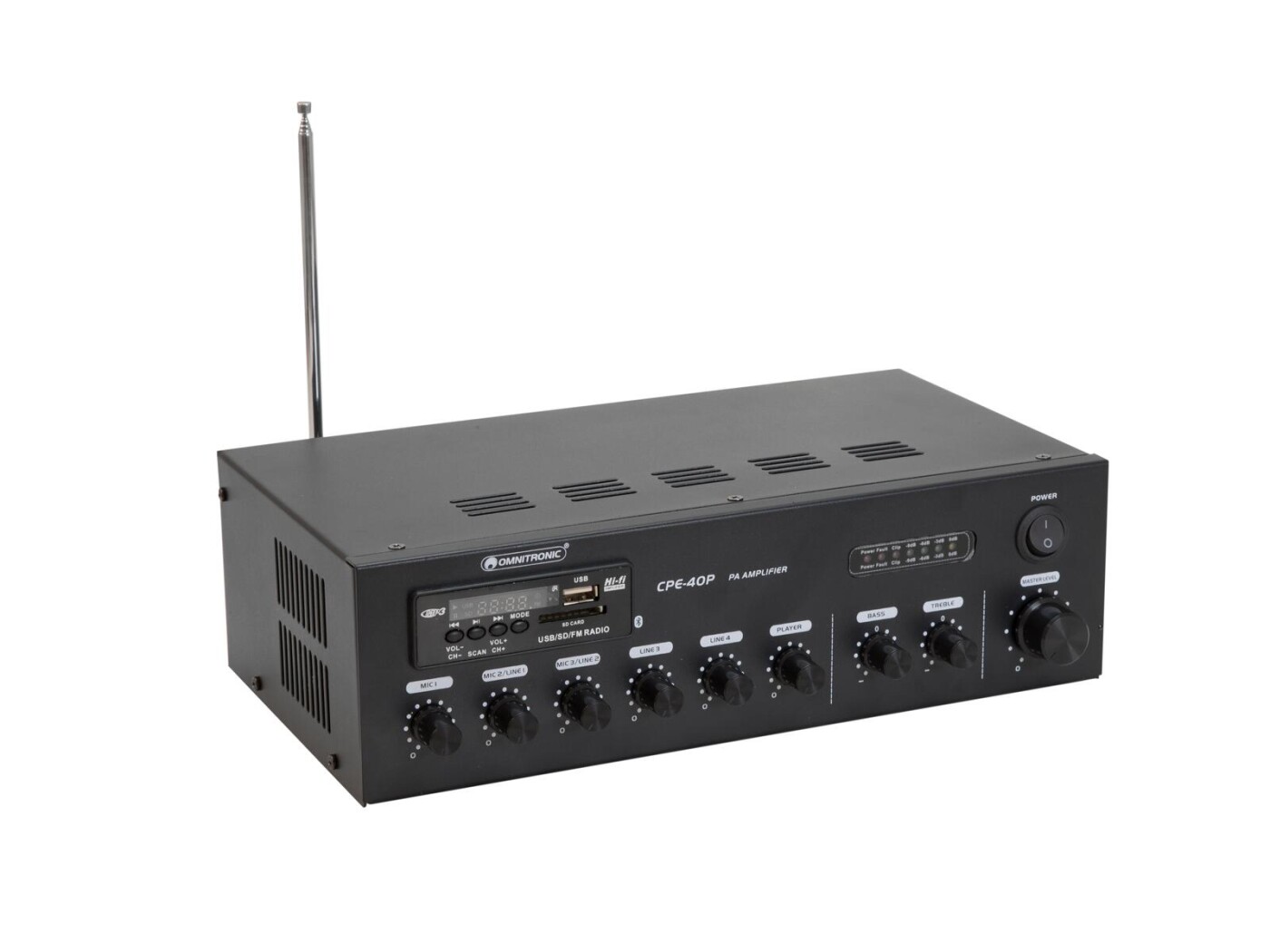

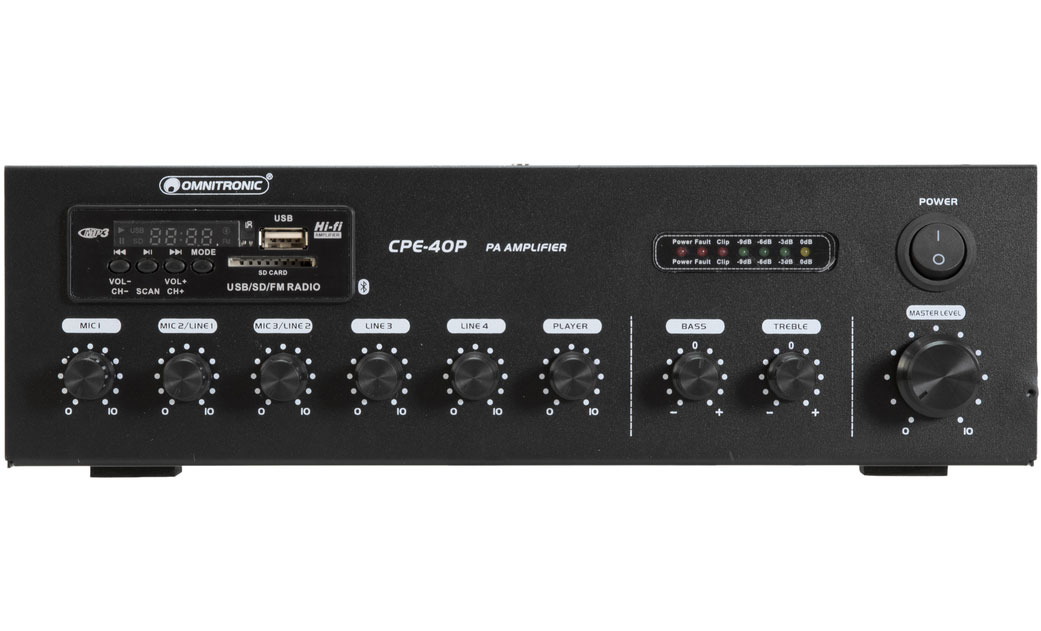

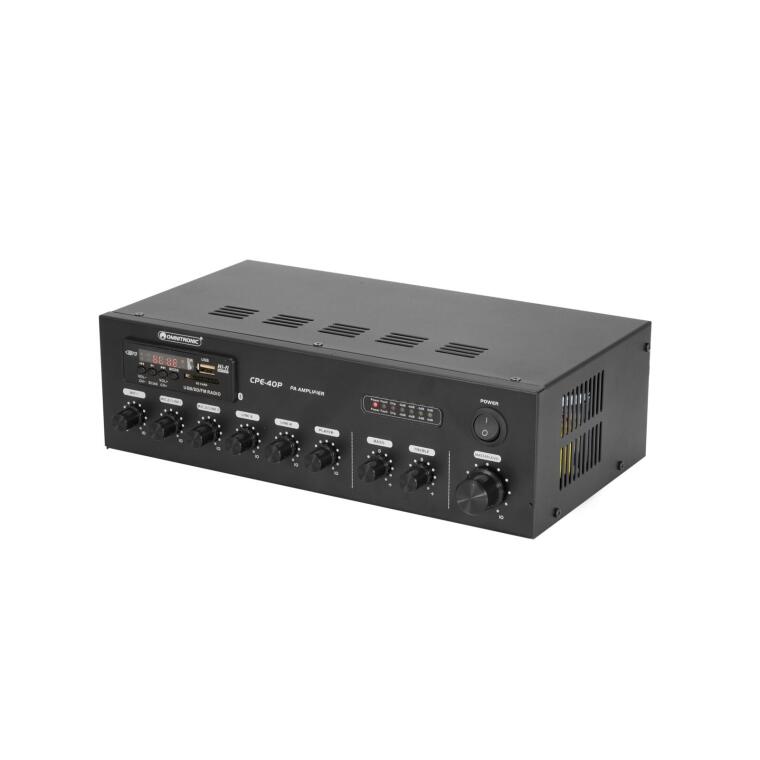

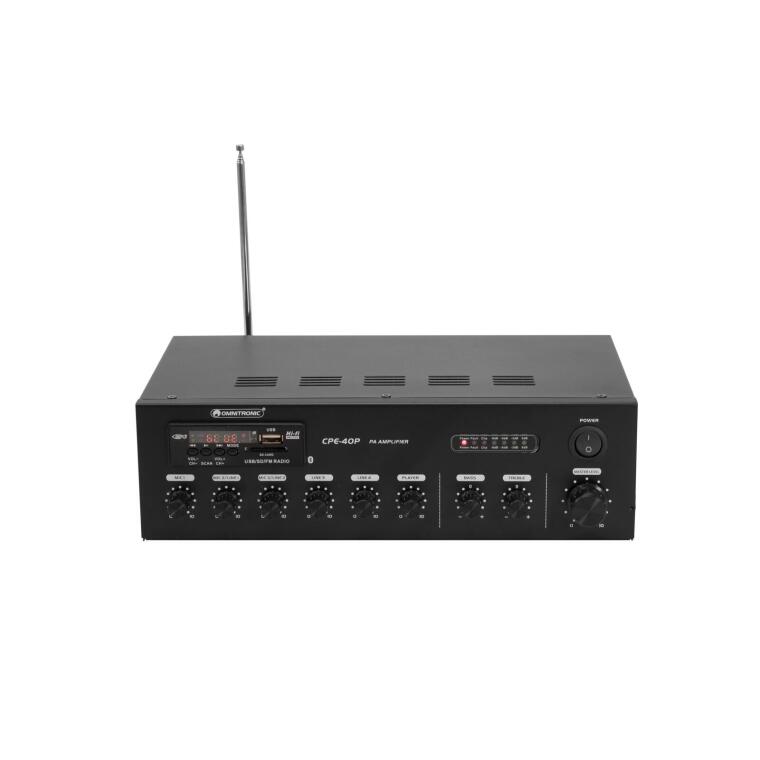

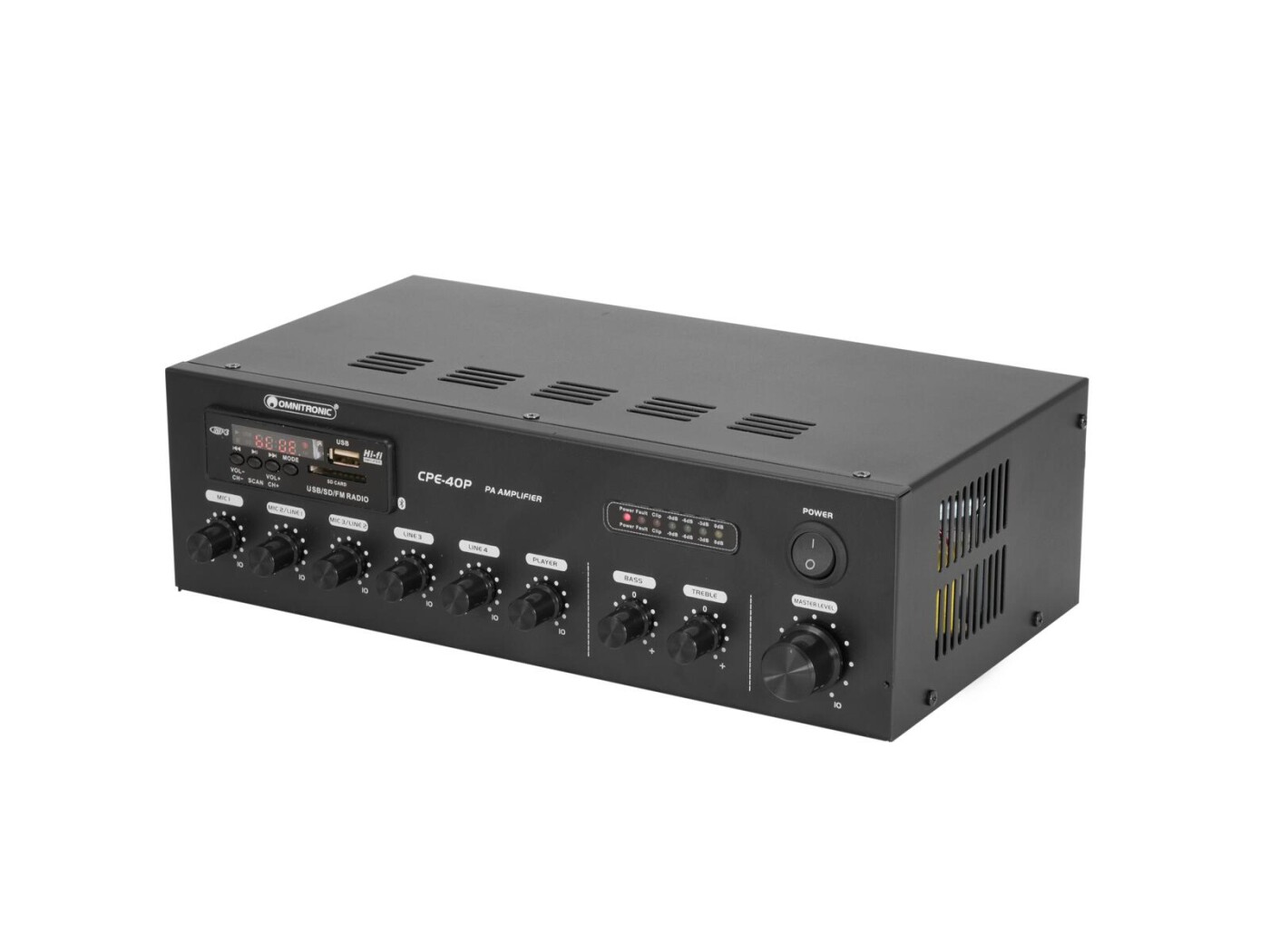

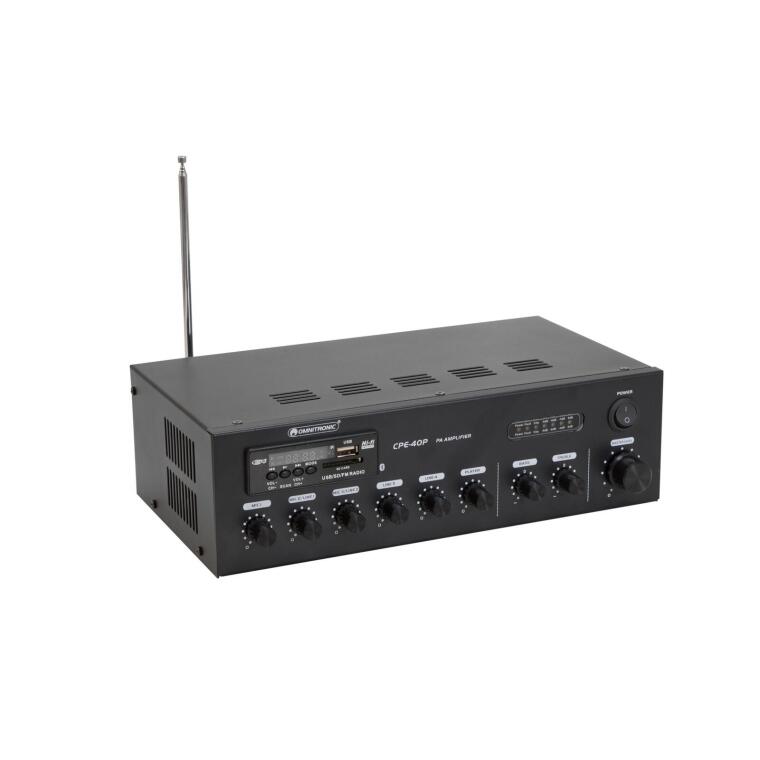

Omnitronic CPE-40P (100V Line)

€195.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

PA Mixing Amplifier

PA mono mixing amplifier with MP3 player and IR remote control, Bluetooth, 40 watts

  • PA outputs for 70 V or 100 V PA speakers
  • PA outputs for low-impedance speakers (4-16 ohms)
  • Built-in audio player with Bluetooth receiver and IR remote control
  • Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
  • SD card slot and USB input
  • FM tuner with auto scan
  • 3 microphone inputs with separate level controls
  • Mic 1 with phantom power and priority circuit
  • Mic 2 and 3 switchable mic/line
  • 2 line inputs with separate level controls
  • 1 line output
  • Treble and bass and master controls for the output signal
  • 4-fold LED level display
  • Protection circuits with LED indication: overload, short circuit, clip limiter, overheat
  • Mains operation and 24 V emergency power operation
  • Compact desktop console
  • Controlling by Bluetooth; IR remote control included

Omnitronic CPE-40P – Technical Specifications

Power Supply & Consumption

  • Power Supply: 100 V Line / 230 V AC, 50 Hz

  • Power Consumption: ~60 W

Audio Performance

  • Output Power (RMS): 40 W RMS

  • Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance

  • Frequency Range: 80 - 16,000 Hz

  • S/N Ratio: >75 dB (Line), >65 dB (Mic)

  • THD: <1% @ 1 kHz

Connectivity & Media Playback

  • Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player, FM tuner

  • Remote Control: IR remote control included for media player

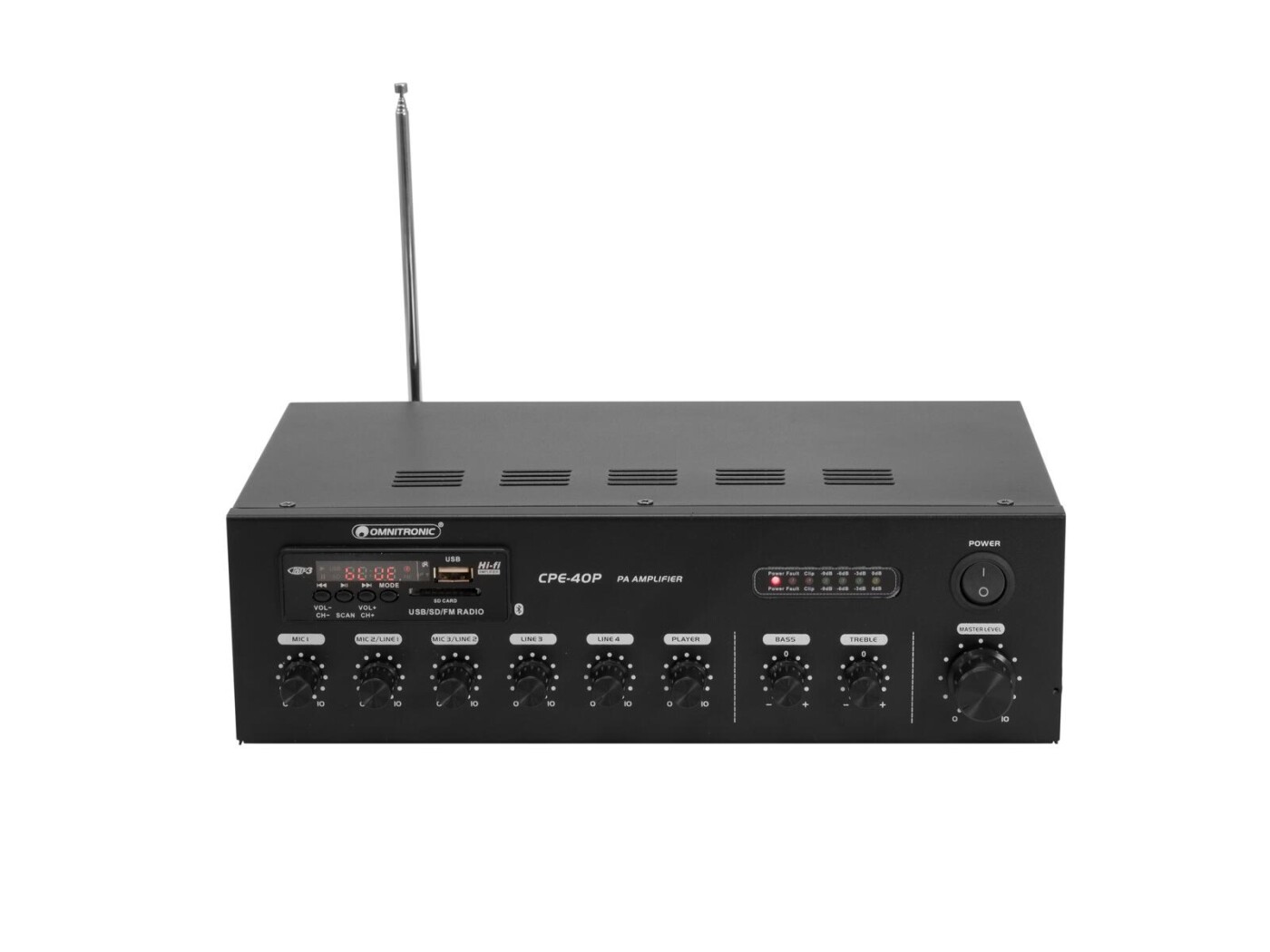

Controls & Indicators

  • Display: LED indicator lights for Power, Signal, and Clip

  • Control Elements: Master volume knob, independent MIC 1, MIC 2, and AUX volume controls, 2-band EQ (Bass & Treble)

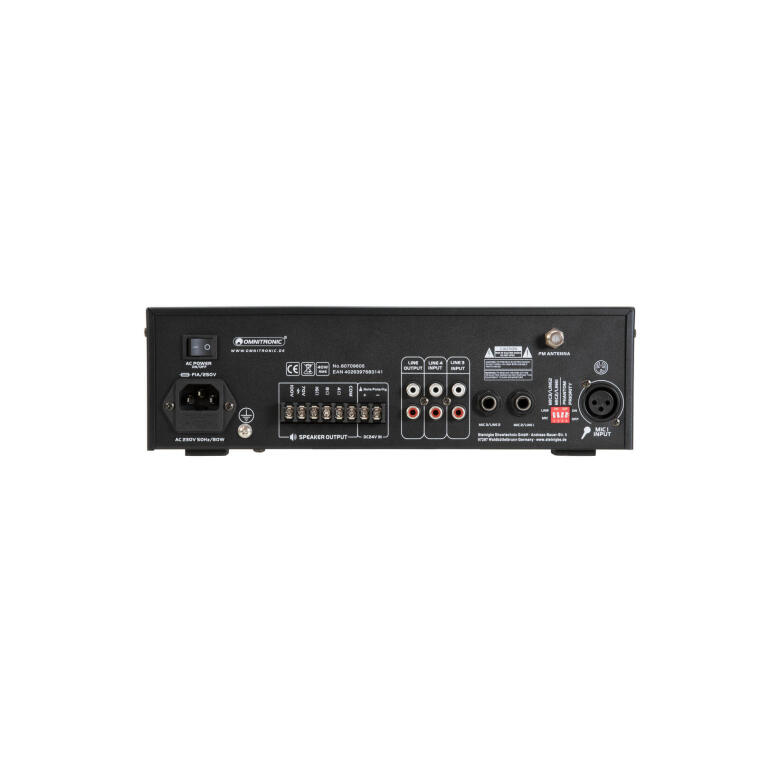

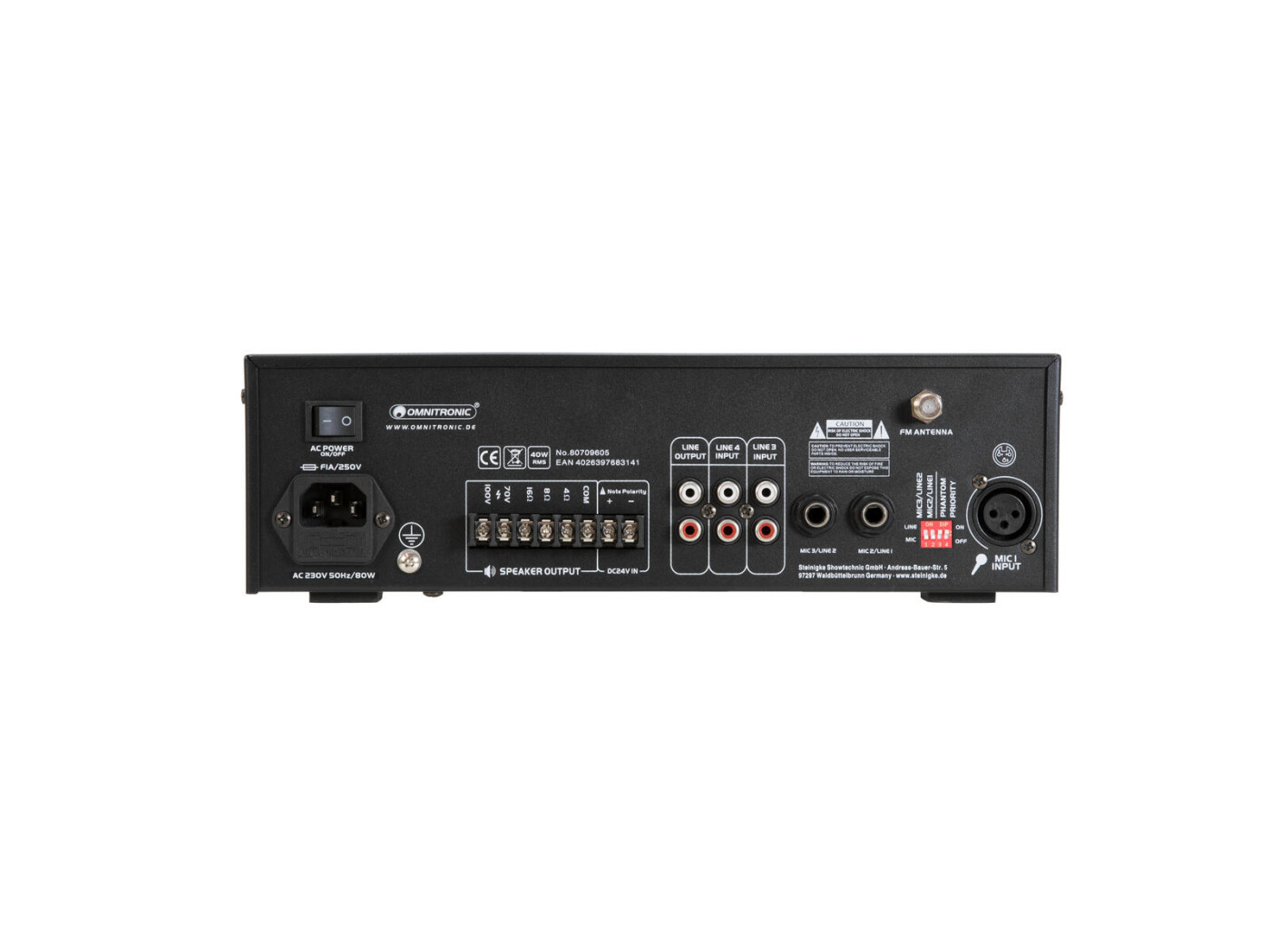

Inputs & Outputs

  • Inputs:

    • Microphone: 2 x 6.35 mm jack (MIC 1 with priority override)

    • Aux/Line: 1 x Stereo RCA

  • Outputs:

    • Line Output: 1 x Stereo RCA (Pre-Out)

    • Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)

Physical Specifications

  • Housing Design: Compact tabletop / shelf steel enclosure

  • Dimensions (W x D x H): 280 x 220 x 66 mm

  • Weight: 3.2 kg

Accessories Included

  • AC Power Cable, IR Remote Control, User Manual
