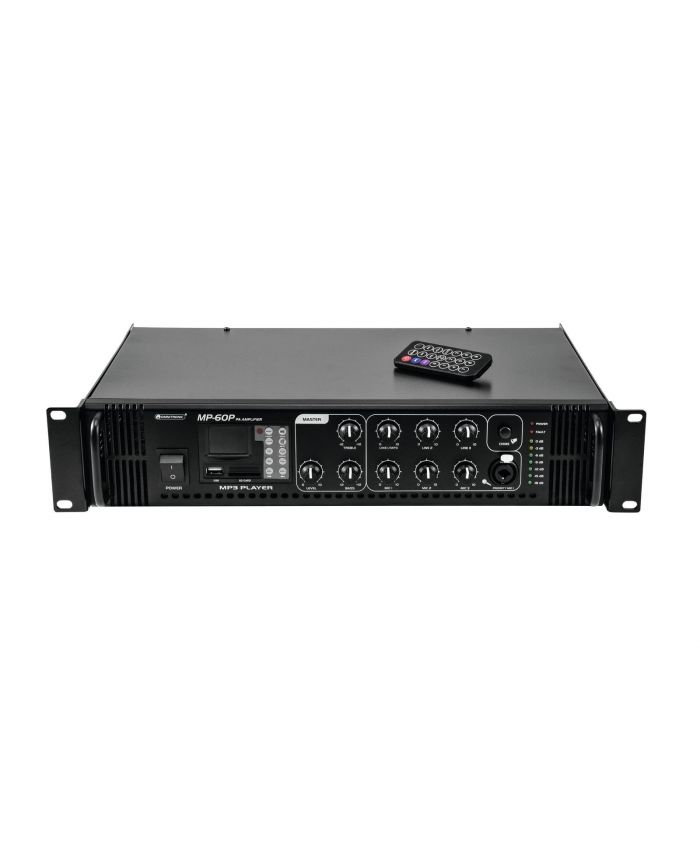

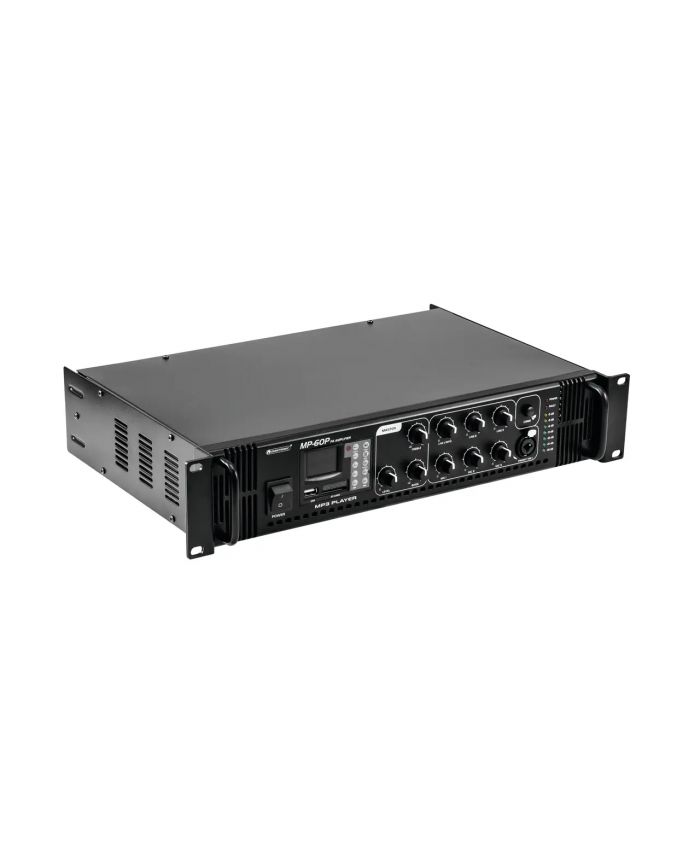

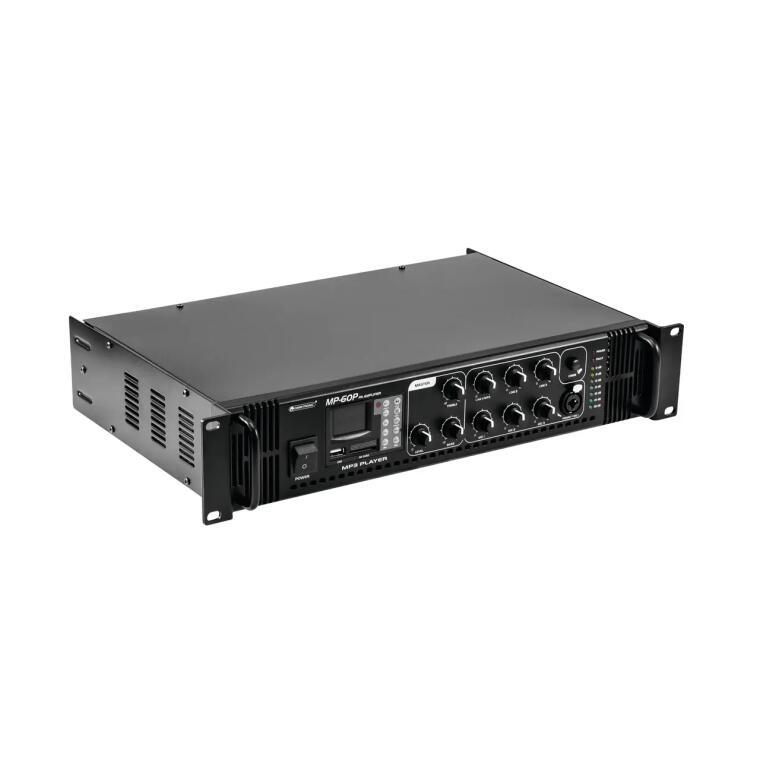

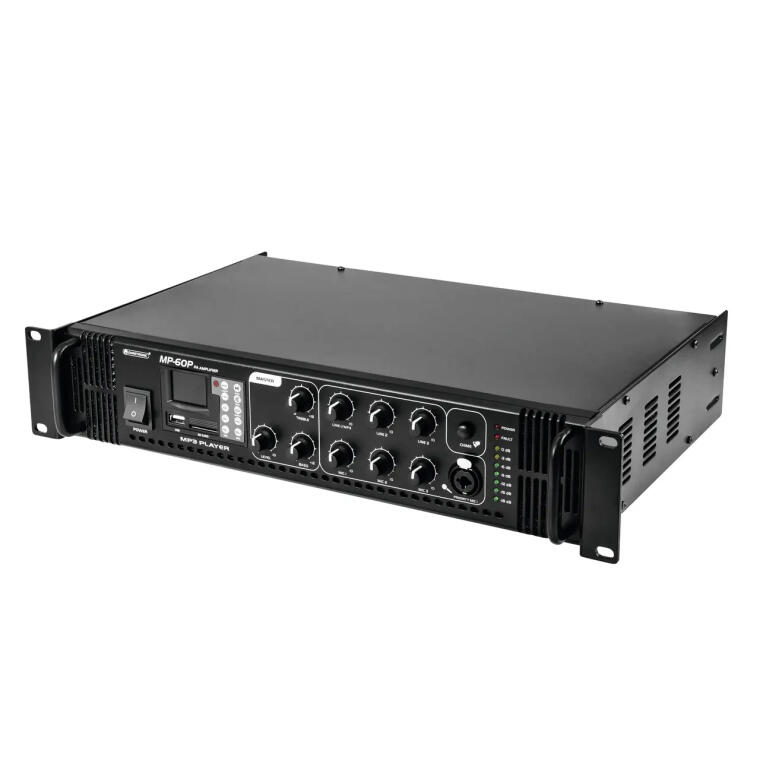

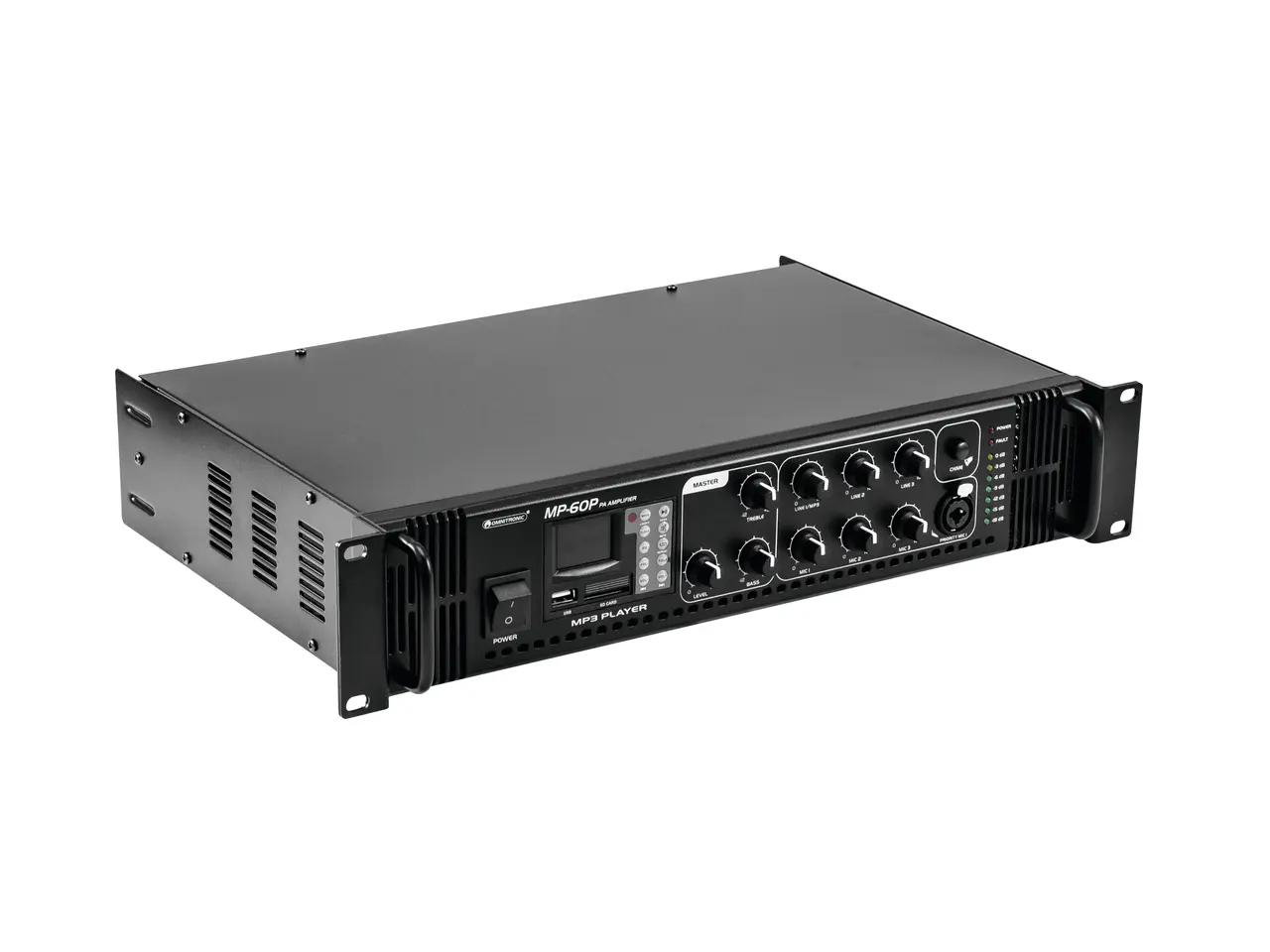

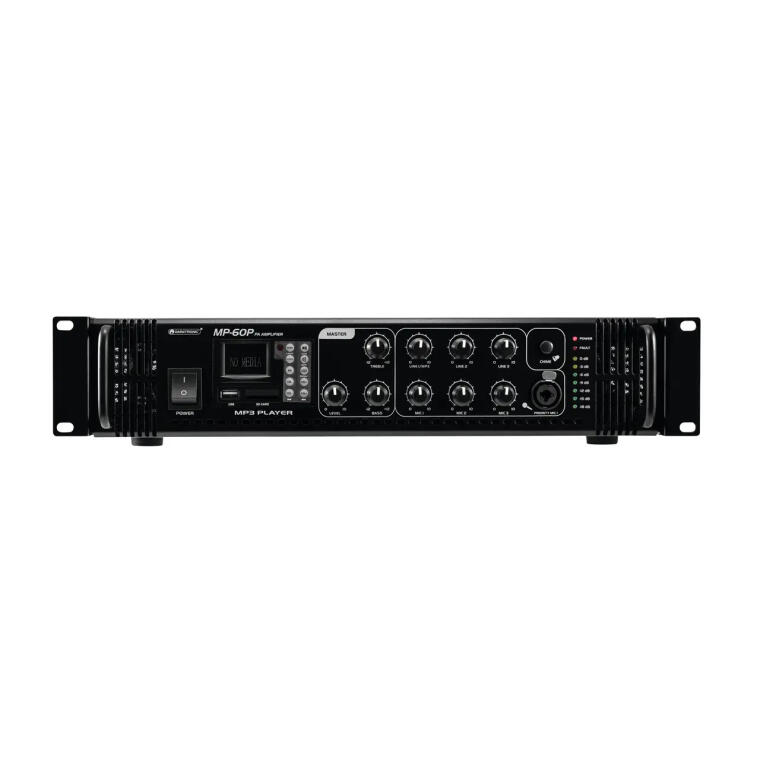

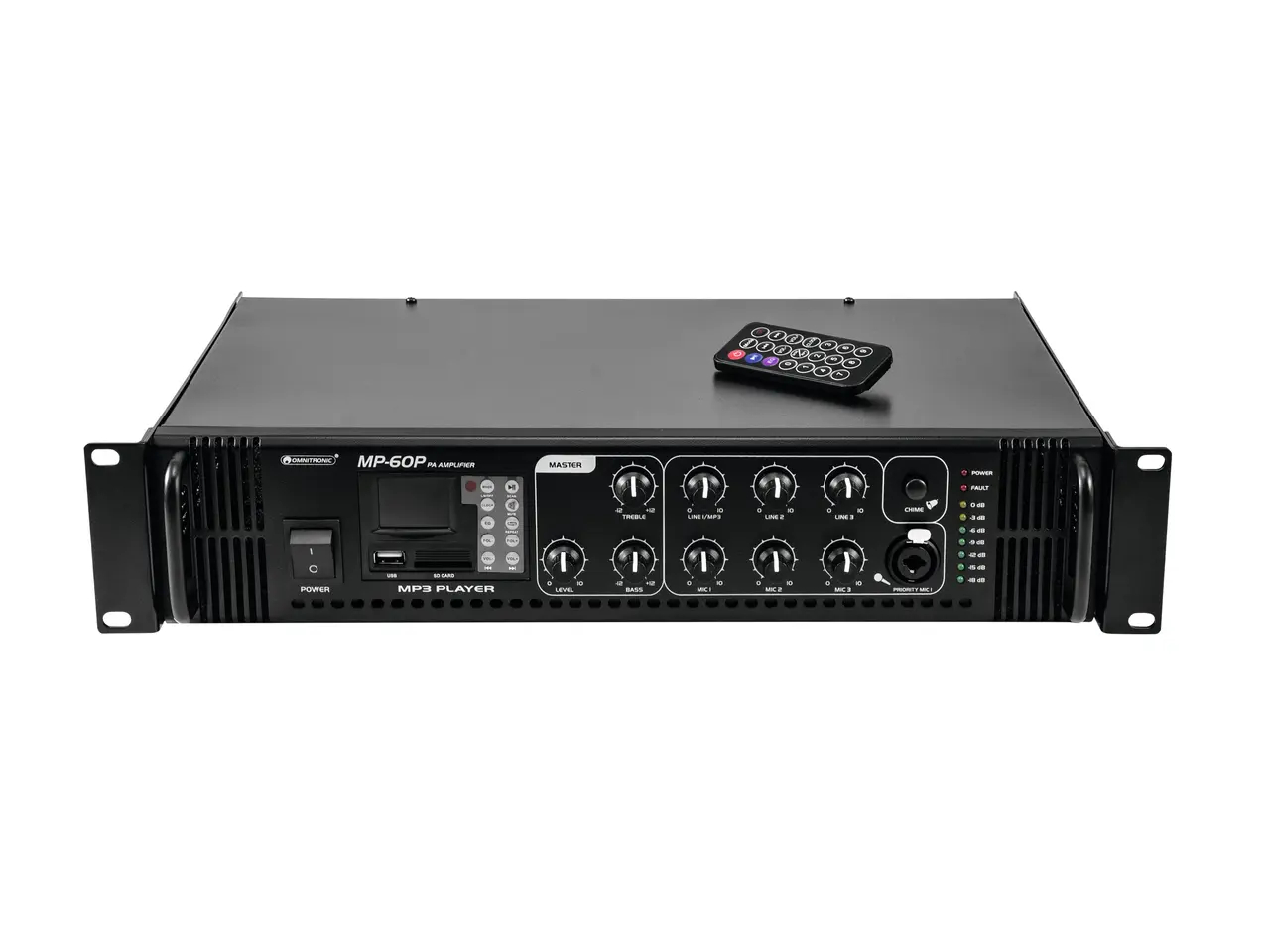

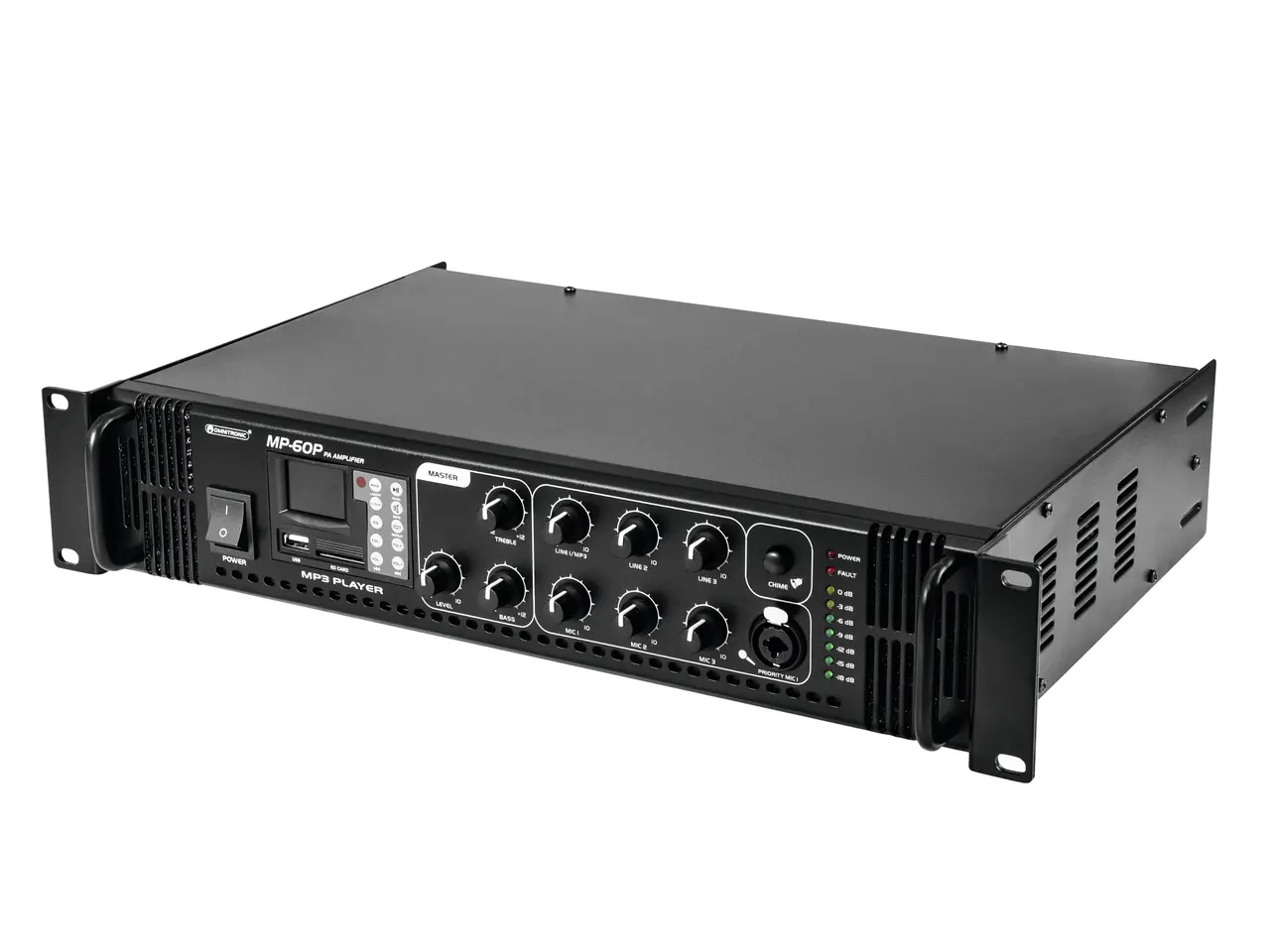

Omnitronic MP-60P (100V Line)
€319.00
incl. VAT
Out of stock
Interested in this product?
Overview

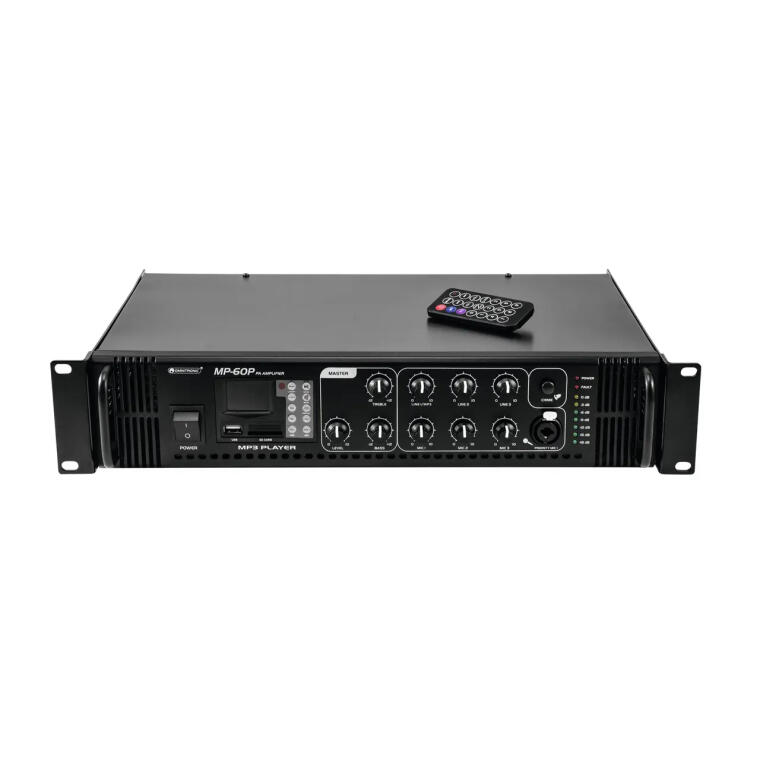

PA mono mixing amplifier with MP3 player and IR remote control,
PA mono mixing amplifier with MP3 player and IR remote control, 60 watts
- PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
- MP3 player with IR remote control and LCD with blue backlight
- SD card slot and USB port
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Rack installation
- The device is cooled by cooling fan
- Controlling by IR remote control
- (19") 48.3 cm rack installation 2 U
Omnitronic MP-60P – Technical Specifications
Power Supply & Consumption
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: ~120 W
Audio Performance
-
Output Power (RMS): 60 W RMS
-
Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance
-
Frequency Range: 80 - 14,000 Hz
-
S/N Ratio: >85 dB (Line), >75 dB (Mic)
-
THD: <0.5% @ 1 kHz
Connectivity & Media Playback
-
Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player
-
Supported Media Formats: MP3 (USB/SD max 32 GB, FAT32)
-
Chime Function: Switchable chime generator
-
Remote Control: IR remote control included for media player

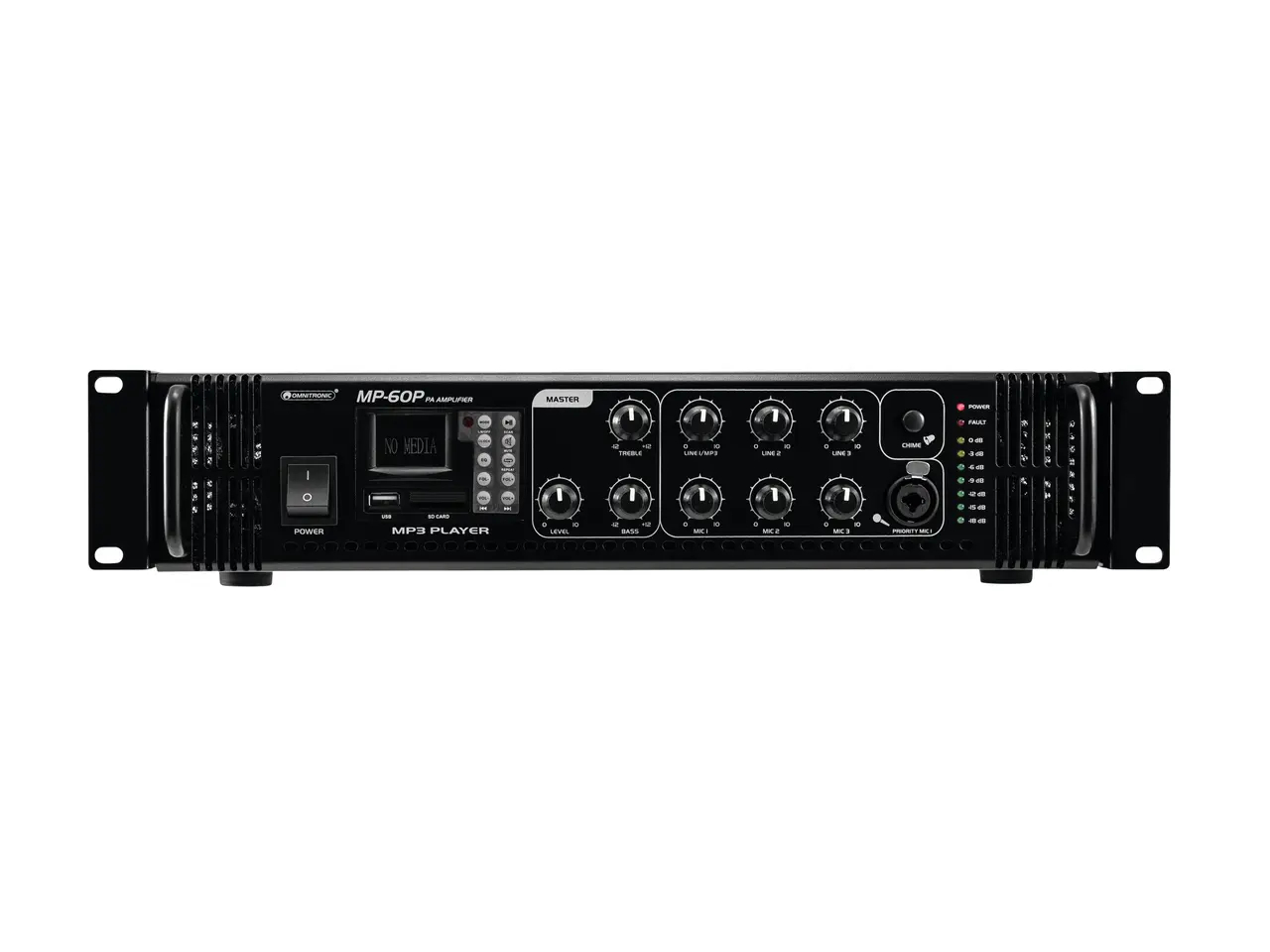

Controls & Indicators
-
Display: Blue backlit LCD display for media player status
-
Control Elements: Master volume knob, 2-band EQ (Bass & Treble), separate level controls for Mic 1-3 and Line 1-3, Chime switch
-
Indicators: 5-digit LED output level meter, Power LED
-
Protection Circuits: Overvoltage, short-circuit, temperature-controlled fan cooling

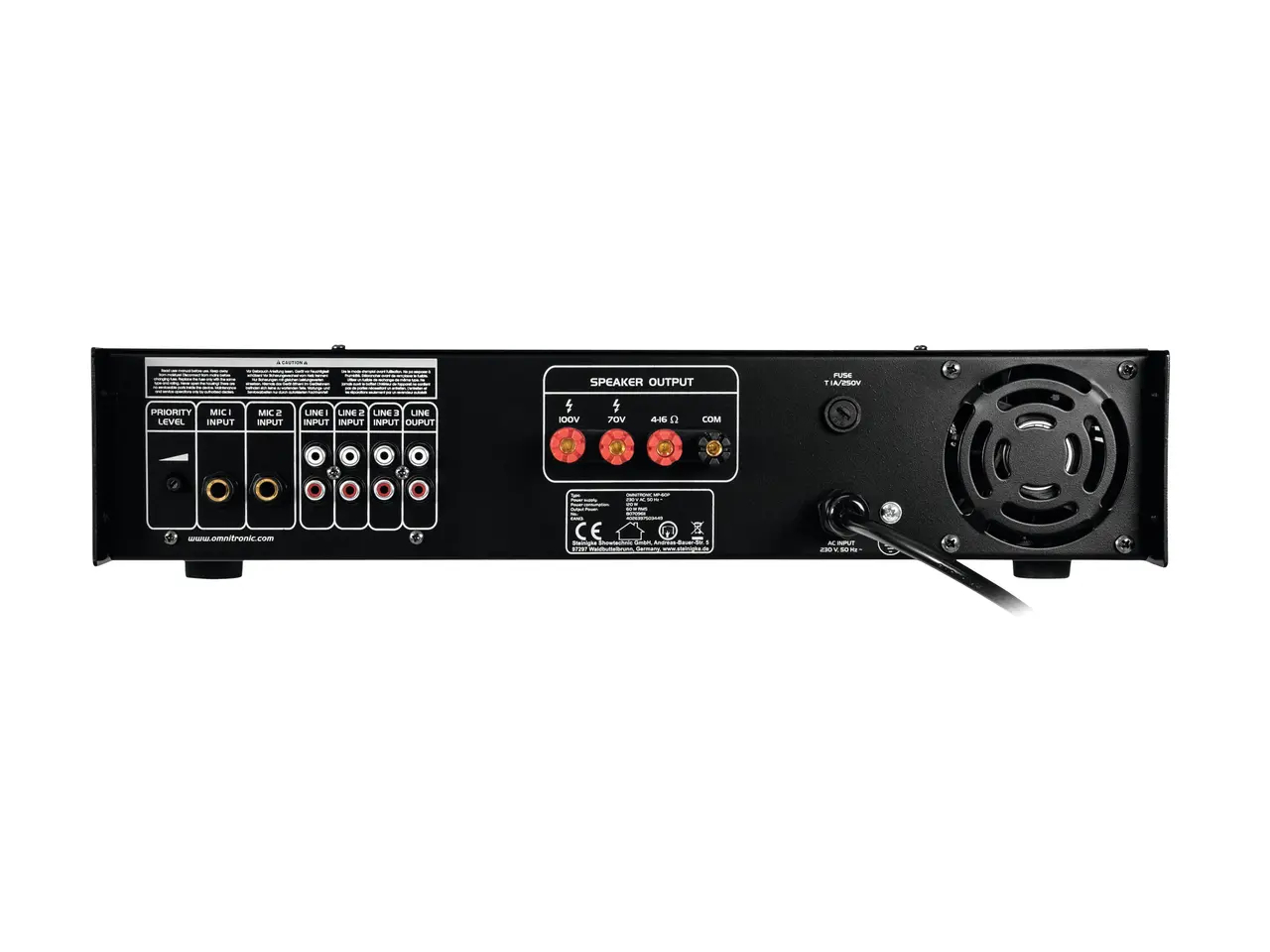

Inputs & Outputs
-
Inputs:
-
Microphone: 1 x Combo XLR / 6.35 mm jack (Mic 1), 2 x 6.35 mm jack (Mic 2 & 3 with adjustable priority circuit on Mic 3)
-
Aux/Line: 3 x Stereo RCA (Line 1-3)
-
-
Outputs:
-
Line Output: 1 x Stereo RCA (Pre-Out)
-
Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)
-
Physical Specifications
-
Rack Installation: 19" Rack format (2 U height)
-
Housing Design: Steel chassis with aluminum front panel
-
Dimensions (W x D x H): 483 x 400 x 89 mm
-
Weight: 7.25 kg
Accessories Included
-
Power Cable, IR Remote Control, User Manual
