Omnitronic MP-250P (100V Line)
€529.00
incl. VAT
In stock
Interested in this product?
Overview

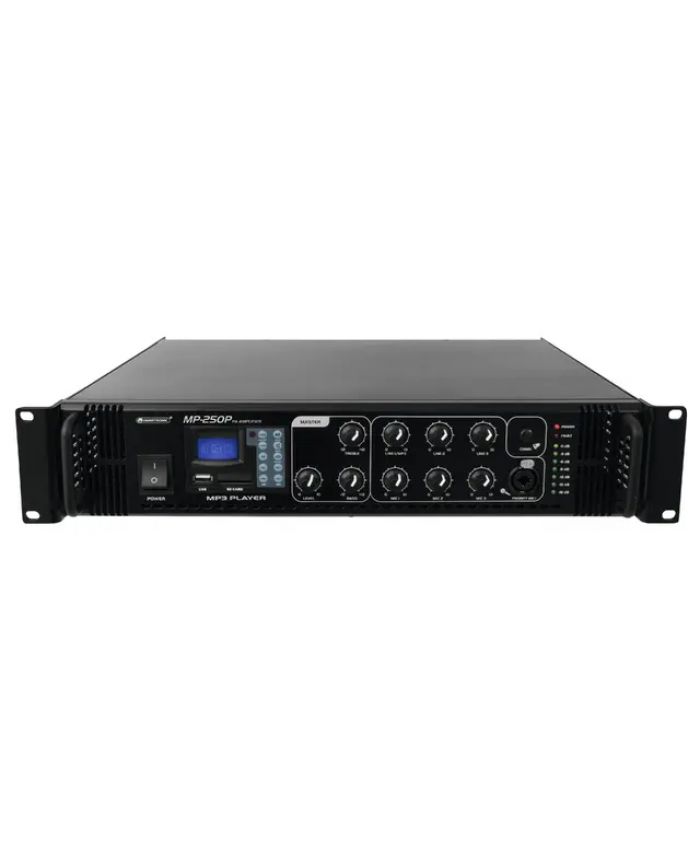

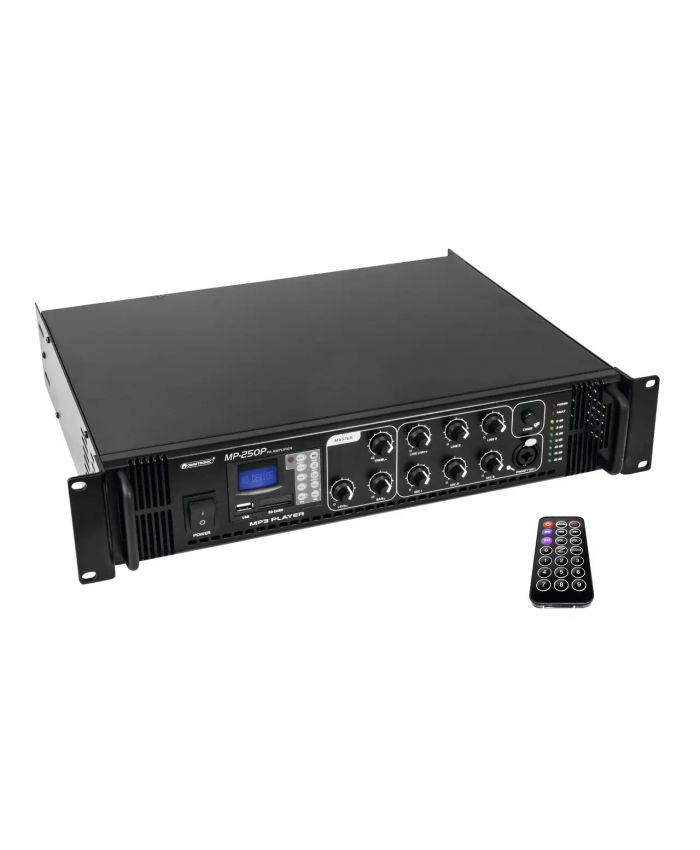

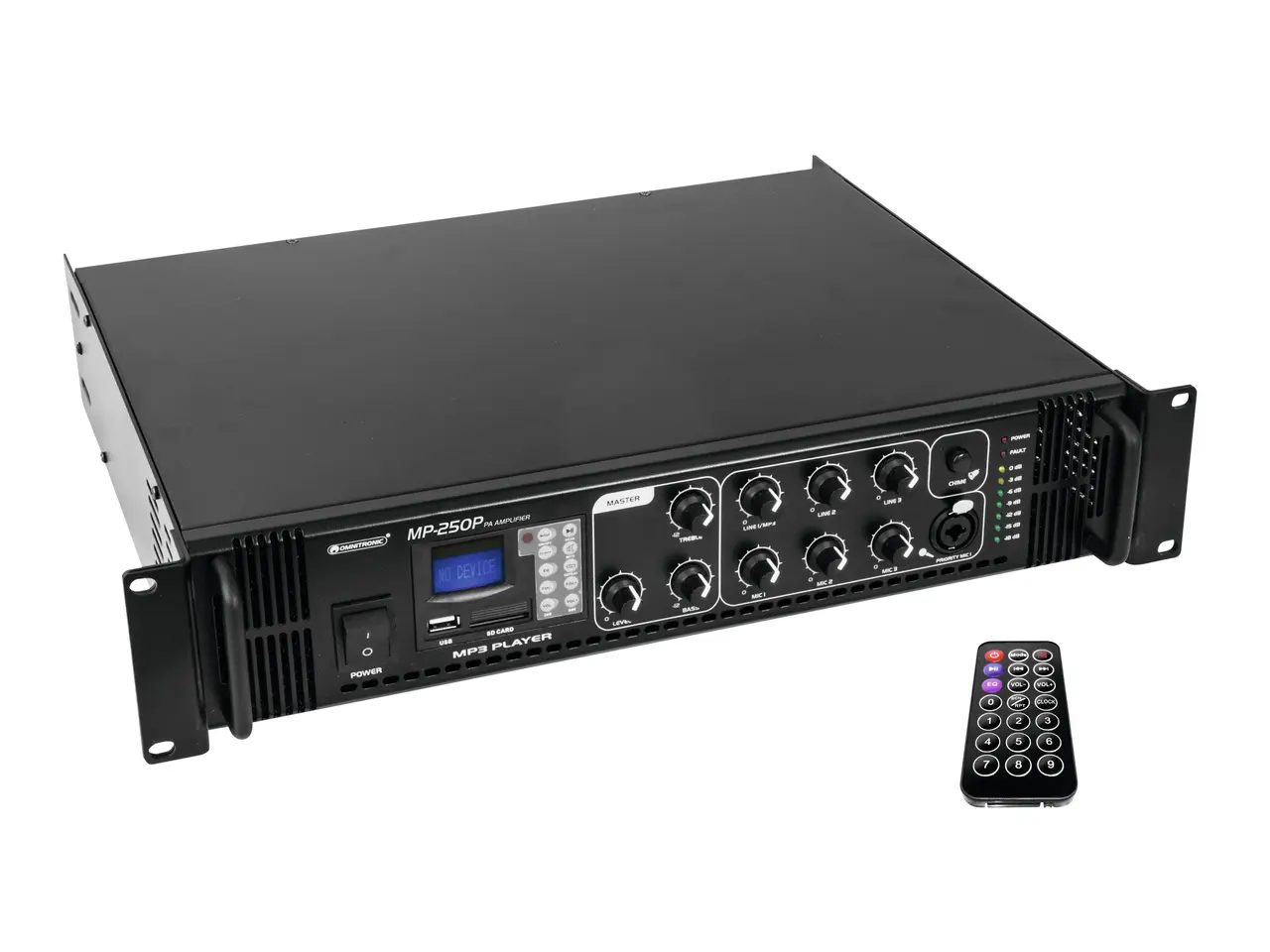

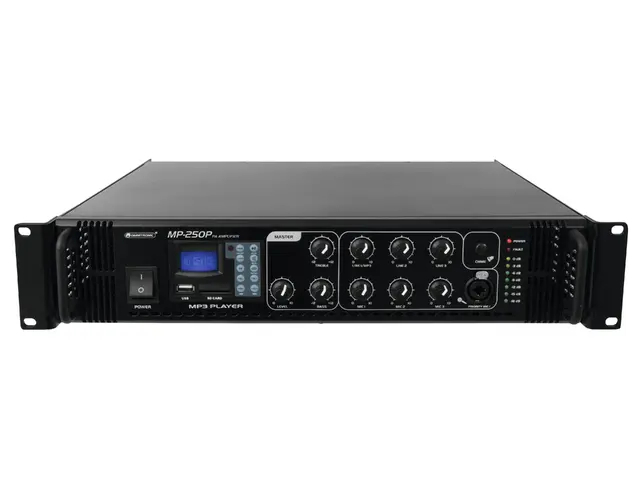

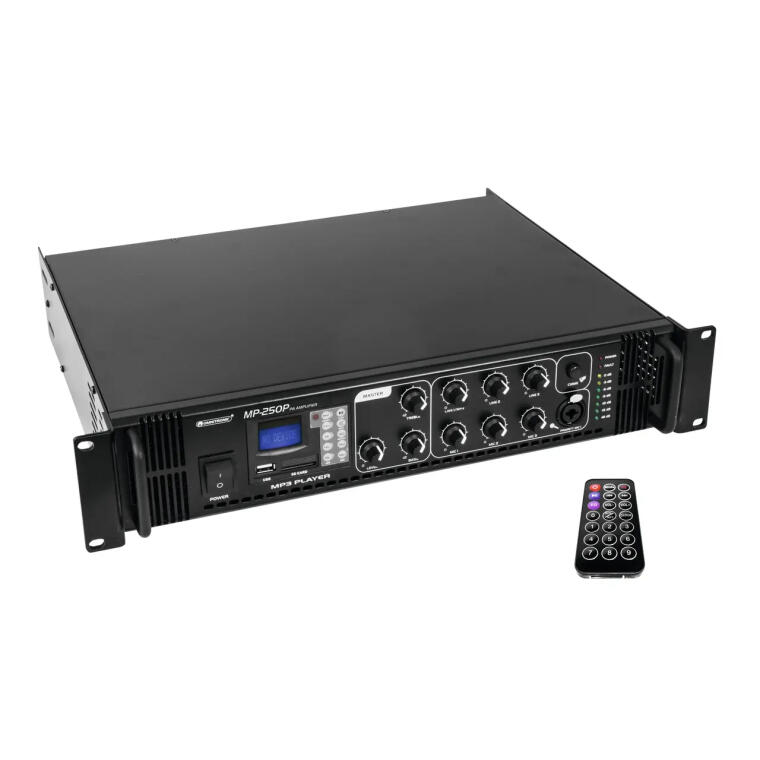

OMNITRONIC MP-250P PA Mixing Amplifier
PA mixing amplifier with audio player,IR remote control, 250 W RMS
- SD card slot and USB port
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- (19") 48.3 cm rack installation 2 U
- The device is cooled by cooling fan
- Control via IR remote control
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Omnitronic MP-250P – Technical Specifications
Power Supply & Consumption
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: 500 W
Audio Performance
-
Output Power (RMS): 250 W RMS
-
Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance
-
Amplifier Class: Class AB
-
Frequency Range: 80 - 14,000 Hz
-
S/N Ratio: >85 dB (Line), >75 dB (Mic)
-
THD: <0.5% @ 1 kHz
Connectivity & Media Playback
-
Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player
-
Supported Media Formats: MP3 (USB/SD max 32 GB, FAT32)
-
Chime Function: Switchable chime generator
-
Remote Control: IR remote control included for media player
Controls & Indicators
-
Display: 7-digit LED output level meter
-
Control Elements: Master volume knob, 2-band EQ (Bass & Treble), separate level controls for Mic 1-3 and Line 1-3, Chime switch
-
Protection Circuits: Power turn-on/off transient delay, overvoltage, short-circuit protection; fan cooling

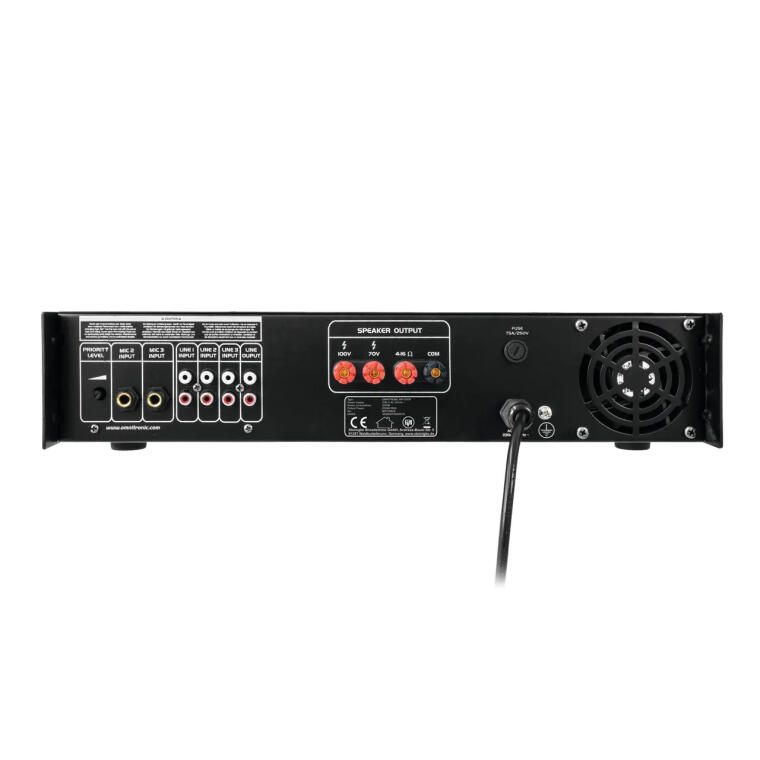

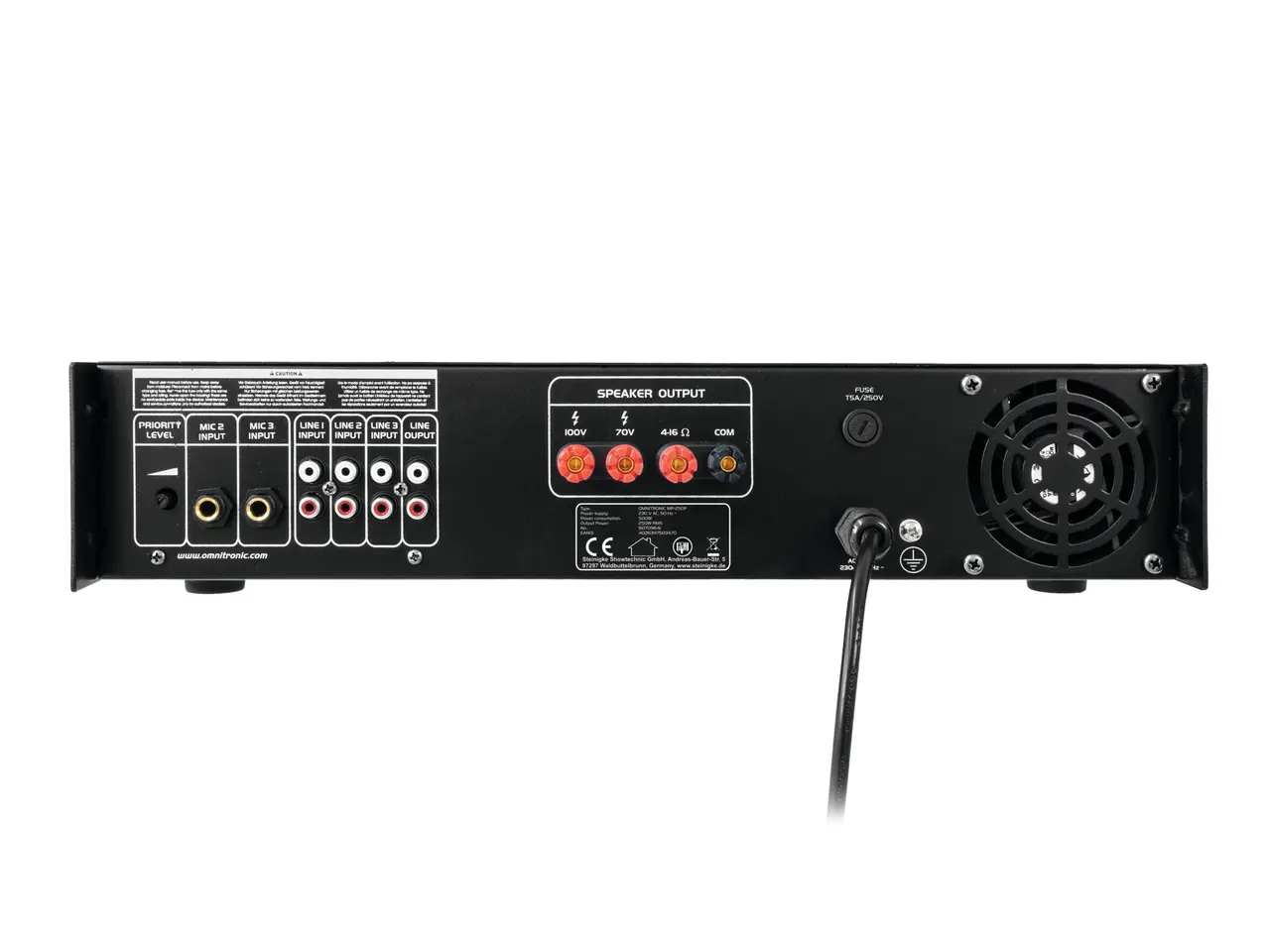

Inputs & Outputs
-
Inputs:
-
Microphone: 1 x Combo XLR / 6.35 mm jack (Mic 1), 2 x 6.35 mm jack (Mic 2 & 3 with adjustable priority circuit on Mic 3)
-
Aux/Line: 3 x Stereo RCA
-
-
Outputs:
-
Line Output: 1 x Stereo RCA (Pre-Out)
-
Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)
-
Physical Specifications
-
Rack Installation: 19" Rack format (2 U height)
-
Housing Design: Steel chassis with aluminum front panel
-
Dimensions (W x D x H): 483 x 400 x 89 mm
-
Weight: 10.70 kg
Accessories Included
-
Fixed Power Supply Cord, IR Remote Control (CR2025 battery included), User Manual
