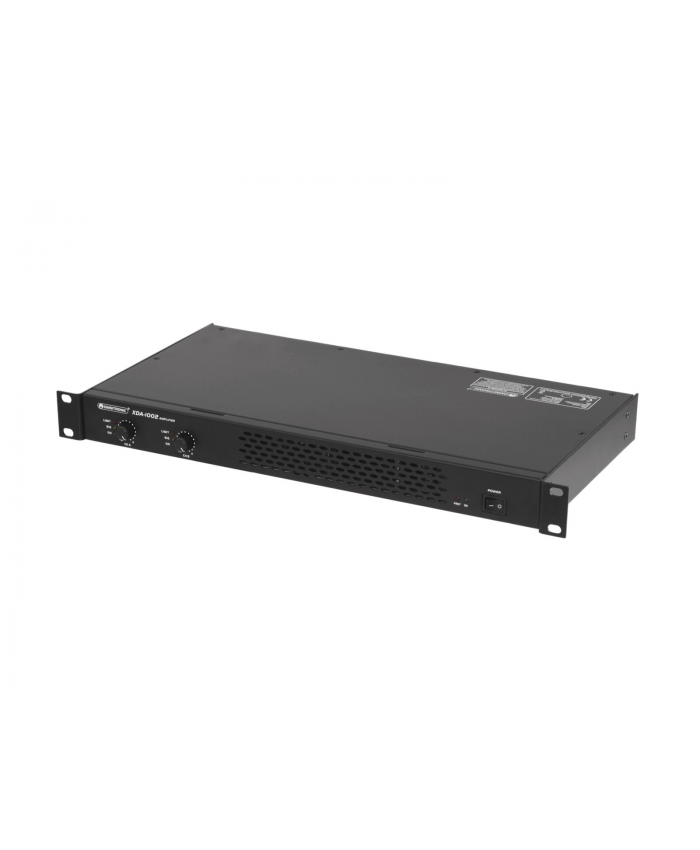

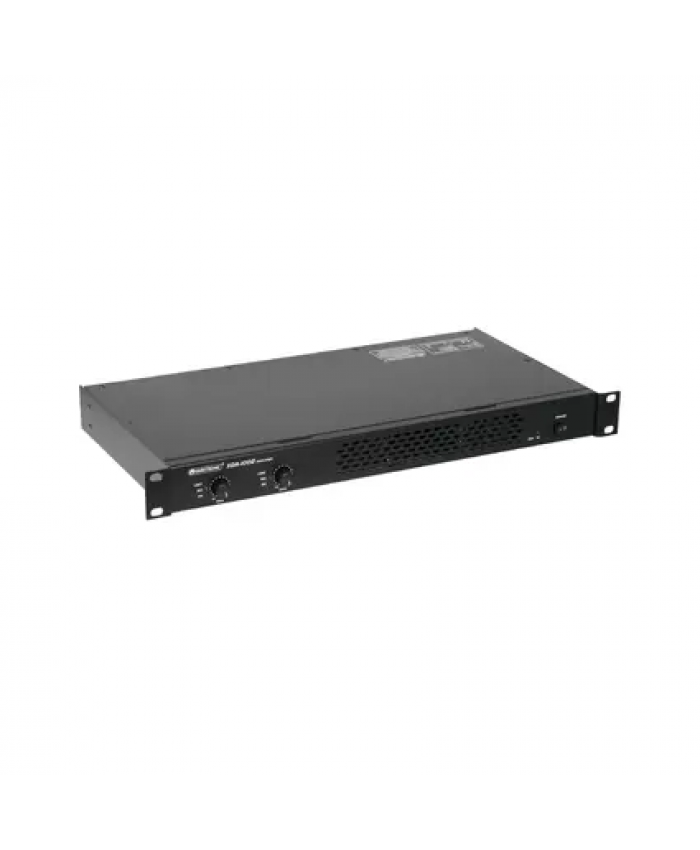

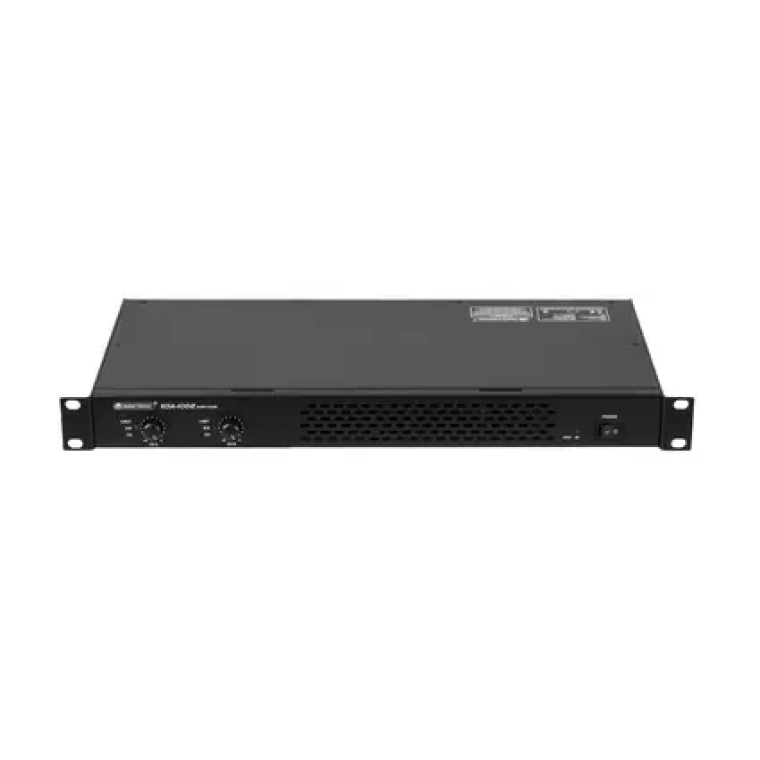

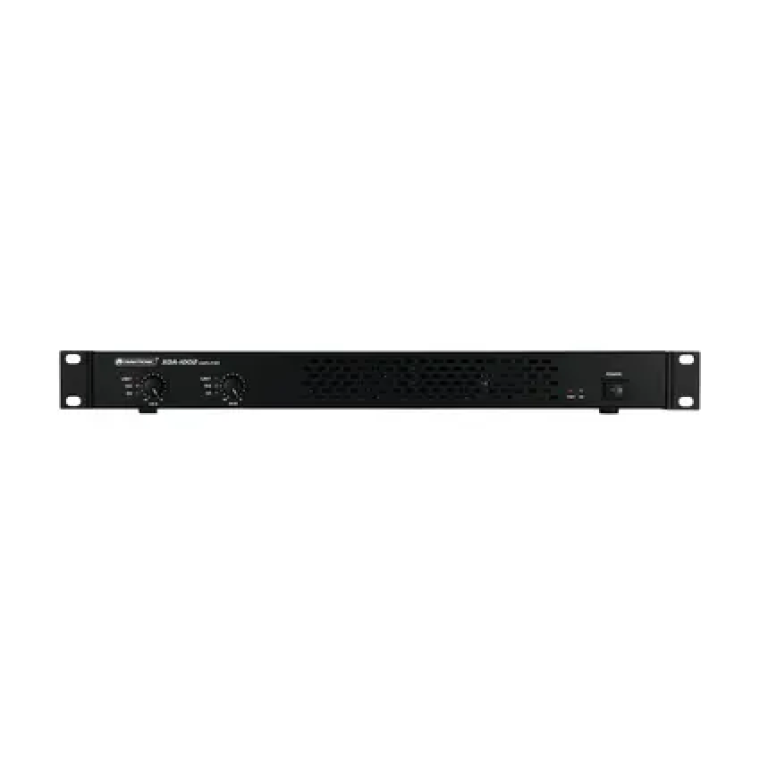

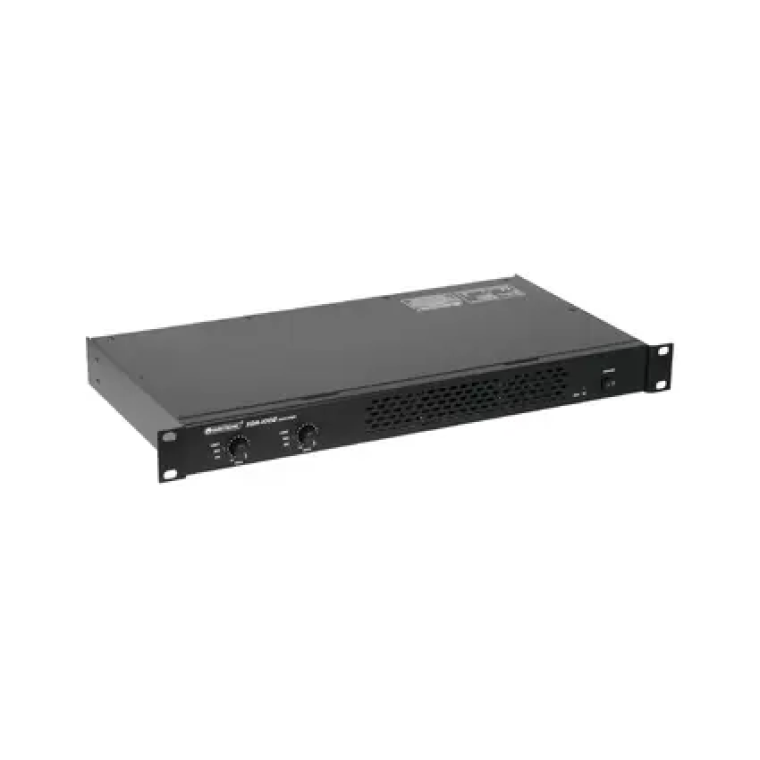

Omnitronic XDA-1002 (Slave)
€409.00
incl. VAT
Out of stock
Interested in this product?
Overview
Class D Amplifier
Class D stereo PA amplifier with SMPS, 2 x 510 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)
- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridged)
- 2 level controls
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- (19") 48.3 cm rack installation 1 U
- The device is cooled by cooling fan
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Omnitronic XDA-1002 – Technical Specifications
Power Supply & Consumption
-
Power Supply: 100-240 V AC, 50/60 Hz
-
Power Consumption: 150 W (1/8 power)
Audio Performance
-
Output Power (RMS):
-
2 x 500 W @ 4 Ω
-
2 x 250 W @ 8 Ω
-
1 x 1000 W @ 8 Ω (Bridged)
-
-
Amplifier Class: Class D
-
Frequency Range: 20 - 20,000 Hz, ±1 dB
-
S/N Ratio: >100 dB
-
THD: <0.05%
Controls & Indicators
-
Control Elements: Power switch, gain controls for Channel 1 & 2, mode switch (Stereo/Parallel/Bridged), switchable high-pass/low-pass filter (120 Hz)
-
Protection Circuits: Softstart, short-circuit, DC voltage, overheat, turn-on/off transients, clip limiter

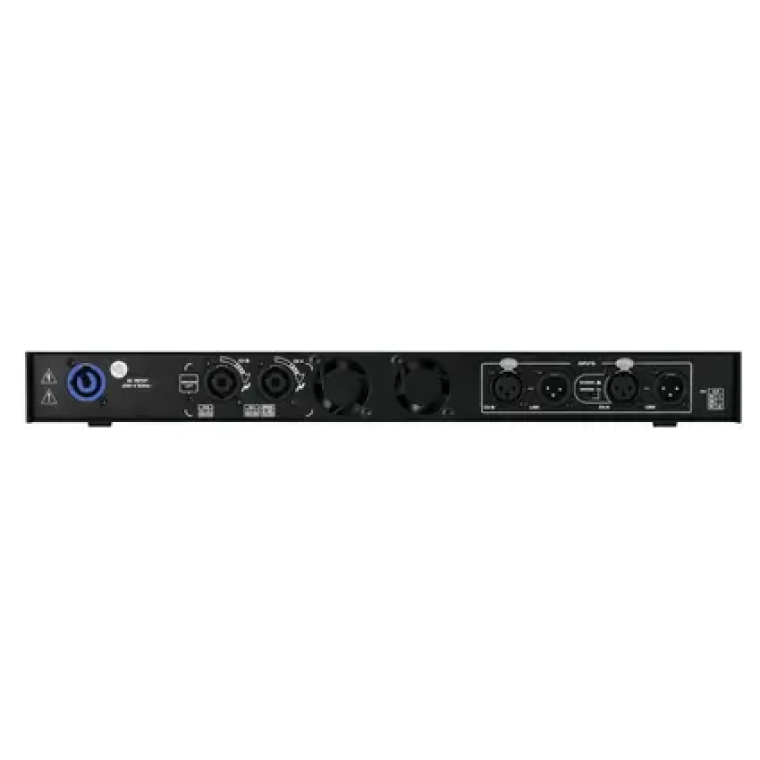

Inputs & Outputs
-
Inputs:
-
2 x XLR (Balanced)
-
2 x 6.35 mm Jack (Unbalanced)
-
-
Outputs:
-
2 x Speaker outputs (Speaker-compatible sockets)
-
2 x XLR Feed-through outputs (Link Out)
-
Physical Specifications
-
Rack Installation: 19" Rack format (1 U height)
-
Housing Design: Heavy-duty steel chassis
-
Dimensions (W x D x H): 483 x 240 x 44 mm
-
Weight: 3.5 kg
Accessories Included
-
AC Power Cable, User Manual
