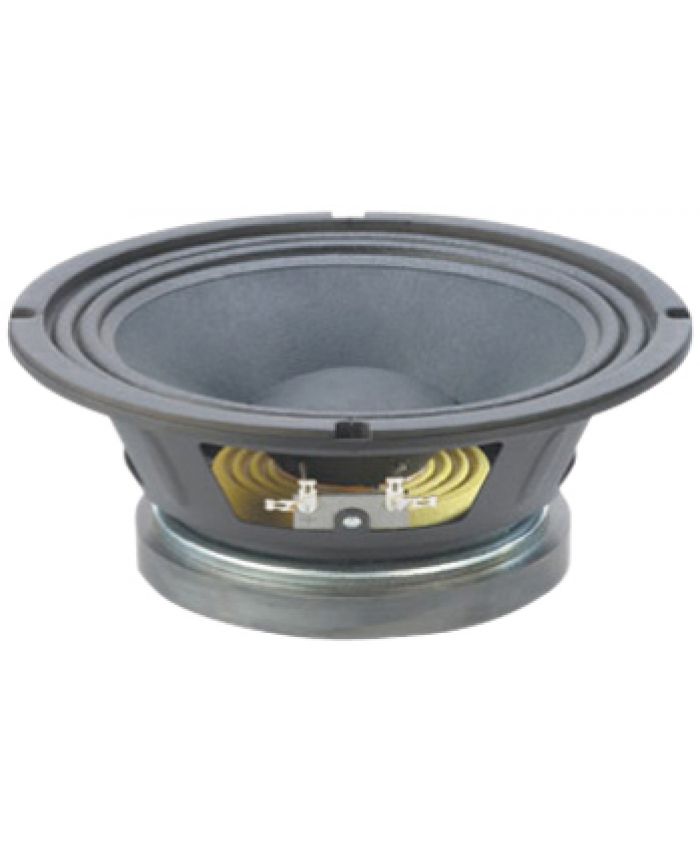

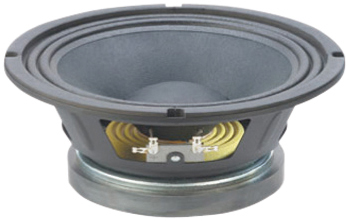

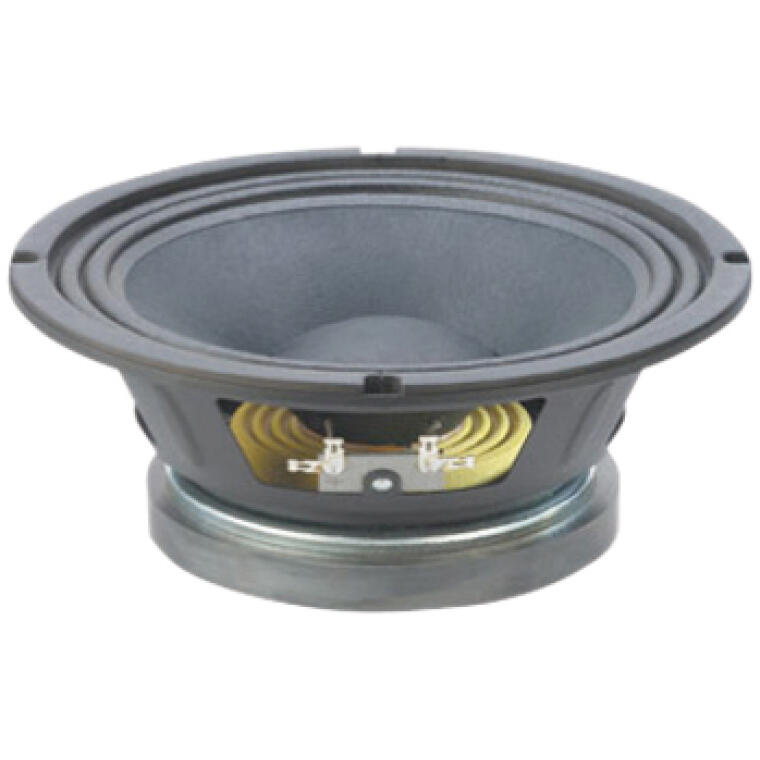

Celecstion TF0818

System & Power Handling

• System Type: 8" high-performance raw midbass transducer

• Power Rating: 100 W RMS (AES standard) / 200 W Continuous

• Impedance: 8 Ω

• Operating Voltage: Professional low-impedance PA amplifier systems

Audio Performance & Transducers

• Low/Mid Transducer: 8" (200 mm) Kevlar-loaded paper cone with cloth surround and 1.75" (45 mm) copper voice coil

• Magnet Type: 31 oz ferrite magnet

• Frequency Response: 70 – 6,000 Hz

• Sensitivity: 94 dB (1W/1m)

Connectivity & Impedance Matching

• Connection Type: Faston terminal tabs (solder or push-fit connector)

• Impedance Matching: Fixed 8 Ω nominal load

Controls & Adjustment

• Hardware Controls: None

• Mounting Alignment: 4-hole perimeter fixing array

Enclosure & Hardware

• Chassis Material: Heavy-gauge pressed steel basket

• Application Modes: High-efficiency midbass driver for 2-way compact PA cabinets and line array modules

Physical Specifications

• Cutout Diameter: 183 mm

• Overall Diameter x Depth: 208 x 89 mm

• Weight: 2.3 kg

Accessories Included

• Manufacturer Data Sheet
