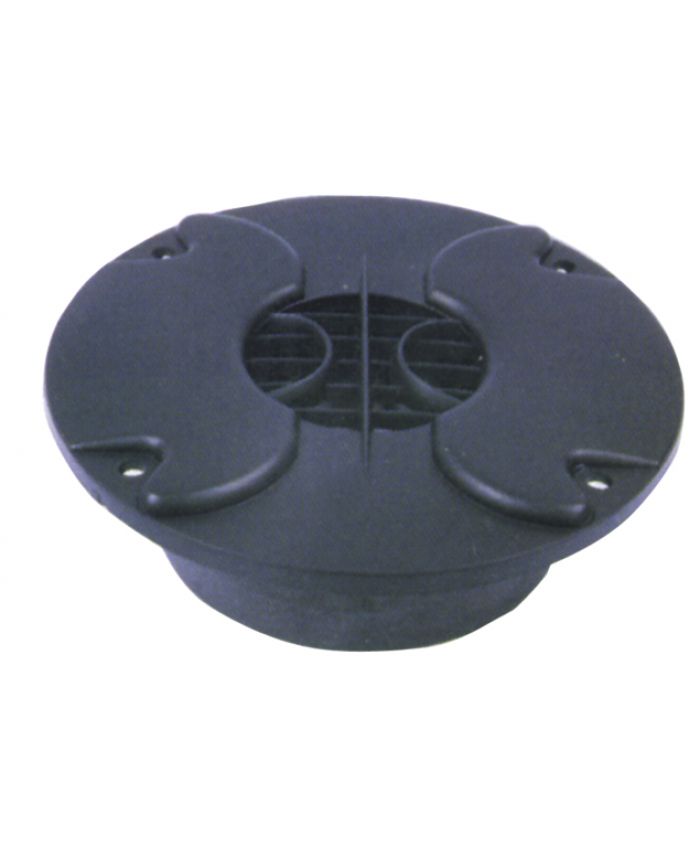

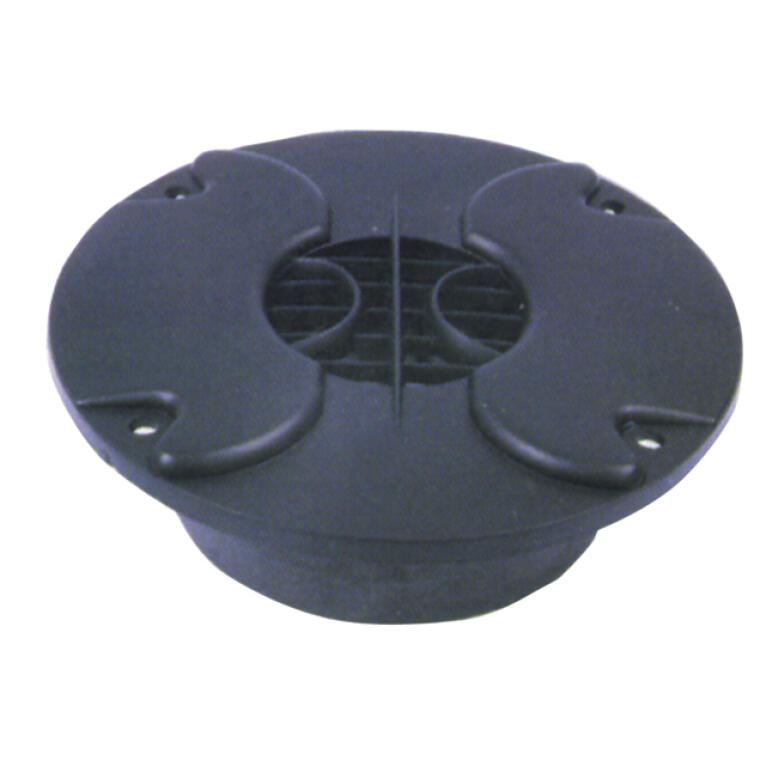

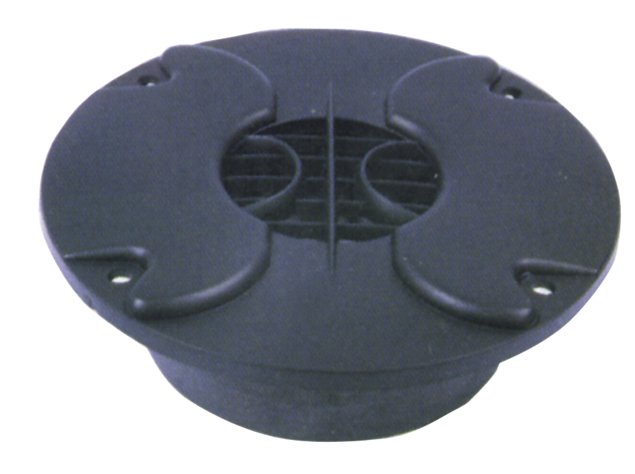

Soundlab L062H

Price on request
In stock
Interested in this product?
Call us

System & Power Handling

  • System Type: 2-way mid-bass woofer driver unit

  • Power Rating: 80 W RMS / 160 W Peak

  • Impedance: 8 Ω

  • Operating Voltage: Low-impedance home audio amplifiers

Audio Performance & Transducers

  • Low Frequency Driver: 6.5" (165 mm) polypropylene cone with rubber edge surround

  • Magnet Weight: 15 oz ferrite magnet

  • Frequency Response: 50 – 6,000 Hz

  • Sensitivity: 89 dB (1W/1m)

Connectivity & Impedance Matching

  • Connection Type: Standard solder lugs

  • Impedance Matching: Fixed 8 Ω input

Controls & Adjustment

  • Hardware Controls: None

  • Mounting Alignment: 4-hole steel rim mount

Enclosure & Hardware

  • Chassis Material: Stamped steel frame

  • Application Modes: Replacement driver for home audio towers, bookshelf monitors, and custom enclosures

Physical Specifications

  • Cutout Diameter: 145 mm

  • Dimensions (Diameter x Depth): 165 x 75 mm

  • Weight: 1.15 kg

Accessories Included

  • Specification Leaflet
